TNV-C8011RW
5MP AI IR Wall Mount Camera
Key Features
• Analytics events based on AI engine
• AI based loitering detection and line crossing detection
• 5MP Wide Panoramic View (H: 175°) with Eye level monitoring
• 15m IR Viewable Length, 25° Tilt Lens
• Compact Size
• WDR 120dB, SSNR, WiseNRII (Based on AI engine)
• Business intelligence (People counting, Vehicle counting, Queue management, Heatmap)
• WiseStreamⅢ (Based on AI engine)
• Built in Microphone
• IP66, IK10
※ Product availability may vary by region, please contact your regional representative.
A new perspective on surveillance
Capture critical eye-level details that traditional ceiling mounts often miss. The panoramic lens delivers a wide 180° field of view in 5MP resolution for superior object and face identification.
This content requires cookie consent to load.Open in new tab
This content requires cookie consent to load.Open in new tab
AI-Powered Wall Mount Camera
Integrated AI drastically reduces false alarms by focusing only on real threats, while streamlining your search and investigation process.

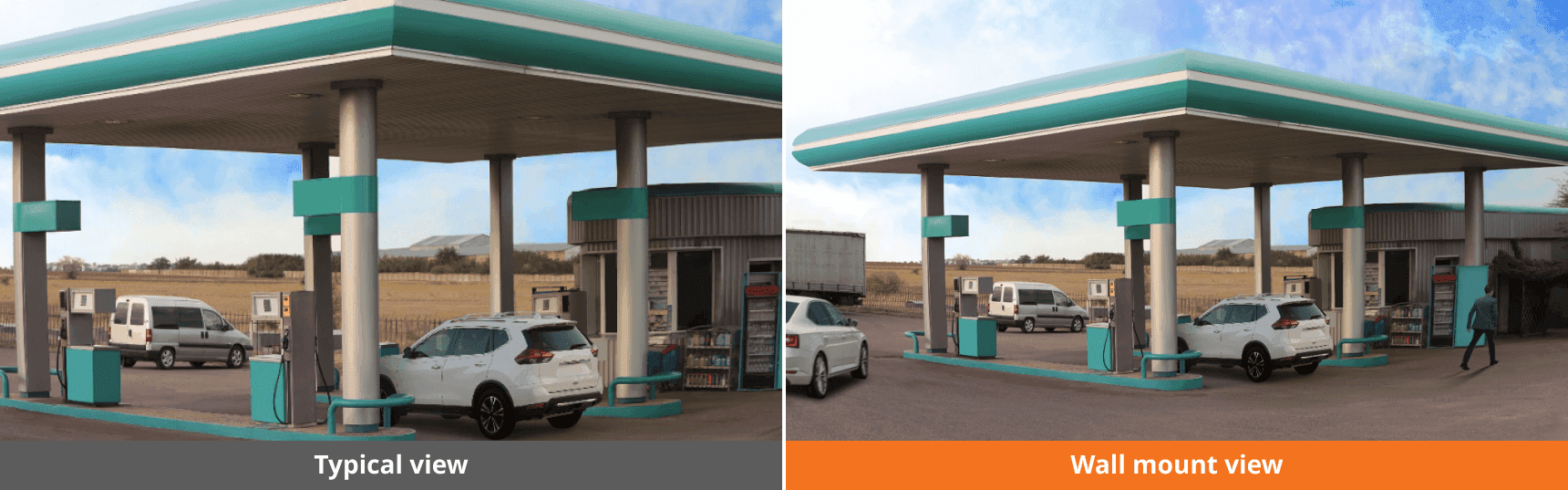

Beyond the Standard Dome, Panoramic View
Eliminate blind spots with an expansive wide-angle view that exceeds standard dome limits. It offers a versatile, all-in-one alternative to complex panoramic setups.

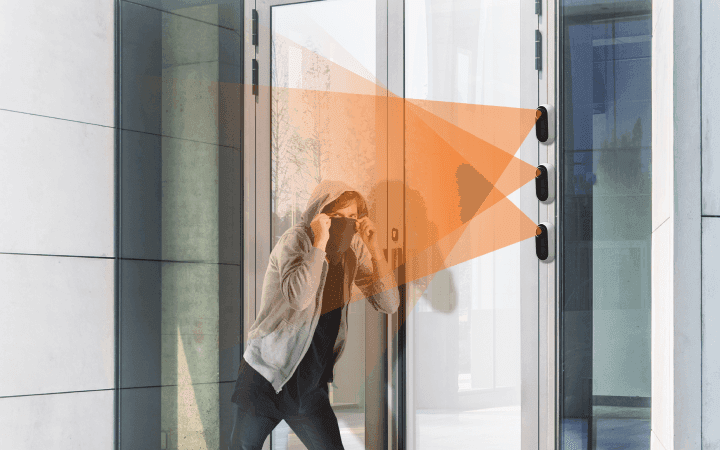

Customize your viewing angle
Easily achieve the perfect field of view for any space with a flexible ±25° lens tilt adjustment.
Listen up
T series wall mount cameras features a built-in microphone allowing users to hear what’s going on up close.
This content requires cookie consent to load.Open in new tab
This content requires cookie consent to load.Open in new tab
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.038 |
| BW(1/30sec, 30IRE) | 0.0038 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 1.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 175° |
| Vertical | 125° | |
| Diagonal | 175° | |
| Min. Object Distance | 0.3m(0.98ft) | |
| Focus Control | Fixed | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Tilt | -25°~+25° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Built-in mic | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 15m(49.21ft) |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Face, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API) | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 11.5W, Typ 4.8W |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | 80(W)x167(H)x57(D)mm(3.15x6.56x2.24") | |
| Product Weight | 600g(1.32lb) | |
| Compatible Gang Box | Single | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10 | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 30.05m(98.59ft) |
| Observe (63PPM/ 19PPF) | Wide | 12.02m(39.44ft) |
| Recognize (125PPM/ 38PPF) | Wide | 6.01m(19.72ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.00m(9.84ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@5MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.038 |
| BW(1/30sec, 30IRE) | 0.0038 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 1.6 | |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Angular Field of View | Horizontal | 175° |
| Vertical | 125° | |
| Diagonal | 175° | |
| Min. Object Distance | 0.3m(0.98ft) | |
| Focus Control | Fixed | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Tilt | -25°~+25° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Triggers | Analytics, Network disconnect | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, send message by HTTP/HTTPS/TCP | |
| Audio In | Built-in mic | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 15m(49.21ft) |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Face, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API) | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -30°C~+60°C(-22°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 11.5W, Typ 4.8W |
Mechanical
| Color | White | |
| Material | Aluminum, Hard-coated dome | |
| RAL Code | RAL9003 | |
| Product Dimensions | 80(W)x167(H)x57(D)mm(3.15x6.56x2.24") | |
| Product Weight | 600g(1.32lb) | |
| Compatible Gang Box | Single | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10 | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 30.05m(98.59ft) |
| Observe (63PPM/ 19PPF) | Wide | 12.02m(39.44ft) |
| Recognize (125PPM/ 38PPF) | Wide | 6.01m(19.72ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.00m(9.84ft) |
Downloads
View Selection
DataSheets
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_TNV-C8011RW_20260806_AR_193551.pdf | 2026-08-06 |
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_TNV-C8011RW_240711_EN.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_TNV-C8011RW_240401_Common.dwg | 2026-08-06 | |
| CAD | CAD_TNV-C8011RW_240401_Common.pdf | 2026-08-06 | |
| CAD | CAD_TNV-C8011RW_240401_Common.dxf | 2026-08-06 |
Certification
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_TNV-C8011RW_240326_EN.docx | 2026-08-06 |
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_TNV-C8011RW_240711_EN.pdf | 2026-08-06 | |
| Quick Guide | Quick-Guide_TNV-C8011RW_240711_AR.pdf | 2026-08-06 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_TNV-C8011RW_20240614_EN-1.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QNV-C8012,QNE-C9013RL,QNE-C8013RL,TNV-C8011RW,QNV-C6083R,QNO-C6083R_260215_EN.txt | 2026-08-06 |
Installation Guide Sheet
| Category | File Name | Last Update | |
|---|---|---|---|
| Installation Guide Sheet | Installation Guide Sheet_TNV-C8011RW_251028_Common.pdf | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_Q_AI_2_16_05_20260805_hva_prod.zip | 2026-08-18 | |
| Firmware | TNV-C8011RW_2.23.10_20260624_R363.zip | 2026-07-01 | |
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-07-01 |
T Series
TID-600R
2MP Intercom
Choose Better. Use Smarter.
From product selection to deployment, learning, and ongoing support, we provide the tools and resources you need to get the most out of Hanwha Vision
