TNM-C2712TDR

Name: TNM-C2712TDR — Early Fire Detection Bi-spectrum Thermal Camera
Brand: Hanwha Vision
SKU: TNM-C2712TDR-ar

Early Fire Detection Bi-spectrum Thermal Camera

QVGA

Thermal Resolution

3MP

Visible Resolution

-10°C~450°C

Temperature Detection

Early Fire Detection

Flame, Temperature

Key Features

• Bi-spectrum Multi-Channel: QQVGA Thermal & 3MP Visible Sensor
• Max. Framerate: Visiable 30fps, Thermal 8fps
• Angular Field of View : Thermal H: 95° / V: 69° / D: 119°
& Visible H: 100° / V: 73° / D: 129°
• Early fire detection (Analytics events based on AI engine)
• Temperature detect range (-10°C~450°C)
,Temperature difference detection
• IP66/IP67, IK09 (except lenses in front)
• PoE: Max 10.8W, typical 6.2W

※ Product availability may vary by region, please contact your regional representative.

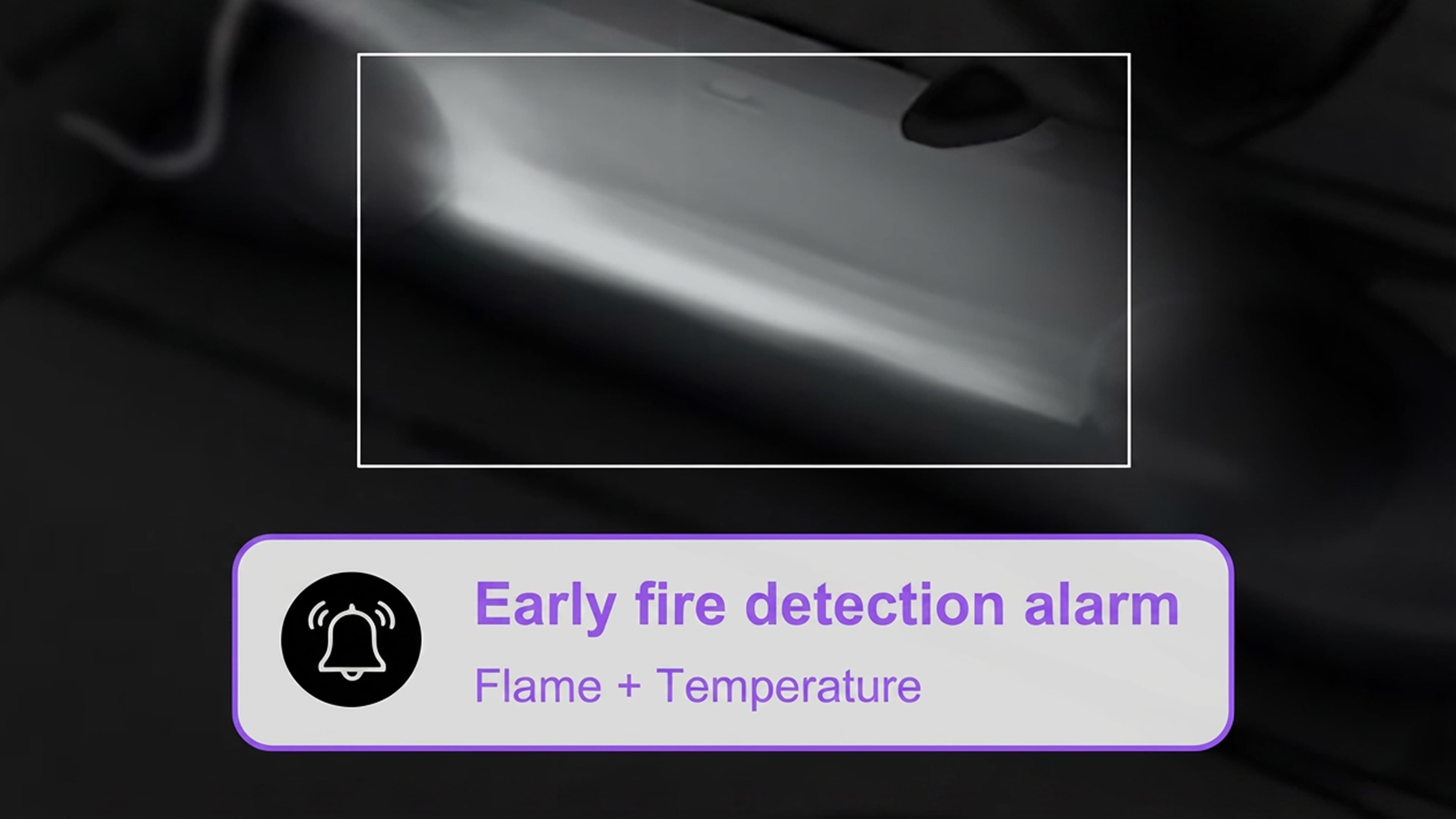

Early Fire Detection

TNM-C2712TDR detects flames with video analytics and thermal data, alerting users to potential fire risks.

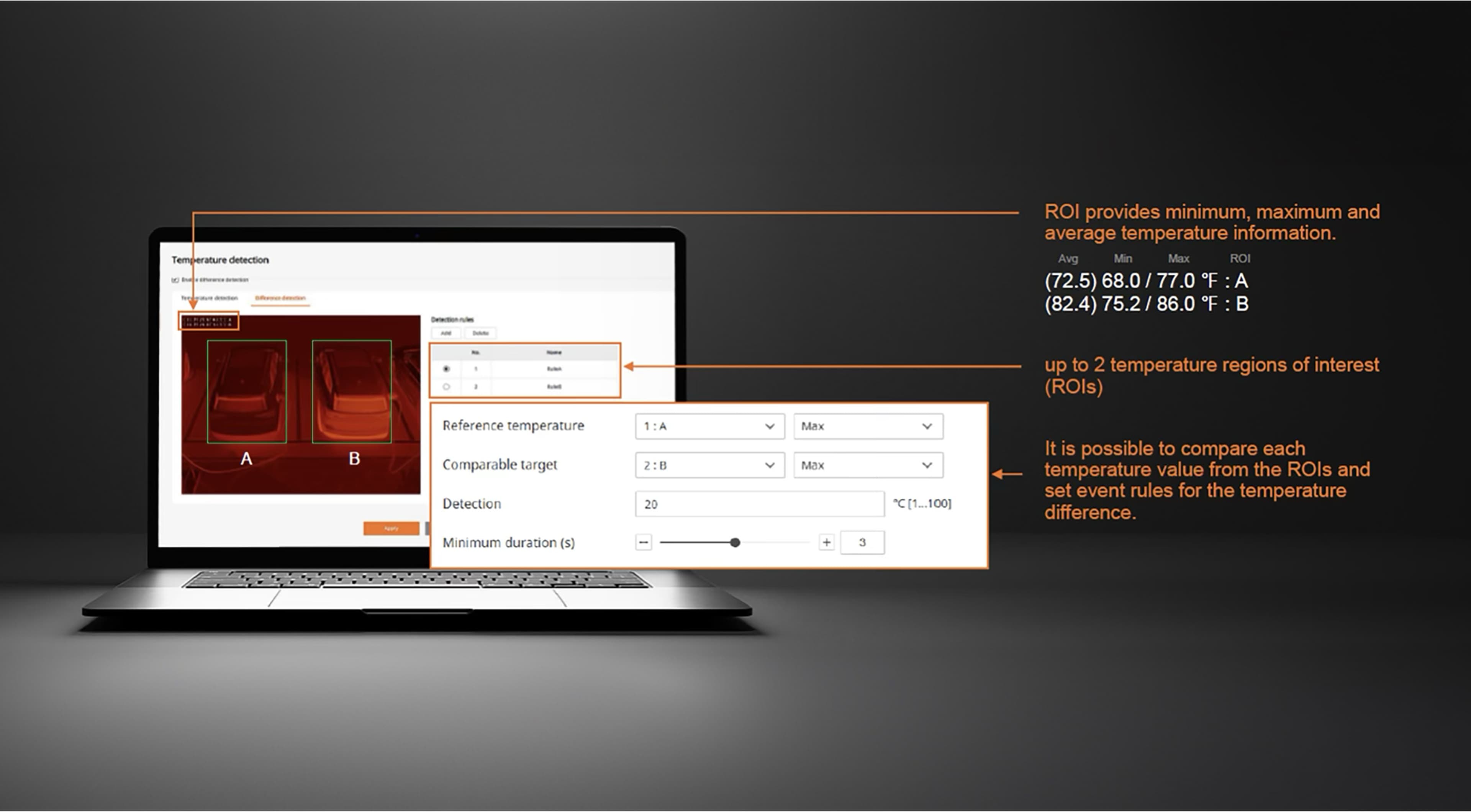

Targeted Temperature Monitoring

Support up to two ROIs (Regions of Interest) to monitor min, max, and average temperatures, with customizable alerts for proactive monitoring and better decision-making.

Prevent Overhearing and Failures

Measure temperatures from -10°C to 450°C (14°F–842°F) and receive instant alerts when thresholds are exceeded, helping prevent equipment damage and ensure safety.

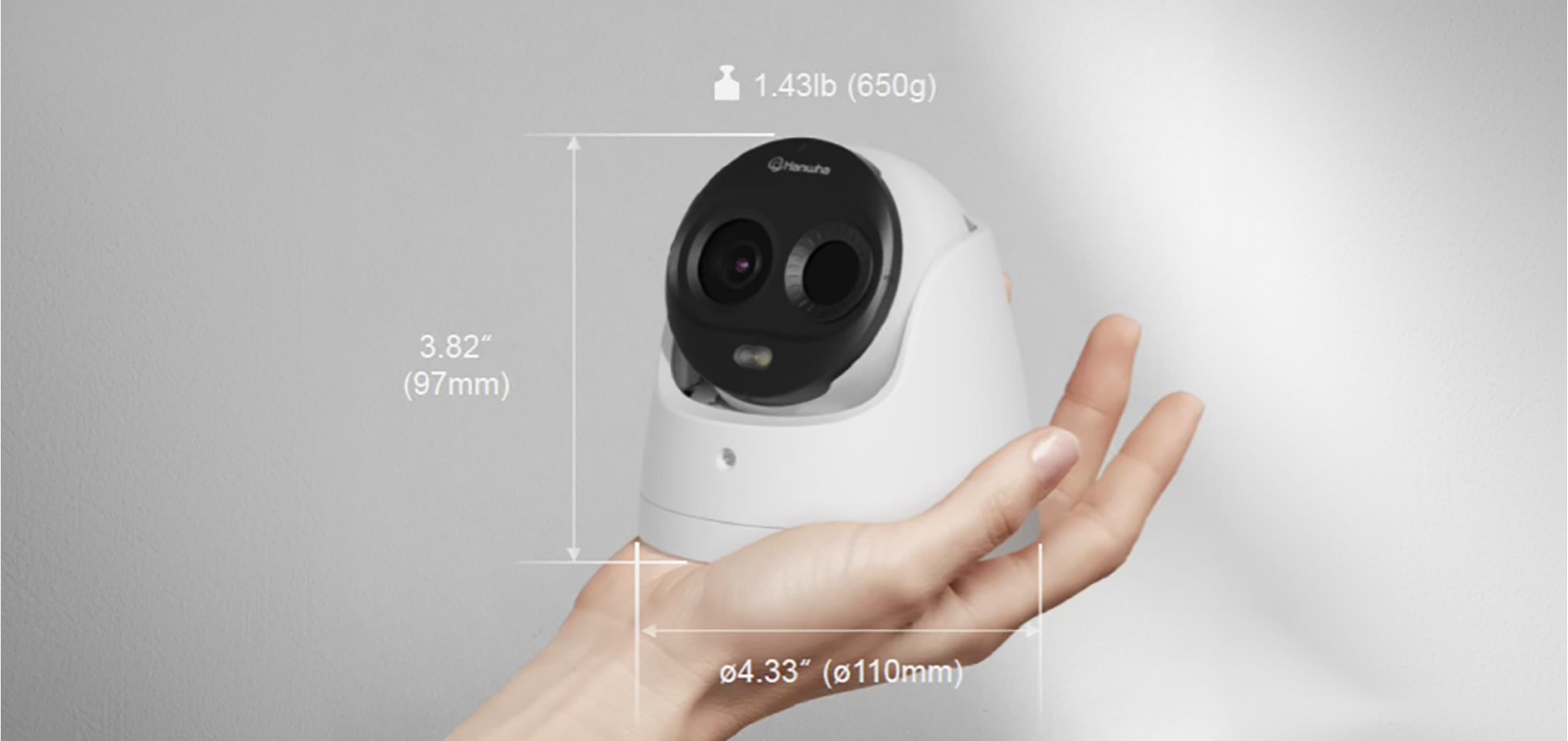

Flexible Installation

These cameras are more compact and lightweight than previous Hanwha Vision thermal camera models, allowing flexible installation in tight spaces without compromising performance.

Specifications

Video

		CH1	CH2
Imaging Device	Size	1/2.8"	-
Imaging Device	Type	CMOS	Uncooled micro bolometer (160x120)
Resolution		2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	640x480, 320x240
Max. Framerate	H.265/H.264	30fps/25fps(60Hz/50Hz)	8fps
Max. Framerate	MJPEG	5fps	5fps
Spectral Range		-	8~14㎛
NETD		-	≤50mK
Pixel Size		-	12㎛
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.06	-
Min. Illumination (Lux)	BW(1/30sec, 30IRE)	0.06	-

Video

		CH1	CH2
Imaging Device	Size	1/2.8"	-
Imaging Device	Type	CMOS	Uncooled micro bolometer (160x120)
Resolution		2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	640x480, 320x240
Max. Framerate	H.265/H.264	30fps/25fps(60Hz/50Hz)	8fps
Max. Framerate	MJPEG	5fps	5fps
Spectral Range		-	8~14㎛
NETD		-	≤50mK
Pixel Size		-	12㎛
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.06	-
Min. Illumination (Lux)	BW(1/30sec, 30IRE)	0.06	-

Lens

		CH1	CH2
Focal Length (mm)		3.06	1.2
Max Aperture Ratio (F number)	Wide	F1.6	F1.1
Angular Field of View	Horizontal	100	95
	Vertical	73	69
	Diagonal	129	119
Min. Object Distance		1.1m(3.6ft)	0.15m(0.49ft)
Focus Control		Fixed	Fixed

Pan / Tilt / Rotate

		CH1	CH2
Pan / Tilt / Rotate Range	Pan	0°~360°
	Tilt	0°~70°
	Rotate	0°~360°

Operational

		CH1	CH2
Day & Night		Auto(Electrical)	-
Backlight Compensation		BLC, WDR, SSDR	-
Wide Dynamic Range (dB)		120	-
Digital Noise Reduction		SSNRⅤ	-
Motion Detection	Quantity	8ea	8ea
Motion Detection	Shape	8point Polygonal zones	8point Polygonal zones
Privacy Masking	Quantity	6ea	6ea
	Shape	Rectangular zones	Rectangular zones
	Color / Option	Gray, Black, White	Gray, Black, White
Gain Control		Low, Middle, High	-
White Balance		ATW, AWC, Manual, Indoor, Outdoor	-
LDC		Support	-
Electronic Shutter	Mode	Minimum, Maximum, Anti flicker	-
Electronic Shutter	Speed Range	1/5~1/12,000sec	-
Video Rotation		Flip, Mirror	Flip, Mirror
Alarm Interface	In/Out	Input 1ea, Output 1ea	-
Alarm Triggers		Analytics, Network disconnect, Alarm input, MQTT subscription	-
Alarm Events When Alarm Trigger Occurred		File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication, Light alarm	-
Audio In		Selectable(mic in/line in)	-
Audio Out		Line out	-
Color Pallettes		-	Whitehot, Sepia, Red, Custom

Radiometry

		CH1	CH2
Temperature Detect Range		-	-10°C~450°C
Temperature Accuracy		-	Greater of ±10°C or 10%
Temperature Detection ROI Zones	Quantity	-	2ea
Temperature Detection ROI Zones	Shape / Option	-	Rectangle
Spot Temperature Reading		-	Support
ROI Condition Monitoring		-	Above, Below, Increase, Decrease

Security

	CH1	CH2
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure), SRTP
Access Control	IP-based access control
Data Protect	Encryption credentials
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt(AES-256)

General

		CH1	CH2
Memory	RAM	2GB
	Flash	512MB
Edge Storage	Micro SD/SDHC/SDXC	Max. 512GB x 1slot

Environmental & Electrical

		CH1	CH2
Operating Condition	Temperature	-30°C~+55°C(-22°F~+131°F)
	Humidity	0~95% RH(non-condensing)
	Others	Start up should be done at above -10°C
Storage Condition	Temperature	-40°C~+60°C(-40°F~+140°F)
	Humidity	0~95% RH(non-condensing)
Input Voltage		PoE(IEEE802.3af, Class3)
Power Consumption	PoE	Max 10.8W, typical 6.2W

Mechanical

	CH1	CH2
Color	White
Material	Aluminum
RAL Code	RAL9003
Product Dimensions	Ø110x97mm(ø4.33x3.82")
Product Weight	650g(1.43lb)
Compatible Gang Box	Single

Certifications & Standards

	CH1	CH2
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK09

DORI (EN62676-4 standard)

		CH1	CH2
Detect (25PPM/ 8PPF)	Wide	34.4m(112.8ft)	-
Observe (63PPM/ 19PPF)	Wide	13.7m(44.9ft)	-
Recognize (125PPM/ 38PPF)	Wide	6.9m(22.6ft)	-
Identify (250PPM/ 76PPF)	Wide	3.4m(11.1ft)	-

Thermal Detection Range

	CH1	CH2
Temperature Detection	-	7m(22.96ft)
Early Fire Detection	-	7m(22.96ft)
