SPA-C110B
IP Ceiling Speaker

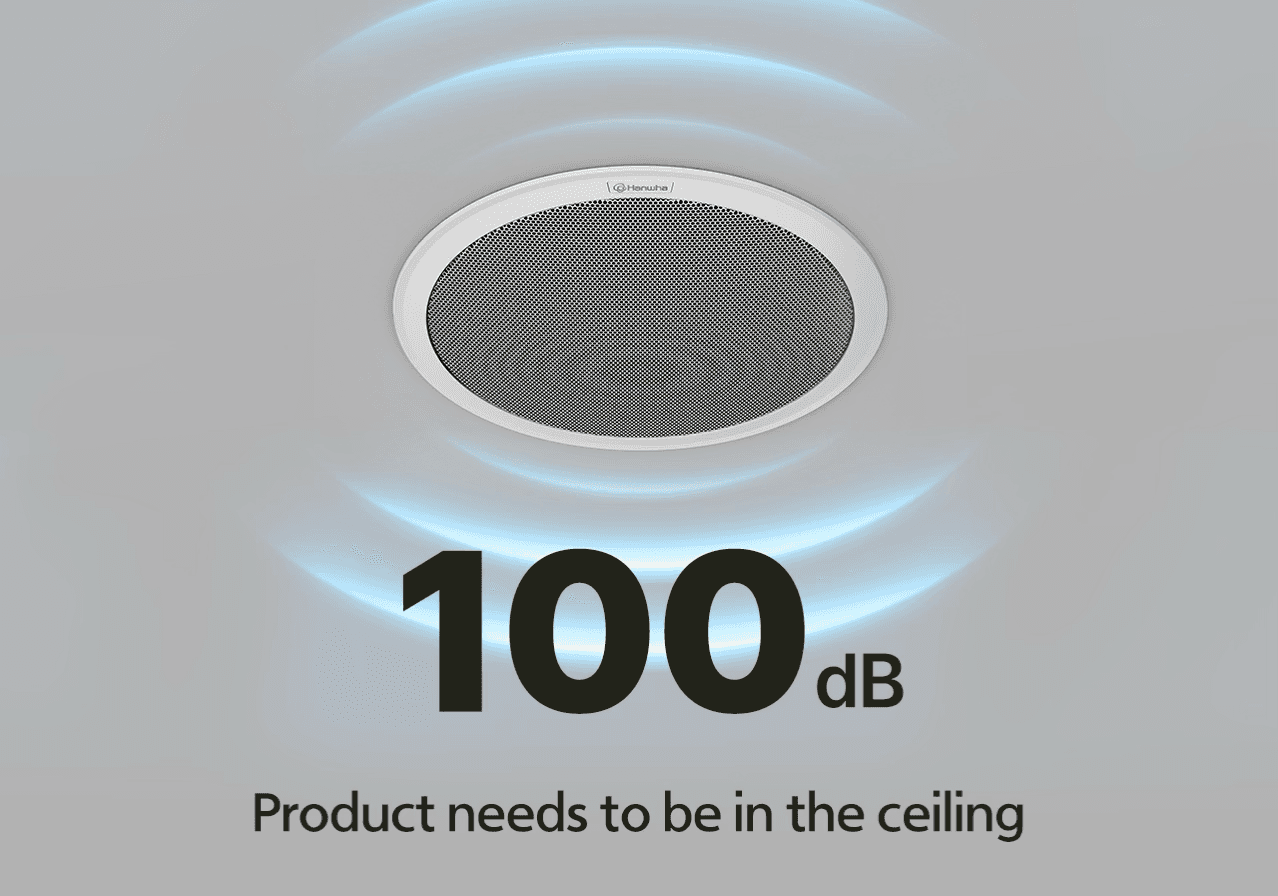

100dB
Max. Sound Pressure Level
Built in 10W Class D
Amplifier
90dB
Sensitivity
20Hz ~ 20kHz
Frequency Response
Key Features
• Output Level: +6dBV ± 3dB
• Frequency Response: 20Hz ~ 20kHz
• Amplifier: Built in 10W Class D
• Power: PoE (IEEE 802.3 af type 1 Class 3), PoE+(IEEE 802.3 at type 2 Class 4)
• Internal Memory: 1 GBytes
• Max. Sound Pressure Level: 100dB
• Frequency Range (-10dB): 120Hz~20kHz
• Sensitivity (1Watt): 90dB
• Supported Protocol:IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3)
• TTS: English(US, UK), German, French, Spanish, Russian
• Audio Mornitoring: Speaker test by graphic level meter (Built in test tool)
※ Product availability may vary by region, please contact your regional representative.
High-Quality IP Audio Output
The SPA-C110W delivers clear and consistent audio with a built-in 10W Class D amplifier and a maximum sound pressure level of 100dB. Its wide frequency range ensures announcements and alerts remain intelligible, even in busy or high-noise environments.

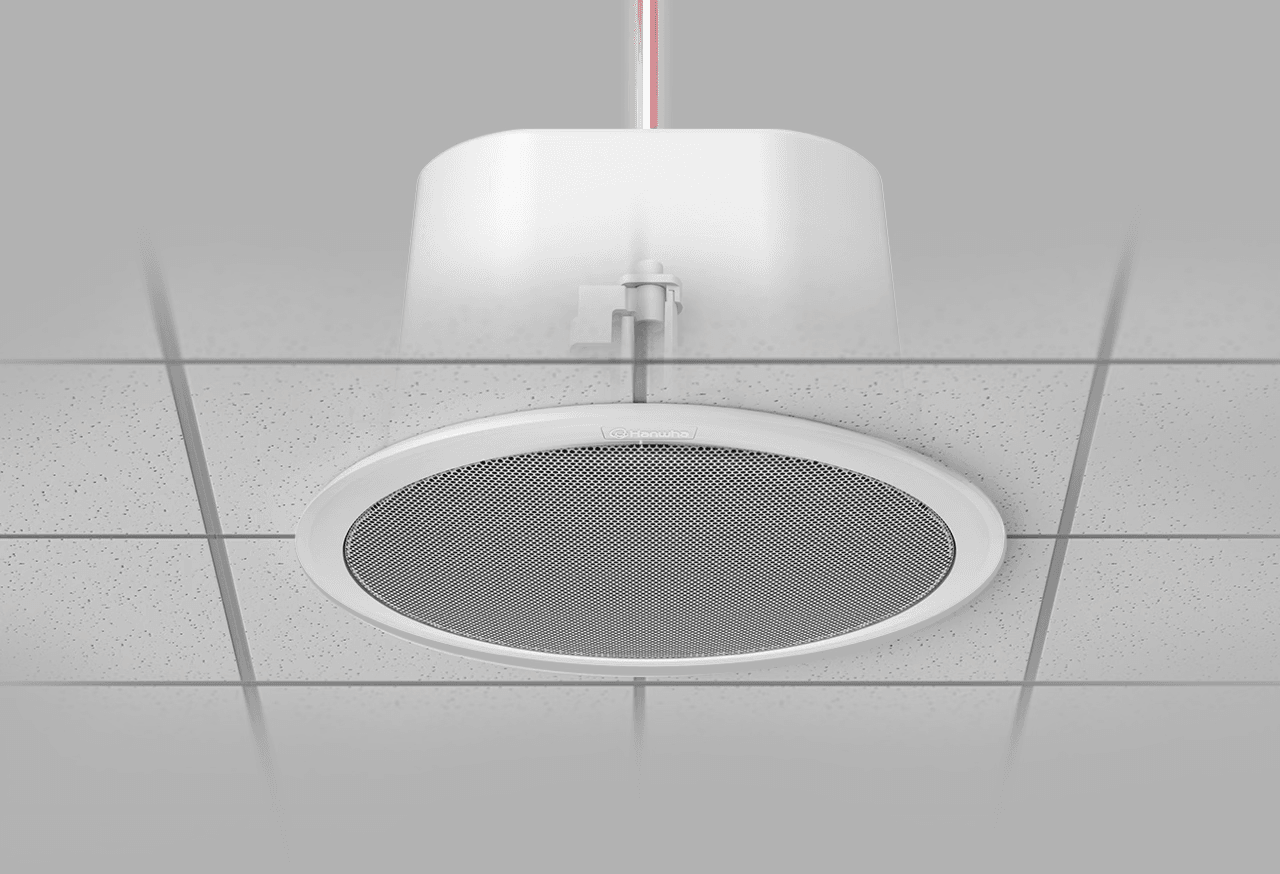

Simplified Installation with PoE
Supporting both PoE and PoE+, the SPA-C110W requires only a single Ethernet cable for power and data. This reduces installation complexity, lowers infrastructure costs, and enables flexible ceiling-mounted deployments across enterprise and commercial spaces.
