PNM-C9022RV
8MP IR Panoramic Camera
Key Features
• Max. 8MP panoramic stitching image
• IR viewable length Maximum 20m (65.6ft), WiseIR
• H.265/H.264/MJPEG Max. 20fps
• H.265, H.264, MJPEG codec
• Day & Night (ICR), extremeWDR (120 dB)
• Hard-coated dome bubble
• WiseNRⅡ(Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine : Object classification(Person/Vehicle)
• Analytics events : Defocus detection, Motion detection, Tampering, Audio detection,
Sound classification, Virtual area(Appear/Disappear)
• IP66, IK10, NEMA 250 type 4X
※ Product availability may vary by region, please contact your regional representative.

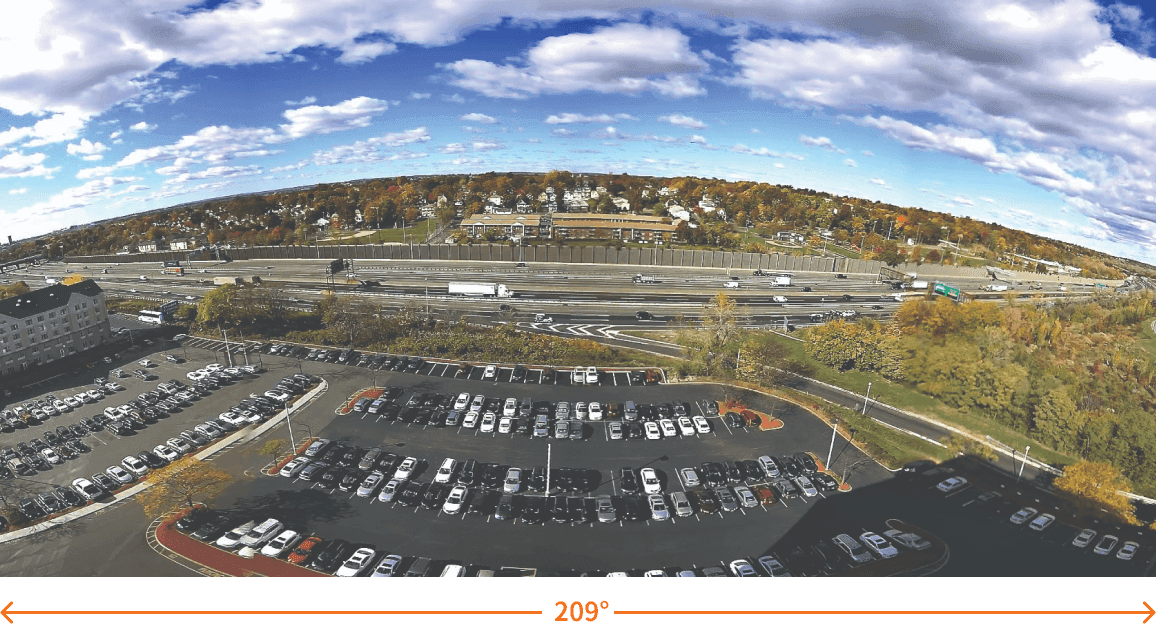

Wide Coverage with 4CH Panoramic Camera
The PNM-C9022RV delivers a seamless 209⁰ field of view, providing expansive panoramic monitoring and cost savings.

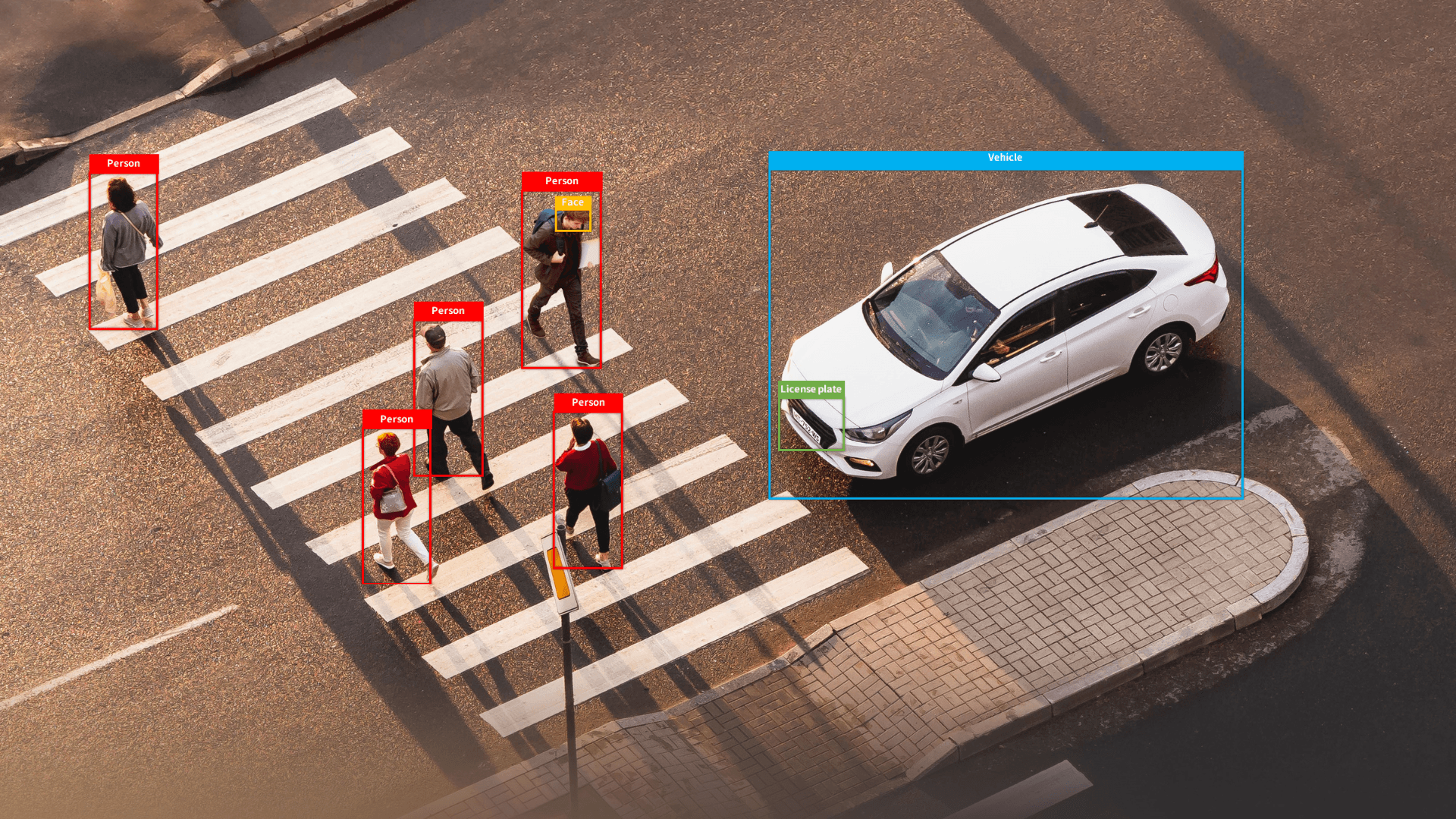

Improved Operational Efficiency with AI
Advanced AI algorithms detect and classify humans, faces, vehicles, and license plates in real-time. By distinguishing target objects from environmental noise—such as moving trees, shadows, or animals—it significantly reduces false alarms.
24/7 Surveillance with WiseIR
Four independent IR zones provide up to 20m of range tailored to the scene. This eliminates blind spots and ensures clear monitoring at night or in low-light conditions.
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 5120x1568, 3648x1152, 2560x784, 1280x392 | |
| Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| MJPEG | 20fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 2.8 | |
| Zoom Ratio | Optical | 4x |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 209° |
| Vertical | 60° | |
| Min. Object Distance | 5m(16.4ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed iris | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~65° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 10ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Vehicle | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) | |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 24.5W, typical 11.3W |
| 12VDC | Max. 22W, typical 10.4W | |
| Power Redundance Failover | Support | |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x170mm(9.96x6.69") | |
| Product Weight | 2,900g(6.39lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 52.2m(171.25ft) |
| Observe (63PPM/ 19PPF) | Wide | 20.9m(68.50ft) |
| Recognize (125PPM/ 38PPF) | Wide | 10.4m(34.25ft) |
| Identify (250PPM/ 76PPF) | Wide | 5.2m(17.13ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 5120x1568, 3648x1152, 2560x784, 1280x392 | |
| Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
| MJPEG | 20fps | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
| BW(1/30sec, 30IRE) | 0.01 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 2.8 | |
| Zoom Ratio | Optical | 4x |
| Max Aperture Ratio (F number) | Wide | 2.0 |
| Angular Field of View | Horizontal | 209° |
| Vertical | 60° | |
| Min. Object Distance | 5m(16.4ft) | |
| Focus Control | Fixed | |
| Lens Type | Fixed iris | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~65° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 10ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Vehicle | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) | |
Network
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Optional (needs gateway) | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | |
General
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE | Max. 24.5W, typical 11.3W |
| 12VDC | Max. 22W, typical 10.4W | |
| Power Redundance Failover | Support | |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø253x170mm(9.96x6.69") | |
| Product Weight | 2,900g(6.39lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 52.2m(171.25ft) |
| Observe (63PPM/ 19PPF) | Wide | 20.9m(68.50ft) |
| Recognize (125PPM/ 38PPF) | Wide | 10.4m(34.25ft) |
| Identify (250PPM/ 76PPF) | Wide | 5.2m(17.13ft) |
Downloads
View Selection
DataSheets
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-C9022RV_20260806_AR_193924.pdf | 2026-08-13 |
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_PNM-C9022RV_240704_EN.pdf | 2026-08-13 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-9031RVPNM-C9022RV_221102_Common.pdf | 2026-08-13 | |
| CAD | CAD_PNM-9031RVPNM-C9022RV_221102_Common.dxf | 2026-08-13 |
Certification
Quick Guide
| Category | File Name | Last Update | |
|---|---|---|---|
| Quick Guide | Quick-Guide_PNM-9031RVPNM-C9022RV_240704_EN.pdf | 2026-08-13 |
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-C9022RV_20221208_EN.pdf | 2026-08-13 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-C9022RVPNM-9031RV_241128_EN.txt | 2026-08-13 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_P_AI_2_16_07_20260825_hva_prod.zip | 2026-08-27 | |
| Firmware | PNM-C9022RV_2.24.01_20260326_R144.zip | 2026-04-02 | |
| Firmware | WiseAI_v_PNM-C9022RV_1_02_01_20251222.zip | 2026-04-02 |
P Series
PNM-A13022RV
13MP AI IR Panoramic Camera
PNM-9031RV
15MP Panoramic Camera
PNM-9022V
8MP Panoramic Camera
Choose Better. Use Smarter.
From product selection to deployment, learning, and ongoing support, we provide the tools and resources you need to get the most out of Hanwha Vision
