PNM-C19183RVTP
5MP 3CH fixed + 4MP 18x PTZ AI Camera
5MP x 3CH
Multisensor
4MP 18x
PTZ
15m
IR Length
IK10
Rated
Key Features
- 5MP x 3Ch Multi-sensor
- 4MP x 18x PTZ
- 15m IR Length
- IK10 Rated
- AI Based Analytics and Business Intelligence
- Auto calibration
- Supports Smart Zoom (Advanced Handover)
- WiseStream (Based on AI engine)
※ Product availability may vary by region, please contact your regional representative.

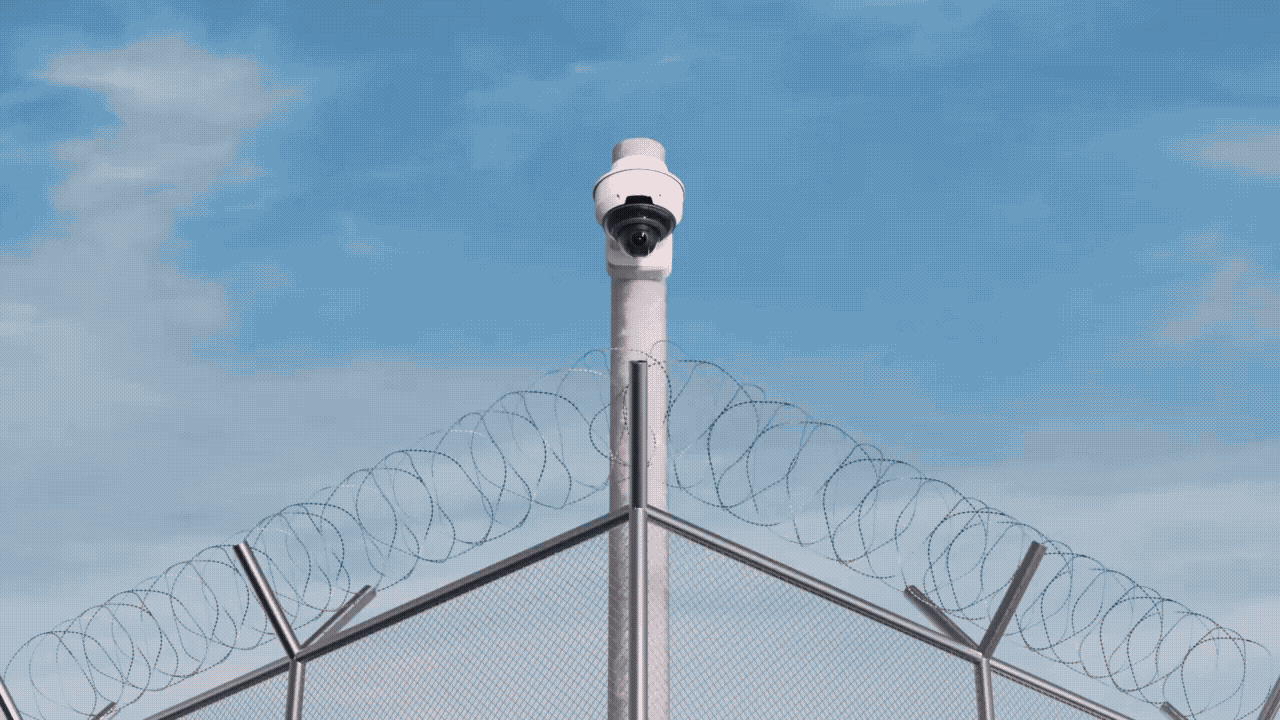

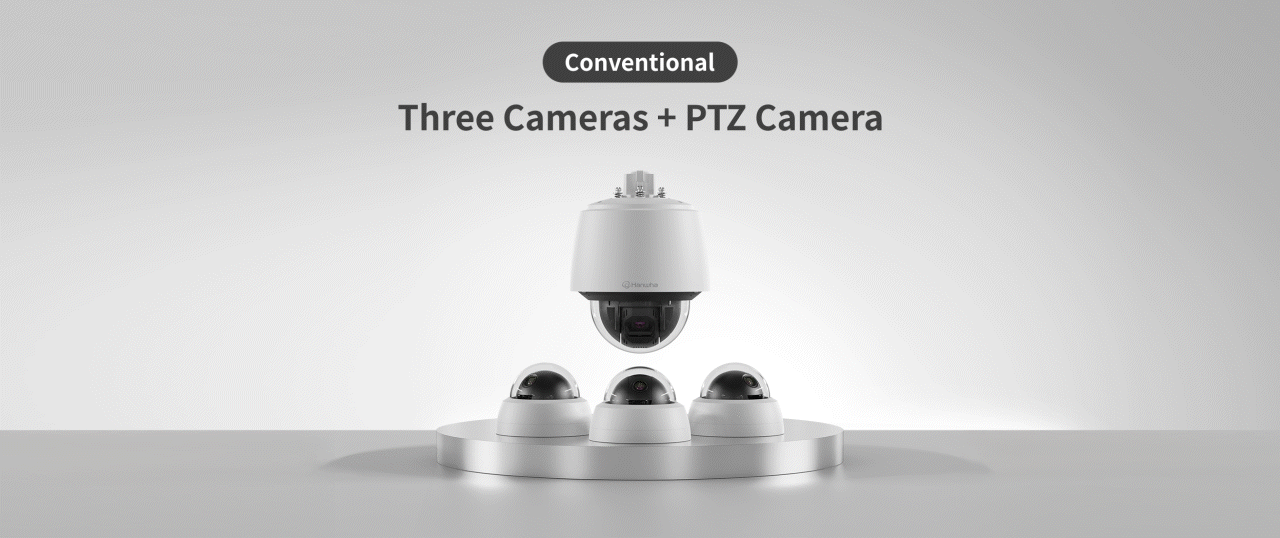

Seamless Wide-Area Coverage
The PNM-C19183RVTP provides seamless wide area coverage with three 5MP fixed lenses and an 18x AI-powered PTZ in a single device.
Reliable surveillance in low light environments
Three independently controlled IR zones ensure reliability in dark or complex environments at distances of up to 15 meters.

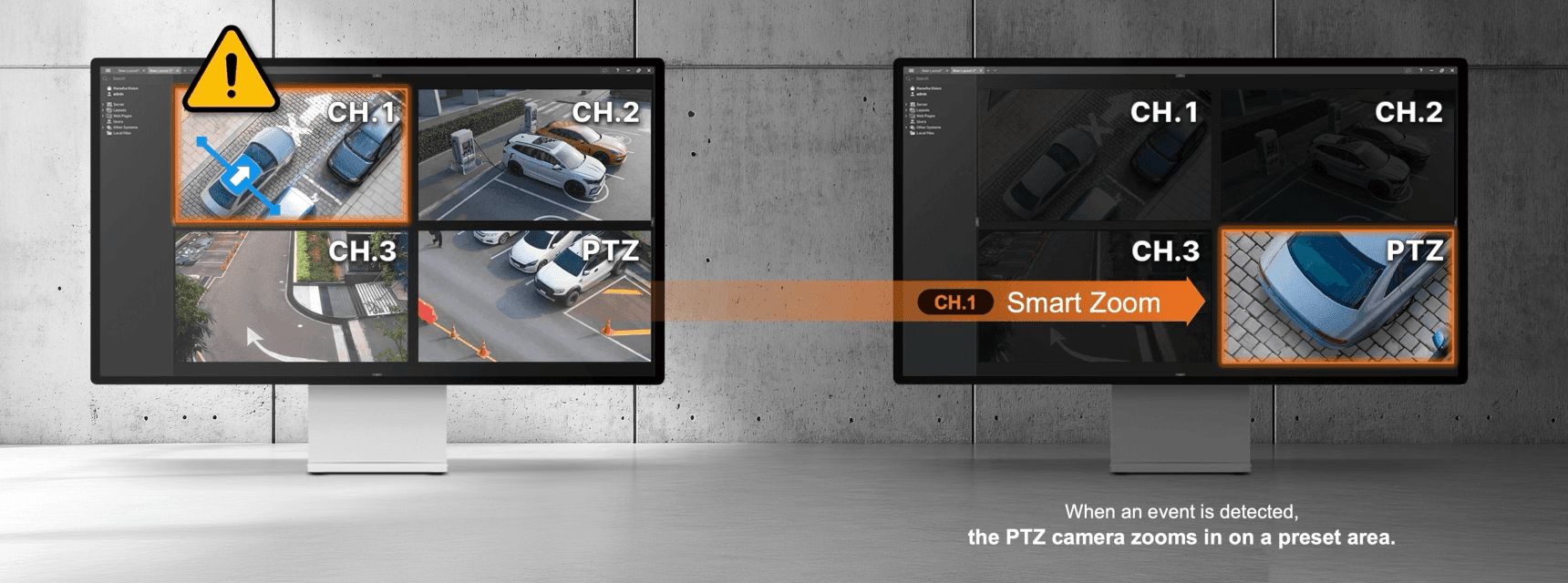

Fast, Intelligent Object Tracking
Smart PTZ handover enables rapid, intelligent zoom-in and subject tracking.

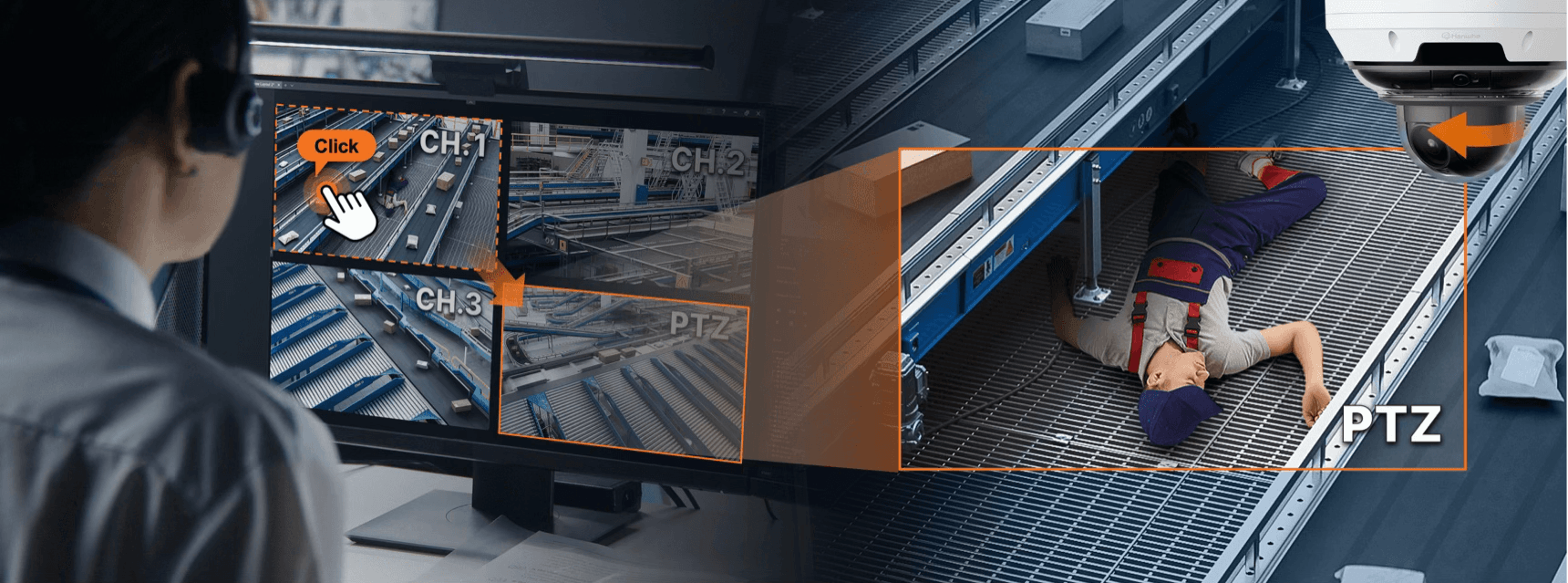

Improve Response Time
With one click, operators can trigger the PTZ to focus on a specific area from any fixed view improving response times during live monitoring.

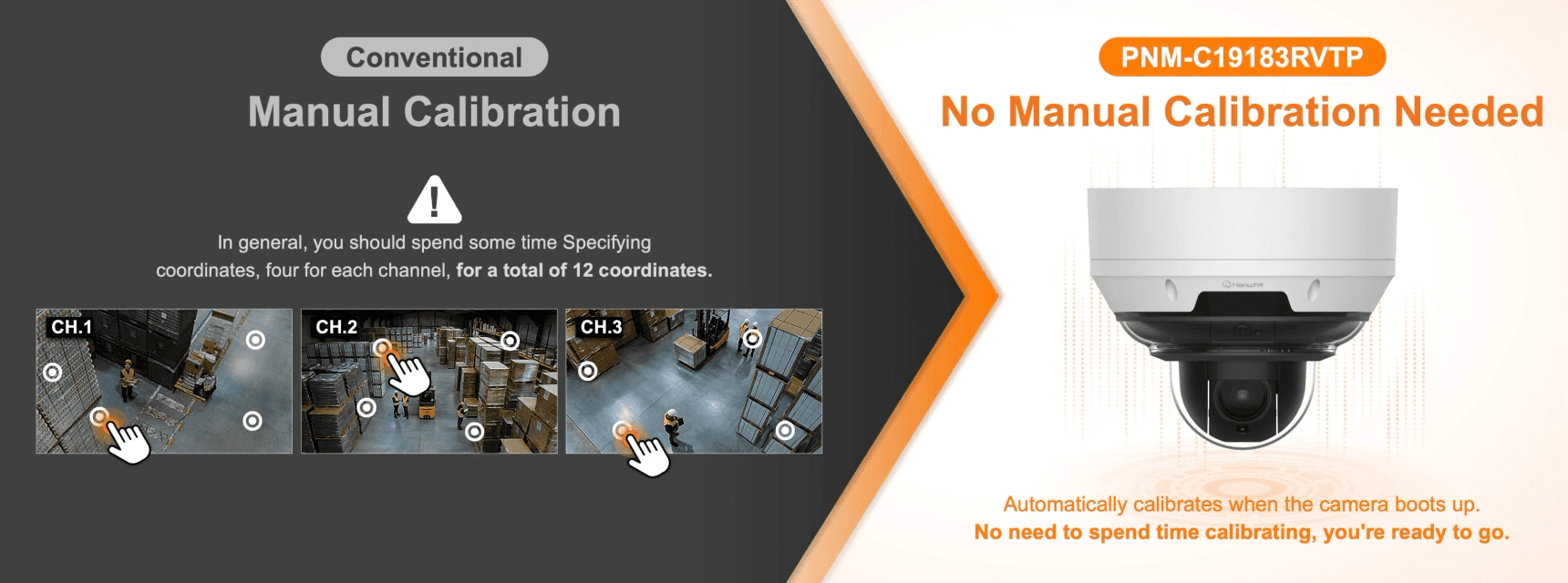

Streamlined Setup Process
The PTZ auto-calibrates on boot-up, instantly aligning with the fixed lenses with no manual configuration needed.
Specifications
Video
| CH1 | CH2 | CH3 | CH4 | ||
| Imaging Device | Size | 1/2.8" | - | - | - |
| Type | CMOS | - | - | - | |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps | 30fps | 30fps | 30fps |
| MJPEG | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.08 | 0.08 | 0.08 | 0.05 |
| BW(1/30sec, 30IRE) | 0.008 | 0.008 | 0.008 | 0.005 | |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. | - | - | - | |
Lens
| CH1 | CH2 | CH3 | CH4 | ||
| Focal Length (mm) | 2.4 | 2.4 | 2.4 | 5.42~98.29 | |
| Zoom Ratio | Optical | - | - | - | 18x |
| Digital | - | - | - | 32x | |
| Max Aperture Ratio (F number) | Wide | 2.0 | 2.0 | 2.0 | 2.0 |
| Tele | - | - | - | 3.27 | |
| Angular Field of View | Horizontal | 123° | 123° | 123° | 53.1°~3.39° |
| Vertical | 91° | 91° | 91° | 31.75°~1.98° | |
| Diagonal | 159° | 159° | 159° | 60.8°~3.92° | |
| Min. Object Distance | 0.5m(1.64ft) | 0.5m(1.64ft) | 0.5m(1.64ft) | 5.0m(16.4ft) | |
| Focus Control | Fixed | Fixed | Fixed | Oneshot AF, Focus save | |
| Lens Type | Fixed iris | Fixed iris | Fixed iris | Adaptive P iris | |
Pan / Tilt / Rotate
| CH1 | CH2 | CH3 | CH4 | ||
| Pan Speed | Preset | - | - | - | Max. 600°/sec |
| Manual | - | - | - | 0.024°/sec~250°/sec | |
| Tilt Speed | Preset | - | - | - | Max. 500°/sec |
| Manual | - | - | - | 0.024°/sec~250°/sec | |
| Sequence | - | - | - | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | - | - | - | ±0.2° | |
Operational
| CH1 | CH2 | CH3 | CH4 | ||
| Direction Indicator | - | - | - | Support | |
| Day & Night | Auto(ICR) | - | - | - | |
| Backlight Compensation | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | - | - | - | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | - | - | - | |
| Digital Image Stabilization | - | - | - | Support | |
| Defog | Support | - | - | - | |
| Motion Detection | Quantity | 8ea | - | - | - |
| Shape | 8point Polygonal zones | - | - | - | |
| Privacy Masking | Quantity | 12ea | 12ea | 12ea | 32ea |
| Shape | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White, Mosaic | |
| Gain Control | Low, Middle, High | Low, Middle, High | Low, Middle, High | Off, Max gain, Manual | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium | |
| LDC | Support | Support | Support | - | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) | - | - | - |
| Speed Range | 1/5~1/12,000sec | - | - | - | |
| Video Rotation | - | - | - | Flip, Mirror | |
| Alarm Interface | Others | Support alarm I/O via optional I/O box | - | - | - |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | - | - | - | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom | - | - | - | |
| Audio In | Support via optional I/O box | - | - | - | |
| Audio Out | Support via optional I/O box | - | - | - | |
| Light Type | IR LED | IR LED | IR LED | - | |
| Light Viewable Length | IR | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | - |
| IR Wavelength | 850nm | 850nm | 850nm | - | |
| Auto Tracking | - | - | - | Object auto tracking(Person/Vehicle), Target lock tracking | |
Analytics
| CH1 | CH2 | CH3 | CH4 | ||
| Classified Object Type | Person, Face, Vehicle, License plate | - | - | - | |
| Attributes | Person | Upper/Lower clothes color | Upper/Lower clothes color | Upper/Lower clothes color | - |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle) | |
| Thumbnail | BestShot | BestShot | BestShot | DetectionShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Fog detection, Audio detection | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | - |
Network
| CH1 | CH2 | CH3 | CH4 | ||
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | - | - | - | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | - | - | - | |
| Smart Codec | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStreamⅡ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | - | - | - | |
| Streaming | Unicast | Up to 5 users | Up to 5 users | Up to 5 users | Up to 5 users |
| Multicast | Support | Support | Support | Support | |
| Multiple Streaming | Up to 4 profiles | Up to 4 profiles | Up to 4 profiles | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) | - | - | - | |
| Application Programming Interface | ONVIF | S, G, T, M | - | - | - |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | - | - | - | |
| Direct Cloud Connection | Support | - | - | - | |
Security
| CH1 | CH2 | CH3 | CH4 | ||
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | ||||
| User authentication | Digest authentication, Prevent brute-force attack | ||||
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | ||||
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | ||||
| Access Control | IP-based access control | ||||
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | ||||
| Audit | Access / System / Event Log management | ||||
| Device ID | Device certificate(Hanwha Vision Root CA) | ||||
| Secure Storage | SDcard partition encrypt(AES-256), Secure element | ||||
| Supply Chain Security | SBOM | ||||
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) | ||||
General
| CH1 | CH2 | CH3 | CH4 | ||
| SoC | Type | Wisenet 7 + NT98690 | - | - | - |
| Memory | RAM | 8GB | 8GB | 8GB | 4GB |
| Flash | 8GB | 8GB | 8GB | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) | - | - | - |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. | - | - | - |
Environmental & Electrical
| CH1 | CH2 | CH3 | CH4 | ||
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) | |||
| Humidity | 0~100% RH(condensing) | ||||
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | ||||
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) | |||
| Humidity | 0~90% RH(non-condensing) | ||||
| EPA(Effective Projected Area) | 0.038㎡ | ||||
| Input Voltage | PoE++(IEEE802.3bt type3, Class6) | ||||
| Power Consumption | PoE | 42W | |||
Mechanical
| CH1 | CH2 | CH3 | CH4 | ||
| Color | White | ||||
| Material | Aluminum, Hard-coated dome | ||||
| Material Management | Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) | |||
| RAL Code | RAL9003 | ||||
| Product Dimensions | ø251.4x212mm(ø9.9x8.35") | ||||
| Product Weight | 4,800g(10.58lb) | ||||
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | ||||
| Compatible Gang Box | Single, Double, 4" Octagon, Square | ||||
Certifications & Standards
| CH1 | CH2 | CH3 | CH4 | ||
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | ||||
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | ||||
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | ||||
DORI (EN62676-4 standard)
| CH1 | CH2 | CH3 | CH4 | ||
| Detect (25PPM/ 8PPF) | Wide | 28.1m(92.35ft) | 28.1m(92.35ft) | 28.1m(92.35ft) | 103.7m(340.38ft) |
| Tele | - | - | - | 1751.8m(5474.46ft) | |
| Observe (63PPM/ 19PPF) | Wide | 11.3m(36.94ft) | 11.3m(36.94ft) | 11.3m(36.94ft) | 41.5m(136.15ft) |
| Tele | - | - | - | 700.7m(2298.99ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 5.6m(18.47ft) | 5.6m(18.47ft) | 5.6m(18.47ft) | 20.7m(68.08ft) |
| Tele | - | - | - | 350.4m(1149.49ft) | |
| Identify (250PPM/ 76PPF) | Wide | 2.8m(9.23ft) | 2.8m(9.23ft) | 2.8m(9.23ft) | 10.4m(34.04ft) |
| Tele | - | - | - | 175.2m(574.75ft) | |
