4チャンネル

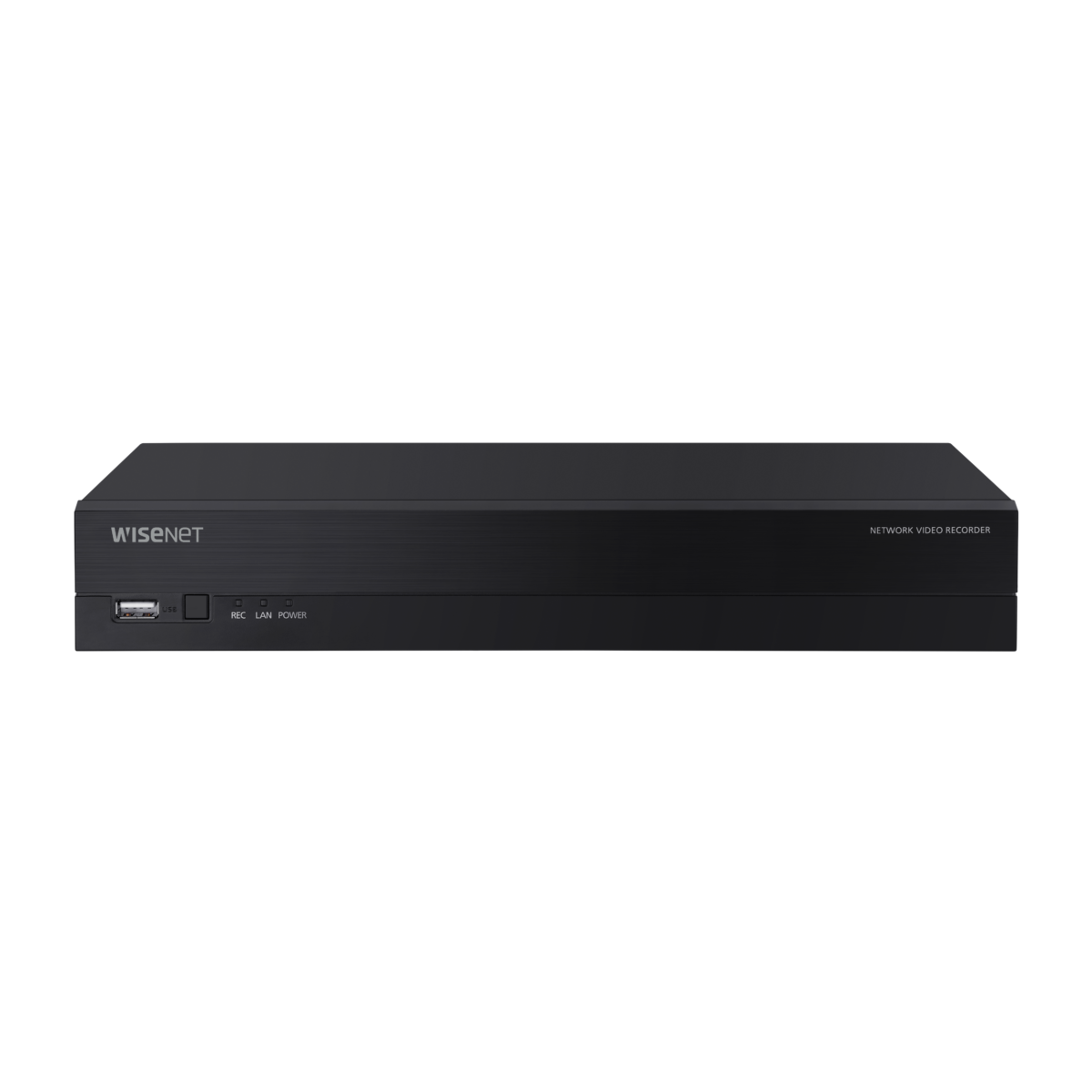

XRN-420S
4CH NVR
Key Features
• Up to 4CH, 8MP camera supported
• H.265, H.264, MJPEG codec
• AI Search: Object Attribute (When integrated with Wisenet AI Camera)
• 50Mbps network camera recording
• Plug & play by 4 PoE (LAN, 10/100), 1 PoE (WAN, 1Gbps)
• Max. 1HDD (Max. 6TB)
• HDMI / VGA local monitor
• ARB supported
• P2P service (QR code connect) support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LIST製品の仕様
| ディスプレイ | ||
|---|---|---|
| ネットワークカメラ | 入力 | Max. 4CH |
| 解像度 | 8MP ~ CIF | |
| プロトコル | SUNAPI, ONVIF | |
| デコーディング | モニター出力 | HDMI, VGA |
| 画面分割 | [Dual Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 | |
| 解像度 | FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps), [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps), [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) | |
| パフォーマンス | ||
| オペレーティングシステム | Embedded | Linux |
| 録画 | 圧縮方式 | H.265, H.264, MJPEG |
| 帯域幅 | Max. 50Mbps | |
| 解像度 | 8MP ~ CIF | |
| モード | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| イベントトリガー | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| イベントアクション | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| 検索/再生 | 再生帯域幅 | Max. 32Mbps |
| ユーザーアクセス数 | Max. 4 Users (Local 1, Remote 3) | |
| 同時再生 | Max. 16CH(Local 4CH, Remote 4CH per user) | |
| Fisheye Dewarping | CMS | |
| モード | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| 解像度 | CIF ~ 8MP | |
| 再生制御 | Fast/Slow Forward / Backward, Move one step Up / Down | |
| ストレージ | 対応HDD容量 | Up to 6TB |
| HDDスロット | SATA 1ea(Max 6TB) | |
| バックアップ | ファイルフォーマット | BU/Exe(GUI), JPG/AVI(Network) |
| 機能 | Multi channel(Up to 4CH) Play, Date-Time/Title display | |
| Network | ||
| プロトコル | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| 伝送帯域幅 | Max. 64Mbps | |
| 音声 | Input/Output | 4 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| 了解 | 2-Way | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10), Multicast(20) | |
| セキュリティ | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| ウェブビューワー | 対応OS | Windows 10, macOS 10.13 |
| 対応ブラウザー | Google Chrome, Microsoft Edge, Mac Safari | |
| ビューワーソフトウェア | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| 機能 | ||
| カメラ設定 | 登録 | Auto, Manual |
| 設定項目 | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | 制御 | Via GUI, Webviewer |
| プリセット | 300 Presets | |
| Smart phone | 対応製品 | iOS, Android |
| プロトコル | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| 制御 | Live 4CH(Multi-Profile Support), Playback 4CH | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| インターフェイス | ||
| 前面 | 表示部 | Power, Record, Network |
| ストレージ | OK | |
| リセット | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1EA 1920x1080 30Hz | |
| 音声 | Out 1EA | |
| イーサネット | PoE+ RJ-45(LAN, 10/100) 4ea, RJ-45 1ea (WAN, 1Gbps) | |
| アラーム | In 4EA, Out 2EA | |
| USB | 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| AC電源入力部 | DC Adaptor | |
| システム | ||
| ログ | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web | |
| 言語 | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| 環境 | ||
| 動作温度 | 0°C to +40°C(32℉ to 104℉) | |
| 動作湿度 | 20% ~ 85% RH | |
| 電源管理 | ||
| 入力電源 | 100 ~ 240 VAC ±10%, 50/60Hz | |
| 消費電力 | Max. 67W(1HDD, PoE On) | |
| PoE 電源容量 | 50W | |
| 物理的仕様 | ||
| カラー/材質 | Black / Metal | |
| 寸法 | 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch) | |
| 重量 | 1.06Kg(2.33lb) | |
| Intelligent Analysis | ||
| AI Search | Object Attribute | Compatible with Hanwha AI Cameras |
