8チャンネル

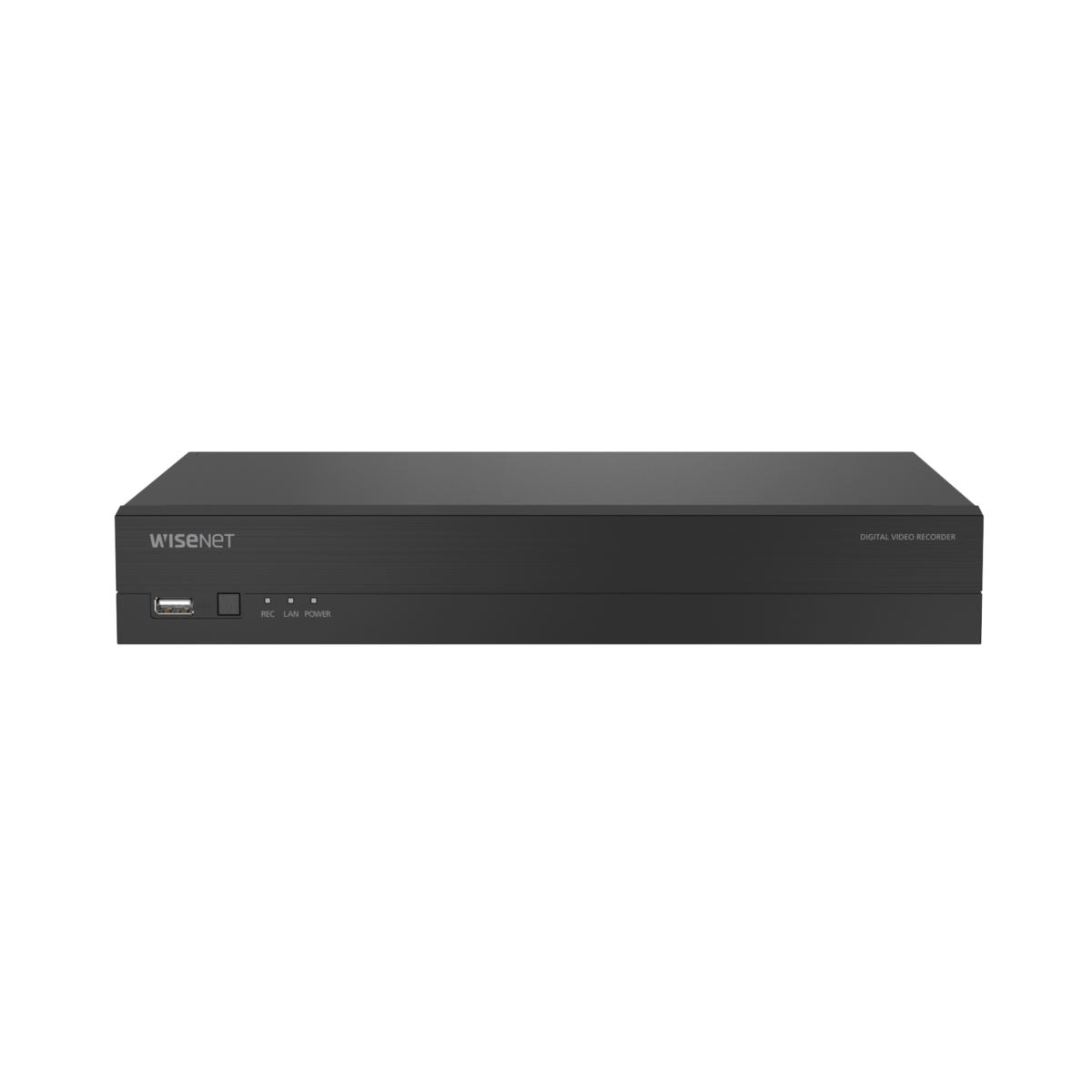

ARD-810
A series DVR
Key Features
• AHD/TVI/CVI 8ch, Up to 5MP Camera Input
• IP up to 5MP Input
• H.265, H.264, MJPEG
• 40Mbps IP camera recording
• 1RJ-45(WAN, 10/100)
• 1 SATA HDD up to 6TB
• 4K HDMI Monitor output
• P2P service(QR code connect) support
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
For supported HDD information, please visit the HDD compatibility list.
COMPATIBILITY LIST製品の仕様
| ディスプレイ | ||
|---|---|---|
| アナログカメラ | 入力 | 8CH(1Vp-p 75ohm, BNC) |
| 信号方式 | AHD(5MP Half, 4MP Half, 1080p) HD TVI(5MP Half, 4MP Half, 1080p) HD CVI(5MP Half, 4MP Half, 1080p) CVBS(NTSC/PAL) | |
| ネットワークカメラ | 入力 | Additional 2CH (Up to 10CH) |
| 解像度 | 5MP ~ CIF | |
| プロトコル | SUNAPI(Wisenet), ONVIF | |
| ライブ | モニター出力 | 1x HDMI, 1x VGA [Single Mode] - HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 [Dual Mode] Clone - HDMI: 1920x1080, 1280x1024, 1280x720 - VGA: 1920x1080, 1280x1024, 1280x720 |
| 画面分割 | [Local monitor] - Dynamic layout, Virtual channel view - up to 12 division [Web] 1 / 2 / 3 / 4 / 6 / 1+5 / 1+ 7 / 9 | |
| 解像度 | [Analog Camera(NTSC/PAL)] 5MP(Half ), 4MP(Half), 2MP [Network Camera] - Typ. 2MP(120fps) | |
| パフォーマンス | ||
| オペレーティングシステム | Embedded | Linux |
| 録画 | 圧縮方式 | H.265, H.264, MJPEG |
| 録画レート(アナログ) | [Analog Camera(NTSC/PAL)] 5MP(5M Half 12fps/12fps) 4MP(4M Half 15fps/12fps) 2MP(2M 15fps/12fps) * Half : Horizontal resolution 1/2 * Resolution higher than 2MP will only record half of the resolution, 4MP will only record 2MP, and 5MP will only record 2.5M | |
| 帯域幅 | Max. 40Mbps | |
| 解像度 | 5MP ~ CIF | |
| 録画モード | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| イベントトリガー | Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event, Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering | |
| イベントアクション | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| 検索/再生 | ユーザーアクセス数 | Max. 4 Users (Local 1, Remote 3) |
| 同時再生 | 10CH(Local Monitor),10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | WEB/CMS | |
| モード | Date & Time (Calendar) / Event log list / Text search (POS), Back up, Motion, Smart search (Virtual Line w/ direction, Enter / Exit) * All Search Included Preview Function ARB search | |
| 解像度 | 5MP ~ CIF | |
| 再生制御 | Fast Forward/Backward (x2,x4,x8,x16,x32,x64, x128, x256) Slow Forward/Backward (x1/2,x1/4,x1/8) ※Move one step up/down | |
| ストレージ | 対応HDD容量 | Up to 6TB |
| HDDスロット | SATA 1ea(Max 6TB) | |
| バックアップ | ファイルフォーマット | BU, EXE(Include Player), AVI |
| 機能 | Max. 10 CH play, Date-time/title display | |
| 機能 | ||
| カメラ設定 | 登録 | Auto, Manual |
| PTZ | 制御 | Via GUI, Webviewer, SSM, Wisenet Viewer, Wisenet Mobile Viewer, System Controller |
| プリセット | 300 presets | |
| Smart phone | 対応製品 | iOS, Android |
| プロトコル | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| 制御 | Live(10ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10) | |
| Redundancy | ARB | Support |
| Easy configuration | Install wizard support | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| インターフェイス | ||
| 前面 | 表示部 | LED(Status indicator) : Power(1), Record(1), Network(1) |
| リセット | Switch(1EA) | |
| HDMI | 1 EA | |
| VGA | 1 EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| 音声 | Out(1EA, RCA, Line) | |
| イーサネット | RJ-45(10/100 BASE-T) | |
| アラーム | In 4EA, Out 1EA - Relay Out1(NO/NC/COM) | |
| USB | 2EA(Front/Rear USB2.0) | |
| シリアル通信(プロトコル) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| AC電源入力部 | 1EA DC Input Jack | |
| システム | ||
| ログ | システム制御 | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) | |
| 言語 | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| 環境 | ||
| 動作温度 | 0°C to +40°C(+32℉ to +104℉) | |
| 動作湿度 | 20% ~ 85% RH | |
| 規格認証 | UL, CE, FCC, KC | |
| 電源管理 | ||
| 入力電源 | DC12V | |
| 消費電力 | Max. 20.4W (6TB HDD 1ea) | |
| 物理的仕様 | ||
| カラー / 材質 | Black / Metal | |
| 寸法 | 300.0x 47.0 x 208.7 mm (11.85 x 1.89 x 8.22 inch) | |
| 重量 | Approx. 1.1Kg (2.4 lb, without HDD) | |
| ネットワーク | ||
| プロトコル | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| 伝送帯域幅 | Max. 40Mbps | |
| 音声 | 入力/出力 | 1 Line in / 1 Line out |
| 圧縮方式 | G.711 (N/W Camera G.711, 726) | |
| 了解 | 2-Way | |
| 最大接続ユーザー数 | Search(3), Live Unicast(10), Multicast(20) | |
| セキュリティ | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| ウェブビューワー | 対応OS | Windows 10, Mac OS 11 Big Sur and later |
| 対応ブラウザー | Chrome, Edge , Safari | |
| ビューワーソフトウェア | SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
