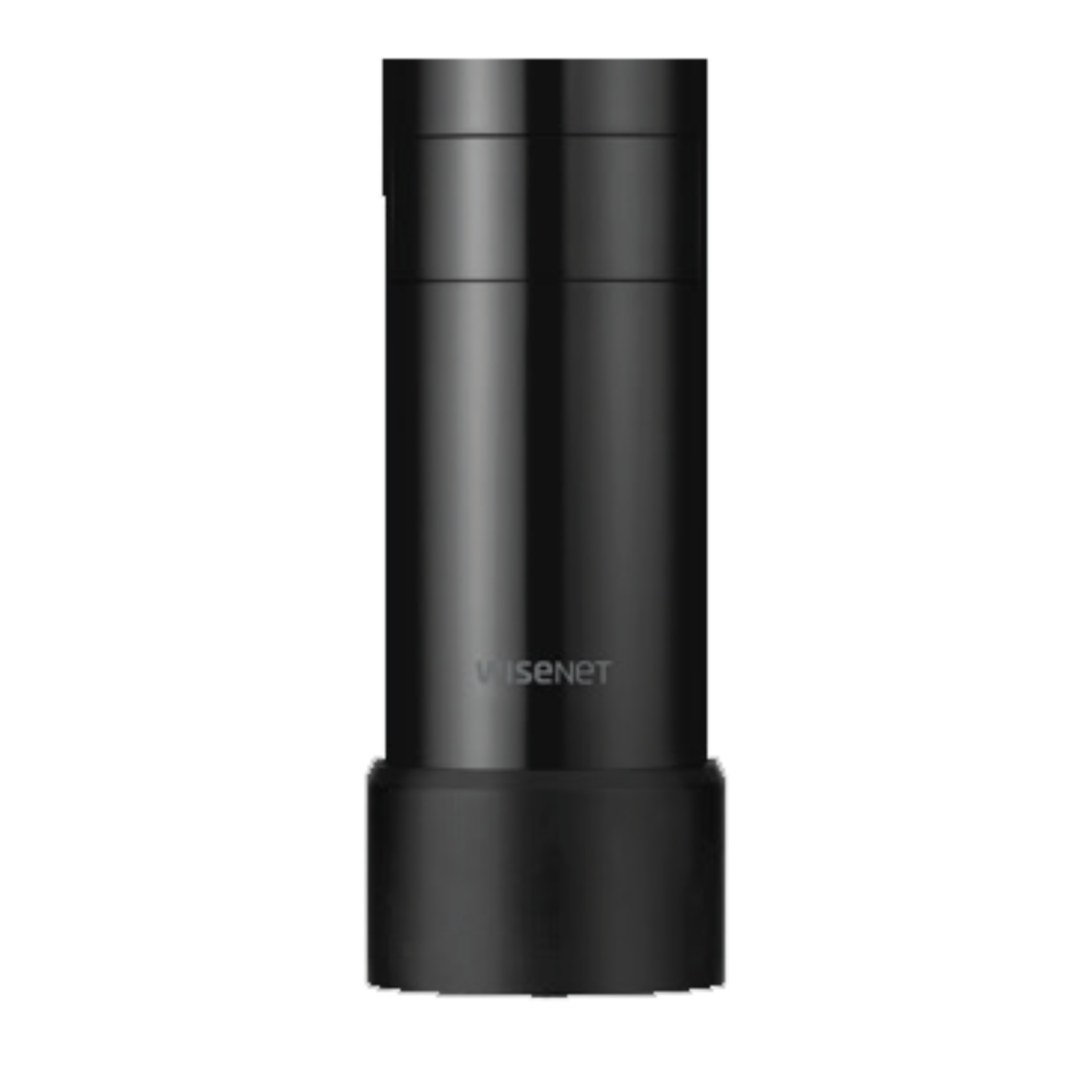

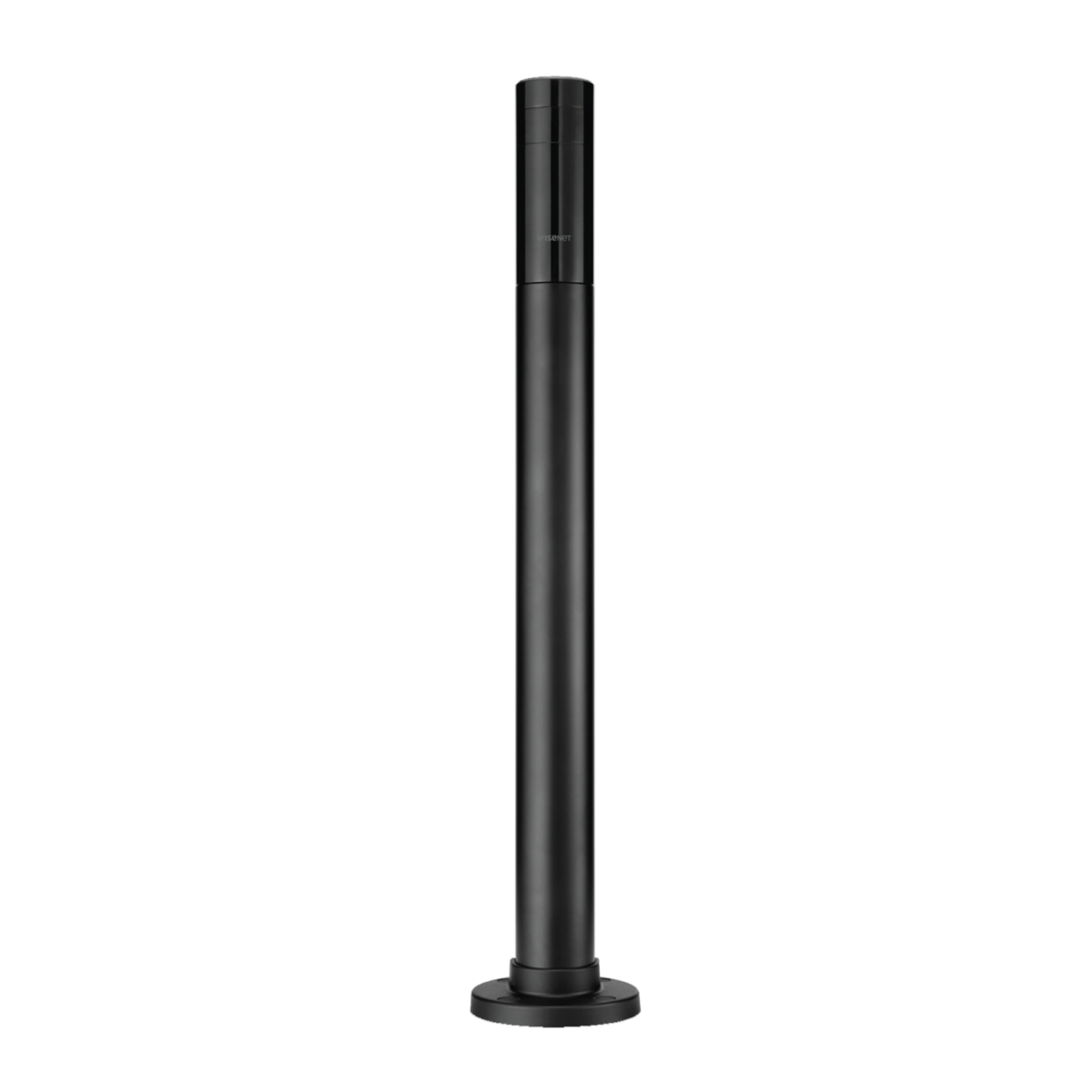

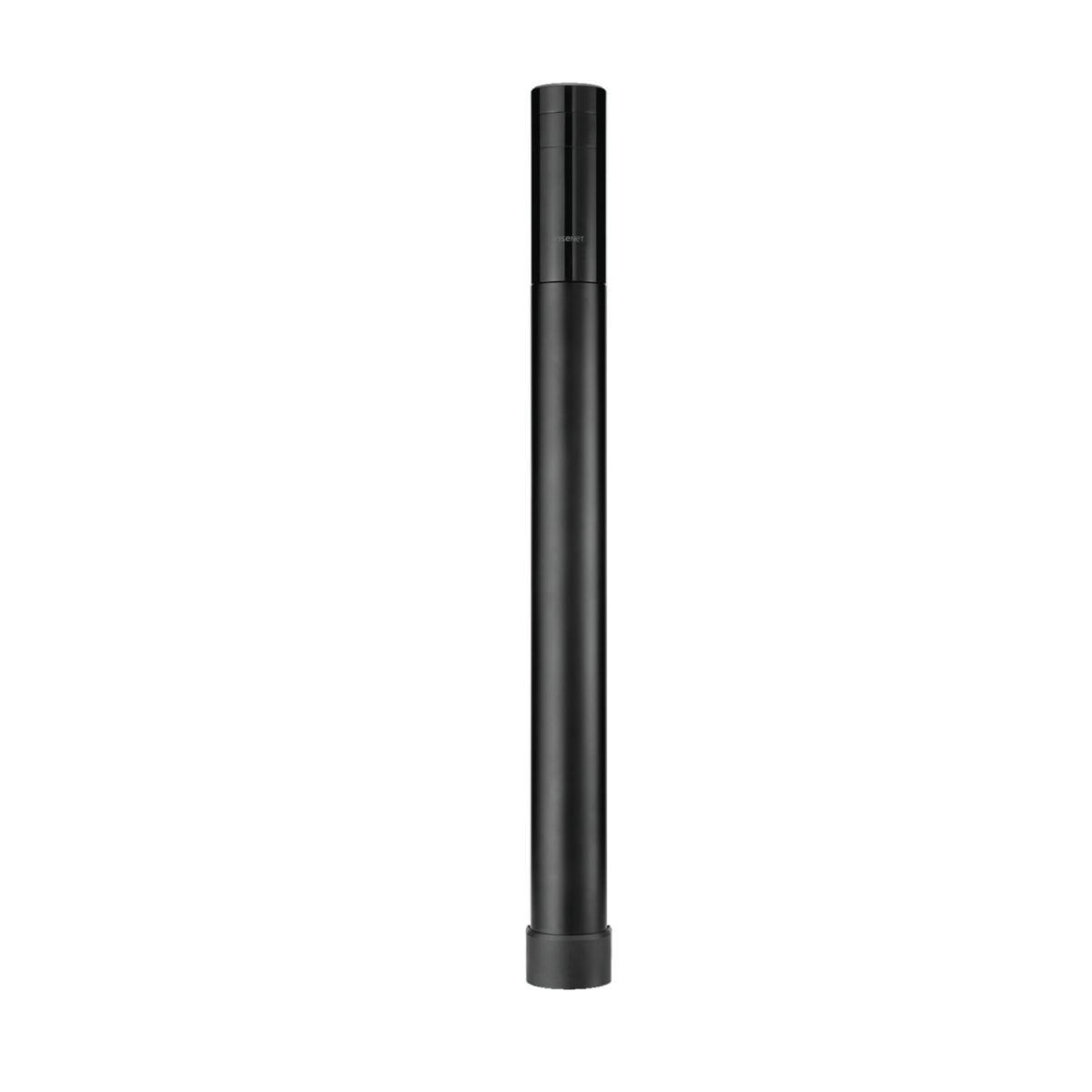

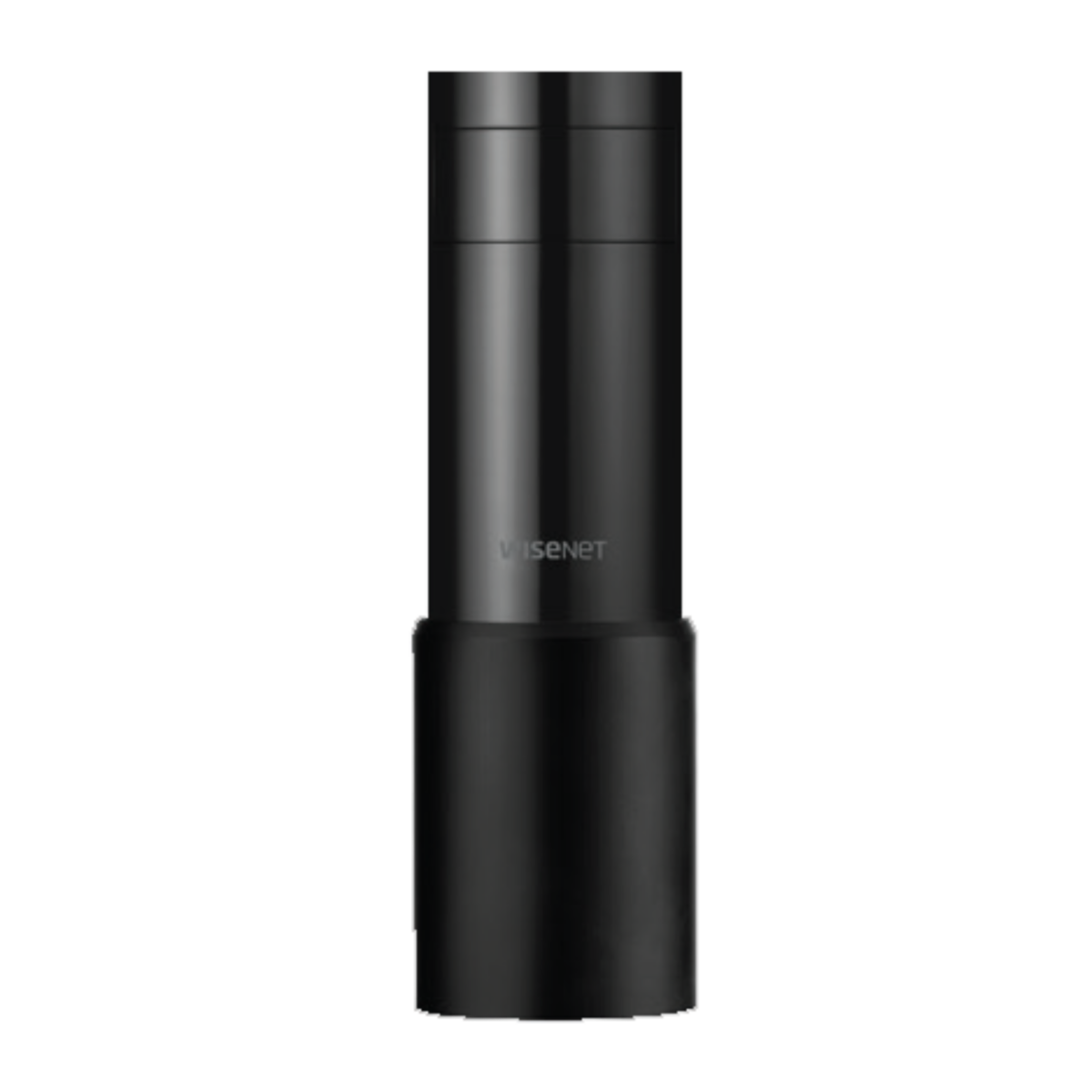

SLA-T2880BA

2MP Network Bandit Barrier lens

Key Features
• 2 Megapixel (1920 x 1080) resolution
• 2.8mm wide-angle lens
• H.265, H.264, MJPEG codec support, Multiple streaming
• 60fps@2MP (H.265 / H.264)
• WDR (120dB)
• Built-in Analytics
• SD / SDHC / SDXC memory slot (Maximum 256GB)
• Hallway View, WiseStream II support
• LDC, PoE / 12V DC, Bi-directional audio support
• Adjustable height and installation options for various installation types
• Includes XNB-6001 main unit & SLA-T2480 lens with 8m cable
お問い合わせ データシート

["peripherals","lens"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

製品の仕様

映像
映像素子 1/2.8" 2M CMOS
最低照度 Color: 0.045Lux(F2.0)
BW: 0.045Lux(F2.0)
* with PNM-9000QB, XNB-6002, PNM-C16000QB
* without bandit barrier housing
レンズ
焦点距離 2.8mm fixed
最大口径比 F2.0
画角 H: 108° / V: 63° / D: 122°
マウントタイプ RJ12 connected with main unit
フォーカス制御 Fixed
Min. Object Distance 0.5m(1.64ft)
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(+14°F~+131°F) / 0~90% RH
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Mechanical
Color / Material Housing: Black / Plastic, Aluminum
Lens: Black / Plastic, Aluminum
Product Dimensions / Weight Bandit Barrier: 66.5x46x175~737mm(2.6"x1.8"x6.9~29.0"), Main Unit: 131.1x28x86mm (5.16"x1.10"x3.39"), Cable: 8m(26.2ft)
Bandit Barrier: 250~1,000g(0.55~2.205 lb), Camera Body: 245g(0.54 lb)
