デコーダ

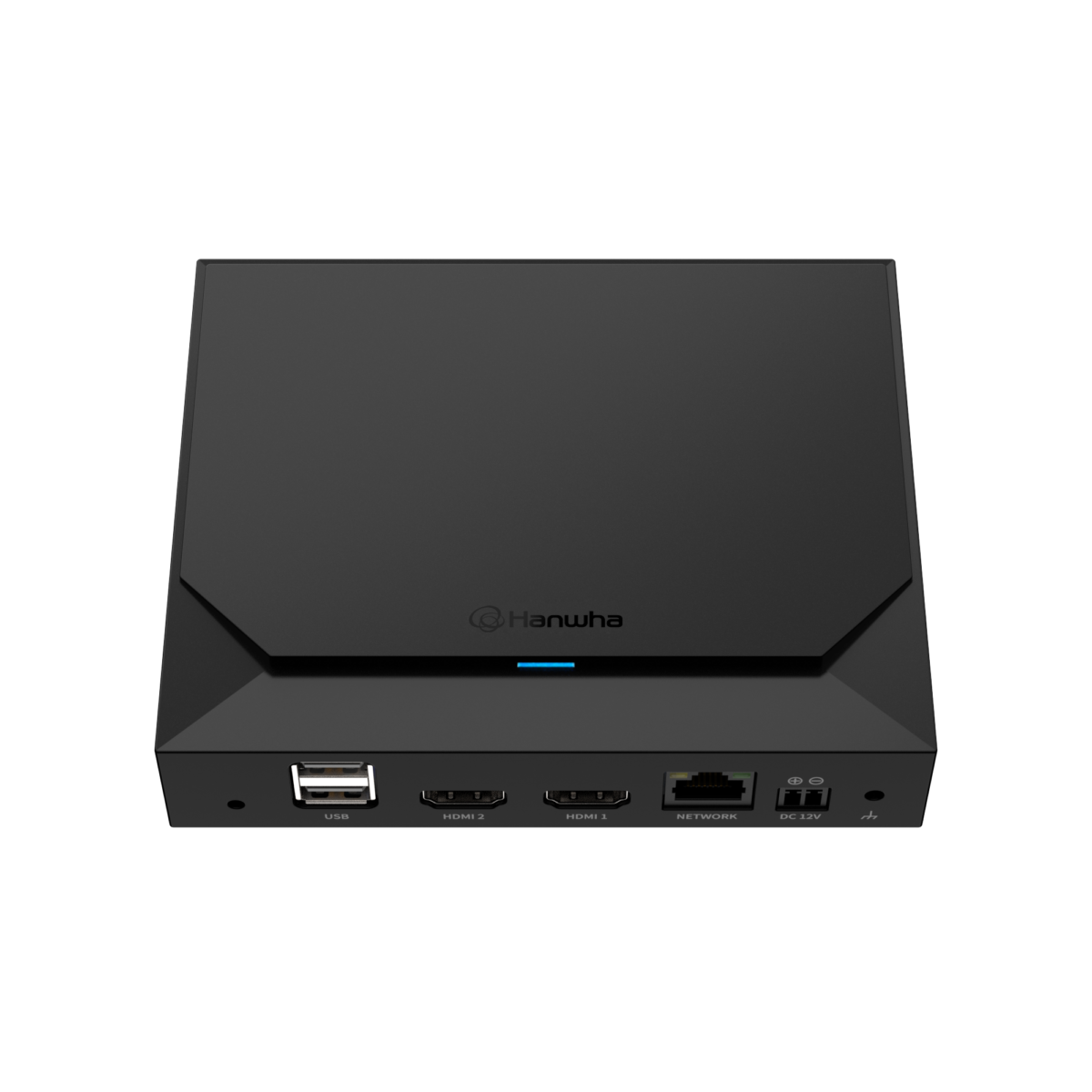

SPD-152

1 Monitor Decoder

Key Features

• Max 64ch, 8M@60fps decoding performance

• Dual HDMI display port(HDMI#1 UHD, HDMI#2 FHD)

• Various installation : Monitor-Back and Pole mount

• ONVIF, SUNAPI, RTSP

• PoE and DC 12V Dual power

お問い合わせ データシート

["peripherals","decoder"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

製品の仕様

システム
CPUEmbded CPU
Operating SystemEmbedded Linux
ビデオ出力HDMI#11EA (up-to 4K), Audio support
HDMI#21EA (up-to 1080p), Audio not support
Video-out Format3840 X 2160@30Hz (HDMI#1) 2560 X 1440@30Hz (HDMI#1) 1920 X 1080@60Hz (HDMI#1, HDMI#2) 1280 X 1024@60Hz (HDMI#1, HDMI#2) 1280 X 720@60Hz (HDMI#1, HDMI#2)
外部Ethernet1EA (10/100/1000BASE-T)
USB2EA(USB 2.0)
LEDPower, Network
ネットワーク帯域幅Max. 150Mbps
Environmental
動作温度0°C to +40°C (32℉ to 104℉)
Operating Humidity20% ~ 85% RH
電源
Power Input12VDC, PoE (IEEE802.3af)
消費電力Max. 11.0W (12V DC), Max. 12.95W (PoE)
Mechanical
Color / MaterialBlack / Metal & Plastic
Dimension(WxHxD)140.0 x 29.5 x 115.4mm(5.51 x 1.16 x 4.54")
重量260g (0.58 lb)
ソフトウェア
映像コーデックH.265/H.264/MJPEG
Max. Decoding Performance8M@60fps, 12ch*2MP@30fps
Division/MonitorClone mode : (HDMI#1) Max. 64, Expand mode : (HDMI#1) Max. 36, (HDMI#2) Max. 25
レイアウトUp to 20, Sequence support
音声コーデックG.711 / G.726 / AAC
管理Local UI, Web-Viewer, SSM
Time SettingNTP/Manual
Export/ImportConfiguration Export/Import
ログMax. 100,000 (System log)
プロトコルRTP, RTSP, HTTP, CGI (SUNAPI), ONVIF
セキュリティIP address filtering, User access Log, 802.1x, Encryption, Device certificate(Hanwha Techwin Root CA), Signed firmware
