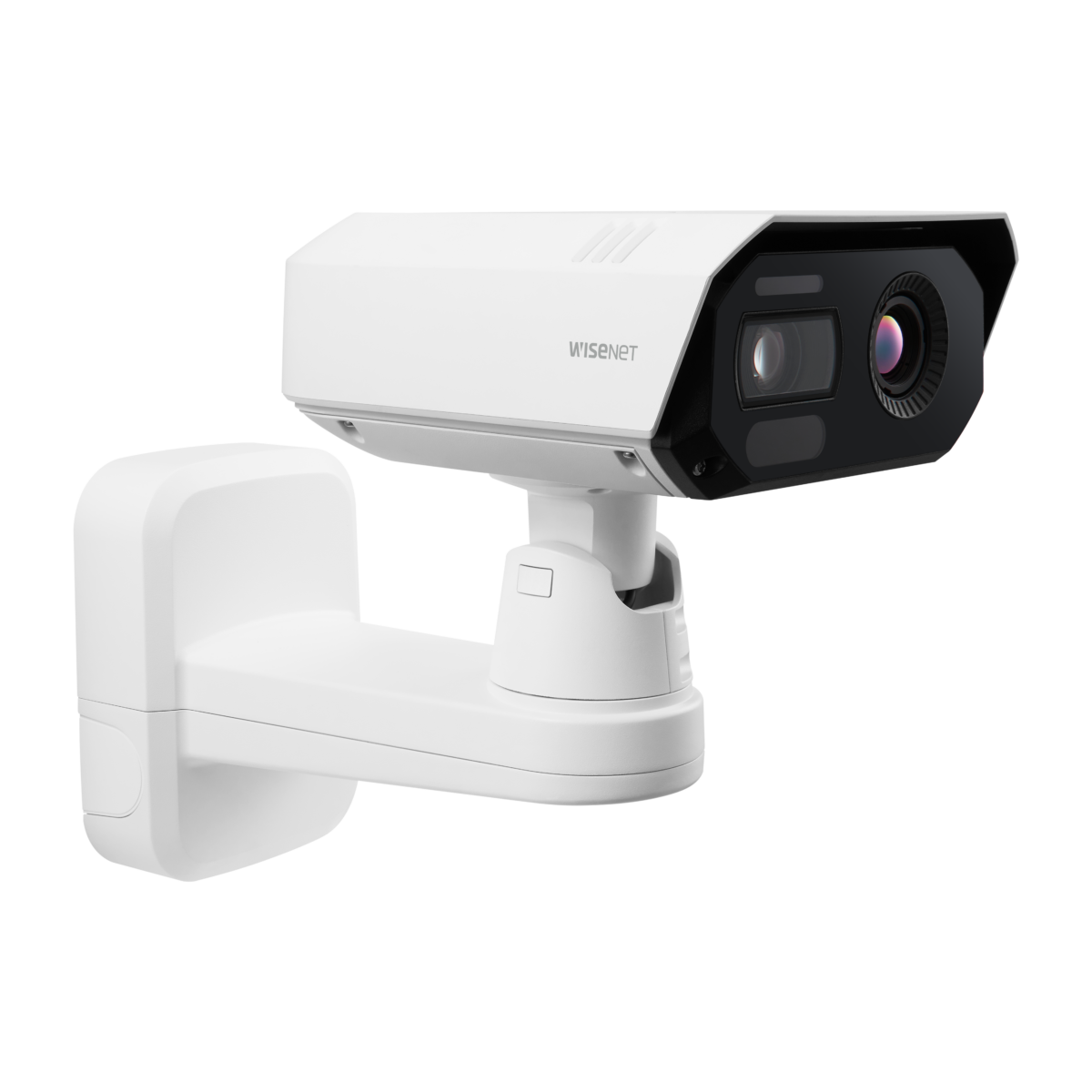

TNM-C4960TD
Bi-spectrum AI Thermal Camera
Key Features
• Bi-spectrum: VGA thermal & 8MP visible sensor
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 25mm fixed thermal & 10.9~29mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 25mm fixed thermal & 10.9~29mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
画像にマウスを合わせると拡大されます
TNM-C4960TD
Bi-spectrum AI Thermal Camera
Key Features
• Bi-spectrum: VGA thermal & 8MP visible sensor
• Dual (thermal & visible) channel by one device, one IP
• Maximum 30fps @ all resolutions (H.265/H.264)
• Lens : 25mm fixed thermal & 10.9~29mm motorized varifocal visible
• Day & Night(ICR), WDR(120dB)
• Noise reduction : WiseNR II (Based on AI engine, visible only)
• Smart codec : WiseStream III (Based on AI engine, visible), WiseStream II (thermal)
• Video Analytics based on AI
• IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
• PoE+(IEEE802.3at), 12VDC
• Wall & Pole mount all-in-one design
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
AI object detection and temperature detection with Bi-spectrum AI camera
AI based bi-spectrum camera detects each person individually with 4K resolution. Thermal video of bi-spectrum camera detects temperature change to prevent any possible accidents.
Specifically, it informs the viewer of dangerous places to touch by checking thermal images of hot places that cannot be clearly distinguished by the naked eye.
Enabling object detection from a long distance and unclear environment by thermal image
There are challenges to distinguish objects in long distance or dark environment. In order to overcome those challenges,
thermal camera of bi-spectrum camera enables user to clearly monitor objects.
製品の仕様
- 映像
- レンズ
- カメラ機能
- ネットワーク
- 一般
- 動作環境/電源
- 物理的仕様
- DORI (EN62676-4 standard)
-
-
映像 Thermal Visible 映像素子 Uncooled micro bolometer 1/1.8" CMOS 解像度 640x480 (can be scaled up to 1280x960)
1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x3603840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360最大フレームレート H.265/H.264: Max. 30fps/25fps
(AI 2CH ON - 15fps)
MJPEG: Max. 3fpsH.265/H.264: Max. 30fps/25fps
(AI 2CH ON - 15fps)
MJPEG: Max. 1fpsNETD ＜60mK ピクセルサイズ 12㎛ 最低照度 Color: 0.06Lux(F1.7, 1/30sec)
BW: 0.005Lux(F1.7, 1/30sec)映像出力 USB : Micro USB Type B レンズ 焦点距離 25mm fixed focal 10.9~29mm(2.6x) motorized varifocal 最大口径比 F1.0 F1.7(Wide)~F1.73(Tele) 画角 H: 17.4°, V: 13.1°, D: 21.6° H:42.0°(Wide)~15.0°(Tele) /
V:22.8°(Wide)~8.4°(Tele) /
D:48.7°(Wide)~17.1°(Tele)最低被写体距離 26m(85.30ft) Wide: 2.5m(8.20ft) / Tele: 6m(19.68ft) フォーカス制御 Fixed Simple foucs カメラ機能 カメラタイトル Displayed up to 85 characters デイナイト Auto(ICR) 逆光補正 BLC, WDR, SSDR Wide Dynamic Range WDR(120dB) ノイズ軽減 SSNR V, WiseNR II 手振れ補正 Support(built-in gyro sensor) モーション検知 8ea, polygonal zones プライバシーマスク 6ea, rectangle zones
- Color: Gray/Black/Whiteゲイン制御 Low / Middle / High ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor LDC(レンズ歪曲補正) Support 電子シャッター Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
Auto prefer shutter control(Based on AI engine)インテリジェントビデオ - Analytics events based on AI engine : Object detection (Person/Vehicle), Bestshot, IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Stopped vehicle, Traffic jam
- Analytics events : Motion detection
Analytics events based on AI engine
- Object detection(Person, face, Vehicle(car/bus/truck/motorcycle/bicycle), License plate), Bestshot, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Stopped vehicle, Traffic jam
- Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)ビジネスインテリジェンス Vehicle counting Vehicle counting アラーム入出力 4 configurable I/O ports アラームトリガー Analytics, Network disconnect, Alarm input アラームイベント When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- Audio clip playback音声入力 Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm音声出力 Line out, Max.output level: 1Vrms カラーパレット Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom ネットワーク イーサネット Metal shielded RJ-45(10/100/1000BASE-T) 映像圧縮 H.265/H.264: Main/High, MJPEG 音声圧縮 G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzスマートコーデック WiseStreamⅡ Manual(5ea area), WiseStreamⅢ ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBRストリーミング性能 Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) セキュリティ TPM 2.0 (FIPS 140-2 level 2)
HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device certificate(Hanwha Techwin Root CA, pre-installed)
Secure boot, Secure firmware応用インターフェイス ONVIF Profile S/T
SUNAPI(HTTP API)
Wisenet open platform (visible channel only)一般 ウェブビューワー言語 English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek SDカード Micro SD/SDHC/SDXC 2slots 512GB メモリー 4GB RAM, 512MB FLASH 動作環境/電源 動作温度/湿度 -40°C to +60°C(-58°F to +140°F)
* Start up should be done at above -30°C
less than 95% RH(non-condensing)保管温度/湿度 -50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing) 規格認証 IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9) 電源 PoE+(IEEE802.3at, Class4), 12VDC 消費電力 PoE+ : Max 23.5W, Typ 16.0W
12VDC : Max 19.5W, Typ 14.0W物理的仕様 カラー/材質 White / Aluminum RAL コード RAL9003 寸法/重量 353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 200.1m(656.40ft) / Tele: 583.4m(1913.89ft) Observe (63PPM/ 19PPF) Wide: 80.0m(262.56ft) / Tele: 233.3m(765.56ft) Recognize (125PPM/ 38PPF) Wide: 40.0m(131.28ft) / Tele: 116.7m(382.78ft) Identify (250PPM/ 76PPF) Wide: 20.0m(65.64ft) / Tele: 58.3m(191.39ft) -
