Bullet

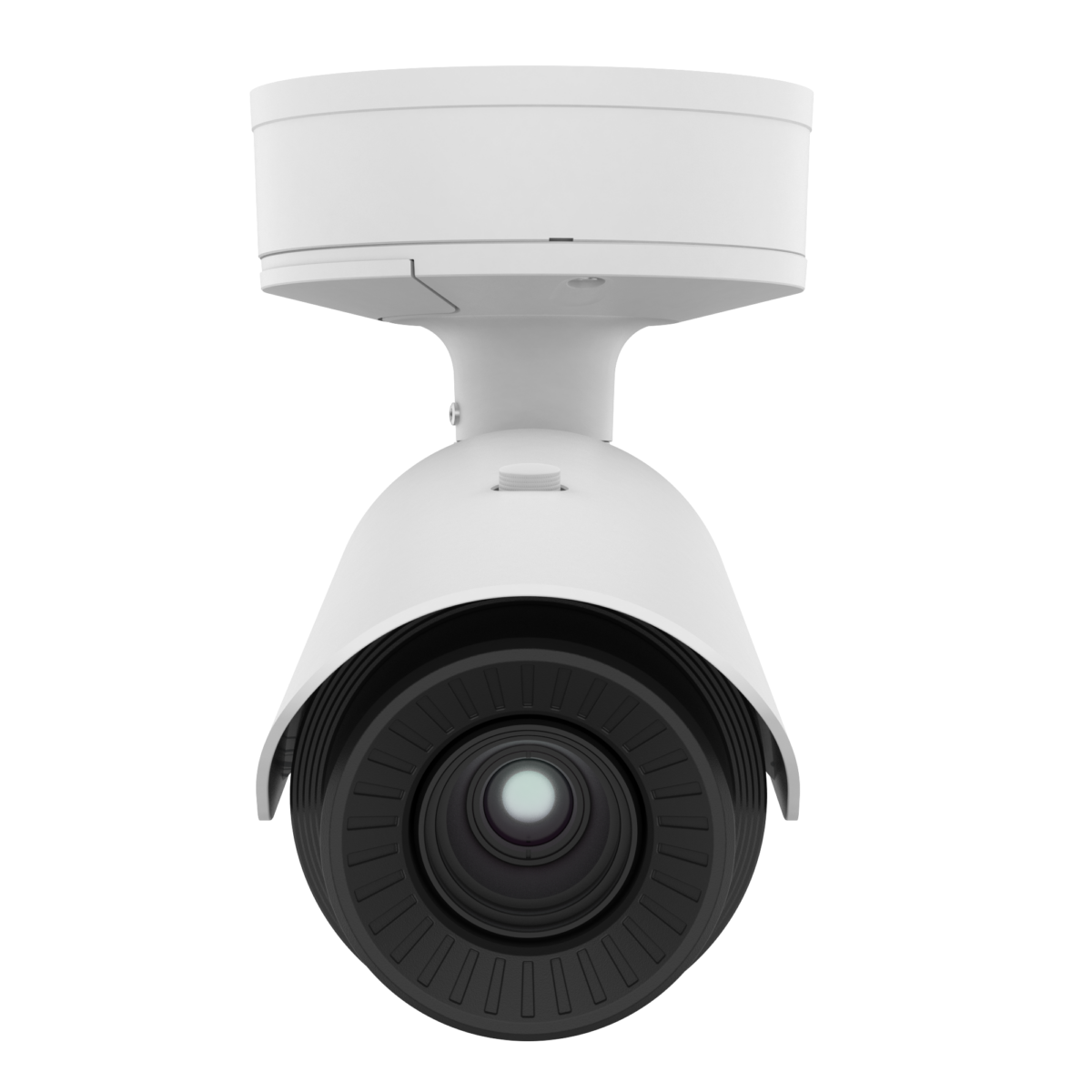

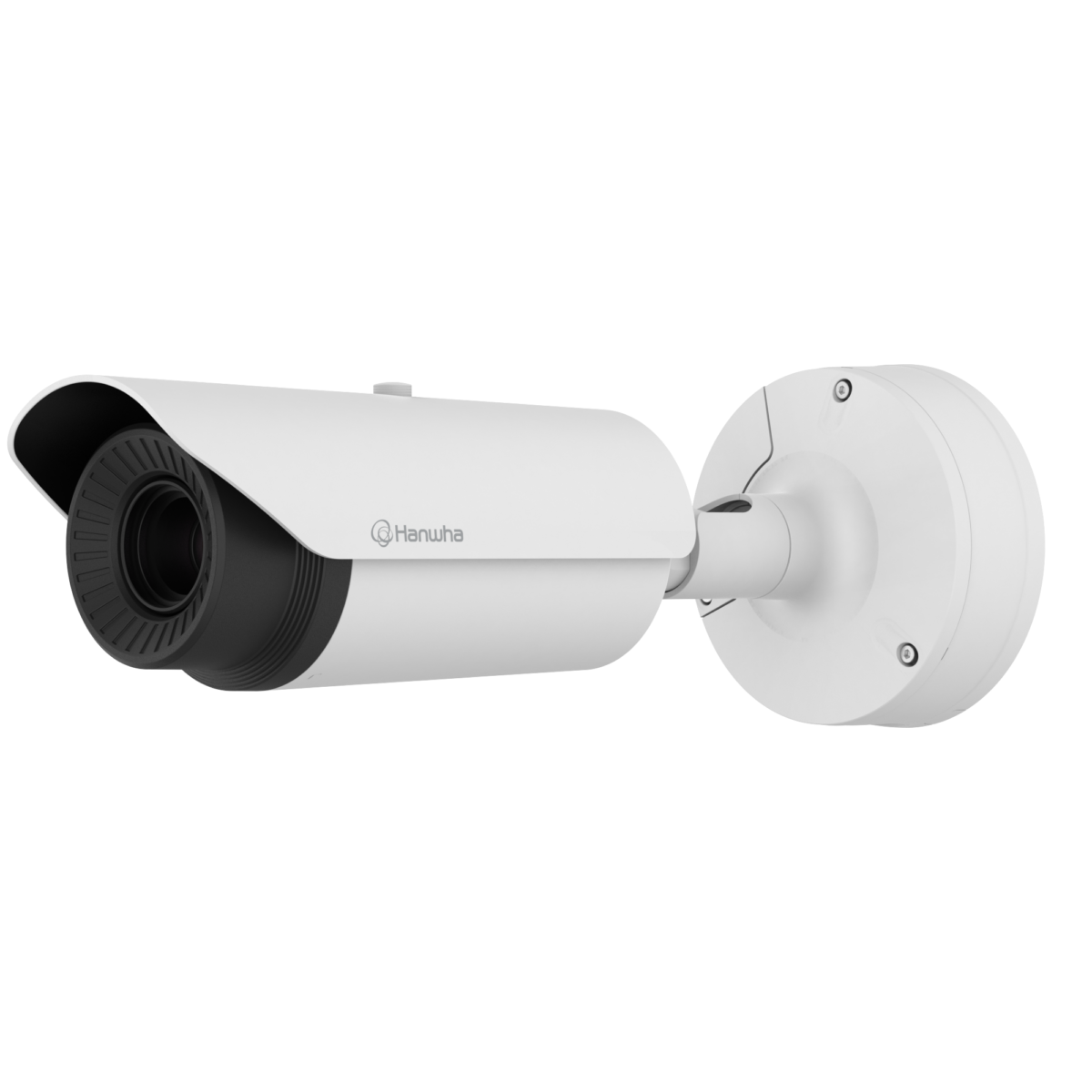

TNO-L4040TR
VGA Thermal Camera
Key Features
• Max. 640x480 resolution support
• Built-in 19mm fixed focal lens
• H.265, H.264, MJPEG codec
• Max. 8fps@all resolutions (H.265, H.264, MJPEG)
• Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
• Micro SD / SDHC / SDXC memory 1-slot (Max. 256GB)
• Hallway View, WiseStreamII support
• Temperature Detect Range '-20°C~130°C(-4°F~266°F)
• Additional Hybrid palettes, Spot temperature reading
• PoE, 24VAC, 12VDC / IP66, IK10, NEMA4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
製品の仕様
| 映像 | ||
|---|---|---|
| 映像素子 | Type | Uncooled micro bolometer (640x480) |
| 解像度 | 640x480, 640x360, 320x240 | |
| 最大フレームレート | H.265/H.264 | 8fps |
| MJPEG | 8fps | |
| NETD | ≤50mK | |
| ピクセルサイズ | 17㎛ | |
| 映像出力 | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
| レンズ | ||
| Focal Length (mm) | 19 | |
| 最大口径比 | Wide | 1.0 |
| 画角 | Horizontal | 32° |
| Vertical | 24.3° | |
| Diagonal | 39.2° | |
| 最低被写体距離 | 11m(36.09ft) | |
| フォーカス制御 | Fixed | |
| カメラ機能 | ||
| 手振れ補正 | Support(built-in gyro sensor) | |
| モーション検知 | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| プライバシーマスク | Quantity | 24ea |
| Shape | Polygonal zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic | |
| 映像回転 | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 2ea |
| アラームトリガー | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| アラームイベント | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication | |
| 音声入力 | Selectable(mic in/line in) | |
| 音声出力 | Line out | |
| カラーパレット | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| Analytics | ||
| Analytics Events | Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature detection |
| 温度検知 | ||
| 温度検知範囲 | -20°C~130°C | |
| 温度検知精度 | ±5°C(≤100°C), ±20%(>100°C) | |
| 温度検知 | Quantity | 6ea |
| Shape / Option | Quadrangle | |
| Hybrid Pallettes | Support | |
| Spot Temperature Reading | Support | |
| ネットワーク | ||
| イーサネット | RJ-45(10/100BASE-T) | |
| 映像圧縮 | H.265/H.264: Main/Baseline/High, MJPEG | |
| 音声圧縮 | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| スマートコーデック | Manual, WiseStreamⅡ | |
| ビットレート制御 | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| ストリーミング性能 | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| プロトコル | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM | |
| 応用インターフェイス | ONVIF | S, G, T |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Security | ||
| OS / Firmware Protect | Encrypted firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Audit | Access / System / Event Log management | |
| 一般 | ||
| メモリー | RAM | 1GB |
| Flash | 256MB | |
| SDカード | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| 動作環境/電源 | ||
| 動作温度/湿度 | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| 保管温度/湿度 | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| 電源 | PoE(IEEE802.3af, Class3), 24VAC, 12VDC | |
| 消費電力 | PoE | Max. 10W, typical 8.6W |
| 12VDC | Max. 9W, typical 7.5W | |
| 24VAC | Max. 10.5W, typical 8.9W | |
| 物理的仕様 | ||
| カラー | White | |
| 材質 | Aluminum | |
| RAL コード | RAL9003 | |
| 寸法 | ø101.97x401.8mm(4.01x15.82") | |
| 重量 | 3175g(7.01lb) | |
| Certifications & Standards | ||
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
