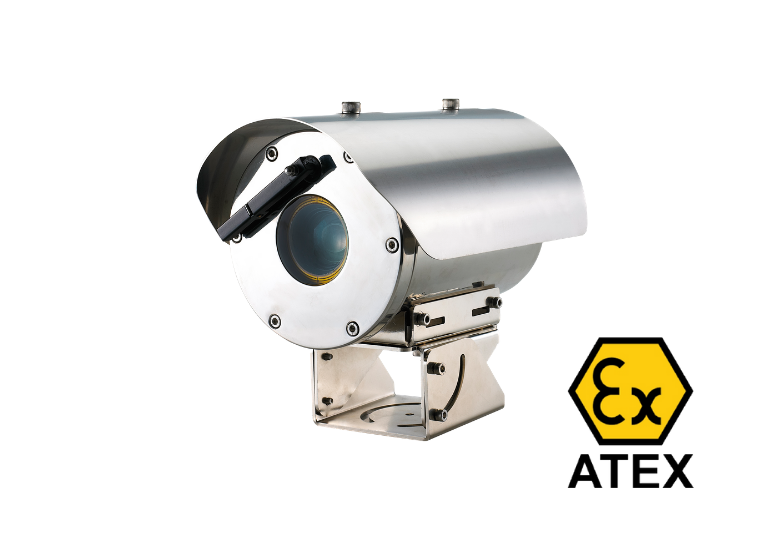

TNO-6321E
2MP Explosion-proof Camera
• H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) field of view
• Color: 0.05Lux (1/30sec, F1.6), B/W: 0.005 Lux (1/30sec, F1.6)
• H.264, H.265, MJPEG codec, WiseStreamⅡ
• Day & Night (ICR), WDR (120dB)
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db
• Stainless 316L, Built-in Wiper
• IP67, IK10
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
画像にマウスを合わせると拡大されます
TNO-6321E
2MP Explosion-proof Camera
• Max. 2MP (1920 x 1080) resolution
• H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) field of view
• Color: 0.05Lux (1/30sec, F1.6), B/W: 0.005 Lux (1/30sec, F1.6)
• H.264, H.265, MJPEG codec, WiseStreamⅡ
• Day & Night (ICR), WDR (120dB)
• Face detection, Tampering, Virtual line support
• Explosion-proof certificate : CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67 Ex tb IIIC T80°C Db
• Stainless 316L, Built-in Wiper
• IP67, IK10
※ Product availability may vary by region.
Please contact your regional representative.
? Hanwha Vision is formerly known as Hanwha Techwin
Explosion proof cameras for hazardous environments
Heavy industrial facilities such as gas pipelines, petrochemical plants or oil refineries are potentially explosive because of flammable gases and dusts emitted. Therefore, it is important that a video surveillance system used in heavy industrial facilities is not the cause of explosions whilst still delivering high quality images. Wisenet T series explosion proof camera satisfy both requirements by the powerful network cameras and stainless steel housing enclosure surrounding it.
Stainless steel 316L enclosure to prevent explosions
T series explosion proof cameras are designed to be safely operated in hazardous areas with the special enclosure made of stainless steel 316L housing. The ATEX certified enclosure has the ability to contain any internal explosions or prevent sparks from escaping the device which may lead to a disaster.
製品の仕様
- 映像
- レンズ
- カメラ機能
- ネットワーク
- 一般
- 動作環境/電源
- 物理的仕様
-
-
映像 映像素子 1/2.8" CMOS 解像度 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 最大フレームレート H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)最低照度 Color: 0.05Lux (1/30sec, F1.6)
B/W: 0.005 Lux (1/30sec, F1.6)レンズ 焦点距離 4.44 ~ 142.6mm(32X) zoom 最大口径比 F1.6(Wide)~F4.4(Tele) 画角 H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) 最低被写体距離 Wide 1.5m, Tele 2m フォーカス制御 One shot AF レンズタイプ DC auto iris カメラ機能 カメラタイトル Displayed up to 85 characters デイナイト Auto(ICR) 逆光補正 BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB ノイズ軽減 SSNRⅤ 手振れ補正 Support デフォッグ Support モーション検知 8ea, 8point polygonal zones ゲイン制御 Low / Middle / High ホワイトバランス ATW / AWC / Manual / Indoor / Outdoor 電子シャッター Minimum / Maximum / Anti flicker (1~1/12,000sec) 映像回転 Flip, Mirror インテリジェントビデオ Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line アラーム入出力 Input 1ea / Output 1ea アラームトリガー Analytics, Alarm input アラームイベント File upload via FTP and e-mail
Notification via e-mail
NAS recording at event triggers
Alarm output
Zoom Preset水切り Support (with Wiper) ネットワーク イーサネット RJ-45 (10/100BASE-T) 映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG スマートコーデック Manual(5ea area), WiseStreamⅡ ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBRストリーミング性能 Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour セキュリティ HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)応用インターフェイス ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform一般 ウェブビューワー言語 English, Korean, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian メモリー 1024MB RAM, 256MB Flash 動作環境/電源 動作温度/湿度 -40°C~+60°C (-40°F~+140°F) / Less than 90% RH
* Start up should be done at above -30°C保管温度/湿度 -30°C~+60°C(-22°F ~ +140°F) / Less than 90% RH 規格認証 IP67, IK10
CE2460, EX II 2 GD, Ex d IIC T6 Gb IP67
Ex tb IIIC T80°C Db電源 24VAC 消費電力 24VAC: Max 28W 物理的仕様 カラー/材質 Metalic Silver / Stainless 316L 寸法/重量 Ø162 x 244mm(Ø6.38 x 9.61"), 7Kg(15.43 lb) -
• The latest product information / specification can be found at hanwha-security.com
• Design and specifications are subject to change without notice.
