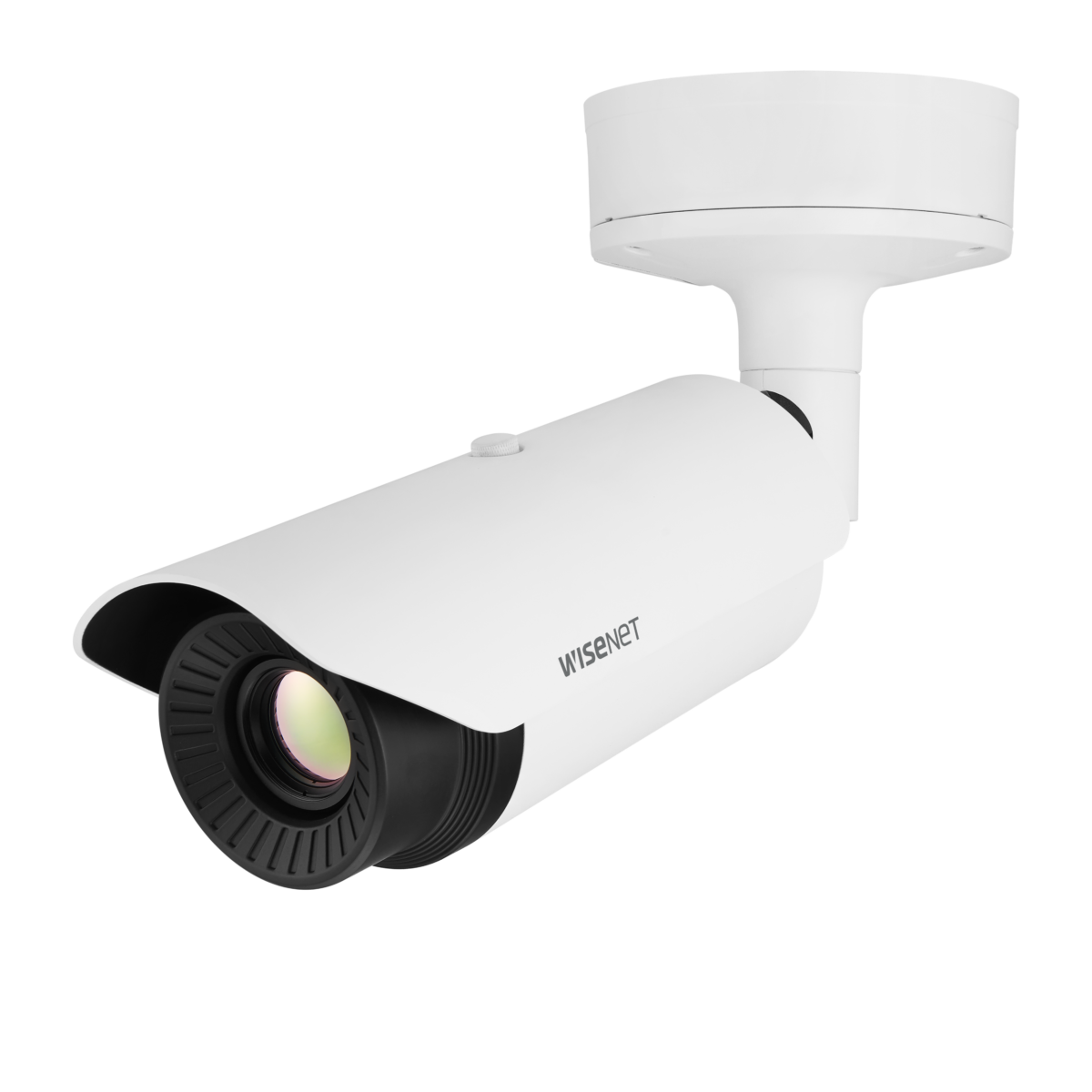

TNO-3050T
QVGA Thermal Camera
Key Features
• Max. 320 x 240 resolution support
• Horizontal 6.3°, Vertical 4.7° field of view
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC
• IP66, NEMA4X
• Horizontal 6.3°, Vertical 4.7° field of view
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC
• IP66, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
画像にマウスを合わせると拡大されます
TNO-3050T
QVGA Thermal Camera
Key Features
• Max. 320 x 240 resolution support
• Horizontal 6.3°, Vertical 4.7° field of view
• H.265, H.264, MJPEG codec
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC
• IP66, NEMA4X
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.
Multiple color palettes
Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.
Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.
製品の仕様
- 映像
- レンズ
- カメラ機能
- ネットワーク
- 一般
- 動作環境/電源
- 物理的仕様
-
-
映像 映像素子 Uncooled micro bolometer 解像度 320x240 最大フレームレート H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)NETD ＜60mK ピクセルサイズ 12㎛ 映像出力 CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationレンズ 焦点距離 35mm fixed focal 最大口径比 F1.0 画角 H: 6.3°, V: 4.7°, D: 7.8° 最低被写体距離 51m フォーカス制御 Fixed カメラ機能 カメラタイトル Displayed up to 85 characters 手振れ補正 Support(built-in gyro sensor) モーション検知 8ea, 8point polygonal zones プライバシーマスク 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic映像回転 Flip, Mirror, Hallway view(90˚/270˚) インテリジェントビデオ Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection アラーム入出力 Input 1ea / Output 2ea アラームトリガー Analytics, Network disconnect, Alarm input アラームイベント File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover音声入力 Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm音声出力 Line out, Max.output level: 1Vrms カラーパレット Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom ネットワーク イーサネット RJ-45(10/100BASE-T) 映像圧縮 H.265/H.264: Main/Baseline/High, MJPEG 音声圧縮 G.711 u-law / G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzスマートコーデック Manual(5ea area), WiseStreamⅡ ビットレート制御 H.264/H.265: CBR or VBR
MJPEG: VBRストリーミング性能 Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)プロトコル IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP セキュリティ HTTPS(SSL) login authentication
Digest login authentication
IP address filtering
User access log
802.1X authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)応用インターフェイス ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform一般 ウェブビューワー言語 English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek SDカード Micro SD/SDHC/SDXC 1slot 256GB メモリー 1024MB RAM, 256MB Flash 動作環境/電源 動作温度/湿度 -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH 保管温度/湿度 -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH 規格認証 IP66, NEMA4X 電源 PoE(IEEE802.3af, Class3), 24VAC, 12VDC 消費電力 PoE: Max. 8.7W, typical 7.5W
12VDC: Max. 7.8W, typical 6.7W
24VAC: Max. 9.2W, typical 8.0W物理的仕様 カラー/材質 White / Aluminum RAL コード RAL9003 寸法/重量 Φ147.51x401.3mm(5.81x15.79") / 2742g(6.05lb)
-
