QNO-C9083R
8MP AI IR Bullet Camera
Key Features
• Max. 8MP resolution
• 3.2~10.2mm(3.2x) motorized varifocal
• Color: 0.06Lux(F1.6, 1/30sec),
BW: 0.006Lux(F1.6, 1/30sec, 30IRE)
• Maximum 30fps@8MP (H.265/H.264)
• IR viewable length 30m (98.42ft)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) :
Object detection (Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66, IK10
• PoE: Max 12W
※ Product availability may vary by region, please contact your regional representative.

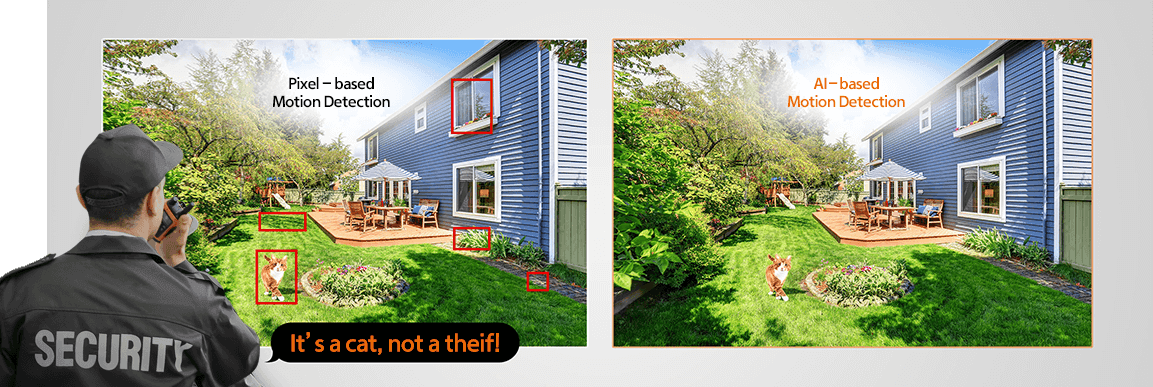

False alarm reduction
Q series AI cameras detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals. Q series AI cameras are able to help improve operator efficiency even with conventional motion detection.

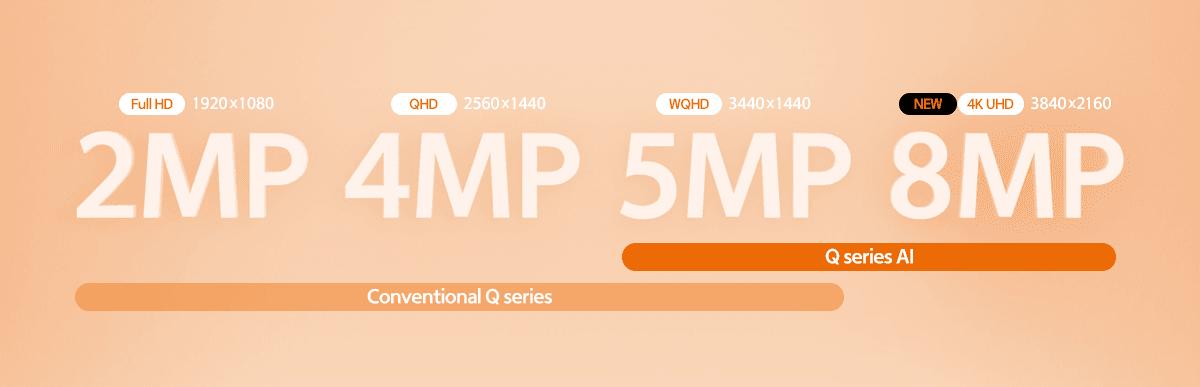

Various resolution options from 2MP to 8MP
Q series AI cameras offer a variety of cameras with resolutions ranging from 2MP to 8MP, so users can choose the right one for environmental needs.
Product Demo
Q series AI cameras demo video
This content requires cookie consent to load.Open in new tab
Specifications
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.06 |
| BW(1/30sec, 30IRE) | 0.006 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 3.2~10.2 | |
| Zoom Ratio | Optical | 3.2x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 3.1 | |
| Angular Field of View | Horizontal | 104°~31° |
| Vertical | 55°~17° | |
| Diagonal | 124°~35° | |
| Min. Object Distance | 1.2m(3.93ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected) | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.42ft) |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 12W, typical 5.3W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø93.4x245.8mm(ø3.68x9.68") | |
| Product Weight | 930g(2.05Ib) | |
| Compatible Gang Box | Single, Double, 4" Octagon | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 60.0m(196.86ft) |
| Tele | 276.9m(908.57ft) | |
| Observe (63PPM/ 19PPF) | Wide | 24.2m(78.74ft) |
| Tele | 111.7m(363.43ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.0m(39.37ft) |
| Tele | 55.4m(181.71ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.0m(19.69ft) |
| Tele | 27.7m(90.86ft) |
Video
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.06 |
| BW(1/30sec, 30IRE) | 0.006 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
Lens
| Focal Length (mm) | 3.2~10.2 | |
| Zoom Ratio | Optical | 3.2x |
| Max Aperture Ratio (F number) | Wide | 1.6 |
| Tele | 3.1 | |
| Angular Field of View | Horizontal | 104°~31° |
| Vertical | 55°~17° | |
| Diagonal | 124°~35° | |
| Min. Object Distance | 1.2m(3.93ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris(IR corrected) | |
Pan / Tilt / Rotate
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~100° | |
| Rotate | 0°~360° |
Operational
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | Gray, Green, Red, Blue, Black, White | |
| Dynamic Privacy Masking: Color / Option | Mosaic | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 1/5~1/25,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
| Alarm Interface | In/Out | Input 1ea, Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | 30m(98.42ft) |
| IR Wavelength | 850nm | |
Analytics
| Classified Object Type | Person, Vehicle | |
| Attributes | Person | Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Normal | Defocus detection, Tampering, Virtual area(Appear/Disappear) | |
| Business Intelligence | Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting |
Network
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 5 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support | |
Security
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication, Prevent brute-force attack | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | SDcard partition encrypt(AES-256) | |
General
| Memory | RAM | 2GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
Environmental & Electrical
| Operating Condition | Temperature | -30°C~+55°C(-22°F~+131°F) |
| Humidity | 0~100% RH(condensing) | |
| Others | Start up should be done at above -30°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3) | |
| Power Consumption | PoE | Max. 12W, typical 5.3W |
Mechanical
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø93.4x245.8mm(ø3.68x9.68") | |
| Product Weight | 930g(2.05Ib) | |
| Compatible Gang Box | Single, Double, 4" Octagon | |
Certifications & Standards
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide | 60.0m(196.86ft) |
| Tele | 276.9m(908.57ft) | |
| Observe (63PPM/ 19PPF) | Wide | 24.2m(78.74ft) |
| Tele | 111.7m(363.43ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 12.0m(39.37ft) |
| Tele | 55.4m(181.71ft) | |
| Identify (250PPM/ 76PPF) | Wide | 6.0m(19.69ft) |
| Tele | 27.7m(90.86ft) |
Downloads
View Selection
DataSheets
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_QNO-C9083R_20260806_EN_192851.pdf | 2026-08-06 |
Manuals
| Category | File Name | Last Update | |
|---|---|---|---|
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_DE.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_EN.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_FR.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_ES.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_IT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_PL.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_PT.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_TR.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_ZH.pdf | 2026-08-06 | |
| Manuals | Manuals_QNV-C9083R,QNV-C8083R,QNO-C9083R,QNO-C8083R_251022_ZH-TW.pdf | 2026-08-06 |
CAD
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_QNO-C8083RQNO-C9083R_230710_EN.pdf | 2026-08-06 | |
| CAD | CAD_QNO-C8083RQNO-C9083R_230710_EN.dwg | 2026-08-06 | |
| CAD | CAD_QNO-C8083RQNO-C9083R_230710_EN.dxf | 2026-08-06 |
Certification
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_QNO-C9083R_230410_EN_DoC_UL.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_EMC_CE(+UKCA).pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_DoC_UKCA.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_DoC_CE.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_VCCI.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_RCM.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230214_EN_FCC-IC.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230203_EN_IK10.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C9083R_230206_EN_IP66.pdf | 2026-08-06 | |
| Certification | Certification_QNO-C6083R,QNO-C8083R,QNO-C9083R_241226_EN_NEMA4X.pdf | 2026-08-06 |
A&E Document
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_QNO-C9083R_230515_EN.docx | 2026-08-06 |
Quick Guide
Online Help
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_QNV-C9083RQNO-C9083RQNV-C8083RQNO-C8083R_230327_EN.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNV-C9083RQNO-C9083RQNV-C8083RQNO-C8083R_230327_FR.pdf | 2026-08-06 | |
| Online Help | Online-Help_QNV-C9083RQNO-C9083RQNV-C8083RQNO-C8083R_230327_ES.pdf | 2026-08-06 |
OpenSourceLicense
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_QNV-C9083R,QNO-C9083R,QNV-C8083R,QNO-C8083R,QNV-C9011R,QNV-C8011R_260215_EN.txt | 2026-08-06 |
Firmware
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_Q_AI_2_16_05_20260805_hva_prod.zip | 2026-08-18 | |
| Firmware | QNV-C9083R_2.23.10_20260624_R666.zip | 2026-07-01 | |
| Firmware | GenetecSecurityCenterSaaS_v_Q_AI_26_06_17_20260617.zip | 2026-07-01 |
Q Series
QNO-C8023R
5MP AI IR Bullet Camera
QNO-C8013R
5MP AI IR Bullet Camera
QNO-C6083R
2MP AI IR Bullet Camera
QNO-C8083R
5MP AI IR Bullet Camera
QNO-6082R1
2MP IR Bullet Camera
QNO-6072R1
2MP IR Bullet Camera
QNO-6022R1
2MP IR Bullet Camera
QNO-6012R1
2MP IR Bullet Camera
QNO-7032R
4MP IR Bullet Camera
QNO-7022R
4MP IR Bullet Camera
QNO-7012R
4MP IR Bullet Camera
QNO-7082R
4MP IR Bullet Camera
QNO-6022R
2M H.265 IR Bullet Camera
QNO-6012R
2M H.265 IR Bullet Camera
QNO-6082R
2M H.265 IR Bullet Camera
QNO-8080R
5M H.265 IR Bullet Camera
QNO-8020R
5M H.265 IR Bullet Camera
QNO-8010R
5M H.265 IR Bullet Camera
Choose Better. Use Smarter.
From product selection to deployment, learning, and ongoing support, we provide the tools and resources you need to get the most out of Hanwha Vision
