4MP x 4ch AI Camera
• 360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
• 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
• AI based loitering detection and line crossing detection
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Compact size & semi-modular design
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)





※ Product availability may vary by region, please contact your regional representative.

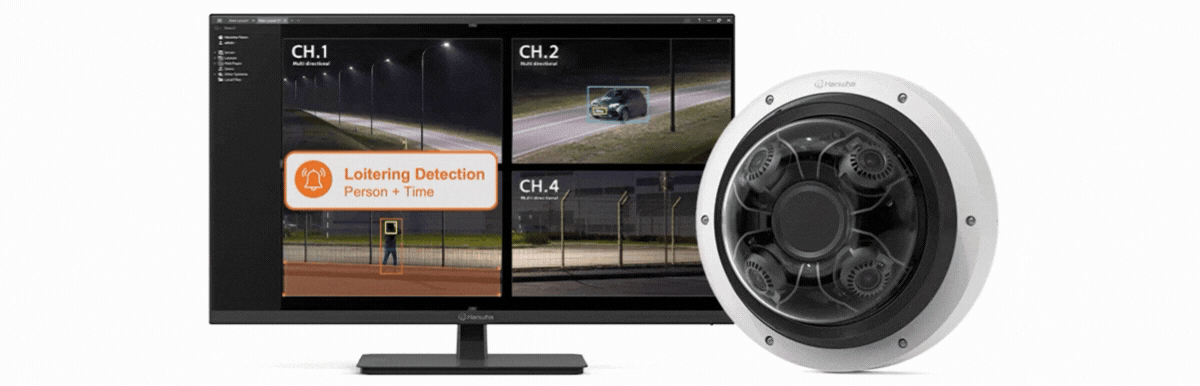

The new 4CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

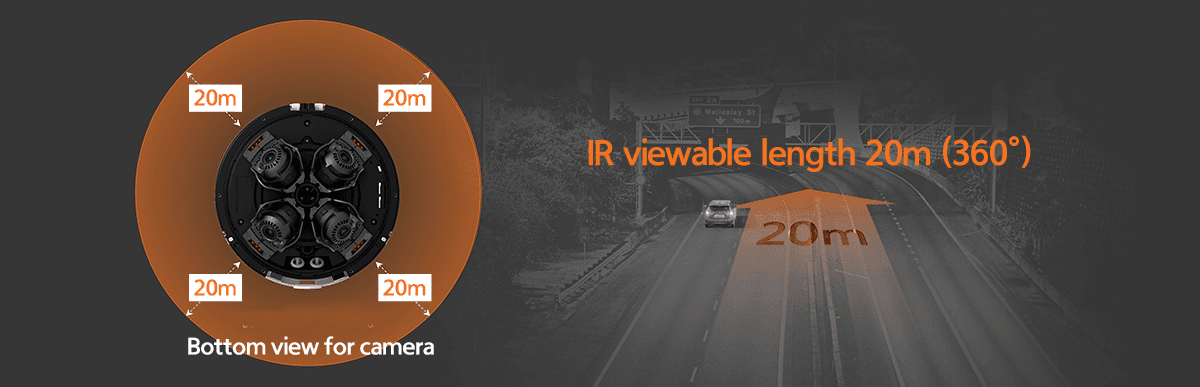

The new 4CH AI Multi-directional camera has four independent IR zones. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby objects.

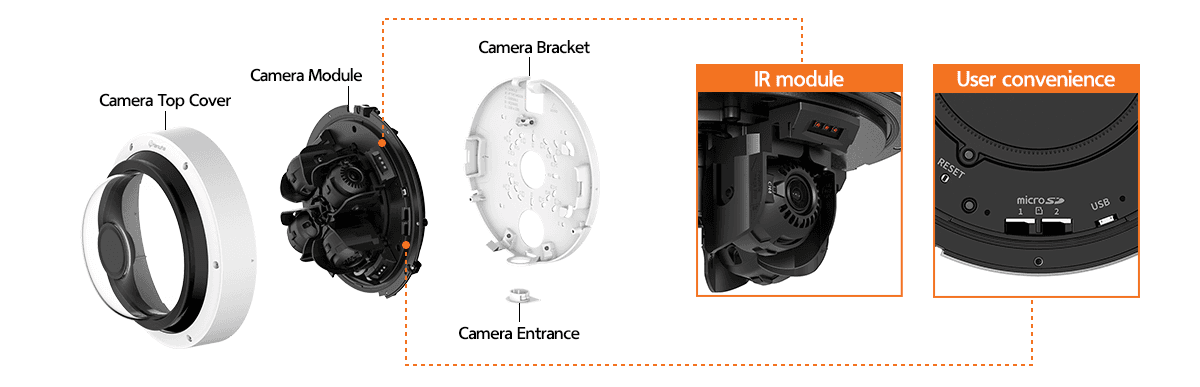

The new 4CH AI Multi-directional camera provides an intuitive installation. microSD card and reset button are supported by unscrewing one cover and 4CH AI Multi-directional camera design includes an integrated installation plate with gang-box compatibility. Integrated installation plate with Gang box compatibility and ¾” conduit entrance for quick and easy installation.

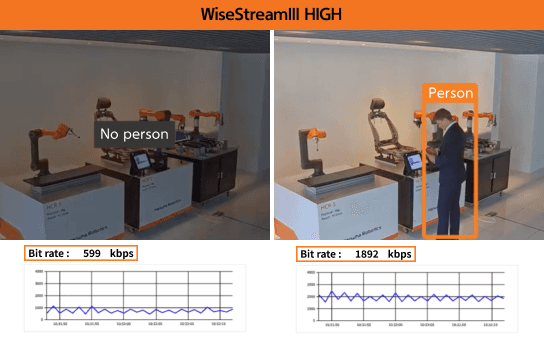

WiseStreamIII
AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.

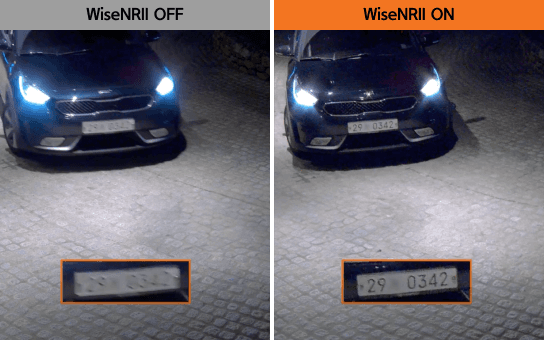

WiseNRII
AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.

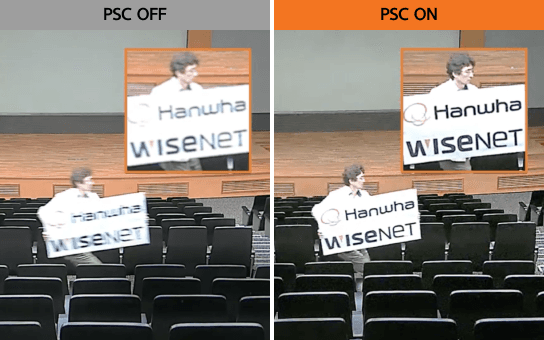

Prefer Shutter Control
AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.075 |
| BW(1/30sec, 30IRE) | 0.0075 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
| Focal Length (mm) | 3.3~5.7 | |
| Zoom Ratio | Optical | 1.7x |
| Max Aperture Ratio (F number) | Wide | 1.5 |
| Tele | 1.9 | |
| Angular Field of View | Horizontal | 100°~53° |
| Vertical | 54°~30° | |
| Diagonal | 125°~61° | |
| Min. Object Distance | 1.3m(4.27ft) | |
| Focus Control | Simple focus | |
| Lens Type | Fixed iris | |
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~65° | |
| Rotate | 0°~90° |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | PoE+: WiseIR 15m(49.21ft), PoE++: WiseIR 20m(65.62ft) |
| IR Wavelength | 850nm | |
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | None, Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 10 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module) | |
| Security Certificate | Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) | |
| SoC | Type | CV5 |
| Memory | RAM | 8GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) | |
| Power Consumption | PoE | PoE++: Max. 30W, typical 22W |
| Others | PoE+: Max. 25.5W, typical 22W | |
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø250x114.2mm(9.84x4.50") | |
| Product Weight | 2,730g(6.02lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
| Detect (25PPM/ 8PPF) | Wide | 43.5m(142.71ft) |
| Tele | 104.0m(341.13ft) | |
| Observe (63PPM/ 19PPF) | Wide | 17.4m(57.09ft) |
| Tele | 41.6m(136.45ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 8.7m(28.54ft) |
| Tele | 20.8m(68.23ft) | |
| Identify (250PPM/ 76PPF) | Wide | 4.3m(14.27ft) |
| Tele | 10.4m(34.11ft) |
| Imaging Device | Size | 1/2.8" |
| Type | CMOS | |
| Resolution | 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@4MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.075 |
| BW(1/30sec, 30IRE) | 0.0075 | |
| Video Out | USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. | |
| Focal Length (mm) | 3.3~5.7 | |
| Zoom Ratio | Optical | 1.7x |
| Max Aperture Ratio (F number) | Wide | 1.5 |
| Tele | 1.9 | |
| Angular Field of View | Horizontal | 100°~53° |
| Vertical | 54°~30° | |
| Diagonal | 125°~61° | |
| Min. Object Distance | 1.3m(4.27ft) | |
| Focus Control | Simple focus | |
| Lens Type | Fixed iris | |
| Pan / Tilt / Rotate Range | Pan | 0°~360° |
| Tilt | 0°~65° | |
| Rotate | 0°~90° |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 6ea |
| Shape | Rectangular zones | |
| Color / Option | Gray, Black, White | |
| Gain Control | Low, Middle, High | |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | |
| LDC | Support | |
| Electronic Shutter | Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each channel separately | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Others | Support extra alarm I/O via optional I/O box | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication | |
| Audio In | Selectable(mic in/line in) | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | PoE+: WiseIR 15m(49.21ft), PoE++: WiseIR 20m(65.62ft) |
| IR Wavelength | 850nm | |
| Classified Object Type | Person, Face, Vehicle, License plate | |
| Attributes | Person | None, Upper/Lower clothes color |
| Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | |
| Thumbnail | BestShot | |
| Analytics Events | Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) |
| Normal | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear) | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 10 users |
| Multicast | Support | |
| Multiple Streaming | Up to 3 profiles | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF | S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
| Direct Cloud Connection | Support | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware | |
| User authentication | Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP | |
| Access Control | IP-based access control | |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | TPM(Trusted platform module) | |
| Security Certificate | Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) | |
| SoC | Type | CV5 |
| Memory | RAM | 8GB |
| Flash | 1GB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Others | Start up should be done at above -35°C, Humidity control with AIR vent | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) | |
| Power Consumption | PoE | PoE++: Max. 30W, typical 22W |
| Others | PoE+: Max. 25.5W, typical 22W | |
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø250x114.2mm(9.84x4.50") | |
| Product Weight | 2,730g(6.02lb) | |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
| Compatible Gang Box | Single, Double, 4" Octagon, Square | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 | |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 | |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X | |
| Detect (25PPM/ 8PPF) | Wide | 43.5m(142.71ft) |
| Tele | 104.0m(341.13ft) | |
| Observe (63PPM/ 19PPF) | Wide | 17.4m(57.09ft) |
| Tele | 41.6m(136.45ft) | |
| Recognize (125PPM/ 38PPF) | Wide | 8.7m(28.54ft) |
| Tele | 20.8m(68.23ft) | |
| Identify (250PPM/ 76PPF) | Wide | 4.3m(14.27ft) |
| Tele | 10.4m(34.11ft) |
View Selection
| Category | File Name | Last Update | |
|---|---|---|---|
| DataSheet | DataSheet_PNM-C16083RVQ_20260806_EN_180720.pdf | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| CAD | CAD_PNM-C32083RVQPNM-C16083RVQ_230818_EN.pdf.pdf | 2026-08-13 | |
| CAD | CAD_PNM-C32083RVQPNM-C16083RVQ_230818_EN.dxf | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| Certification | Certification_PNM-C16083RVQ_230405_EN_IK10.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230802_EN_NEMA4X.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230406_EN_IP66.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230803_EN_UL.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_VCCI.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_RCM.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_FCC,IC.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_EMC_CE,UKCA.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_DoC_UKCA.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_230516_EN_DoC_CE.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C16083RVQ_240513_EN_EMC_CEEN-50121-4.pdf | 2026-08-13 | |
| Certification | Certification_PNM-C32083RVQ,PNM-C16083RVQ,PNM-C34404RQPZ_250822_EN_ETSI-EN-303-645.pdf | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| A&E Document | AE-Document_PNM-C16083RVQ_230811_EN.docx | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| Online Help | Online-Help_PNM-C16083RVQPNM-C32083RVQ_20230816_EN.pdf | 2026-08-13 | |
| Online Help | Online-Help_PNM-C16083RVQPNM-C32083RVQ_20230816_ES.pdf | 2026-08-13 | |
| Online Help | Online-Help_PNM-C16083RVQPNM-C32083RVQ_20230816_FR.pdf | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| OpenSourceLicense | OpenSourceLicense_PNM-C32083RVQ,PNM-C16083RVQ_260429_EN.txt | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| SBOM | SBOM_PNM-C32083RVQ,PNM-C16083RVQ_260429_EN_cyclonedx.json | 2026-08-13 |
| Category | File Name | Last Update | |
|---|---|---|---|
| Firmware | CloudConnector_v_CV5_2_16_05_20260805_hva_prod.zip | 2026-08-18 | |
| Firmware | PNM-C32083RVQ_26.02.01_20260702_R1465.zip | 2026-07-24 | |
| Firmware | WiseAI_v_PNM-C34404RQPZ_26_02_01_20260507.zip | 2026-07-24 |
5MP 3CH fixed + 4MP 18x PTZ AI Camera
8MP x 4CH Multi-directional Camera
4MP x 4CH Multi-directional Camera
4CH mini AI Camera
4K 4Ch PTRZ + 2MP 40x PTZ AI Camera
4K x 4CH AI IR PTRZ Mult-directional Camera
6MP x 2CH Multi-directional Camera
2MP x 2CH Multi-directional Camera
5MP x 4CH IR PTRZ Multi-directional Camera
2MP x 4CH IR PTRZ Multi-directional Camera
2MP x 4CH PTRZ Multi-directional Camera
6MP x 2CH AI Multi-directional Camera
2MP x 2CH AI Multi-directional Camera
2MP/5MP x 5CH Multi-directional Camera
2MP x 3ch Multi-directional Camera
2MP/5MP x 4CH Multi-directional Camera
5MP x 2CH Multi-directional Camera
From product selection to deployment, learning, and ongoing support, we provide the tools and resources you need to get the most out of Hanwha Vision
