XRN-820S

Copy a URL
Copy

8CH NVR

Key Features
• Up to 8CH 32MP supported
• Max. 120Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Plug & play by 8 PoE ports
• Bookmark management (Up to 100 set)
• SATA 2ea (Up to 12TB)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Copy a URL
Copy

Image Download Total Image Download

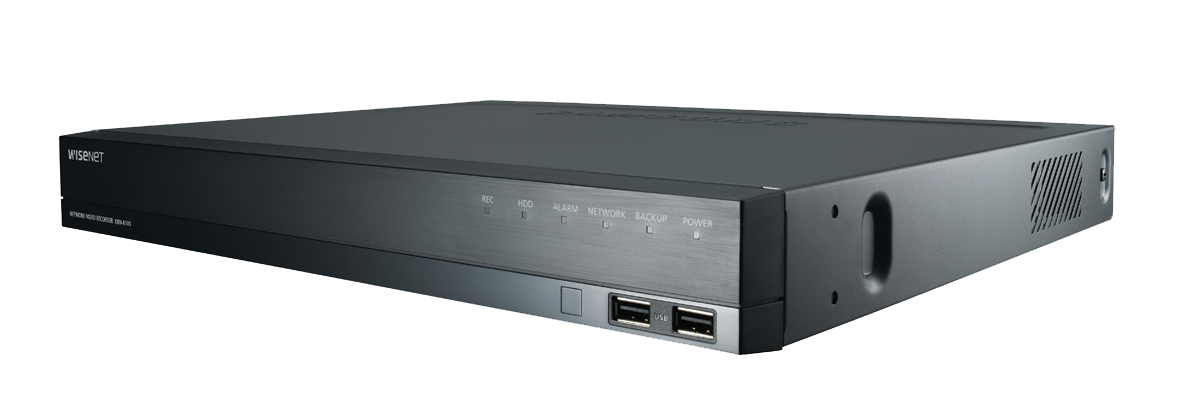

XRN-820S

8CH NVR

Key Features

• Up to 8CH 32MP supported
• Max. 120Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported
• Plug & play by 8 PoE ports
• Bookmark management (Up to 100 set)
• SATA 2ea (Up to 12TB)

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
XRN-820S
Datasheet
Contact Sales
Timeline preview and easy channel, event, alarm configuration
When managing multi channels, XRN-1620SB1/1620B2/820S greatly improves search efficiency by allowing users to preview images and videos by simply hovering mouse cursor on the timeline. Moreover, users can configure event and alarm for all channels within a single page.
Supports live monitoring and bookmarks
With the live monitoring feature, XRN-1620SB1/1620B2/820S allow users to view information by channel including real-time videos, system status, recording status and etc. and also offer easy and detailed monitoring with the digital PTZ control.
Moreover, bookmarks feature makes it possible to save up to 100 major events for the easy and quick event search.
Save cost and install easy NVR with integral PoE
XRN-1620SB1/820S with built-in PoE switches further reduce cost and save installation time by supplying ample power to cameras directly and detecting products automatically upon integration.



Product Specification

  • Display
  • Performance
  • Network
  • Functions
  • Interface
  • System
  • Environmental
  • Electrical
  • Mechanical
  • Intelligent Analysis
  • Display
    Network camera
    Inputs Max. 8CH
    Resolution 32MP ~ CIF
    Protocols SUNAPI, ONVIF
    Decoding
    Local Display FHD : HDMI & VGA Dual monitor
    UHD : HDMI Single monitor
    Multi Screen Display [Local Monitor]
    - Dynamic layout, Virtual channel view
    - Clone mode : Up to 16 Division
    - Expand mode : Up to 9 Division
    [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
    Resolution [Local Monitior]
    FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps)
    UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps)
    FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps)
    Performance
    Operating System
    Embedded Linux
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 120Mbps
    Resolution 32MP ~ CIF
    Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
    Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
    Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP,
    SUNAPI Command, Shotdown
    Search & Play
    Playback Bandwidth Max. 32Mbps
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 32CH(Local 8CH, Remote 8CH per user)
    Fisheye Dewarping CMS
    Mode Date & Time(Calendar), Event list, Text Search, Smart Search
    Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
    Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 2ea(Max. 12TB)
    Backup
    File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
    Function Multi channel(Up to 8CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Hanwha DDNS
    Transmission Bandwidth Max. 120Mbps
    Audio
    Input/Output 8 CH(network)
    Compression G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Device certificate(Hanwha Techwin Root CA), Signed firmware
    Web viewer
    Supported OS Windows 10, macOS 10.13
    Supported browser Google Chrome, Microsoft Edge, Mac Safari
    Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Register Auto, Manual
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer, SPC-2000
    Preset 300 Presets
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live 8CH(Multi-Profile Support), Playback 4CH
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    Failover N+1
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    Front
    Indicator HDD, Alarm, Power, Record, Backup, Network
    Storage OK
    HDMI 1EA 3840x2160 30Hz
    VGA 1EA 1920x1080 60Hz
    Audio Out 1EA (3.5mm Audio Jack)
    Ethernet PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
    Alarm In 4EA, Out 2EA
    USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
    Power inlet AC 1EA
    System
    Log
    Log List Max. 100,000 (System Log, Event Log each)
    System Control Mouse, Keyboard, Web, Controller (SPC-2000)
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
    Environmental
    Operating Temperature 0°C to +40°C(32℉ to 104℉)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
    Power Consumption Max 160W
    PoE Budget 100W
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) 370 x 50.7 x 324.3 mm (14.57 x 2 x 12.77 inch)
    Weight 2.7Kg (5.95lb)
    Intelligent Analysis
    AI Search
    Object Attribute Compatible for Wisenet AI Camera
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
