AIA-C01TRF

Traffic (ITS) AI pack

Key Features
- Detect and classify vehicles (car, truck, bus, motorcycle, bicycle)
- Wrong-way vehicle and illegal u-turn detection
- Vehicle speed detection
- Traffic jam and stopped vehicle detection
- Pedestrian detection
- Vehicle counting
- Vehicle turning movement counts
- Vehicle queue analysis
- Vehicle detection heatmap
Contact Sales Datasheet

["software","analytics"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Traffic (ITS) AI pack

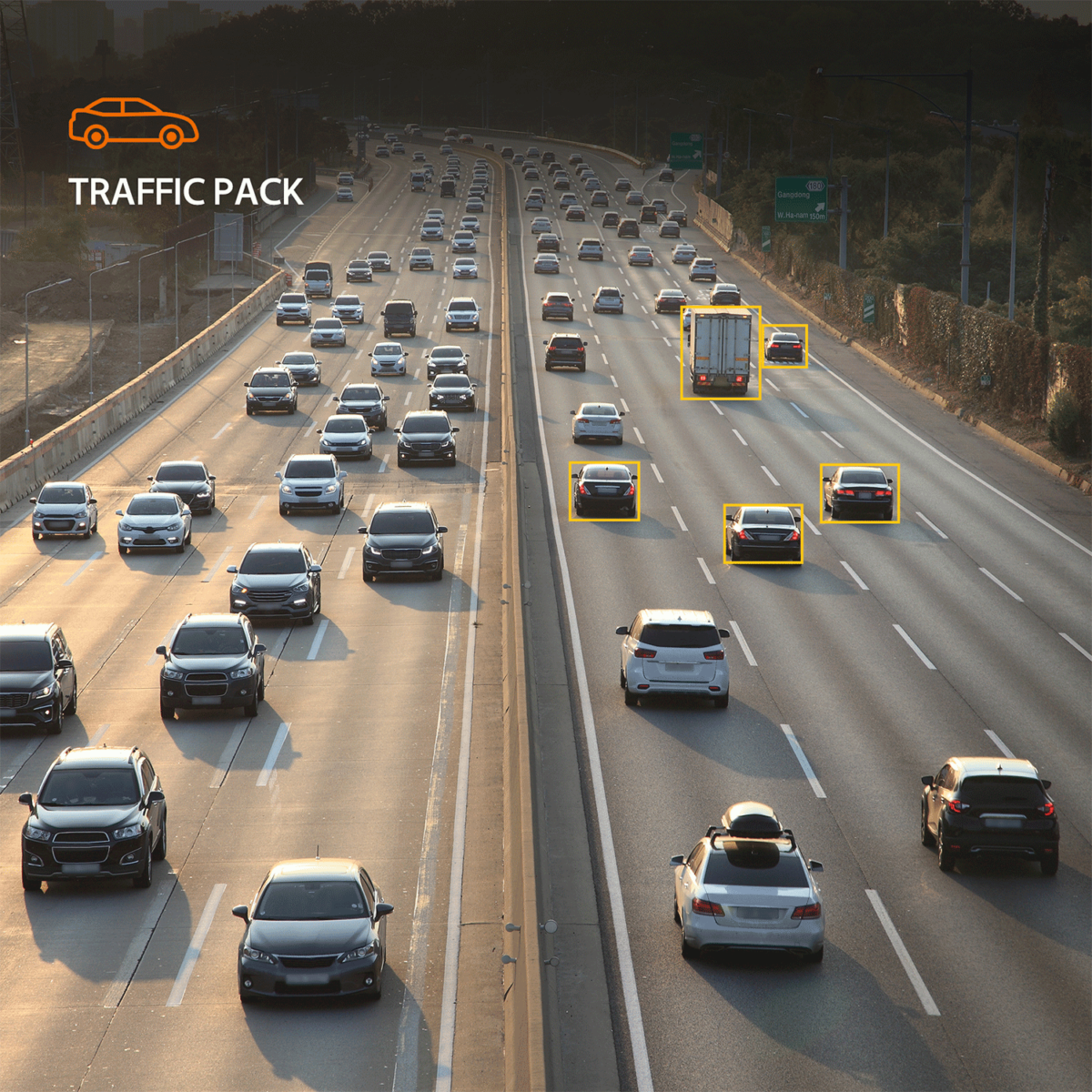

Traffic analytics provides dedicated traffic monitoring and management to traffic operators. The advanced AI in the camera provides a flexible, high performance detection. The camera detection engine support various ITS use cases, such as alerts to traffic congestion, pedestrian presence and movement, stopped vehicle, and more.

Trial license key

Transform your traffic management with Traffic AI Pack

Pedestrian Safety Monitoring

Identifies pedestrians in roadways or crosswalks, triggering alerts to prevent accidents and improve safety at intersections.

Accurate Speed Detection

Monitors vehicle speeds in real time, allowing operators to identify speeding or slow-moving traffic and take corrective actions to improve road safety.

Advanced vehicle monitoring

Supports vehicle counting at intersections, tracking movements in left, straight, and right directions. Additionally, it detects illegal U-turns and wrong-way driving, ensuring real-time alerts for immediate intervention.

Demo videos















Stopped Vehicle Detection

No Entry Prohibition

Vehicle Classification & Counting

Traffic Jam Detection

Vehicle Speed Detection

Pedestrian Detection

Multilane Vehicle Counting

Product Specification

Application
Type Camera application
Installation Hanwha Vision open platform v5.x.x or higher
Solution Traffic(ITS) pack
Version v2.1
Analytics
Classified object type Vehicle, License plate
Settings Sensitivity, Min/max size setting, Exclude area setting, Schedule
BestShot Support
Attributes Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Analytics events Object detection, Line crossing(Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Stopped vehicle detection(Up to 3 hours, 8 areas, Select vehicle types, Schedule option)
Traffic jam detection(Vehicle average speed per area, 4 areas)
Vehicle speed detection(Up to 40kph/25mph, Select vehicle types, 3 areas)
Pedestrian detection(Person/Bicycle, 3 areas)
Wrong-way detection(3 areas, Select vehicle types)
Fallen object detection(for tunnel, 3 areas)
Vehicle queue event(Occupancy per zone, High/Medium event, 3 areas)
Event action (Cameras event rule setup) When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Statistics - Multi-lane vehicle turning movement counts (straight, left/right, u-turns): Up to 20 rules, Select vehicle (Type: car/bus/truck/motorcycle/bicycle)
- Vehicle counting : Vehicle(Type: car/bus/truck/motorcycle/bicycle, Two lines with direction)
- Vehicle queue management : Real time zone counting, Generate events based on zone-specific thresholds.
- Vehicle heatmap
Statistics report Reporting to FTP and Email by schedule
XLSX, TXT file for counting, PNG for Heatmap data
Additional metadata Vehicle average speed in the zone (Traffic jam detection)
Vehicle speed per vehicle (Vehicle speed detection)
Occupancy real-time counting(Vehicle queue management)
Supported devices
Cameras PND-A9081RV/A9081RF, PNV-A9081R, PNO-A9081R, PND-A9081RVX, PNV-A9081RX, PNB-A9001
- Firmware version : 2.21.15 or higher
PND-A6081RV/A6081RF, PNV-A6081R, PNO-A6081R, PNB-A6001
- Firmware version : 2.21.08 or higher
Integration
AI search Genetec Security Center
- 5.10 + DP 10.14 or higher, 5.11 + DP 11.3 or higher, 5.12 or higher
- Hanwha Plug-in for Genetec_v1.04.00 or higher
Milestone
- DP 12.2a or higher
- Hanwha Plug-in for Milestone_v1.05.00 or higher
Application Programming Interface Hanwha Vision OpenAPI
License
Trial version Supported (60days)
model code : AIA-C01TRF-T60
Sales version model code : AIA-C01TRF
