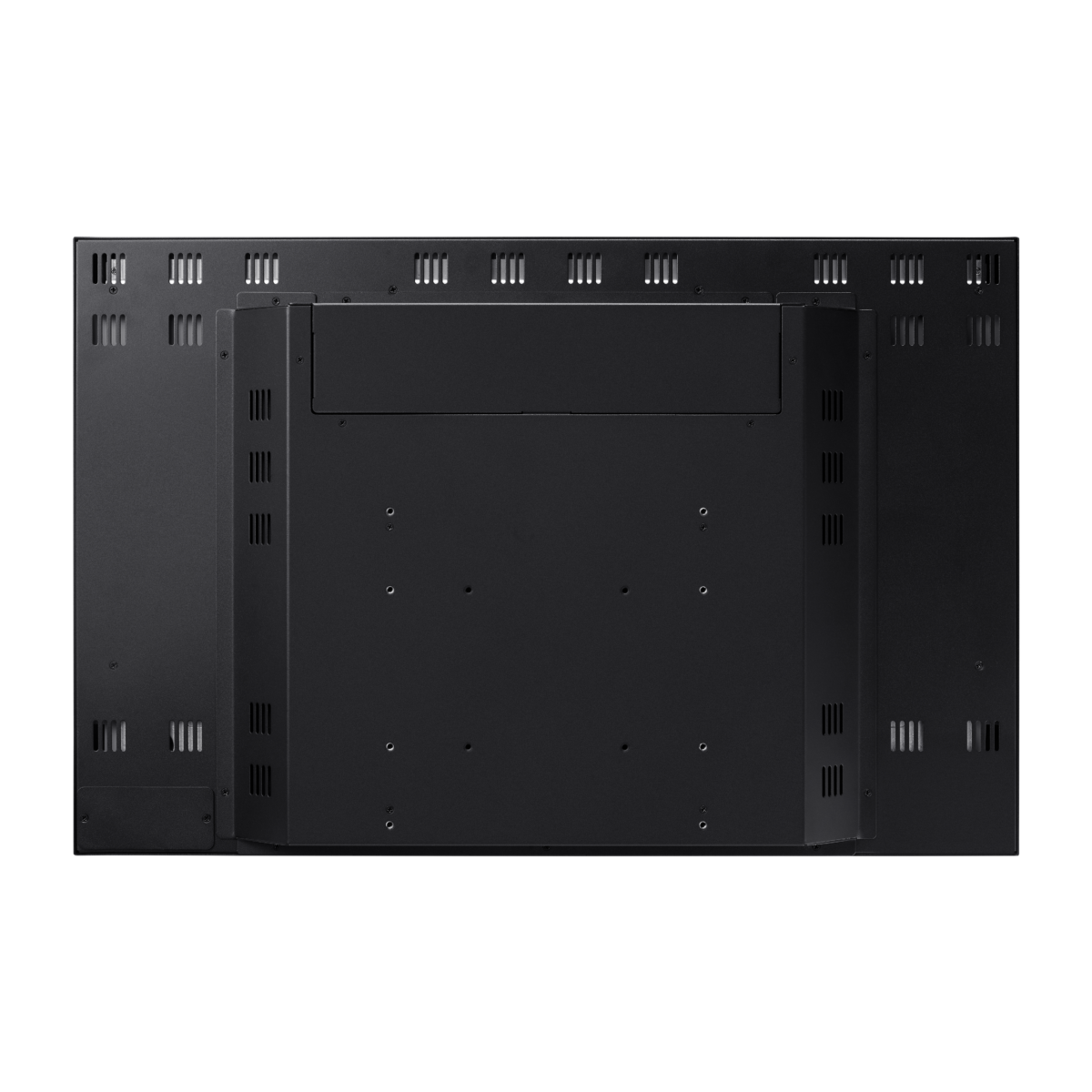

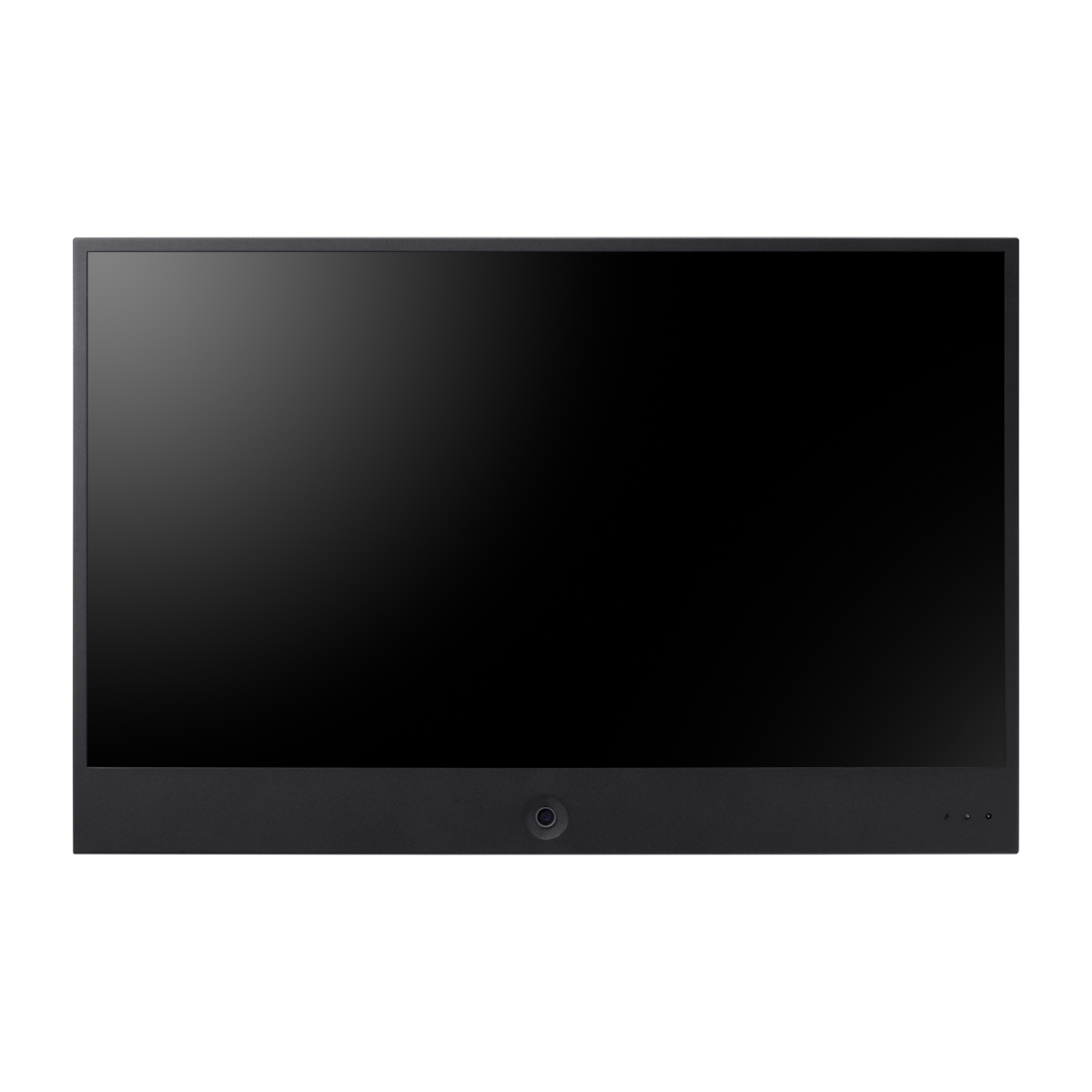

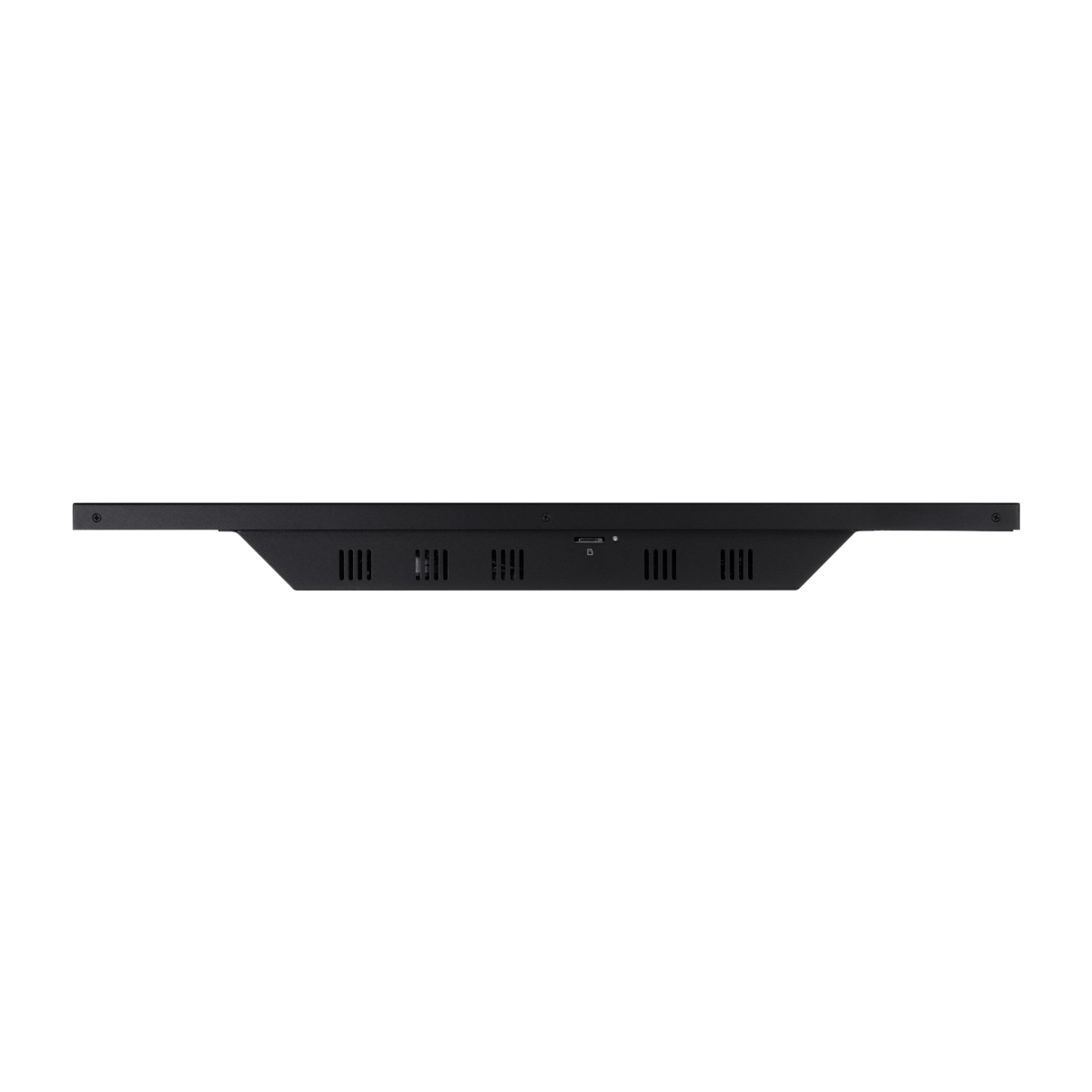

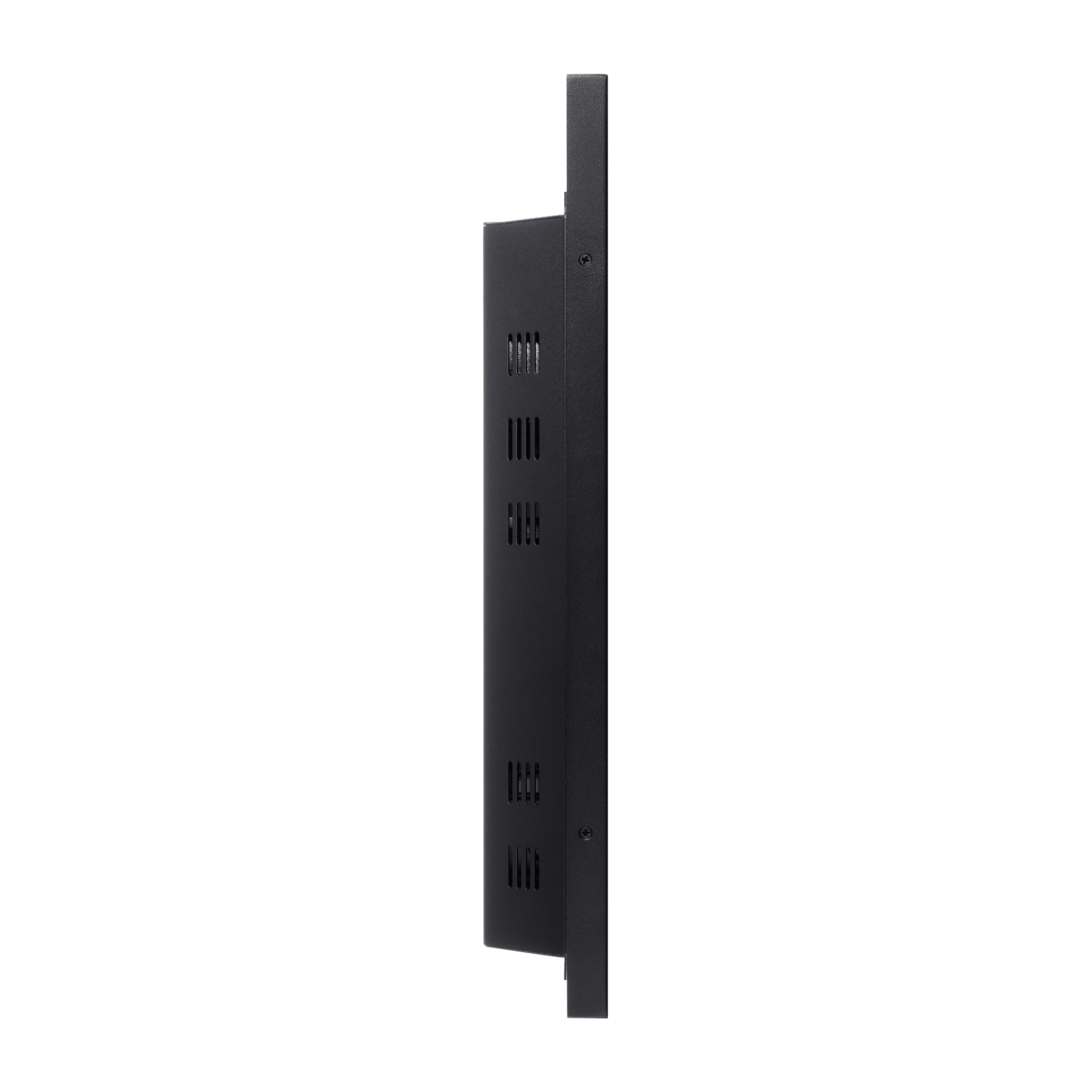

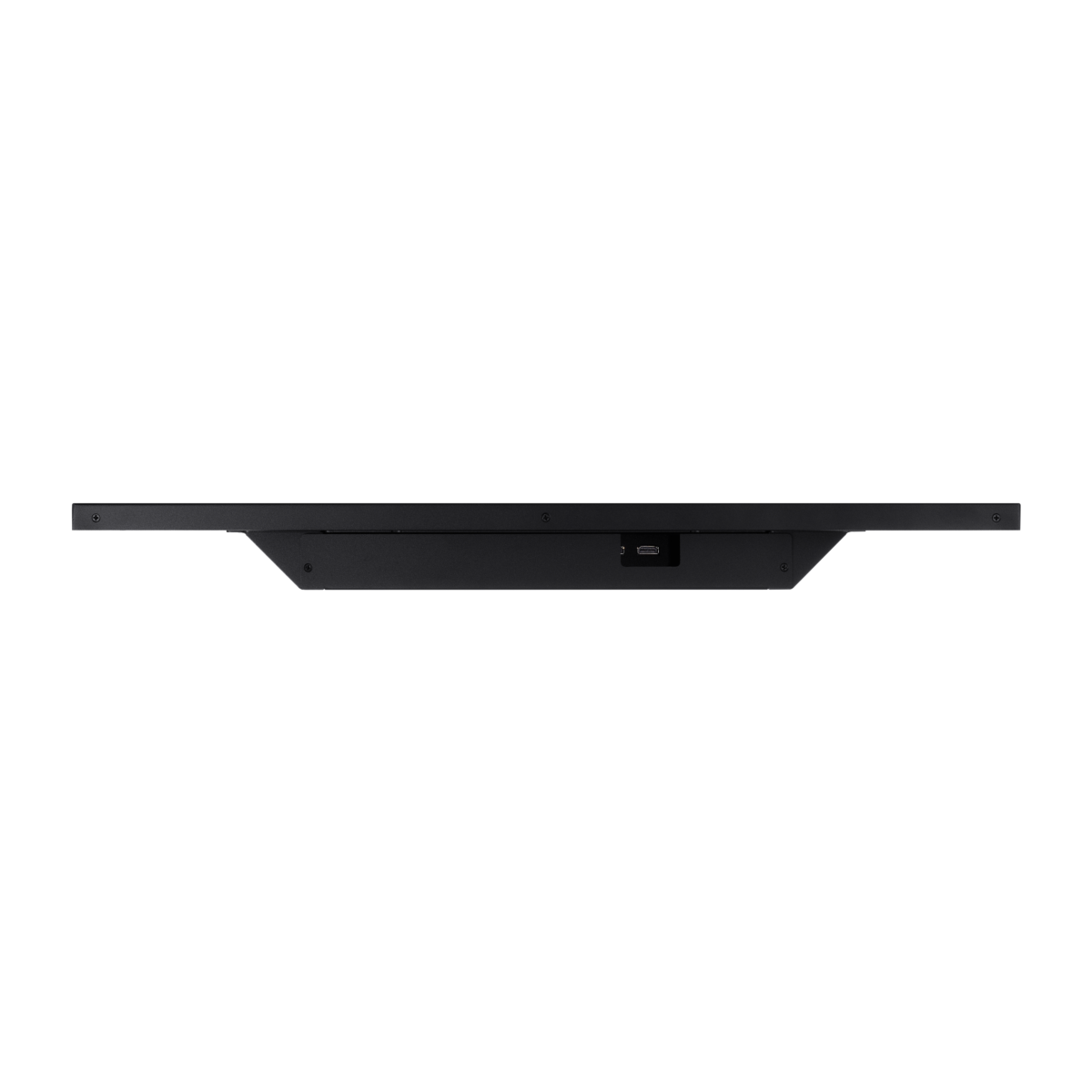

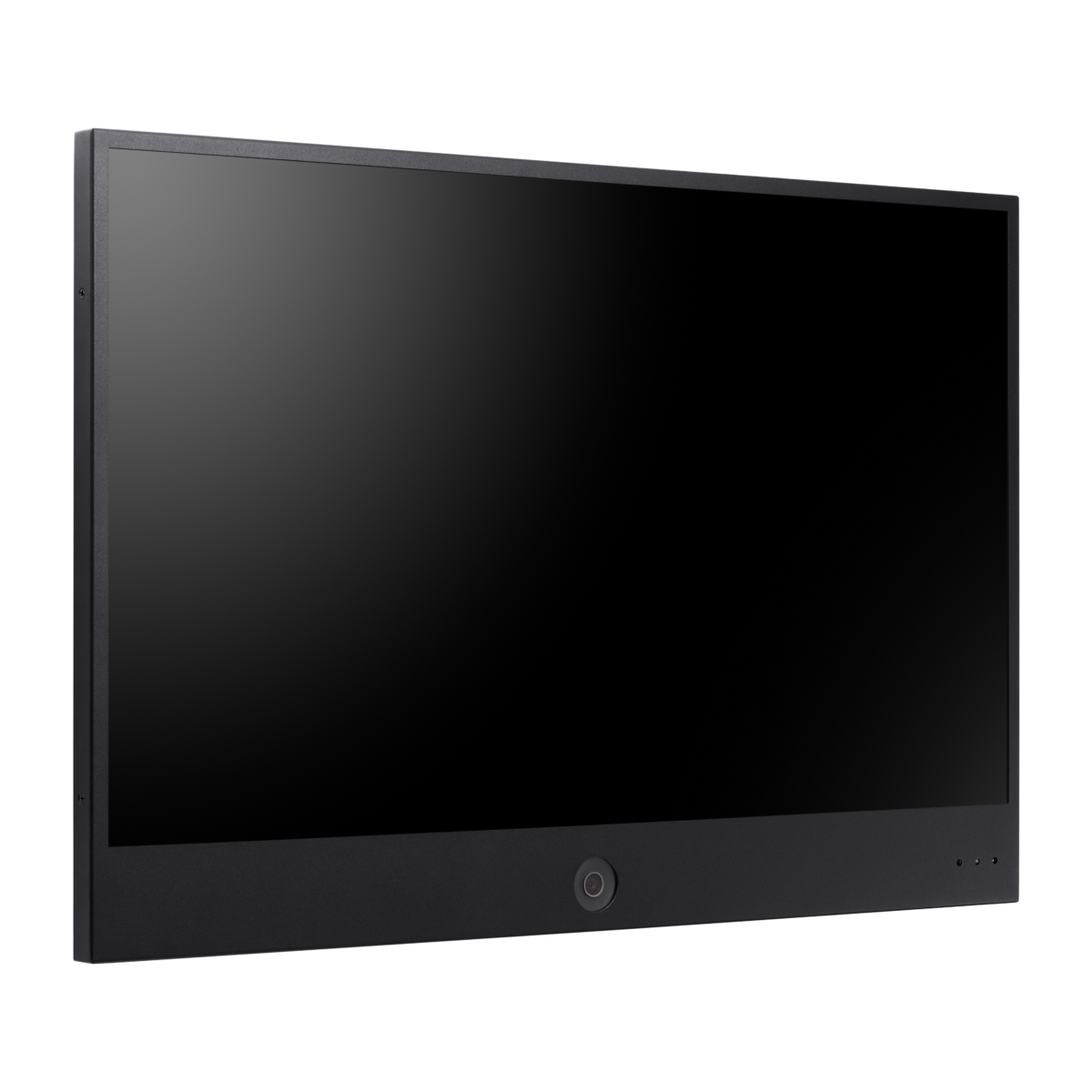

SMT-2731PV
27-inch AI PVM with PIP/PBP functionality
Key Features
• 2MP AI Camera
• AI Engine-based Object classification and Intelligence video analytics
• Support for both Landscape and portrait mode
• Face Detection display for visual deterrent (Colored bounding box around detected face)
• Supports image slide shows without requiring an extra SD Micro Card or USB
• Customizable text overlay such as "Recording in progress"
• Support uploading logo image
• Support two windows Picture In Picture(PIP) and Picture By Picture(PBP)
• Dual power HPoE and DC 24V
• Monitor Power On/Off/Scheduling
• Monitor control via web(PIP/PBP configuration, Monitor Power, etc)
• Power Adapter is not included and sold separately
* DC 24V Power Adapter(SPU-60240), HPoE Injector(SPO-8315)
• AI Engine-based Object classification and Intelligence video analytics
• Support for both Landscape and portrait mode
• Face Detection display for visual deterrent (Colored bounding box around detected face)
• Supports image slide shows without requiring an extra SD Micro Card or USB
• Customizable text overlay such as "Recording in progress"
• Support uploading logo image
• Support two windows Picture In Picture(PIP) and Picture By Picture(PBP)
• Dual power HPoE and DC 24V
• Monitor Power On/Off/Scheduling
• Monitor control via web(PIP/PBP configuration, Monitor Power, etc)
• Power Adapter is not included and sold separately
* DC 24V Power Adapter(SPU-60240), HPoE Injector(SPO-8315)
- ※Product availability may vary by region.
Please contact your regional representative. - ※Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Display | ||
|---|---|---|
| Type | LED Monitor | |
| Screen Size | 27" | |
| Max. Resolution | 1920*1080 60Hz (FHD) | |
| Brightness | 300 cd/m² | |
| Contrast Ratio | 1000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M Colors | |
| Response Time | 14ms | |
| Panel Life | 30,000 hours | |
| Interface | ||
| Video | ||
| Connectors | Camera(Internal, PIP/PBP), HDMI#1(PIP/PBP), HDMI#2 * two windows PIP/PBP : Internal Camera and HDMI#1 |
|
| HDMI | ||
| Connector | HDMI 1.4 x 2 | |
| Available Format | - 640×480@60Hz/72Hz/75Hz - 800×600@60Hz/72Hz/75Hz - 1024×768@60Hz/75Hz - 1280x720p@50Hz/60Hz - 1280x1024@60Hz/75Hz - 1440x9000@60Hz - 1680x1050@60Hz - 1920×1080@60Hz |
|
| Audio | ||
| Output Signal | Speakers : 8Ω 2Wx 2 | |
| Alarm | ||
| Alarm I/O | Input 1ea / Output 1ea | |
| Network | ||
| Ethernet | 1 RJ-45 10/100BASE-T, | |
| General | ||
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | English, Spanish, French | |
| General | ||
| Electrical | ||
| Input Voltage | DC24V, HPoE 802.3bt | |
| Power Consumption | 31W | |
| Environmental | ||
| Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) | |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | ||
| Dimensions without Stand (WxHxD) | 619mm(W) x 405mm(H) x 58mm(D) | |
| Weight | 8.5kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | VESA 100 x 100mm, 200 x 100mm, 200 x 200mm | |
| Camera | ||
| Video | ||
| Imaging Device | 1/2.8" 2MP CMOS | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
|
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) | |
| Lens | ||
| Focal Length (Zoom Ratio) | 3.06mm fixed focal | |
| Max. Aperture Ratio | F1.6 | |
| Angular Field of View | H: 107.7° / V: 59.0° / D: 126.7° | |
| Operational | ||
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) | |
| Motion Detection | 8ea, 8point Polygonal zones | |
| Privacy Masking | 32ea, 4point Quadrangle zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Digital PTZ | Support | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Classified object type: Person/Face Attributes: Not support Support DetectionShot Analytics events based on AI engine - Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) |
|
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) |
|
| Network | ||
| Smart Codec | WiseStreamⅢ | |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
|
| General | ||
| Memory | 2GB RAM, 1GB Flash | |
| Security | ||
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption | |
| User authentication | Digest Authentication, Prevent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | Access control based on IP address | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log management | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | SDcard partition encrypt | |
