In-ceiling

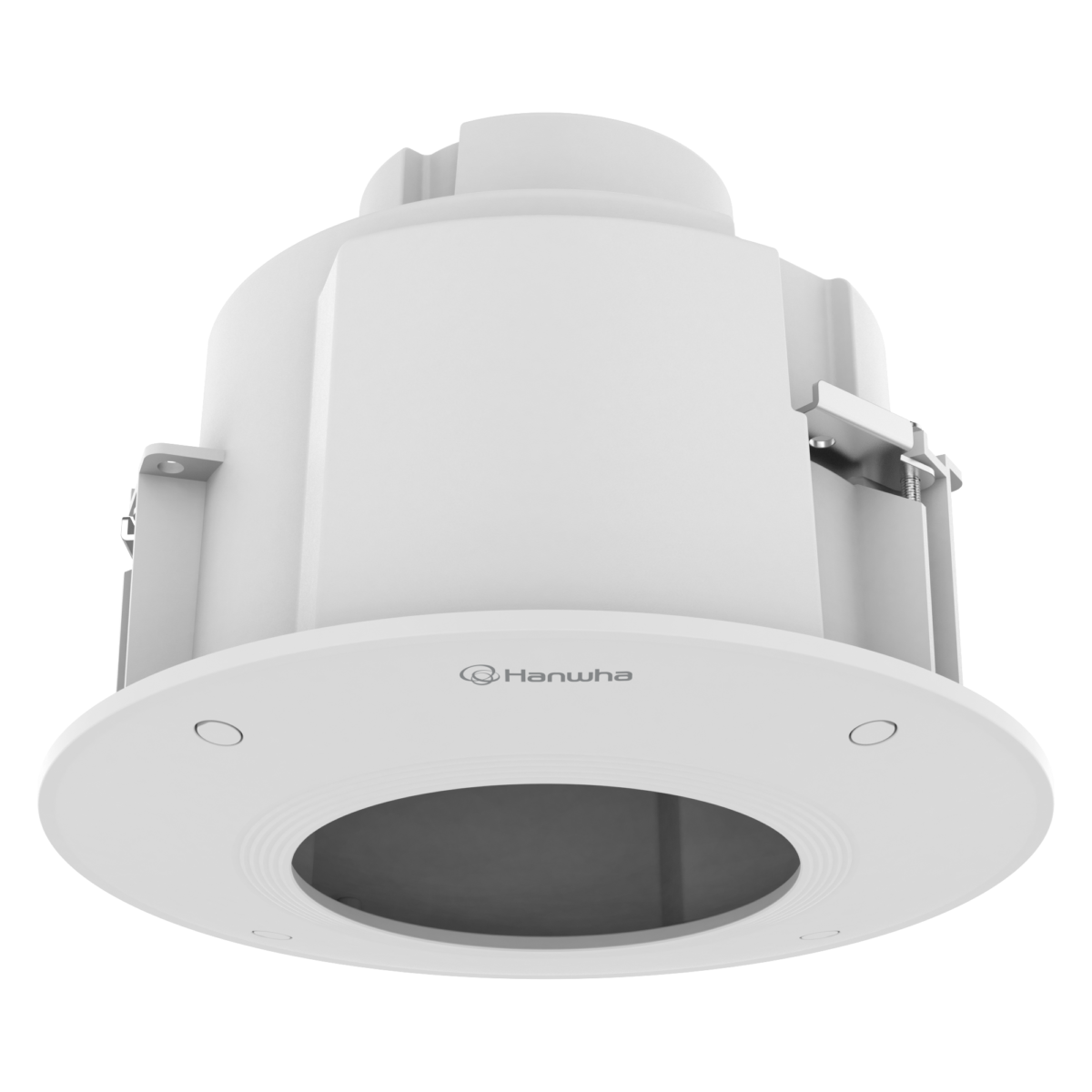

SHP-1680FPW
In-ceiling Mount
Key Features
• Enclosure: Aluminum / Top cover : Polycarbonate (PC)
• Dimensions : Ø268mm x H209mm (10.55" x 8.23")
• Weight : 1,300g (2.87 lb)
• Color : White
• Dimensions : Ø268mm x H209mm (10.55" x 8.23")
• Weight : 1,300g (2.87 lb)
• Color : White
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Mechanical | |
|---|---|
| Color | White |
| Material | Enclosure : Aluminum Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | Ø268x209mm (Ø10.55x8.23") / 1.3kg(2.87 Ib) |
| Tile thickness | 3~70mm |
| Conduit hole | 19.1mm(3/4") (M25) 12.7mm(1/2") (M20) |
| Supported products | HCP-6230/6320A, QNP-6230, XNP-6320/6321 ※ For further compatible models, please visit our website or use Toolbox |
