Ceiling

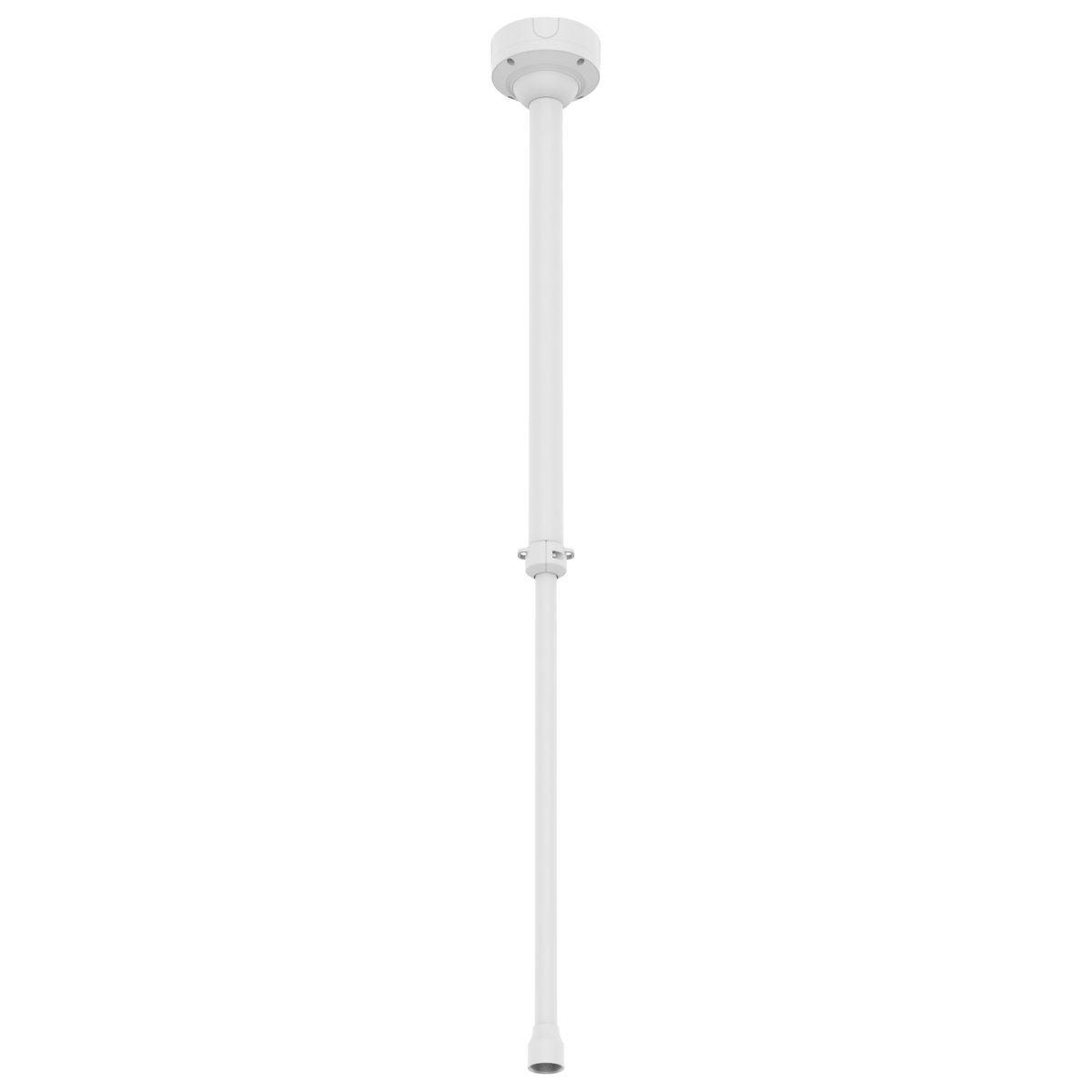

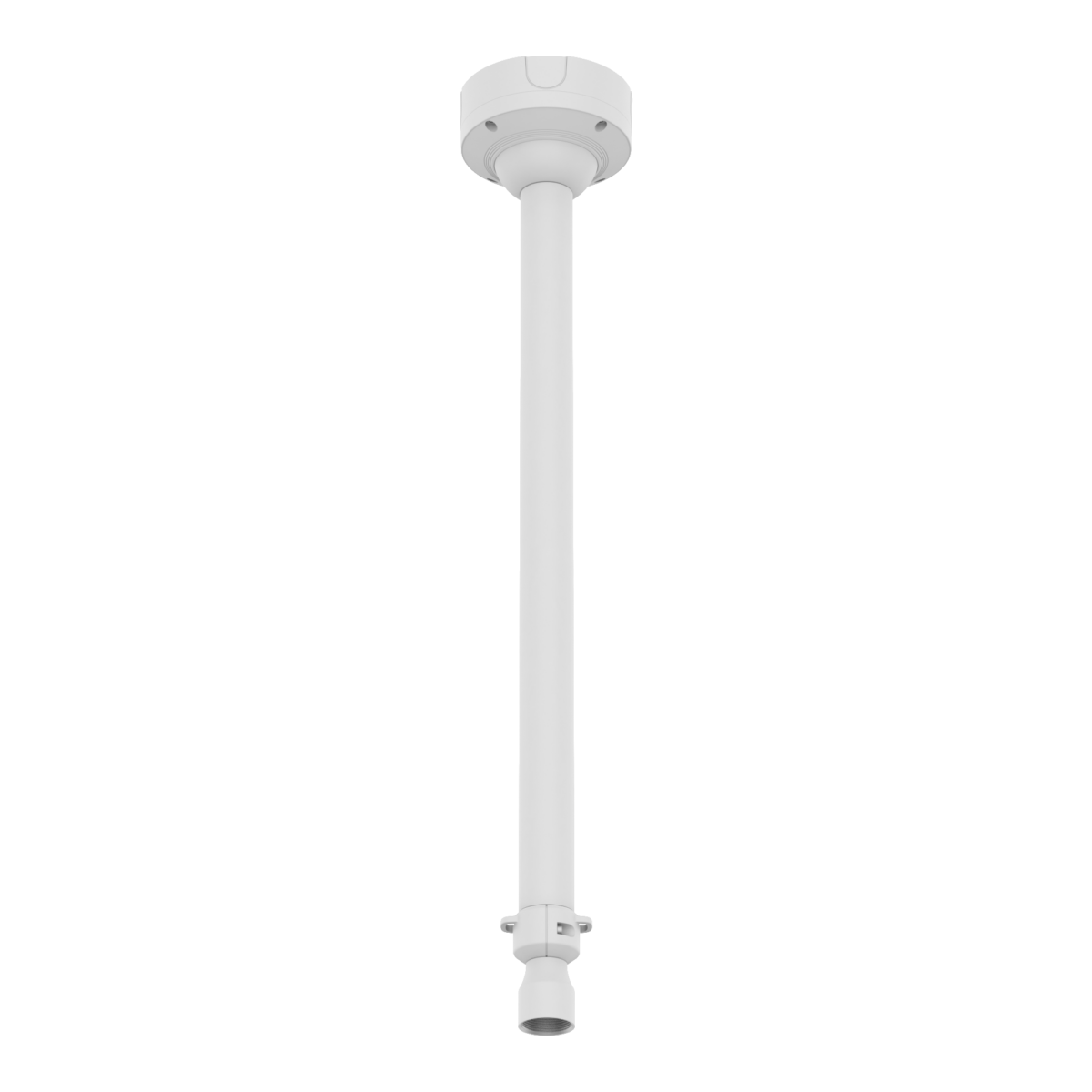

SBP-300CMTS
Ball Head Ceiling Mount
Key Features
• Color : White
• Material : Plate : Aluminum
• Product dimensions / weight : ø180x956.5~1667.5mm (ø7.09x37.66~65.65") / 3,750g (8.27lb)
*Pipe can be extended once and maximum length can be up to 2524mm (99.37”) (based on using SBP-900CMP)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Mechanical | ||
|---|---|---|
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | ø180x956.5~1,667.5mm / 3,750g | |
| Pan / Tilt / Rotate Range | ±45° / ±45° / None | |
| Mount Screw size | TR30 | |
| Max. load | 20kg | |
| Conduit hole | 19.1mm(3/4")(M25) | |
| Supported products | SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P ※ For further compatible models, please visit our website or use Toolbox | |
