Mount NEW

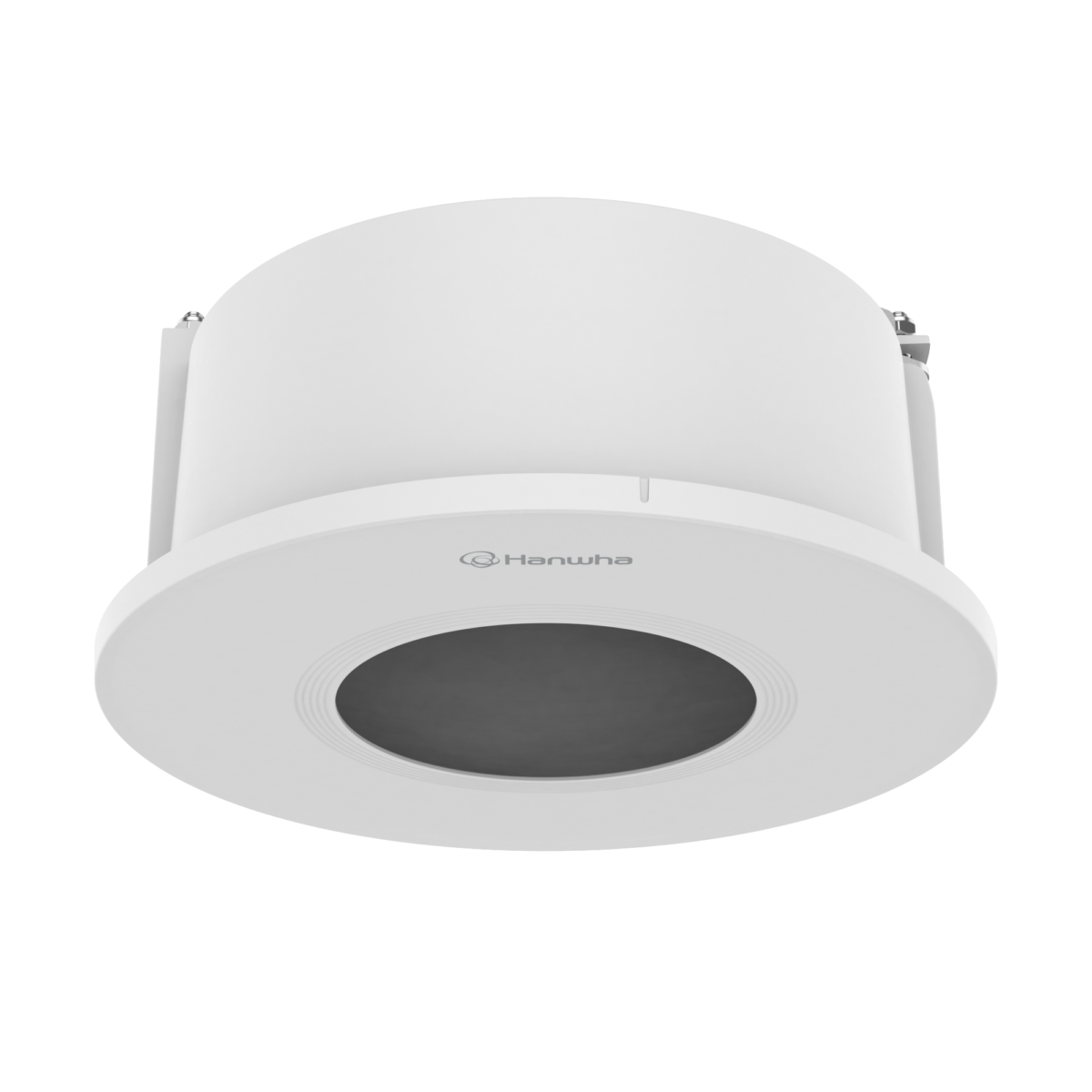

SHD-1400FPW

In-ceiling Mount

Key Features
• Color : White
• Material : Aluminum
• Product dimensions / weight : "ø202.3x92.7mm(ø7.96x3.65"") / 835g (1.84lb)
※ Ceiling hole size : ø185mm (ø7.28"")
  • Product availability may vary by region.
    Please contact your regional representative.
  • Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Mechanical
Color White
Material Aluminum
RAL code RAL9003
Product dimensions / weight ø202.3x92.7mm(ø7.96x3.65") / 835g (1.84lb)
※ Ceiling hole size : ø185mm (ø7.28")
Tile thickness 10~70mm (0.4~2.8")
Mount Screw size TR20
Max. load 2kg (4.41lb)
※ Maximum load of ceiling board : 4kg (8.82lb)
Supported products QNV-C8083R/C9083R
