Housings

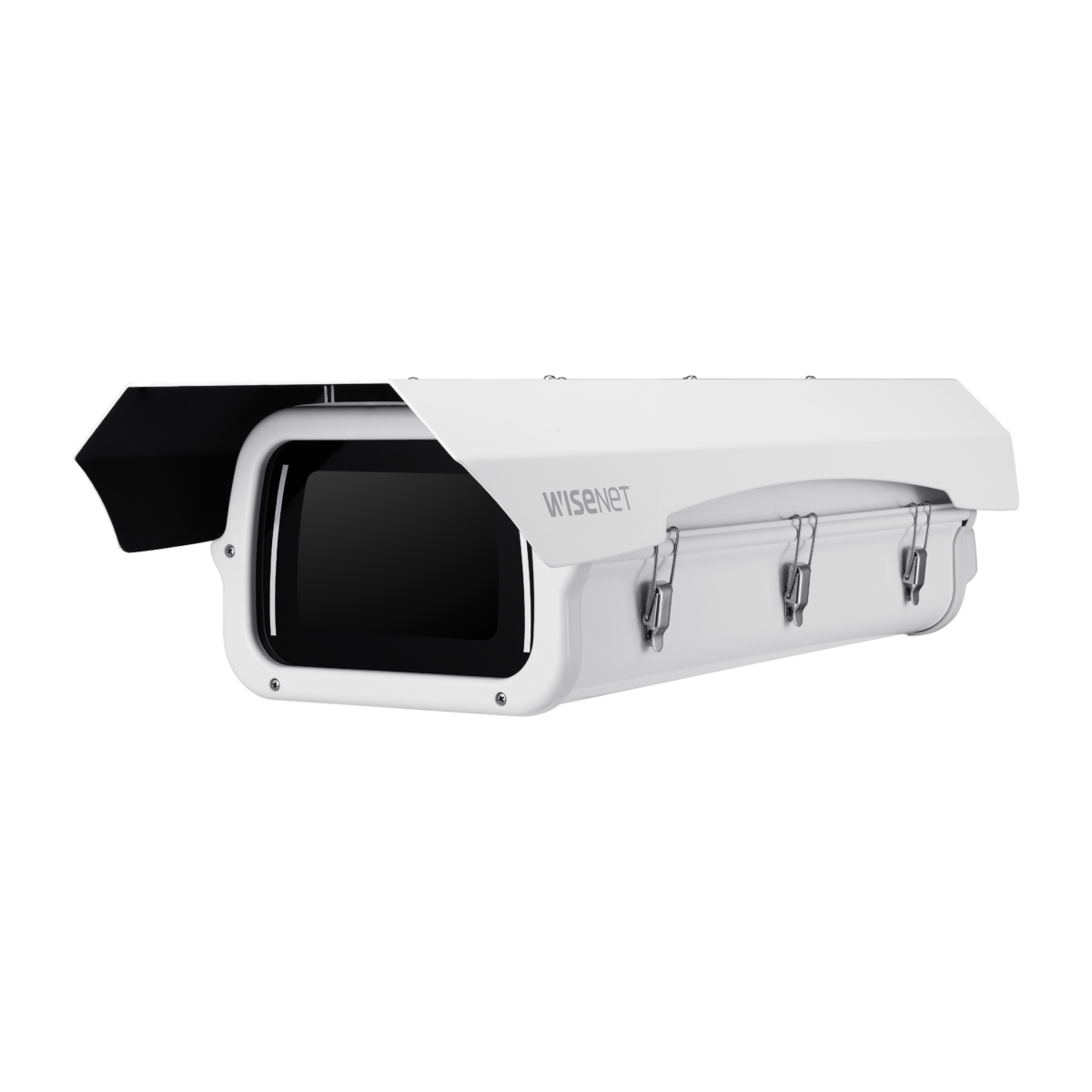

SHB-9000H
Box Camera Housing
Key Features
• Compatible camera: TNB-9000
• Material
- Body/Sun shield : Aluminum
- Front&Rear cap : ABS
• Operating Temperature: -50°C ~ +60°C(-58°F ~ +140°F) / 10-100% RH (condensing)
• Weight: 6.2kg(13.67 lb)
• Color: White
• IP66
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Environmental | ||
|---|---|---|
| Operating Temperature / Humidity | -50°C~+60°C / 10~100% RH(condensing) | |
| Storage Temperature / Humidity | -50°C~+60°C / 0~90% RH | |
| Fan/Heater | Support (Thermostat controlled) | |
| Certification | IP66 | |
| Electrical | ||
| Input Voltage | 220VAC | |
| Power Consumption | AC Fan(10W): 5Wx2EA / AC Heater(50W): 3.7W(Max. 50W)x2EA | |
| Mechanical | ||
| Color | White | |
| Material | Aluminum | |
| RAL code | RAL9003 | |
| Product dimensions / weight | 300x184x700mm / 6,200g | |
| Supported products | TNB-9000 ※ For further compatible models, please visit our website or use Toolbox | |
