Multi-sensor

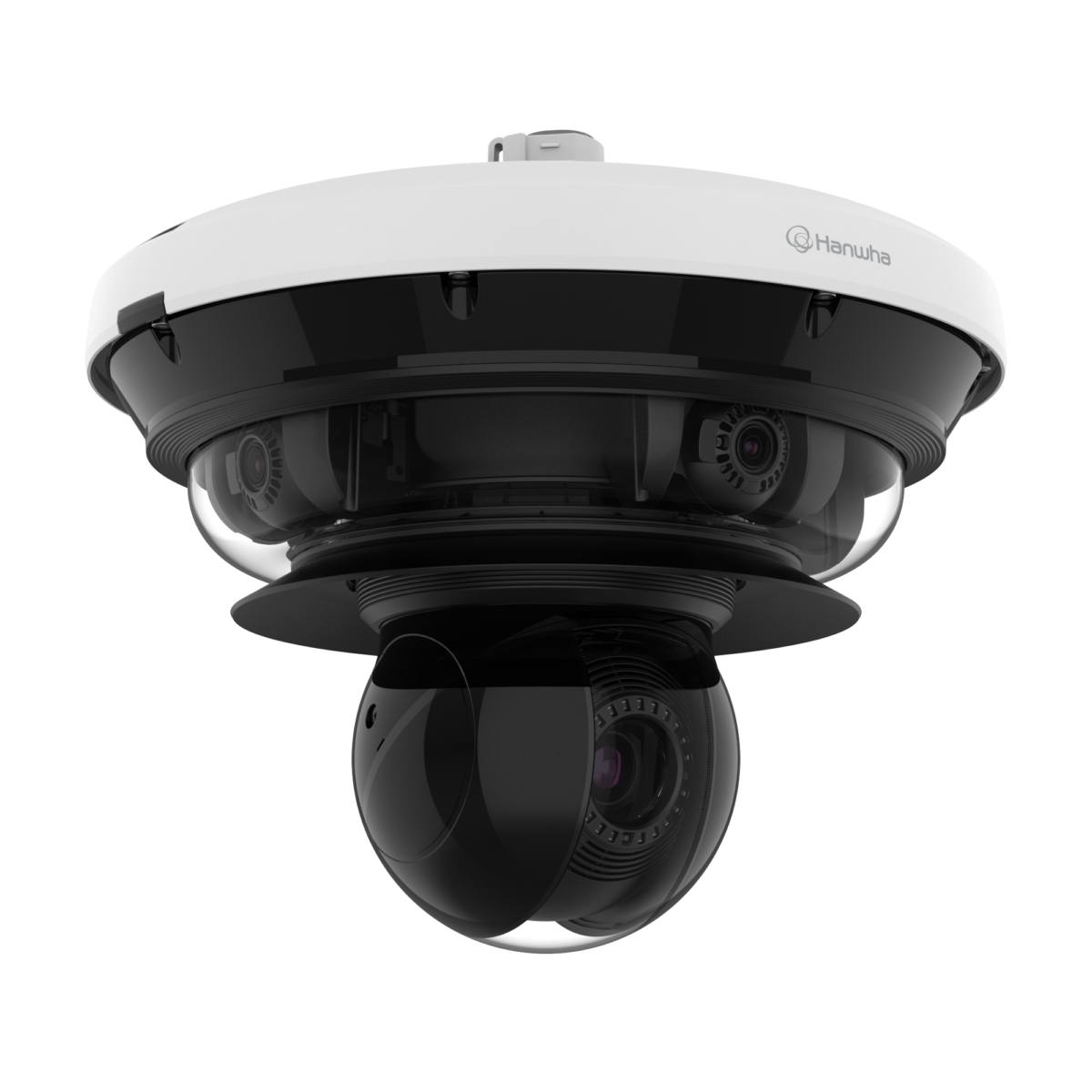

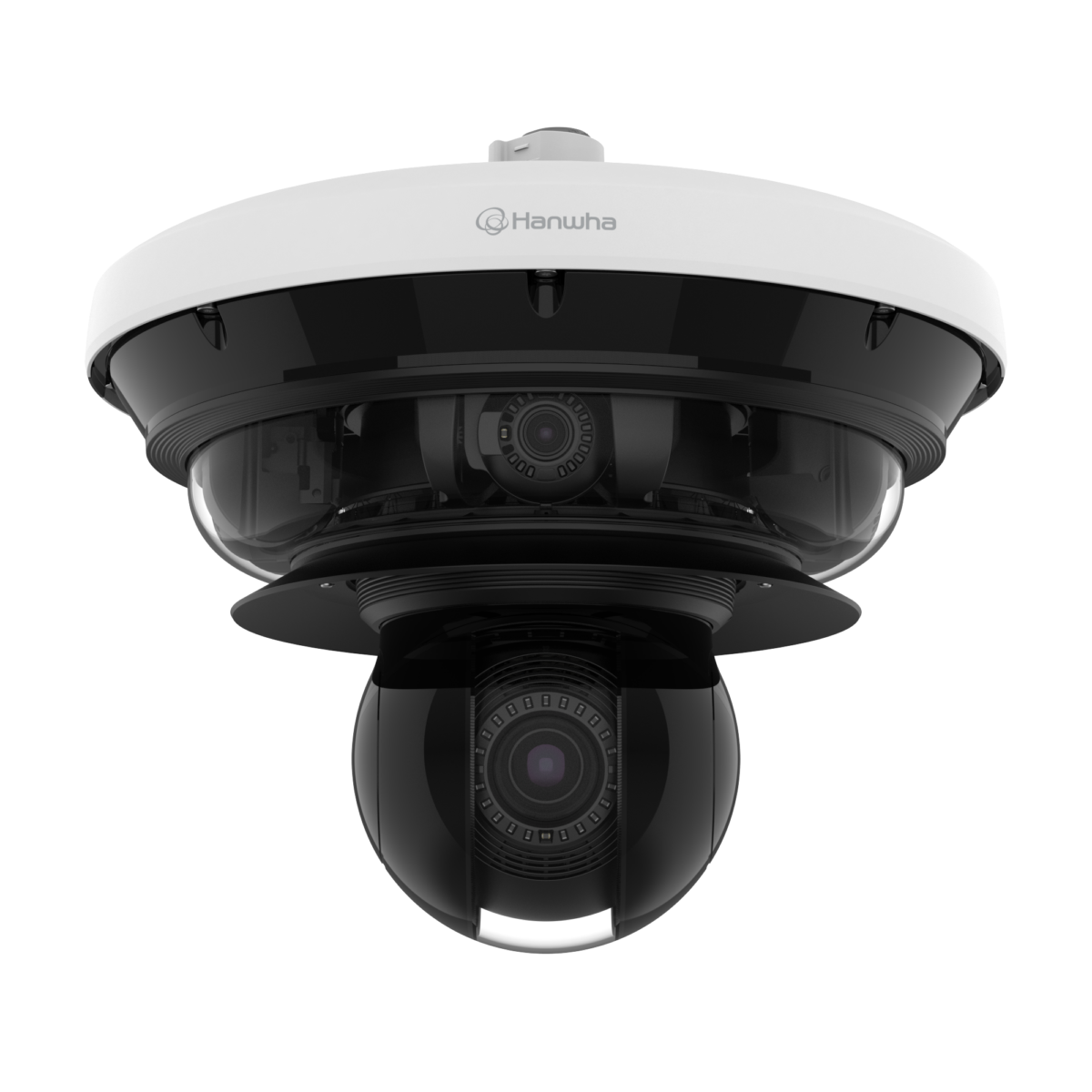

PNM-C34404RQPZ

4K 4Ch PTRZ + 2MP 40x PTZ AI Camera

Key Features

• 360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
• 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
• AI based loitering detection and line crossing detection
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• AI based smart zoom and advanced hand over
• PTRZ remote adjustment
• New design
• Expansion of alarm/audio features
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)

Contact Sales Datasheet

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Some of the video analytics only works with people and vehicle detection
Support Audio detection, Sound classification via optional I/O box(SPM-4210)

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

AI based object detection and classification

The new 5CH AI Multi-directional camera detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals.

Smart zoom

When the multi-directional camera detects an event, it automatically links to PTZ camera which carries out zoom-in and track functions.

Advanced Hand over

An event (Line crossing/Appear/Disappear/etc.) can trigger PTZ execution which is tied to the object that triggered the event.

Remote PTRZ (Pan, Tilt, Rotate and Zoom)

Remote PTRZ (Pan, Tilt, Rotate and Zoom) function was added to simplify the installation process. After mounting the camera, users can adjust and configure the camera remotely.

IR covers 360 degrees

The all-new 5CH AI Multi-directional camera has four independent IR zones plus dedicated long-range IR on the PTZ camera. Each zone’s IR intensity can be manually adjusted to reduce potential reflection from nearby objects.

▷ Click to read news of AI Multi-directional camera

AI camera common features

WiseStreamIII

AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.

Learn more

WiseNRII

AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.

Learn more

Prefer Shutter Control

AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.

Learn more

Product Specification

Video		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Imaging Device	Size	1/2.8"
Imaging Device	Type	CMOS
Resolution		3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240	1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate	H.265/H.264	15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz)	15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz)	15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz)	15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz), 15fps/15fps(60Hz/50Hz)	60fps/50fps(60Hz/50Hz)
	MJPEG	15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps)	15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps)	15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps)	15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps), 15fps(@8MP Max. 5fps)	30fps
	Others	Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps)	Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps)	Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps)	Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps), Max. 20fps when AI off(MJPEG@8MP Max. 5fps)
Min. Illumination (Lux)	Color(1/30sec, 30IRE)	0.1, 0.1, 0.1, 0.1	0.1, 0.1, 0.1, 0.1	0.1, 0.1, 0.1, 0.1	0.1, 0.1, 0.1, 0.1	0.05
Min. Illumination (Lux)	BW(1/30sec, 30IRE)	0.01, 0.01, 0.01, 0.01	0.01, 0.01, 0.01, 0.01	0.01, 0.01, 0.01, 0.01	0.01, 0.01, 0.01, 0.01	0.005
Lens		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Focal Length (mm)		3.3~5.7mm, 3.3~5.7, 3.3~5.7, 3.3~5.7	3.3~5.7mm, 3.3~5.7, 3.3~5.7, 3.3~5.7	3.3~5.7mm, 3.3~5.7, 3.3~5.7, 3.3~5.7	3.3~5.7mm, 3.3~5.7, 3.3~5.7, 3.3~5.7	4.25~170
Zoom Ratio	Optical	1.7x, None, 1.7x, None	1.7x, None, 1.7x, None	1.7x, None, 1.7x, None	1.7x, None, 1.7x, None	40x
Zoom Ratio	Digital	None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	32x
Max Aperture Ratio (F number)	Wide	1.5, 1.5, 1.5, 1.5	1.5, 1.5, 1.5, 1.5	1.5, 1.5, 1.5, 1.5	1.5, 1.5, 1.5, 1.5	1.6
Max Aperture Ratio (F number)	Tele	1.9, 1.9, 1.9, 1.9	1.9, 1.9, 1.9, 1.9	1.9, 1.9, 1.9, 1.9	1.9, 1.9, 1.9, 1.9	4.95
Angular Field of View	Horizontal	109°~56°, 109°~56°, 109°~56°, 109°~56°	109°~56°, 109°~56°, 109°~56°, 109°~56°	109°~56°, 109°~56°, 109°~56°, 109°~56°	109°~56°, 109°~56°, 109°~56°, 109°~56°	65.66°~1.88°
	Vertical	55°~31°, 55°~31°, 55°~31°, 55°~31°	55°~31°, 55°~31°, 55°~31°, 55°~31°	55°~31°, 55°~31°, 55°~31°, 55°~31°	55°~31°, 55°~31°, 55°~31°, 55°~31°	39.40°~1.09°
	Diagonal	136°~65°, 136°~65°, 136°~65°, 136°~65°	136°~65°, 136°~65°, 136°~65°, 136°~65°	136°~65°, 136°~65°, 136°~65°, 136°~65°	136°~65°, 136°~65°, 136°~65°, 136°~65°
Min. Object Distance		1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft)	1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft)	1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft)	1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft), 1.3m(4.27ft)	5m(16.4ft)
Focus Control		Simple focus	Simple focus	Simple focus	Simple focus	Oneshot AF, Focus save
Lens Type		Fixed iris	Fixed iris	Fixed iris	Fixed iris	DC auto iris
Pan / Tilt / Rotate		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Pan / Tilt / Rotate Range	Pan	0°~360°, 0°~360°, 0°~360°, 0°~360°	0°~360°, 0°~360°, 0°~360°, 0°~360°	0°~360°, 0°~360°, 0°~360°, 0°~360°	0°~360°, 0°~360°, 0°~360°, 0°~360°	360° Endless
	Tilt	9°~65°, 9°~65°, 9°~65°, 9°~65°	9°~65°, 9°~65°, 9°~65°, 9°~65°	9°~65°, 9°~65°, 9°~65°, 9°~65°	9°~65°, 9°~65°, 9°~65°, 9°~65°	0°~110°
	Rotate	0°~90°, 0°~90°, 0°~90°, 0°~90°	0°~90°, 0°~90°, 0°~90°, 0°~90°	0°~90°, 0°~90°, 0°~90°, 0°~90°	0°~90°, 0°~90°, 0°~90°, 0°~90°
	Others	Remote adjustment(Max. 200cycles), Tilt angle with Shield IR: 40°~65°	Remote adjustment(Max. 200cycles), Tilt angle with Shield IR: 40°~65°	Remote adjustment(Max. 200cycles), Tilt angle with Shield IR: 40°~65°	Remote adjustment(Max. 200cycles), Tilt angle with Shield IR: 40°~65°
Pan Speed	Preset	None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Max. 700°/sec
Pan Speed	Manual	None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	0.024°/sec~250°/sec
Tilt Speed	Preset	None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Max. 500°/sec
Tilt Speed	Manual	None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	0.024°/sec~250°/sec
Sequence						Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy		None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Up to ±0.1°, Pan/Tilt correction
Operational		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Direction Indicator		None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Support
Day & Night		Auto(ICR)
Backlight Compensation		BLC, WDR, SSDR	BLC, WDR, SSDR	BLC, WDR, SSDR	BLC, WDR, SSDR	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)		120, 120, 120, 120	120, 120, 120, 120	120, 120, 120, 120	120, 120, 120, 120	150
Digital Noise Reduction		WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization		None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Support
Defog		None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Support
Motion Detection	Quantity	8ea
Motion Detection	Shape	8point Polygonal zones
Privacy Masking	Quantity	6ea, 6ea, 6ea, 6ea	6ea, 6ea, 6ea, 6ea	6ea, 6ea, 6ea, 6ea	6ea, 6ea, 6ea, 6ea	32ea
	Shape	Rectangular zones, Rectangular zones, Rectangular zones, Rectangular zones	Rectangular zones, Rectangular zones, Rectangular zones, Rectangular zones	Rectangular zones, Rectangular zones, Rectangular zones, Rectangular zones	Rectangular zones, Rectangular zones, Rectangular zones, Rectangular zones	4point Quadrangle zones
	Color / Option	Gray, Black, White	Gray, Black, White	Gray, Black, White	Gray, Black, White	Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control		Low, Middle, High	Low, Middle, High	Low, Middle, High	Low, Middle, High	Off, Max gain, Manual
White Balance		ATW, AWC, Manual, Indoor, Outdoor	ATW, AWC, Manual, Indoor, Outdoor	ATW, AWC, Manual, Indoor, Outdoor	ATW, AWC, Manual, Indoor, Outdoor	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
LDC		Support, Support	Support, Support	Support, Support	Support, Support
Electronic Shutter	Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter	Speed Range	2~1/12,000sec
Video Rotation		Flip, Mirror, Hallway view(90°/270°) - Each channel separately	Flip, Mirror, Hallway view(90°/270°) - Each channel separately	Flip, Mirror, Hallway view(90°/270°) - Each channel separately	Flip, Mirror, Hallway view(90°/270°) - Each channel separately	Flip&Mirror
Alarm Interface	Others	Support alarm I/O via optional I/O box
Alarm Triggers		Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger Occurred		File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication, Smart zoom
Audio In		Support via optional I/O box
Audio Out		Support via optional I/O box
Light Type		IR LED
Light Viewable Length	Warm Light	None, None, NOne, None	None, None, NOne, None	None, None, NOne, None	None, None, NOne, None
Light Viewable Length	IR	20m(65.62ft), 20m(65.62ft), 20m(65.62ft), 20m(65.62ft)	20m(65.62ft), 20m(65.62ft), 20m(65.62ft), 20m(65.62ft)	20m(65.62ft), 20m(65.62ft), 20m(65.62ft), 20m(65.62ft)	20m(65.62ft), 20m(65.62ft), 20m(65.62ft), 20m(65.62ft)	200m(656.17ft)
IR Wavelength		850nm
Water Removal		None, None, None, None	None, None, None, None	None, None, None, None	None, None, None, None	Support(Spin Dry, Lens heater)
Auto Tracking						Object auto tracking(Person/Vehicle), Target lock tracking
Analytics		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Classified Object Type		Person, Face, Vehicle, License plate	Person, Face, Vehicle, License plate	Person, Face, Vehicle, License plate	Person, Face, Vehicle, License plate
Attributes	Vehicle	Type(car, bus, truck, motorcycle, bicycle)	Type(car, bus, truck, motorcycle, bicycle)	Type(car, bus, truck, motorcycle, bicycle)	Type(car, bus, truck, motorcycle, bicycle)
Thumbnail		BestShot, BestShot, BestShot, BestShot	BestShot, BestShot, BestShot, BestShot	BestShot, BestShot, BestShot, BestShot	BestShot, BestShot, BestShot, BestShot
Analytics Events	Based on AI Engine	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics Events	Normal	Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)	Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)	Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)	Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)	Motion detection, Tampering, Fog detection, Virtual area(Appear/Disappear), Virtual line(Crossing, Direction)
Network		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Ethernet		Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression		H.265/H.264: Main/High, MJPEG	H.265/H.264: Main/High, MJPEG	H.265/H.264: Main/High, MJPEG	H.265/H.264: Main/High, MJPEG	H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec		Manual, WiseStreamⅢ
Bitrate Control		H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming	Unicast	Up to 10 users, Up to 10 users, Up to 10 users, Up to 10 users	Up to 10 users, Up to 10 users, Up to 10 users, Up to 10 users	Up to 10 users, Up to 10 users, Up to 10 users, Up to 10 users	Up to 10 users, Up to 10 users, Up to 10 users, Up to 10 users	Up to 20 users
	Multicast	Support, Support, Support, Support	Support, Support, Support, Support	Support, Support, Support, Support	Support, Support, Support, Support	Support
	Multiple Streaming	Up to 3 profiles	Up to 3 profiles	Up to 3 profiles	Up to 3 profiles	Up to 10 profiles
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface	ONVIF	S, T, M
Application Programming Interface	Others	SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection		Support
Security		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
OS / Firmware Protect		Encrypted firmware, Secure boot, Signed firmware
User authentication		Digest authentication
Network authentication		IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication		HTTPS, WSS(WebSocket Secure), SRTP
Access Control		IP-based access control
Data Protect		Encryption credentials, Encrypt compress for live recording file export
Audit		Access / System / Event Log management
Device ID		Device certificate(Hanwha Vision Root CA)
Secure Storage		TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate		TPM 2.0 with FIPS 140-2 level2
General		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Memory	RAM	8GB, 8GB, 8GB, 8GB	8GB, 8GB, 8GB, 8GB	8GB, 8GB, 8GB, 8GB	8GB, 8GB, 8GB, 8GB	4GB
Memory	Flash	1GB, 1GB, 1GB, 1GB	1GB, 1GB, 1GB, 1GB	1GB, 1GB, 1GB, 1GB	1GB, 1GB, 1GB, 1GB	512MB
Edge Storage	Micro SD/SDHC/SDXC	Max. 512GB x 2slot(Total 1TB)
Environmental & Electrical		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Operating Condition	Temperature	-40°C~+50°C(-40°F~+122°F)
	Humidity	0~95% RH(non-condensing)
	Others	+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C
Storage Condition	Temperature	-50°C~+60°C(-58°F~+140°F)
Storage Condition	Humidity	0~90% RH(non-condensing)
EPA(Effective Projected Area)		0.075
Input Voltage		HPoE(IEEE802.3bt type4, Class8)
Power Consumption	PoE	Max. 64W, typical 45W
Mechanical		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Color		White
Material		Aluminum
RAL Code		RAL9003
Product Dimensions		ø379.8x301.9mm(14.95x11.89")
Product Weight		7,900g(17.42lb)
Certifications & Standards		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
EMC		FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A
Safety		UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment		IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
DORI (EN62676-4 standard)		4CH camera	4CH camera	4CH camera	4CH camera	PTZ
Detect (25PPM/ 8PPF)	Wide	54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft)	54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft)	54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft)	54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft), 54.8m(179.73ft)	59.5m(195.3ft)
Detect (25PPM/ 8PPF)	Tele	144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft)	144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft)	144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft)	144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft), 144.4m(473.88ft)	2340.4m(7678.4ft)
Observe (63PPM/ 19PPF)	Wide	21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft)	21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft)	21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft)	21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft), 21.9m(71.89ft)	23.8m(78.1ft)
Observe (63PPM/ 19PPF)	Tele	57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft)	57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft)	57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft)	57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft), 57.8m(189.55ft)	936.2m(3071.4ft)
Recognize (125PPM/ 38PPF)	Wide	11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft)	11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft)	11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft)	11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft), 11.0m(35.95ft)	11.9m(39.1ft)
Recognize (125PPM/ 38PPF)	Tele	28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft)	28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft)	28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft)	28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft), 28.9m(94.78ft)	468.1m(1535.7ft)
Identify (250PPM/ 76PPF)	Wide	5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft)	5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft)	5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft)	5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft), 5.5m(17.97ft)	6.0m(19.5ft)
Identify (250PPM/ 76PPF)	Tele	14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft)	14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft)	14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft)	14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft), 14.4m(47.39ft)	234.0m(767.8ft)

Datasheet

Download

Category	File Name	Last Updated
Datasheets	DataSheet_PNM-C34404RQPZ_20250812_EN_160935.pdf	2025-08-12	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_EN.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_ZH.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_TR.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_PT.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_PL.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_IT.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_FR.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_ES.pdf	2025-03-06	Download
Manuals	Manuals_PNM-C34404RQPZ_250226_DE.pdf	2025-03-06	Download
CAD	CAD_PNM-C34404RQPZ_230818_EN.dxf	2023-08-30	Download
CAD	CAD_PNM-C34404RQPZ_230818_EN.pdf	2023-08-30	Download
Certification	Certification_PNM-C34404RQPZ_230509_EN_IK10.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230802_EN_NEMA4X.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230614_EN_IP66.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230807_EN_UL.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_EMC_CE.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_DoC_UKCA.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_DoC_CE.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_VCCI.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_RCM.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_230531_EN_FCC-IC.pdf	2023-08-29	Download
Certification	Certification_PNM-C34404RQPZ_240124_EN_NEMA-TS-22.2.72.2.82.2.9.pdf	2024-06-26	Download
A&E Document	AE-Document_PNM-C34404RQPZ_230811_EN.docx	2023-08-14	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_TR.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_NL.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_IT.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_ES.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_CS.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_DE.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_FR.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_PL.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_PT.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_ZH.pdf	2025-03-06	Download
Quick Guide	Quick-Guide_PNM-C34404RQPZ_250226_EN.pdf	2025-03-06	Download
Online Help	Online-Help_PNM-C34404RQPZ_20230816_FR.pdf	2023-08-28	Download
Online Help	Online-Help_PNM-C34404RQPZ_20230816_ES.pdf	2023-08-28	Download
Online Help	Online-Help_PNM-C34404RQPZ_20230816_EN.pdf	2023-08-28	Download
OpenSourceLicense	OpenSourceLicense_PNM-C34404RQPZ_230801_EN.txt	2023-08-25	Download
Firmware	PNM-C34404RQPZ_25.01.06_20250530_R932.zip	2025-06-05	Download
Firmware	WiseAI_v_AB_24_01_05_20250124.zip	2025-06-05	Download

Download Selected Items

LOADING SEARCH RESULTS

WHAT'S NEW

TNO-A26081

TNM-C2712TDR

Denizli Pamukkale Municipality

Adnan Menderes University Hospital

Quick links

Download Center

PNM-C34404RQPZ
