PNM-9085RQZ

Discontinued

Copy a URL
Copy

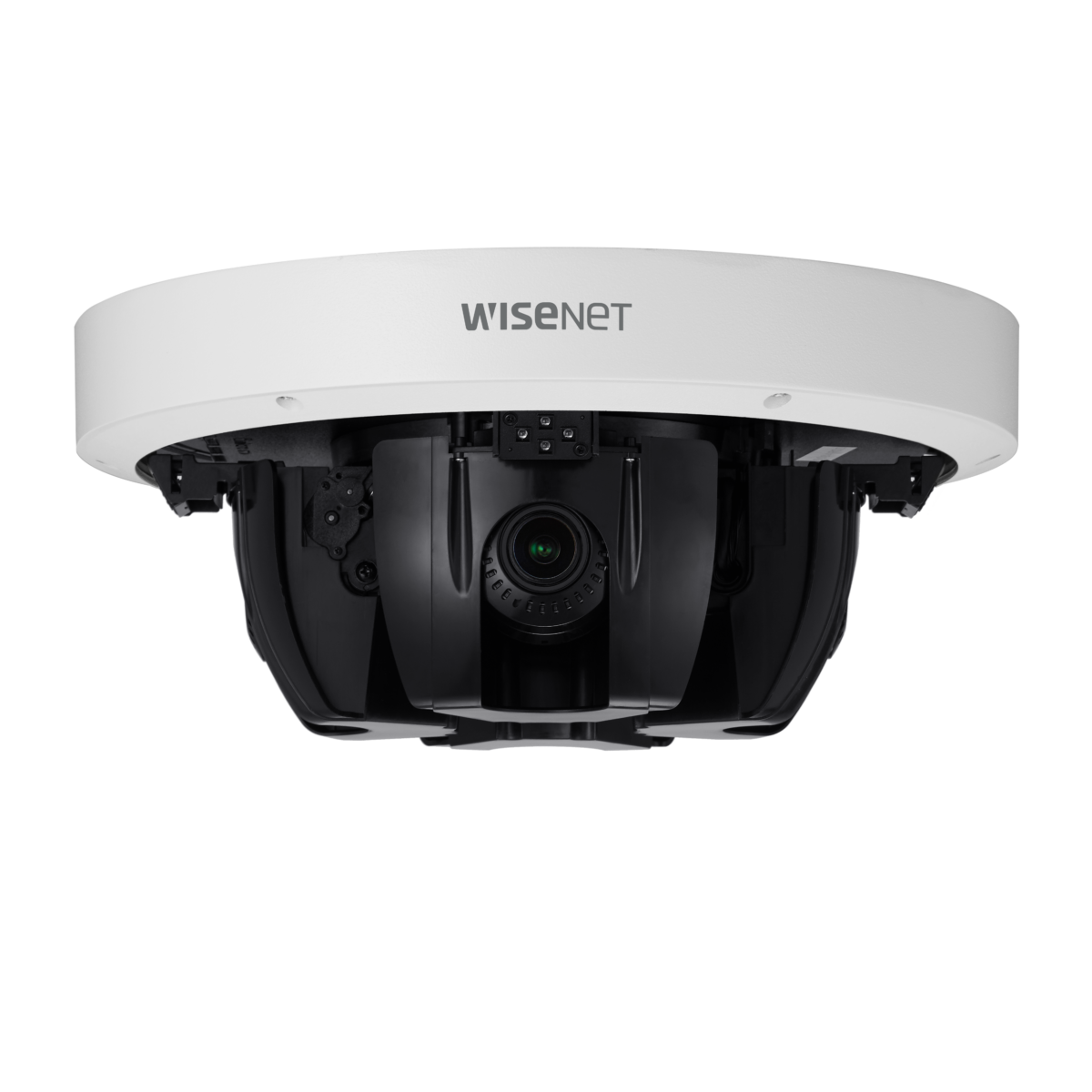

5MP x 4CH IR PTRZ Multi-directional Camera

Key Features
• Motorized PTRZ support
• Max. 30fps@5MP(H.265, H.264)
• 4.13~9.4mm(2.3x) motorized varifocal lens
• IR viewable length : 30m
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Discontinued

Copy a URL
Copy

Image Download Total Image Download

PNM-9085RQZ

5MP x 4CH IR PTRZ Multi-directional Camera

Key Features

• Motorized PTRZ support
• Max. 30fps@5MP(H.265, H.264)
• 4.13~9.4mm(2.3x) motorized varifocal lens
• IR viewable length : 30m
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

※ Product availability may vary by region.
Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNM-9085RQZ
Datasheet
Contact Sales
Remote motorized PTRZ control for easy installation
The PNM-9084QZ has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ and PNM-9085RQZ support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
Built-in IR sensor for monitoring in low light environment
The PNM-9084RQZ/9085RQZ has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.



Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • DORI (EN62676-4 standard)
  • Video
    Imaging Device 1/1.8" 5MP CMOS x 4CH
    Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate Max. 30fps/25fps (60Hz/50Hz) at all resolutions
    Max. 30fps/25fps (60Hz/50Hz)
    Min. Illumination Color: 0.11lux(F1.92, 30 IRE)
    BW: 0Lux(IR LED on)
    Lens
    Focal Length (Zoom Ratio) 4.13~9.4mm(2.3x)motorized varifocal
    Max. Aperture Ratio F1.92(Wide)~F2.67(Tele)
    Angular Field of View H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele)
    Min. Object Distance 1.2m(3.94ft)
    Focus Control Simple focus
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
    0~360˚ / 35~80˚ / 0~90˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support (built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey, Green, Red, Blue, Black, White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC at event triggers
    Alarm output
    Handover
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 30m(98.43ft)
    Network
    Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(each CH)
    Memory 5GB RAM, 1280MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage HPoE(IEEE802.3bt, Class6, Type3, Injector included), 12VDC
    Power Consumption PoE: Max. 45 W, Typical 33.7 W
    12VDC: Max. 42 W, Typical 32 W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø315x145.9 mm(12.40"x5.74") / 5.2 kg(11.5lb)
    Compatible Conduit hole / Gangbox 3/4"
    Hanging Mount (Dome) SBP-317HMW
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 53.4m(175.2ft) / Tele: 151.5m(497.1ft)
    Observe (63PPM/ 19PPF) Wide: 21.4m(70.1)ft) / Tele: 60.6m(198.9ft)
    Recognize (125PPM/ 38PPF) Wide: 10.7m(35.0ft) / Tele: 30.3m(99.4ft)
    Identify (250PPM/ 76PPF) Wide: 5.3m(17.5)ft) / Tele: 15.2m(49.7ft)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
