Network Cameras

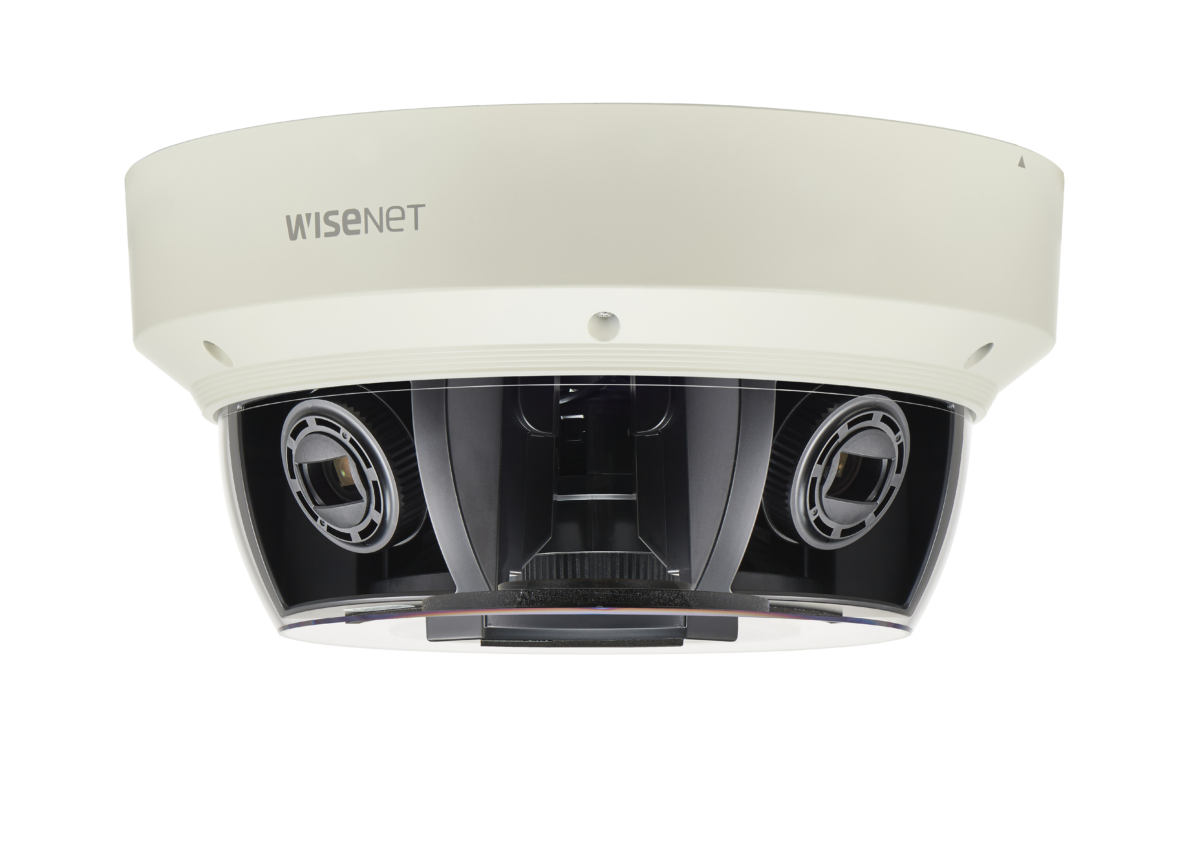

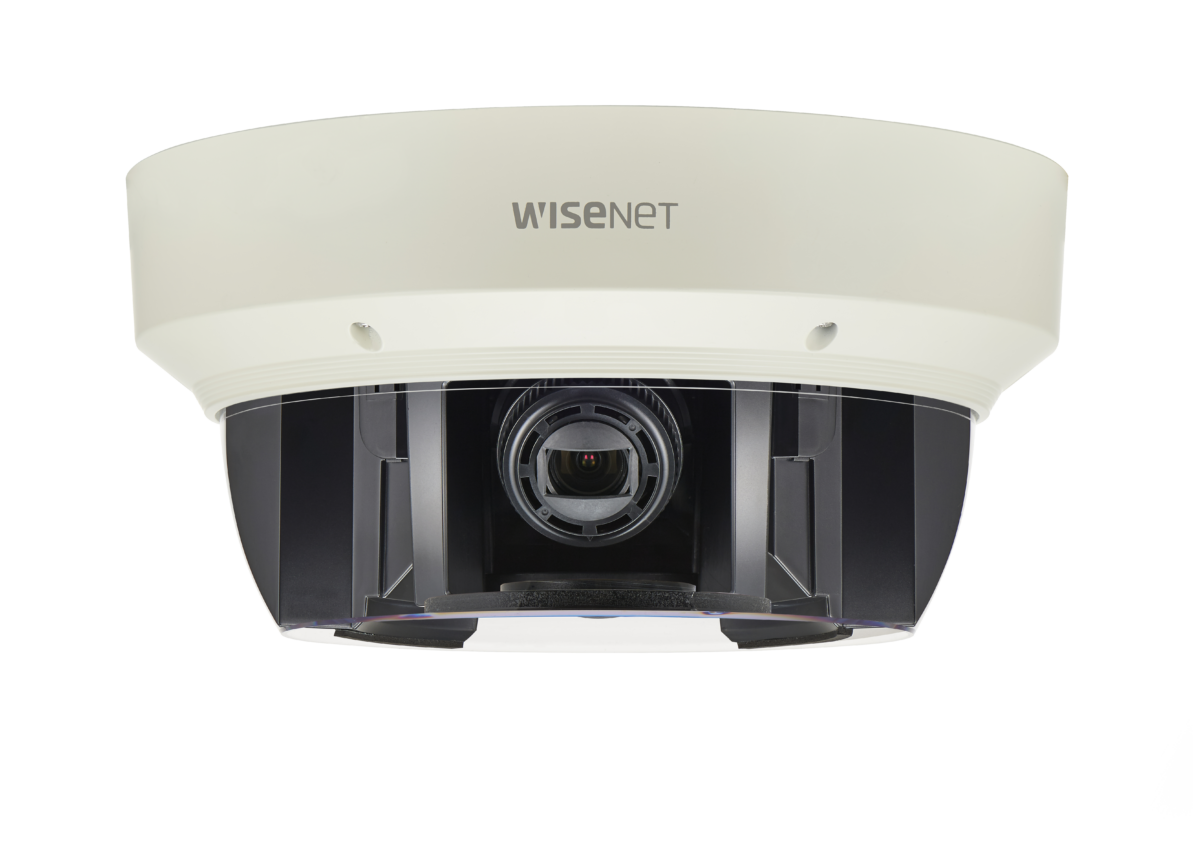

PNM-9080VQ

Discontinued

Copy a URL
Copy

8M H.265 Multi-directional Camera

Key Features
• 4ea x 1920x1080 resolution (Max. 8MP)
• 4ea x 2.8 ~ 12mm (4.3x) motorized varifocal lens
• 4ea x Max. 60fps@2M (H.265, H.264)
• Digital Image Stabilization with Built-in Gyro Sensor
• H.265, H.264, MJPEG Codec Supported
• Day & Night (ICR), WDR (150dB)
• Motion detection, Tampering, Advanced Video Analytics
• SD / SDHC / SDXC Memory slot, WiseStreamII Support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales

Mouse over image to zoom

Discontinued

Copy a URL
Copy

Image Download Total Image Download

PNM-9080VQ

8M H.265 Multi-directional Camera

Key Features

• 4ea x 1920x1080 resolution (Max. 8MP)
• 4ea x 2.8 ~ 12mm (4.3x) motorized varifocal lens
• 4ea x Max. 60fps@2M (H.265, H.264)
• Digital Image Stabilization with Built-in Gyro Sensor
• H.265, H.264, MJPEG Codec Supported
• Day & Night (ICR), WDR (150dB)
• Motion detection, Tampering, Advanced Video Analytics
• SD / SDHC / SDXC Memory slot, WiseStreamII Support

※ Product availability may vary by region.
Please contact your regional representative.

※ Hanwha Vision is formerly known as Hanwha Techwin

Datasheet
Contact Sales
PNM-9080VQ
Datasheet
Contact Sales

Never Miss a thing

Wisenet Premium
Multi-directional cameras

PNM-9000VQ PNM-9080VQ PNM-9081VQ
Max. 20MP (5M/2M x 4ea)
with selectable lens		 8MP (2M x 4ea) 20MP (5M x 4ea)

Four cameras in one
Multi-directional cameras have four sensors in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making them ideal for wide areas such as shopping mall entrances, lobbies and airports.

Multiple view modes
The four sensors in the multi-directional camera move independently of one another. In addition, one of the sensors can easily be removed and attached in the center of the camera, allowing for flexible set-up.

Four cameras in one
Multi-directional cameras have four sensors in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making them ideal for wide areas such as shopping mall entrances, lobbies and airports.

Optimized for Indoor and Outdoor
Wisenet P series multi-directional cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations, parking lots, and more supporting IP66, IK10.

Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression, the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.

True WDR(150dB with 2MP and 120dB with 5MP)
Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.

Hallway View
In a vertical shaped environment, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view creates 3 : 4 and 9 : 16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

A comprehensive range of intelligent video analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
* Supported video analytics may vary depending on the camera.

Selectable and changeable multiple lens (PNM-9000VQ only)
Users can choose a wide variety of lenses from 2M 2.4mm to 5M 7.0mm for PNM-9000VQ to create the most optimal field of view for their desired monitoring areas. Choose the 4 lenses of your choice and create a combination of lens module up to 20MP resolution.

1/2.8” 2M CMOS
Lens SLA-2M2400Q SLA-2M2800Q SLA-2M3600Q SLA-2M600Q
Focal Length
(Zoom Ratio)		 2.4mm 2.8mm 3.6mm 6mm
Angular Field of View H : 135.4˚
V : 71.2˚
D : 161.6˚		 H : 107.4˚
V : 62.2˚
D : 122.0˚		 H : 94.8˚
V : 49.3˚
D : 114.3˚		 H : 50.4˚
V : 28.8˚
D : 58.1˚
Lens SLA-2M2400Q SLA-2M2800Q
Focal Length
(Zoom Ratio)		 2.4mm 2.8mm
Angular Field of View H : 135.4˚
V : 71.2˚
D : 161.6˚		 H : 107.4˚
V : 62.2˚
D : 122.0˚
Lens SLA-2M3600Q SLA-2M600Q
Focal Length
(Zoom Ratio)		 3.6mm 6mm
Angular Field of View H : 94.8˚
V : 49.3˚
D : 114.3˚		 H : 50.4˚
V : 28.8˚
D : 58.1˚
1/1.8” 5M CMOS
Lens SLA-5M3700Q SLA-5M4600Q SLA-5M7000Q
Focal Length
(Zoom Ratio)		 3.7mm 4.6mm 7.0mm
Angular Field of View H : 97.5˚
V : 71.9˚
D : 126.2˚		 H : 77.9˚
V : 57.9˚
D : 98.7˚		 H : 50.7˚
V : 37.8˚
D : 63.8˚
Lens SLA-5M3700Q SLA-5M4600Q
Focal Length
(Zoom Ratio)		 3.7mm 4.6mm
Angular Field of View H : 97.5˚
V : 71.9˚
D : 126.2˚		 H : 77.9˚
V : 57.9˚
D : 98.7˚
Lens SLA-5M7000Q
Focal Length
(Zoom Ratio)		 7.0mm
Angular Field of View H : 50.7˚
V : 37.8˚
D : 63.8˚

Product Specification

  • Video
  • Lens
  • Pan / Tilt / Rotate
  • Operational
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device 1/2.8" 2MP CMOS: each CH
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)(30IRE)
    B/W: 0.0015Lux (F1.4, 1/30sec)(30IRE)
    Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
    Lens
    Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
    Max. Aperture Ratio F1.4(Wide)~F3.6(Tele)
    Angular Field of View H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), D: 142.1°(Wide)~32.0°(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type DC auto iris, P iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range Quad mode: Pan +/-30°, Tilt 10° ~ 41°, Rotate +-90°
    Center mode: Pan +/-60°, Tilt 10° ~ 41° / 10° ~ 90°(CH2/Center), Rotate +-90°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC recording at event triggers
    Alarm output
    Network
    Ethernet RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S
    SUNAPI(HTTP API)
    General
    Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
    Memory 5GB RAM, 1280MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage PoE+(IEEE802.3at, Class4), 12VDC
    Power Consumption PoE+: Max 25.5W
    12VDC: Max 21.6W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight Ø314mmx152mm, 4890g
