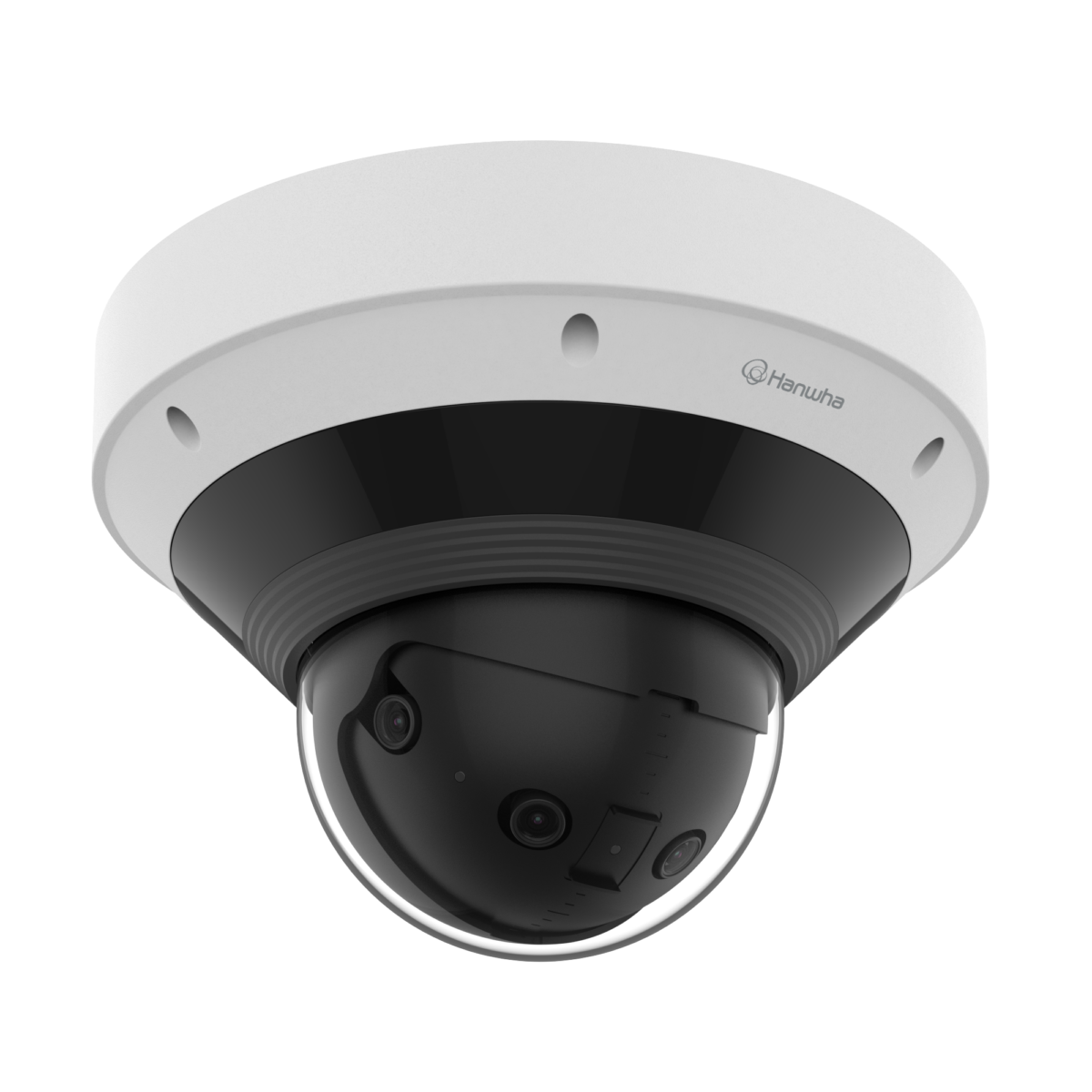

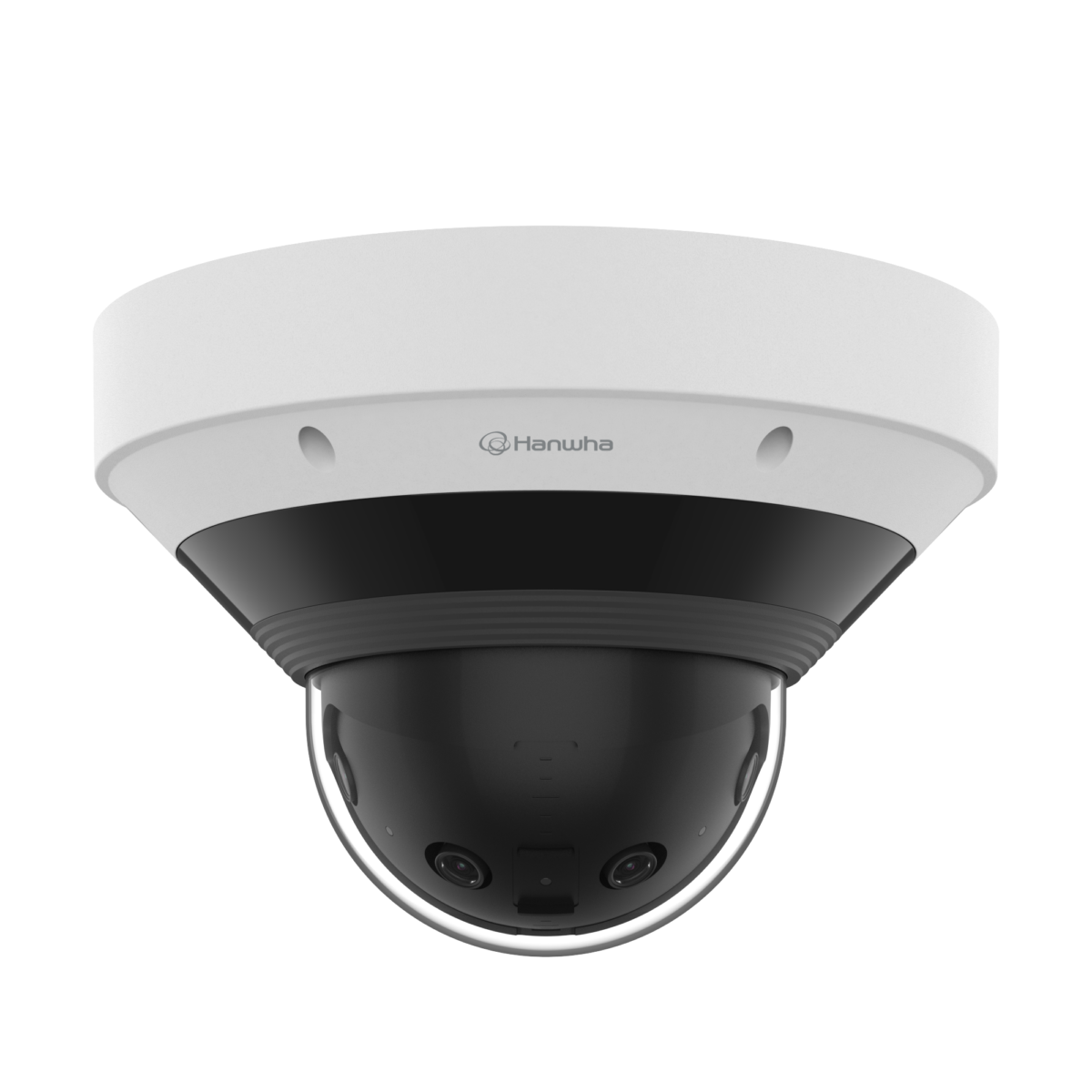

PNM-9031RV
15MP Panoramic Camera
• Max. 15MP 192° panoramic stitching image
• Panoramic channel
• IR viewable length Maximum 20m (65.6ft), WiseIR
• H.265 / H.264 : Max. 20fps
• MJPEG : Max. 15fps
• H.265, H.264, MJPEG codec, WiseStreamII supported
• Motion, Defocus detection, Virtual line, Enter / Exit
• (Dis)Appear, Audio detection,Motion detection, Handover, Heatmap
• microSD/SDHC/SDXC 2 slots, PoE+,
• IP66, IK10, NEMA4X
• TPM 2.0 (FIPS 140-2 level 2)
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
Video | ||
---|---|---|
Imaging Device | Size | 1/2.8" |
Type | CMOS | |
Resolution | 1920x640, 3072x1024, 1152x384, 3840x1280, 5952x1984, 6720x2240, 4992x1664 | |
Max. Framerate | H.265/H.264 | 20fps/20fps(60Hz/50Hz) |
MJPEG | 15fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.1 |
BW(1/30sec, 30IRE) | 0.01 | |
Video Out | USB: Micro USB Type B | |
Lens | ||
Focal Length (mm) | 4.3 | |
Max Aperture Ratio (F number) | Wide | 1.6 |
Angular Field of View | Horizontal | 195.3°~197.0° |
Vertical | 63.6° | |
Min. Object Distance | 5m(16.4ft) | |
Focus Control | Fixed | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~360° |
Tilt | 0°~60° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, WDR, SSDR | |
Wide Dynamic Range (dB) | 120 | |
Digital Noise Reduction | SSNRⅤ | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 6ea |
Shape | Rectangular zones | |
Color / Option | Green, Gray, Black, White, Blue, Red | |
Gain Control | High, Low, Middle | |
White Balance | Indoor, ATW, Manual, AWC, Outdoor | |
Electronic Shutter | Mode | Anti flicker, Maximum, Minimum |
Speed Range | 2~1/12,000sec | |
Video Rotation | Mirror, Flip | |
Alarm Interface | In/Out | 2 configurable I/O ports |
Alarm Triggers | Analytics, Network disconnect, Alarm input | |
Alarm Events When Alarm Trigger Occurred | Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Notification: e-mail, File upload(image): e-mail/FTP | |
Audio In | Selectable(mic in/line in) | |
Audio Out | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | WiseIR 20m(65.62ft) 4 individual zones with Automatic and Manual level adjustment |
IR Wavelength | 850nm | |
Analytics | ||
Analytics Events | Normal | Tampering, Defocus detection, Virtual area(Intrusion/Enter/Exit), Motion detection, Virtual area(Appear/Disappear), Virtual line(Crossing, Direction) , Audio detection |
Business Intelligence | Normal | Heatmap |
Network | ||
Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz | |
Smart Codec | WiseStreamⅡ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 15 users |
Multicast | Support | |
Multiple Streaming | Up to 5 profiles | |
Protocol | UPnP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, LLDP, RTSP, ICMP | |
Application Programming Interface | ONVIF | T, G, S |
Others | SUNAPI(HTTP API) | |
Security | ||
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | HTTPS | |
Access Control | IP-based access control | |
Data Protect | Encrypt compress for live recording file export, Encryption credentials | |
Audit | Access / System / Event Log management | |
Device ID | Device certificate(Hanwha Vision Root CA) | |
Secure Storage | SDcard partition encrypt(AES-256), TPM(Trusted platform module) | |
Security Certificate | TPM 2.0 with FIPS 140-2 level2 | |
General | ||
Memory | RAM | 8GB |
Flash | 4GB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
Environmental & Electrical | ||
Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
Humidity | 0~95% RH(non-condensing) | |
Others | Start up should be done at above -30°C | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | 12VDC, PoE+(IEEE802.3at, Class4) | |
Power Consumption | PoE | Max. 23.5W, typical 18W |
12VDC | Max. 20.5W, typical 16W | |
Mechanical | ||
Color | White | |
Material | Aluminum | |
RAL Code | RAL9003 | |
Product Dimensions | ø253x170mm(9.96x6.69") | |
Product Weight | 2,900g(6.39lb) | |
Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
Compatible Gang Box | Single, Square, Double, 4" Octagon | |
Certifications & Standards | ||
Environment | IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10 |
