PNM-9020V
Discontinued
7.3M H.265 Panoramic 180˚ Camera
Key Features
• Max. 7.3M (4096 x 1800) resolution
• Built-in 3.6mm fixed lens
• H.265/H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at all resolutions
• H.265, H.264, MJPEG codec, WiseStream supported
• Hand over to PTZ, Tampering, Digital auto tracking
• Heatmap
• IP66, IK10
• Built-in 3.6mm fixed lens
• H.265/H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at all resolutions
• H.265, H.264, MJPEG codec, WiseStream supported
• Hand over to PTZ, Tampering, Digital auto tracking
• Heatmap
• IP66, IK10
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
Mouse over image to zoom
Discontinued
PNM-9020V
7.3M H.265 Panoramic 180˚ Camera
Key Features
• Max. 7.3M (4096 x 1800) resolution
• Built-in 3.6mm fixed lens
• H.265/H.264 : Max. 30fps at all resolutions
• MJPEG : Max. 15fps at all resolutions
• H.265, H.264, MJPEG codec, WiseStream supported
• Hand over to PTZ, Tampering, Digital auto tracking
• Heatmap
• IP66, IK10
※ Product availability may vary by region.
Please contact your regional representative.
※ Hanwha Vision is formerly known as Hanwha Techwin
PNM-9020V
Never miss a thing
Wisenet Premium 180˚ Panoramic Camera

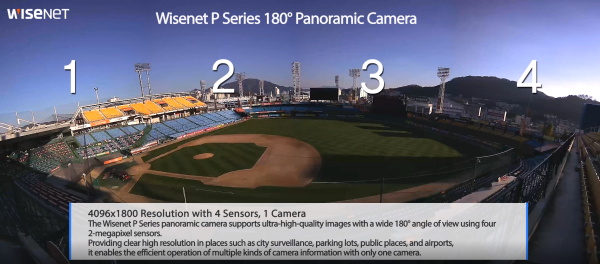

Four cameras in one
PNM-9020V 180˚ panoramic camera provides wide view with up to 7.3 megapixel high resolution within single camera instead of installing 4 cameras. It offers a seamless single image by merging 4 images from each sensors.
Multiple view modes
The Multi sensor camera offers panoramic(16:9), half panoramic(4:3) and 3PTZ modes with a panoramic view.
Improved bandwidth efficiency with WiseStream, H.265
WiseStream, the advanced compression technology can reduce bandwidth by 50% by using dynamic technologies. And when combined with H.265, the bandwidth efficiency can be improved up to 75% compared to the current H.264 technology.
Optimized for Indoor and Outdoor
Wisenet P series multi-sensor/multi-directional cameras provide a wide area of coverage in extreme detail. They are ideal for applications such as parking lots, shopping mall entrances, lobbies, station concourses and airports.
Product Specification
- Video
- Lens
- Pan / Tilt / Rotate
- Operational
- Network
- General
- Environmental & Electrical
- Mechanical
-
-
Video Imaging Device 1/2.8" 2MP CMOSx4 Resolution [Panorama]
4096x1800, 3584x1576, 3072x1352, 2560x1124, 2048x900, 1536x676, 1024x452, 512x224, 720x576
[Halfview]
2048x1536, 1600x1200, 1024x768, 800x600Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(60Hz/50Hz)Min. Illumination Color: 0.3Lux(F2.0, 1/30sec)
B/W: 0.03Lux (F2.0, 1/30sec)Lens Focal Length (Zoom Ratio) 3.6mm Fixed Max. Aperture Ratio F2.0 Angular Field of View H: 180°, V: 84° Min. Object Distance 1.5m(4.92ft) Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~355° / 0°~60° / - Operational Camera Title Displayed up to 45 characters Day & Night Auto(ICR) Backlight Compensation BLC Digital Noise Reduction SSNRⅢ Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 16ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/WhiteGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection Business Intelligence Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggers
Alarm outputNetwork Ethernet RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area) Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(15 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)General Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Memory 8GB RAM, 4GB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -35°CStorage Temperature / Humidity -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage PoE+(IEEE802.3at, Class4), 12VDC Power Consumption PoE+: Max 25.5W
12VDC: Max 21.0WMechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø199x143.5mm, 2025g
-
