Fisheye

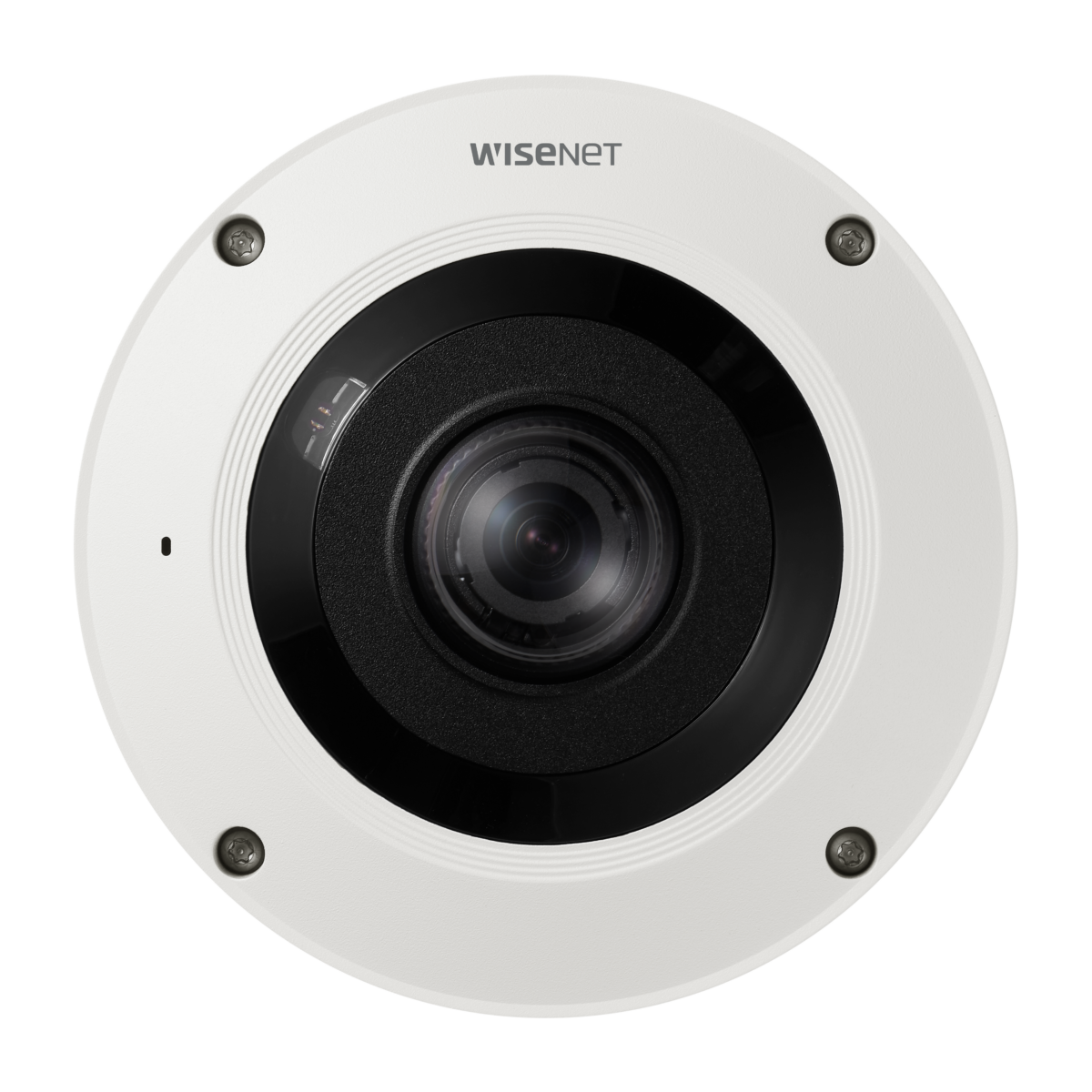

XNF-9010RV
12MP IR Fisheye Camera
Key Features
• 1/2.3" 12MP CMOS
• 1.08mm fixed focal lens
• Stereo graphic type lens, enhanced resolution for the peripheral regions
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ
• extreme WDR (120dB), WiseStreamⅡ support
• Wise IR, IR viewable length 10m
• Virtual channel support
• Plugin support, selectable I/O port
• Video Analytics, Heatmap, People counting
• Queue management
• Hard coated dome cover
• Motion detection, Handover, IP66/IK10/NEMA4X
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
12MP sensor 360° monitoring
Offers both wall mounting and overhead mounting modes
Offers both wall mounting and overhead mounting modes
Wisenet Fisheye camera adopted 12MP sensor offering clean and vivid images with 360° coverage. Users can choose between wall mounting mode and overhead mounting mode depending on the installation environment, and monitor areas in detail.
Enhanced resolution for the peripheral regions
Wisenet Fisheye camera adopted the Stereo Graphic Type lens offering enhanced resolution for the peripheral regions of the image when mounted overhead for the top-down view.
With the Wise IR, which optimizes amount of IR light in the central and the peripheral regions of images in accordance with the installation environment, the camera constantly creates steady images without smudging effect. Moreover, it supports 30fps WDR, creating clear images without motion artifact.
With the Wise IR, which optimizes amount of IR light in the central and the peripheral regions of images in accordance with the installation environment, the camera constantly creates steady images without smudging effect. Moreover, it supports 30fps WDR, creating clear images without motion artifact.
Product Introduction and Demonstration Video
Product Specification
| Video | ||
|---|---|---|
| Imaging Device | Size | 1/2.3" |
| Type | CMOS | |
| Resolution | 3008x3008, 960x960, 1080x1080, 640x160, 1792x1344, 3584x896, 3584x2688, 480x480, 640x480, 640x640, 3584x1792, 640x320, 1504x1504, 768x768, 720x720 | |
| Max. Framerate | H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@9MP Max. 5fps) | |
| Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.39 |
| BW(1/30sec, 30IRE) | 0.039 | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
| Lens | ||
| Focal Length (mm) | 1.08 | |
| Max Aperture Ratio (F number) | Wide | 2.2 |
| Angular Field of View | Horizontal | 187° |
| Vertical | 187° | |
| Diagonal | 187° | |
| Min. Object Distance | 0.5m(1.64ft) | |
| Focus Control | Simple focus | |
| Operational | ||
| Day & Night | Auto(ICR) | |
| Backlight Compensation | SSDR, WDR, BLC, HLC | |
| Wide Dynamic Range (dB) | 120 | |
| Digital Noise Reduction | SSNRⅤ | |
| Motion Detection | Quantity | 8ea |
| Shape | 8point Polygonal zones | |
| Privacy Masking | Quantity | 32ea |
| Shape | 4point Quadrangle zones | |
| Color / Option | White, Gray, Red, Blue, Mosaic, Green, Black | |
| Gain Control | Max gain, Off, Manual | |
| White Balance | Outdoor, NarrowATW, Manual, ATW, AWC, Indoor | |
| LDC | Support(Fill/stretch mode) | |
| Electronic Shutter | Mode | Prefer shutter control, Anti flicker, Minimum, Maximum |
| Speed Range | 2~1/12,000sec | |
| Video Rotation | Mirror, Flip | |
| Alarm Interface | In/Out | 2 configurable I/O ports |
| Alarm Triggers | MQTT subscription, Time schedule, Network disconnect, Analytics, App event, Alarm input | |
| Alarm Events When Alarm Trigger Occurred | Recording: SD/SDHC/SDXC or NAS recording at event triggers, Notification: e-mail, Audio clip playback, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication, File upload(video clip): FTP/SFTP, File upload(image): e-mail/FTP/SFTP, Alarm output | |
| Audio In | Selectable(mic in/line in), Built-in mic | |
| Audio Out | Line out | |
| Light Type | IR LED | |
| Light Viewable Length | IR | WiseIR 10m(32.8ft) |
| IR Wavelength | 850nm | |
| Analytics | ||
| Analytics Events | Normal | Virtual line(Crossing, Direction) , Sound classification, Tampering, Defocus detection, Motion detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear) |
| Business Intelligence | Normal | Heatmap, Queue management, People counting |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Audio Compression | AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz | |
| Smart Codec | Manual, WiseStreamⅢ | |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
| Streaming | Unicast | Up to 20 users |
| Multicast | Support | |
| Multiple Streaming | Up to 10 profiles | |
| Protocol | SSL/TLS, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), QoS, SMTP, DDNS, IGMP, HTTP, SFTP, UPnP, CDP, LLDP, MQTT, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour | |
| Application Programming Interface | ONVIF | S, T, G |
| Others | Hanwha Vision Open Platform, SUNAPI(HTTP API) | |
| Direct Cloud Connection | Optional (needs gateway) | |
| Security | ||
| OS / Firmware Protect | Encrypted firmware, Signed firmware, Secure boot | |
| User authentication | Prevent brute-force attack, Digest authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encrypt compress for live recording file export, Encryption credentials | |
| Audit | Access / System / Event Log management | |
| Device ID | Device certificate(Hanwha Vision Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256) | |
| Security Certificate | TPM 2.0 with FIPS 140-2 level2 | |
| General | ||
| Memory | RAM | 4GB |
| Flash | 512MB | |
| Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 2slot(Total 512GB) |
| Environmental & Electrical | ||
| Operating Condition | Temperature | -40°C~+60°C(-40°F~+140°F) |
| Humidity | 0~95% RH(non-condensing) | |
| Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
| Humidity | 0~90% RH(non-condensing) | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE | Max 12.95W, typical 11W |
| 12VDC | Max 11W, typical 9.1W | |
| Mechanical | ||
| Color | White | |
| Material | Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions | ø160x72mm(ø6.30x2.83") | |
| Product Weight | 1100g(2.43 lb) | |
| Compatible Gang Box | 4" Octagon, Double, Square, Single | |
| Certifications & Standards | ||
| EMC | RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 | |
| Safety | IEC 62471, UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | |
| Environment | IEC 62262 IK10, IEC/EN 63000, IEC 60529 IP66, NEMA 250 type 4X | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | Wide | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | Wide | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | Wide | 3.5m(11.48ft) |
