    • Explosion proof

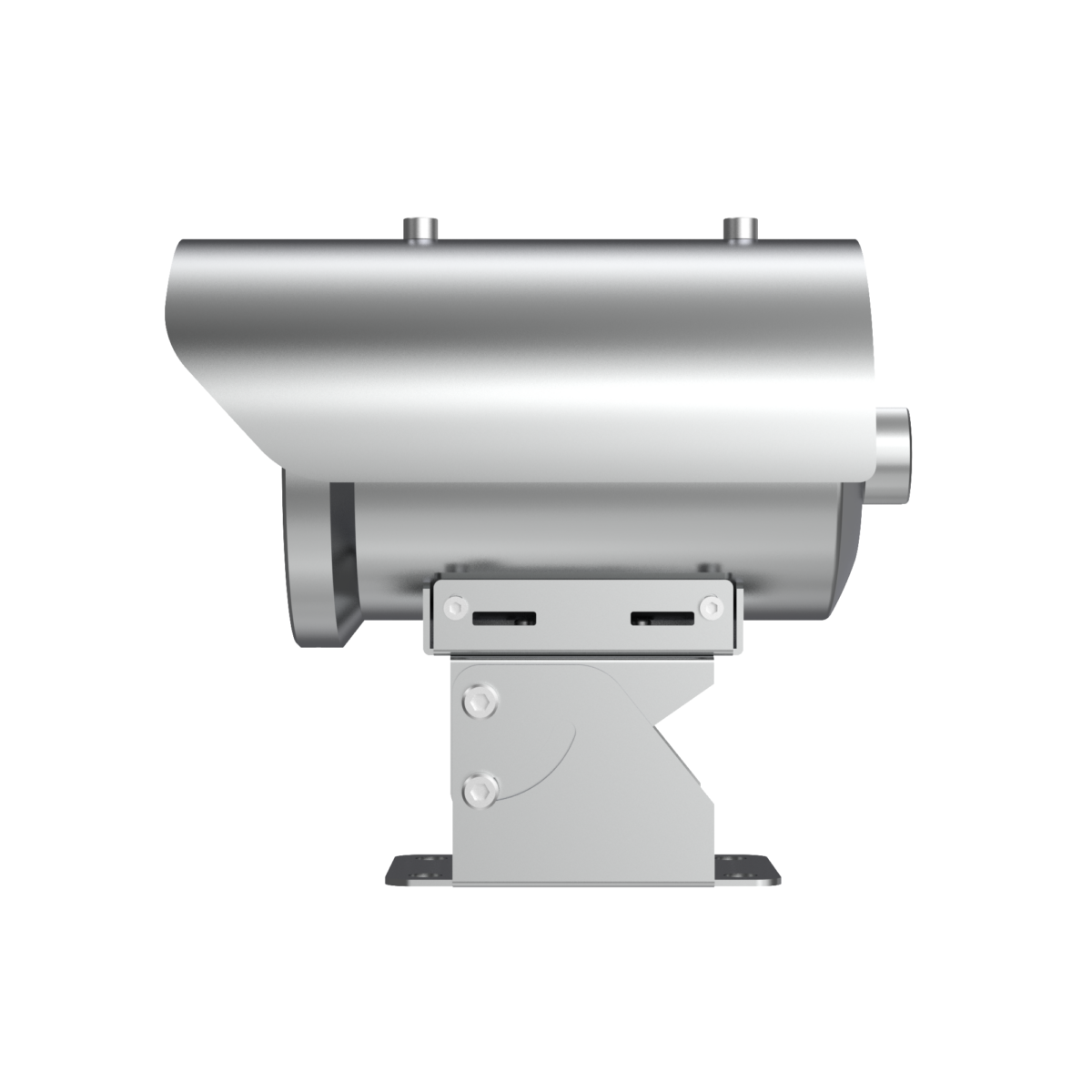

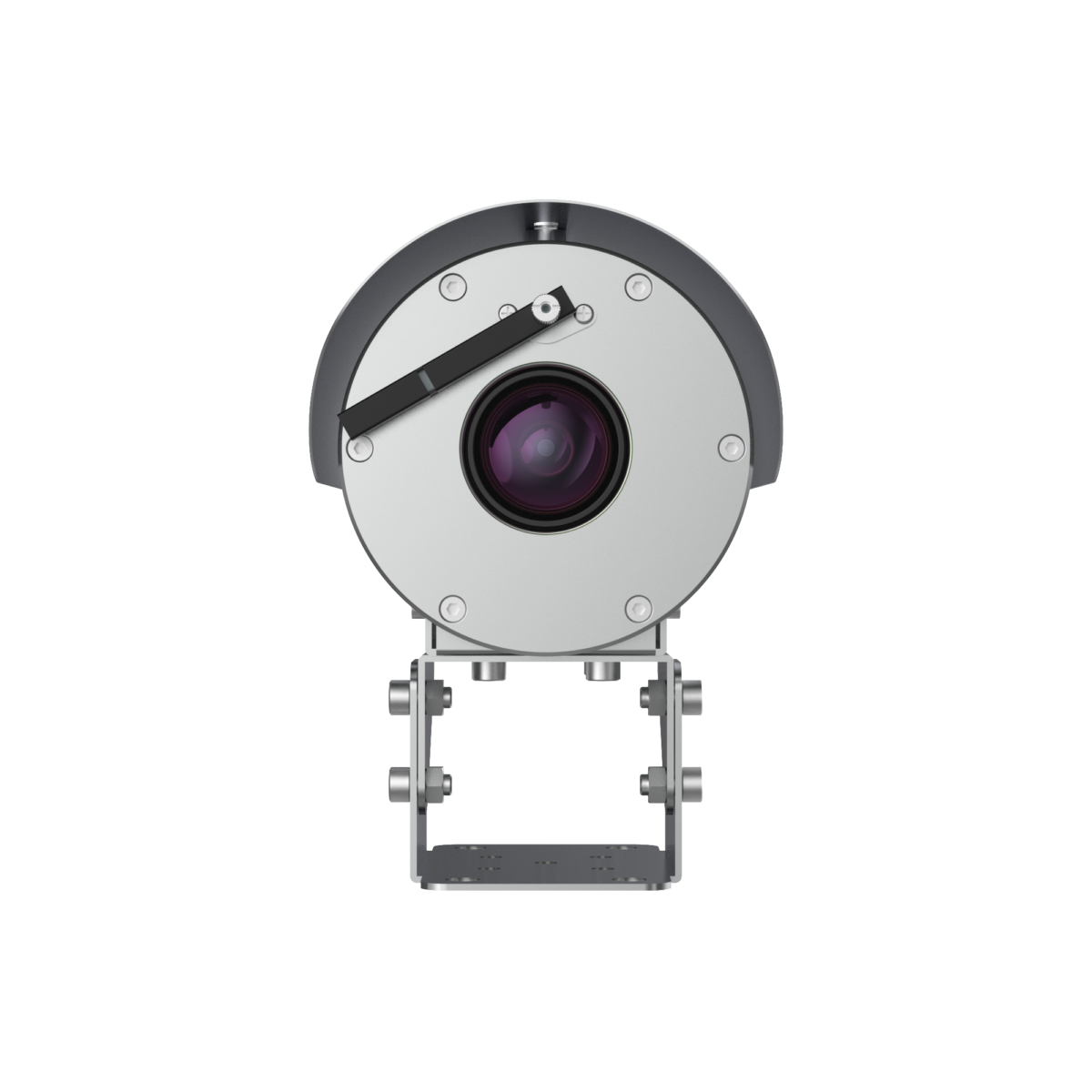

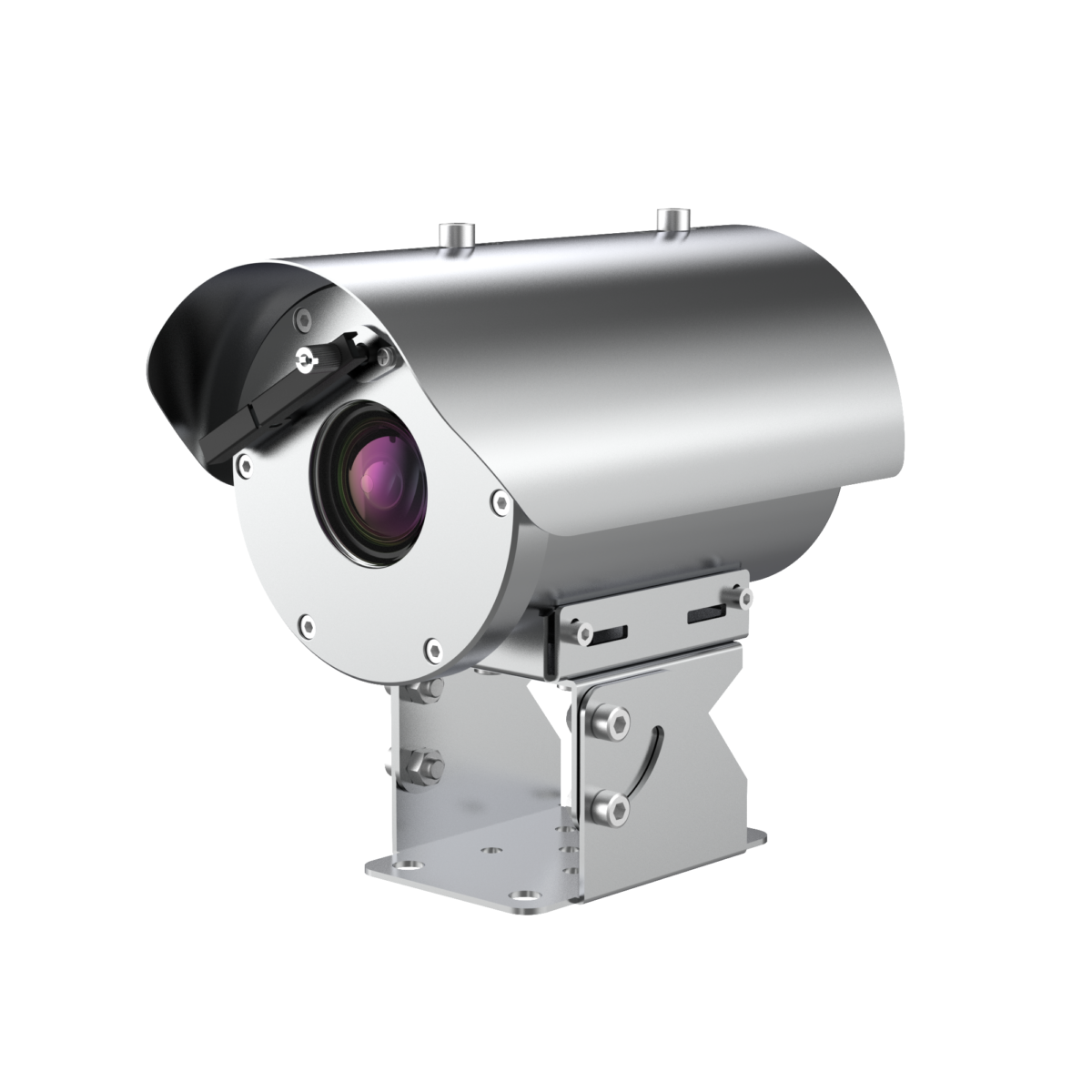

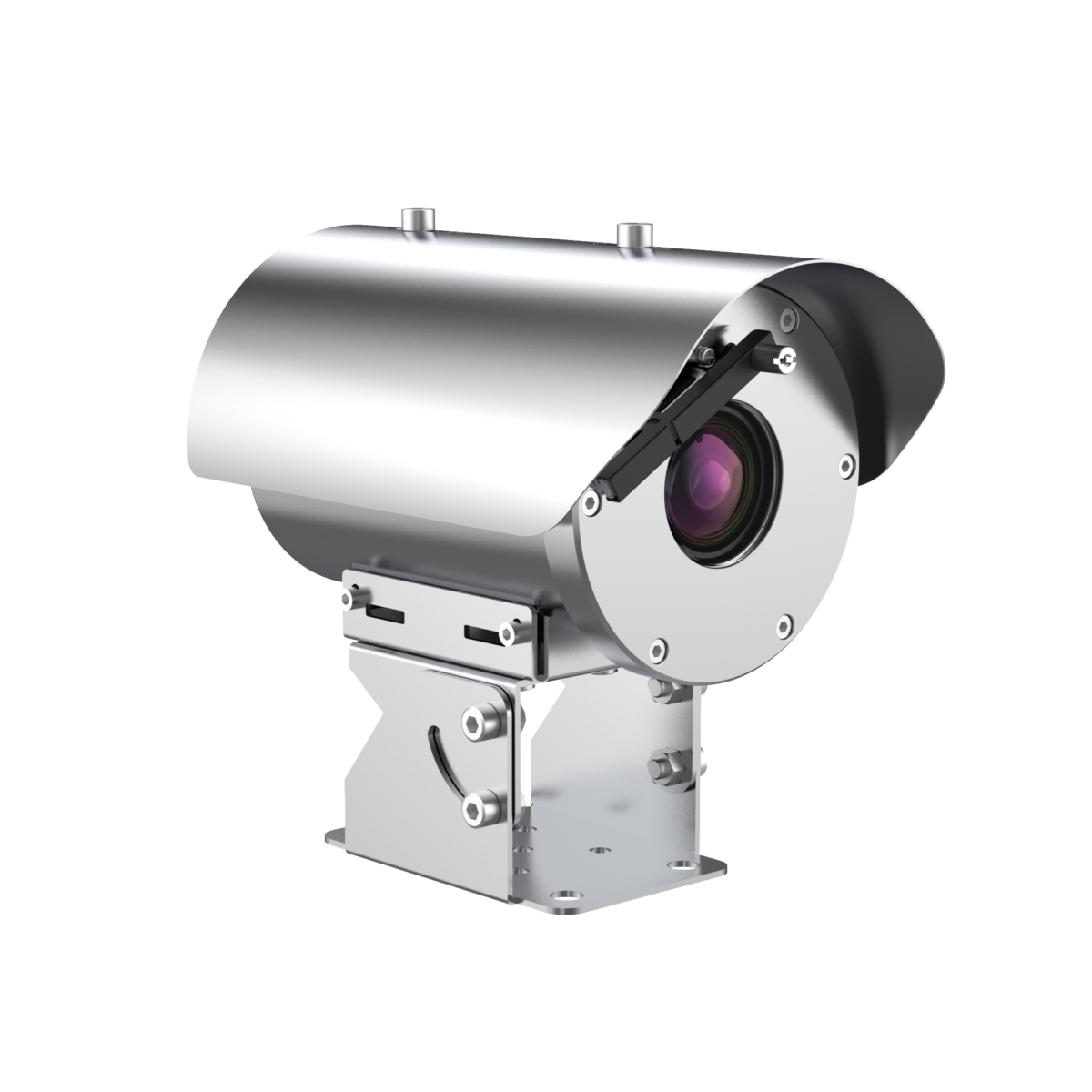

    TNO-6322ER

    2MP Explosion-proof Camera

    Key Features

    • Max. 2MP (1920 x 1080) resolution
    • H: 61.8˚(Wide)~2.19˚(Tele) / V: 36.2˚(Wide)~1.24˚(Tele) Field of View
    • Max. 60fps/50fps (60Hz/50Hz)
    • H.265, H.264, MJPEG codec, WiseStream II
    • IR viewable length 70m
    • Day & Night (Auto ICR), WDR (120dB)
    • Explosion-proof certificate: IECEx, ATEX, KCs, PESO
    • Stainless 316L, Built-in wiper
    • IP67, IK10

    Contact Sales Datasheet

    ["camera","network","explosion-proof"]

    Product availability may vary by region.
    Please contact your regional representative.

    Hanwha Vision is formerly known as Hanwha Techwin.

    Product Specification

    Video
    Imaging DeviceSize1/2.8"
    TypeCMOS
    Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
    MJPEG30fps
    Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
    BW(1/30sec, 30IRE)0.005
    Lens
    Focal Length (mm)4.44~142.6
    Zoom RatioOptical32x
    Max Aperture Ratio (F number)Wide1.6
    Tele4.4
    Angular Field of ViewHorizontal61.8°~2.19°
    Vertical36.2°~1.24°
    Min. Object Distance1.5m(4.92ft)
    Focus ControlOneshot AF
    Lens TypeDC auto iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate RangeTilt35º~90º
    Operational
    Direction IndicatorSupport
    Day & NightAuto(ICR)
    Backlight CompensationBLC, HLC, WDR, SSDR
    Wide Dynamic Range (dB)120
    Digital Noise ReductionSSNRⅤ
    Digital Image StabilizationSupport
    DefogSupport
    Motion DetectionQuantity8ea
    Shape8point Polygonal zones
    Gain ControlLow, Middle, High
    White BalanceATW, AWC, Manual, Indoor, Outdoor
    Electronic ShutterModeMinimum, Maximum, Anti flicker
    Speed Range1~1/12,000sec
    Alarm InterfaceIn/OutInput 1ea, Output 1ea
    Alarm TriggersAnalytics, Network disconnect, Alarm input
    Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Alarm output, NAS recording at event triggers, Handover: Zoom preset
    Audio InSelectable(mic in/line in)
    Audio OutLine out
    Light TypeIR LED
    Light Viewable LengthIR70m(229.66ft)
    IR Wavelength850nm
    Water RemovalSupport(with Wiper)
    Analytics
    Analytics EventsNormalDefocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
    Network
    EthernetRJ-45(10/100BASE-T)
    Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
    Audio CompressionG.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
    Smart CodecManual, WiseStreamⅡ
    Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
    StreamingUnicastUp to 20 users
    MulticastSupport
    Multiple StreamingUp to 10 profiles
    ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, PIM-SM
    Application Programming InterfaceONVIFS, G, T
    OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
    Security
    OS / Firmware ProtectEncrypted firmware
    User authenticationDigest authentication
    Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
    Secure CommunicationHTTPS
    Access ControlIP-based access control
    AuditAccess / System / Event Log management
    General
    MemoryRAM1GB
    Flash256MB
    Environmental & Electrical
    Operating ConditionTemperatureIR Off: -40°C~+60°C(-40°F~+140°F), IR On: -40°C~+55°C(-40°F~+131°F)
    Humidity0~95% RH(non-condensing)
    Storage ConditionTemperature-30°C~+60°C(-22°F~+140°F)
    Humidity0~95% RH(non-condensing)
    Input Voltage24VAC
    Power Consumption24VACMax. 45W
    Mechanical
    ColorSilver
    MaterialSStainless(STS316L)
    Product Dimensions175(W)x242.5(H)x320(D)mm(6.89x9.59x12.59")
    Product Weight11.5kg(25.35lb)
    Certifications & Standards
    EnvironmentIEC 60529 IP67, IEC 62262 IK10, ATEX II 2 G Ex db op is IIC T6 Gb, II 2 D Ex tb op is IIIC T85°C Db, IECEX Ex db op is IIC T6 Gb, Ex tb op is IIIC T85°C Db, KCs
