Dome

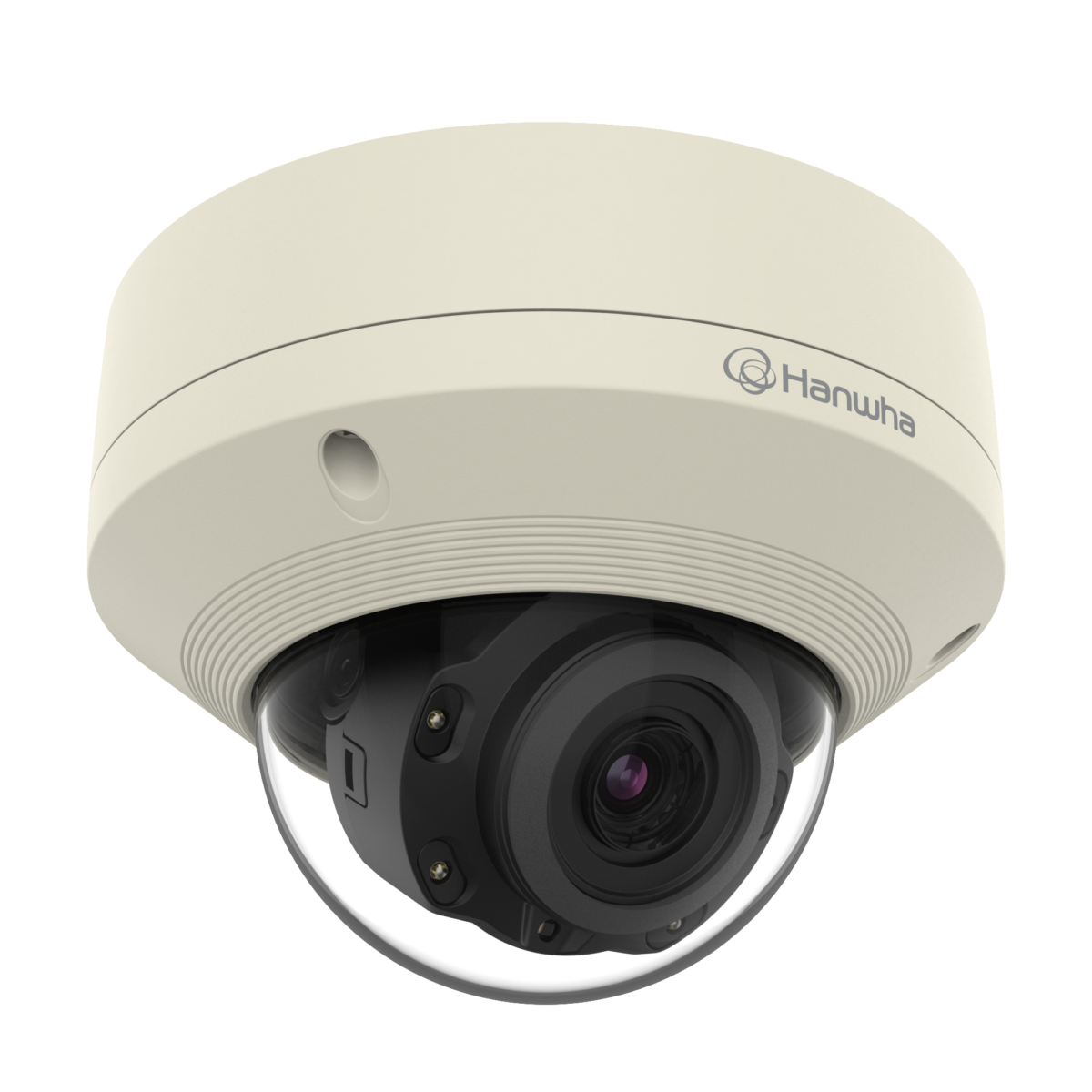

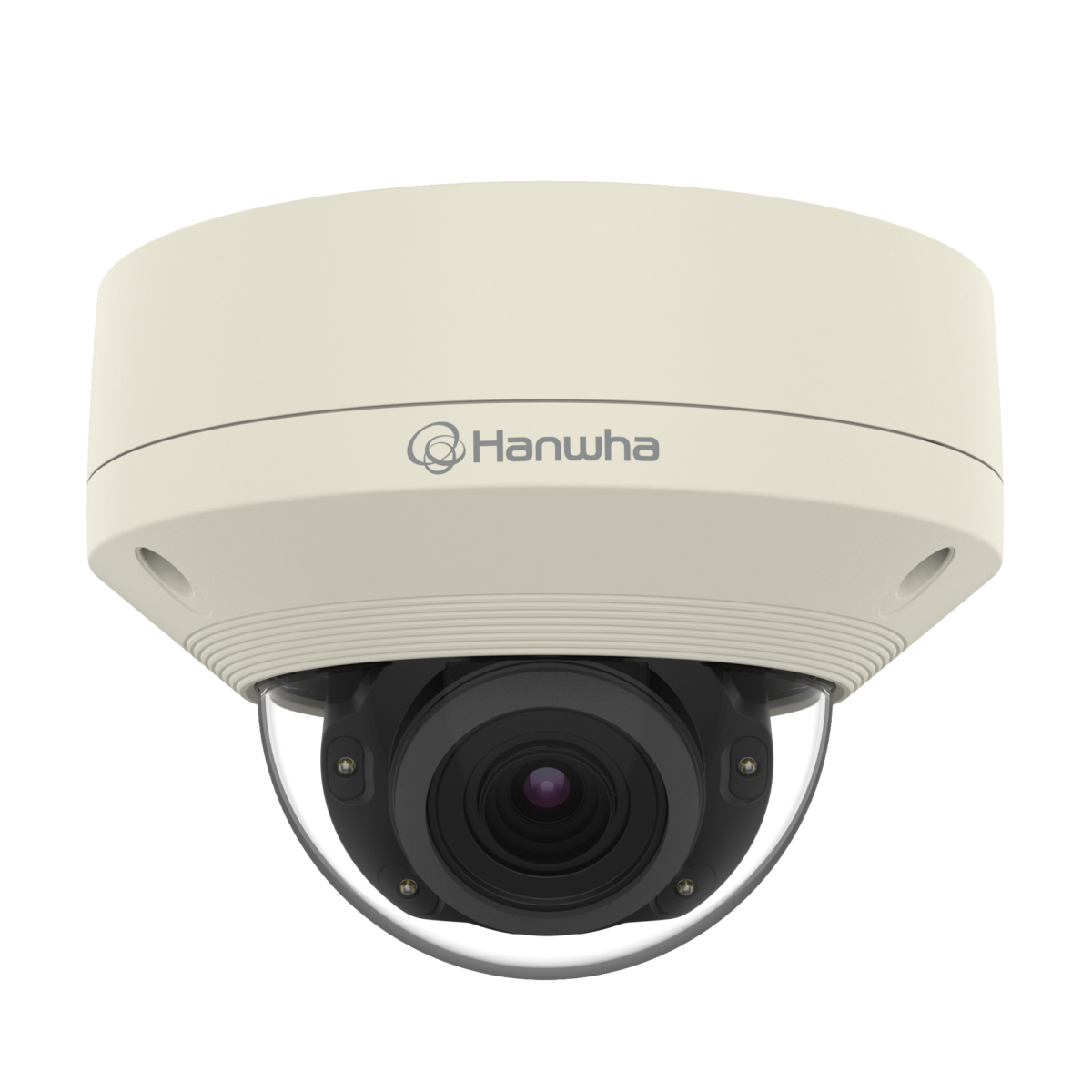

XNV-L6080R
2M H.265 IR Dome Camera
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 3.2 ~ 10mm (3.1x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB), Defog
• Tampering, Defocus detection
• Motion Detection, Handover
• SD/SDHC/SDXC memory slot (Max. 256GB)
• Hallway view, WiseStreamII support
• IR viewable length 30m
• IP66, IK10, PoE support
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
Video | ||
---|---|---|
Imaging Device | Size | 1/2.8" |
Type | CMOS | |
Resolution | 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x480, 800x600, 800x448, 640x360, 320x240 | |
Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
MJPEG | 30fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.03 |
BW(1/30sec, 30IRE) | 0.003 | |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
Lens | ||
Focal Length (mm) | 3.2~10 | |
Zoom Ratio | Optical | 3.1x |
Max Aperture Ratio (F number) | Wide | 1.6 |
Tele | 2.9 | |
Angular Field of View | Horizontal | 109.0°~33.2° |
Vertical | 57.4°~18.7° | |
Diagonal | 132.0°~38.0° | |
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Simple focus, Manual | |
Lens Type | DC auto iris | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~354° |
Tilt | 0°~67° | |
Rotate | 0°~355° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, SSDR, WDR, HLC | |
Wide Dynamic Range (dB) | 120 | |
Digital Noise Reduction | SSNRⅤ | |
Digital Image Stabilization | Support | |
Defog | Support | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 32ea |
Shape | Polygonal zones | |
Color / Option | White, Black, Green, Red, Blue, Gray, Mosaic | |
Gain Control | Middle, High, Low | |
White Balance | Manual, ATW, Indoor, AWC, Outdoor | |
LDC | Support | |
Electronic Shutter | Mode | Anti flicker, Minimum, Maximum |
Speed Range | 2~1/12,000sec | |
Video Rotation | Hallway view(90°/270°), Flip, Mirror | |
Alarm Triggers | Network disconnect, Analytics | |
Alarm Events When Alarm Trigger Occurred | Notification: e-mail, File upload(image): e-mail/FTP, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Recording: SD/SDHC/SDXC or NAS recording at event triggers | |
Light Type | IR LED | |
Light Viewable Length | IR | 30m(98.42ft) |
IR Wavelength | 850nm | |
Analytics | ||
Analytics Events | Normal | Tampering, Defocus detection, Motion detection |
Network | ||
Ethernet | RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Smart Codec | WiseStreamⅡ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 5 profiles | |
Protocol | HTTP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, SSL/TLS, QoS, SMTP, DDNS, IGMP, UPnP, RTSP, ICMP, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP) | |
Application Programming Interface | ONVIF | S, G |
Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
Direct Cloud Connection | Optional (needs gateway) | |
Security | ||
OS / Firmware Protect | Secure boot, Signed firmware, Encrypted firmware | |
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | HTTPS, WSS(WebSocket Secure) | |
Access Control | IP-based access control | |
Data Protect | Encryption credentials, Encrypt compress for live recording file export | |
Audit | Access / System / Event Log management | |
Secure Storage | SDcard partition encrypt(AES-256) | |
General | ||
Memory | RAM | 1GB |
Flash | 256MB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
Environmental & Electrical | ||
Operating Condition | Temperature | -40°C~+55°C(-40°F~+131°F) |
Humidity | 0~90% RH(non-condensing) | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | PoE(IEEE802.3af, Class3) | |
Power Consumption | PoE | Max. 11W, typical 5W |
Mechanical | ||
Color | Ivory | |
Material | Aluminum | |
Product Dimensions | ø160x118.5mm(63.0x46.7") | |
Product Weight | 1,298g(2.86lb) | |
Certifications & Standards | ||
Environment | IEC 60529 IP66, IEC 62262 IK10 |
