Dome

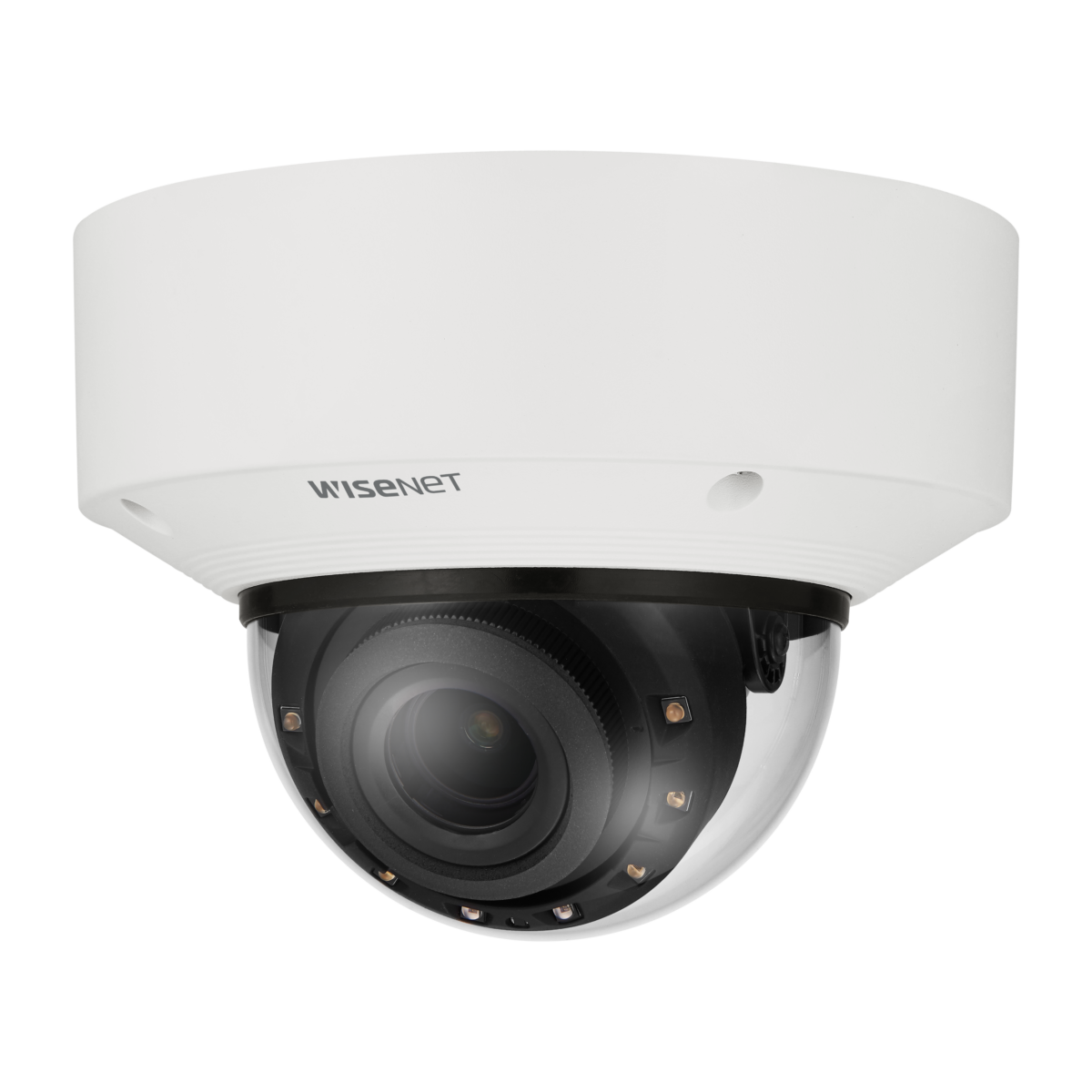

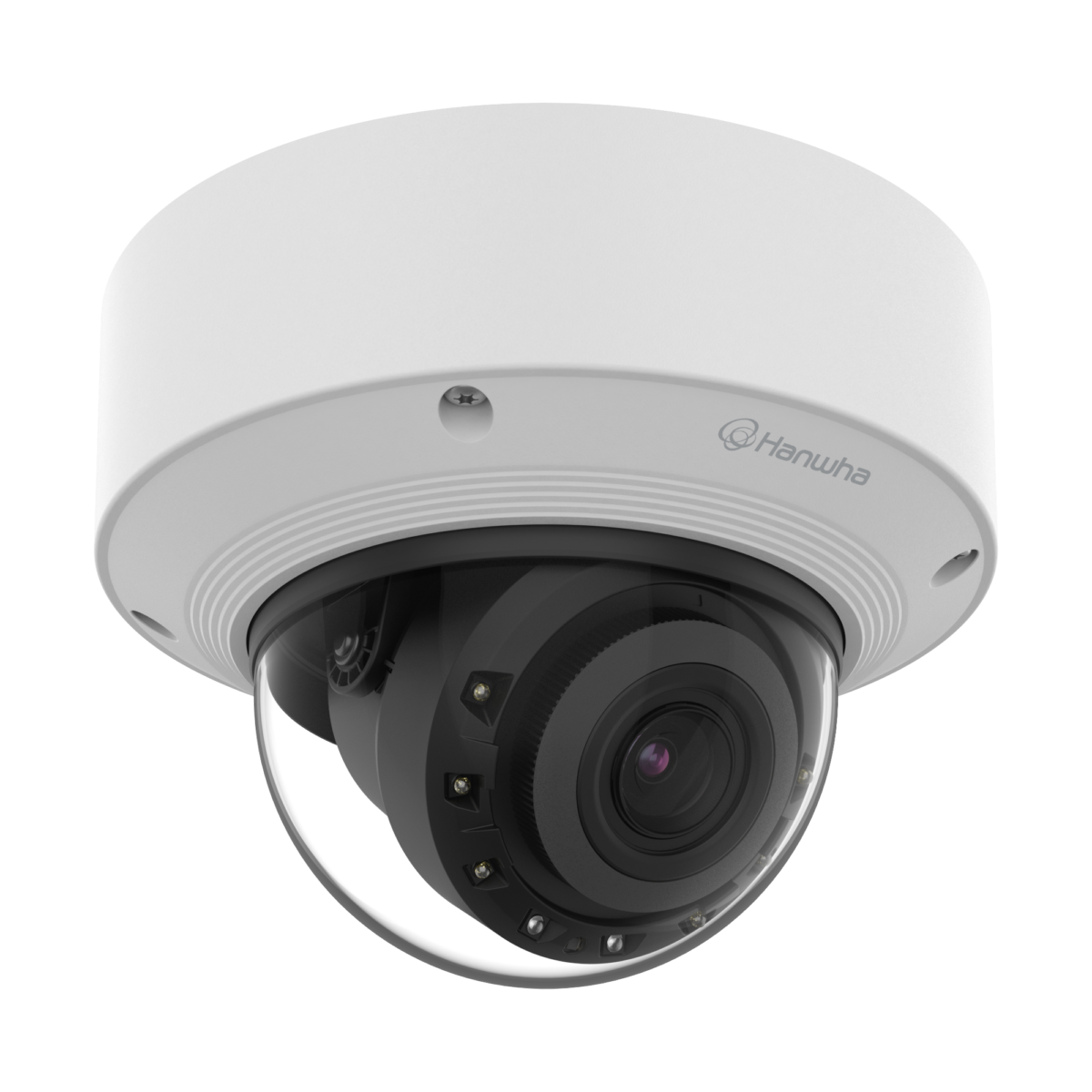

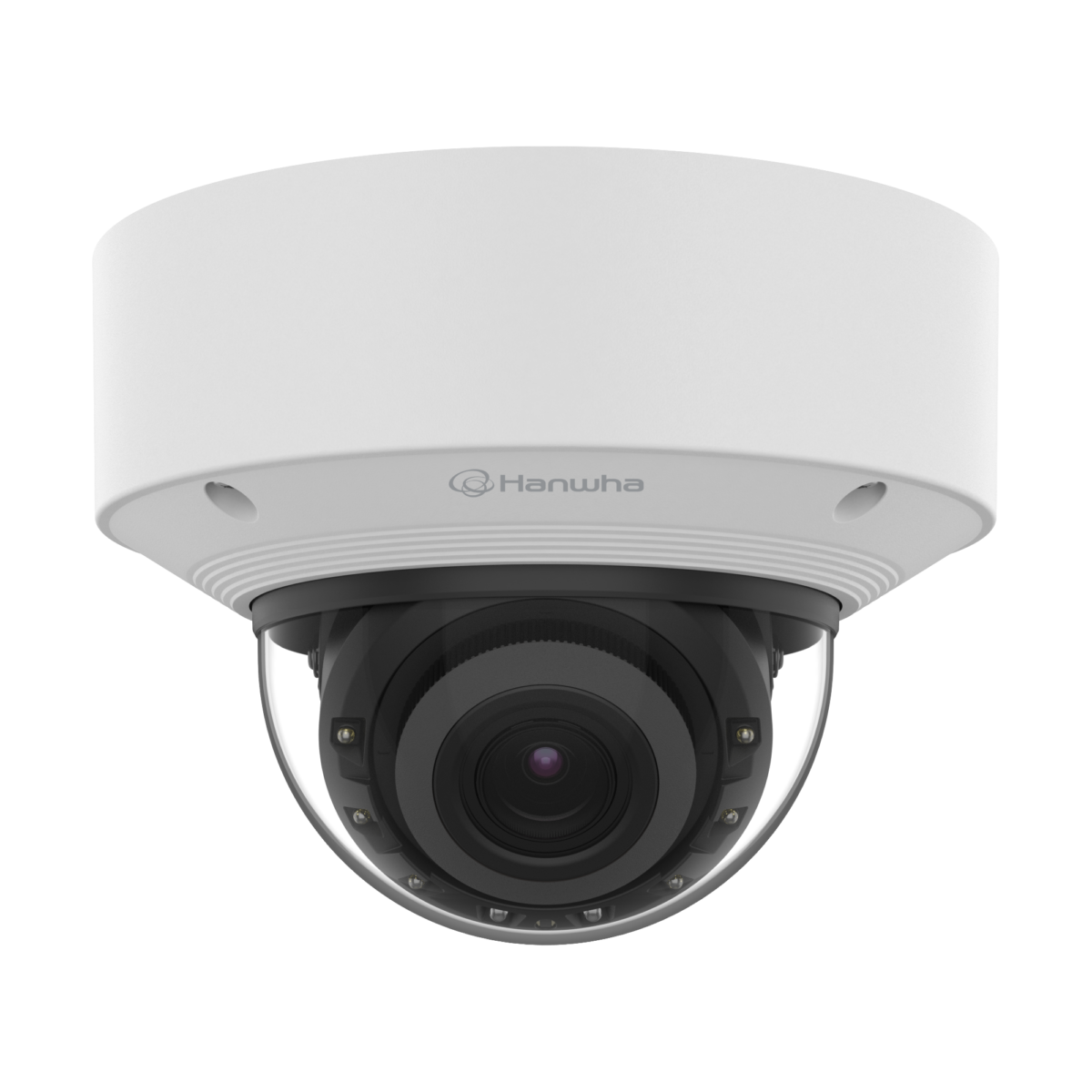

XNV-C6083R

2MP AI IR Vandal Dome Camera

Key Features
• 2MP resolution
• 2.8~12mm (4.3x) motorized varifocal
• Color: 0.011 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 60 fps@2MP (H.265/H.264)
• WiseIR: IR viewable length 40m (131.23 ft)
• Day & Night (ICR), extremeWDR (150 dB)
• DIS with built-in Gyro sensor
• Hard-coated dome bubble
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP66, IP67, NEMA4X, IK10
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Reducing False alarm based on AI

The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency

Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control

WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ

By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps
Min. Illumination Color: 0.01Lux(F1.4, 1/30sec, 30IRE)
B/W: 0.001Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

Color: 0.02Lux(F1.4, 1/60sec, 30IRE)
BW: 0.002Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide)~F3.6(Tele)
Angular Field of View H: 120°(Wide)~27°(Tele)
V: 63°(Wide)~15°(Tele)
D: 143°(Wide)~32°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type DC auto iris with hall sensor(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / 0°~75° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(150dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Off / Max Gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics events
- Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Business Intelligence Based on AI engine: People/Vehicle counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP/SFTP
- File upload(video clip): FTP/SFTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot Max. 512GB
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F)
* Start up should be done at above -20°C
0~100%RH(condensing)
Humidity control with AIR vent
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66/IP67, NEMA4X, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 10.8W
12VDC: Max 12.5W, typical 10.0W
Mechanical
Color / Material White / Aluminum
Bubble: Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ø160x118mm(ø6.30x4.65"), 1450g(3.20 lb)
Compatible Conduit hole / Gangbox 12.7mm(1/2")(M20)
single, double, 4" octagon, 4" square
Hanging Mount (Dome) SBP-160HMW1
Backbox SBV-180BW/WW
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1
Pole Mount SBD-180PMW, SBP-300PMW2
In-ceiling Mount SHD-1600FPW/FW
Parapet Mount SBP-300LMW, SBP-156LMW1
Corner Mount SBP-300KMW1
Cabinet SBP-300NBW
Other Compatible Models SPB-VAN88W
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft)
Observe (63PPM/ 19PPF) Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft)
Recognize (125PPM/ 38PPF) Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft)
Identify (250PPM/ 76PPF) Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft)
