Dome

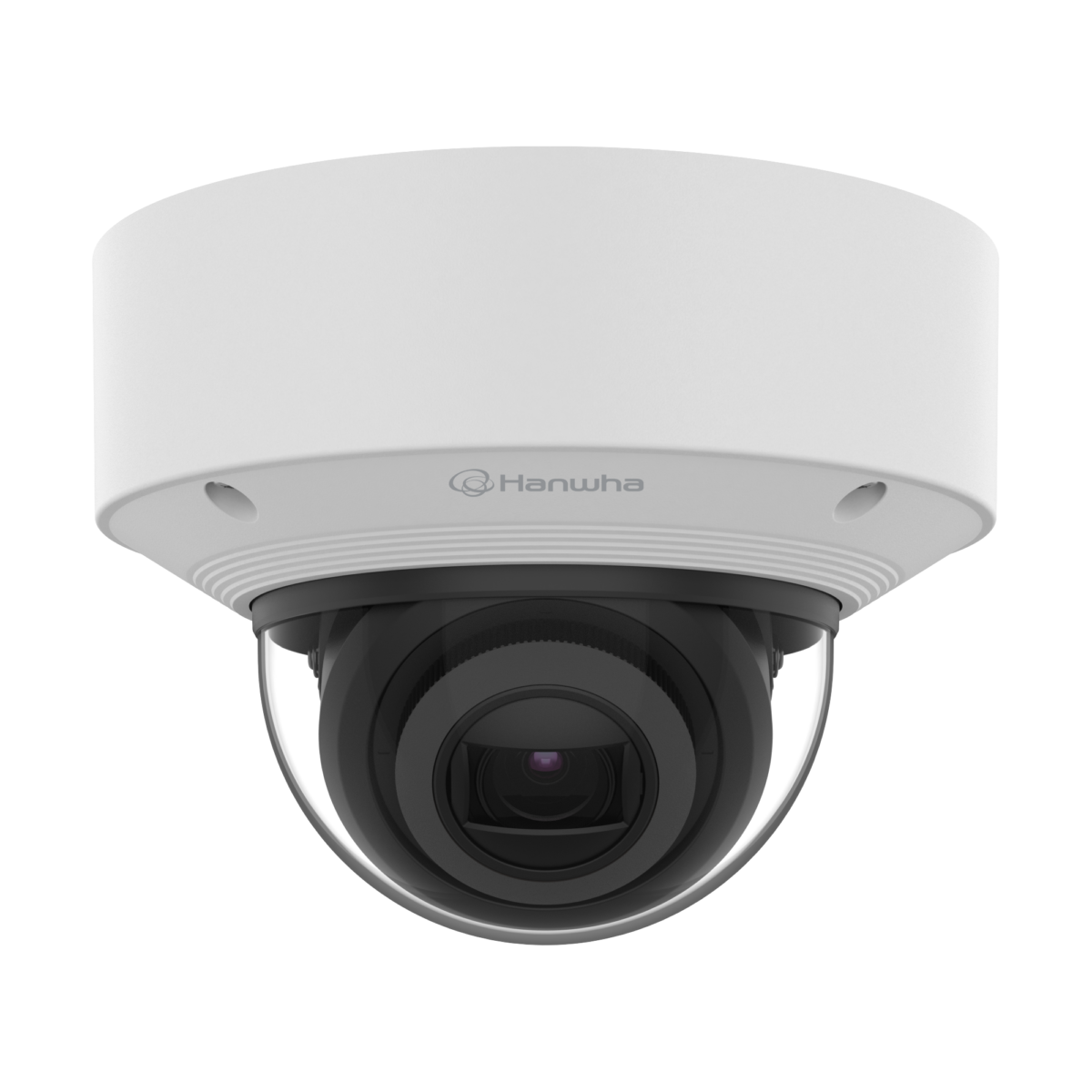

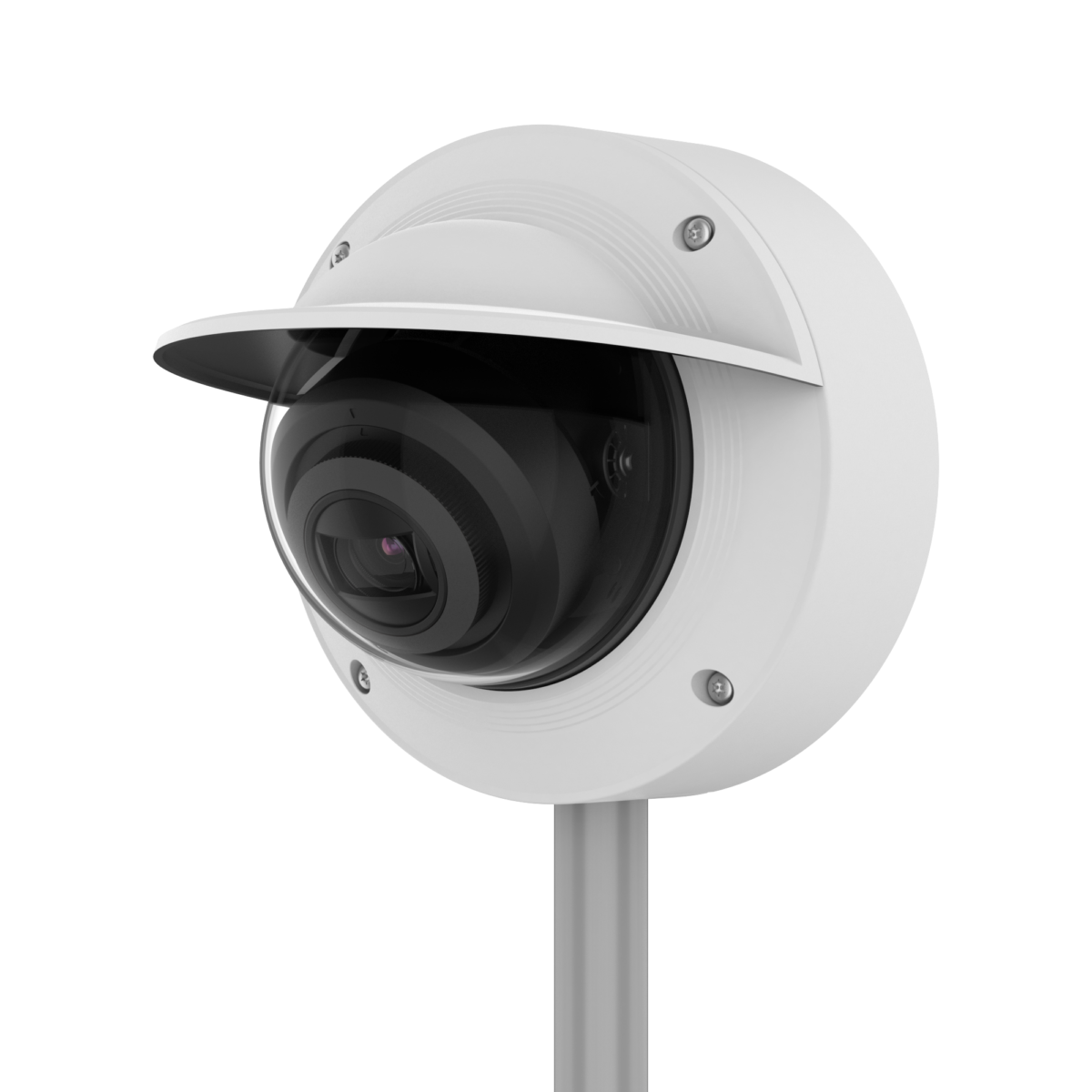

XNV-C6083

2MP AI None IR Vandal Dome Camera

Key Features

• 2MP resolution
• 2.8~12mm (4.3x) motorised varifocal
• Maximum 60 fps@2MP (H.265/H.264)
• Day & Night (ICR), extremeWDR (150 dB)
• DIS with built-in Gyro sensor
• Hard-coated dome bubble
• Analytics events based on AI engine (NPU)
• IP66, IP67, NEMA4X, IK10

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Reducing False alarm based on AI

The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency

Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control

WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ

By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448, 1280x720
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.01
BW(1/30sec, 30IRE)0.001
Video OutUSB: Micro USB Type B
Lens
Focal Length (mm)2.8~12
Zoom RatioOptical4.3x
Max Aperture Ratio (F number)Wide1.4
Tele3.6
Angular Field of ViewHorizontal120°~27°
Vertical63°~15°
Diagonal143°~32°
Min. Object Distance0.5m(1.64ft)
Focus ControlManual, Simple focus
Lens TypeDC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~75°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, BLC, HLC, SSDR
Wide Dynamic Range (dB)150
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGreen, White, Mosaic, Black, Red, Blue, Gray
Gain ControlMax gain, Off, Manual
White BalanceIndoor, ATW, NarrowATW, AWC, Manual, Outdoor
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Video RotationHallway view(90°/270°), Flip, Mirror
Alarm InterfaceIn/Out2 configurable I/O ports
Alarm TriggersAnalytics, Alarm input, MQTT subscription, Network disconnect, Time schedule, App event
Alarm Events When Alarm Trigger OccurredMQTT: publication, File upload(image): e-mail/FTP/SFTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Notification: e-mail, Audio clip playback, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, File upload(video clip): FTP/SFTP
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Classified Object TypeVehicle, Face, License plate, Person
AttributesVehicleType(car, bus, truck, motorcycle, bicycle)
ThumbnailDetectionShot
Analytics EventsBased on AI EngineVirtual area(Loitering/Intrusion/Enter/Exit), Virtual line(Crossing/Direction), Object detection, Motion detection
NormalShock detection, Fog detection, Sound classification, Tampering, Virtual area(Appear/Disappear), Defocus detection, Audio detection
Business IntelligenceBased on AI EngineHeatmap, People counting, Queue management, Vehicle counting
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅢ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolUPnP, LLDP, MQTT, SRTP(TCP, UDP Unicast), RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, ICMP, UDP/IP, Bonjour, CDP, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, SFTP, RTSP
Application Programming InterfaceONVIFM, T, S, G
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSigned firmware, Encrypted firmware, Secure boot
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), HTPM(Hanwha Trusted Platform Module)
Security CertificateCyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
MemoryRAM2GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~100% RH(condensing)
OthersHumidity control with AIR vent, Start up should be done at above -20°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoEMax 10.8W, Typical 9.0W
12VDCMax 10.0W, Typical 8.4W
Mechanical
ColorWhite
MaterialAluminum, Hard-coated dome
RAL CodeRAL9003
Product Dimensionsø160x118mm(ø6.30x4.65")
Product Weight1450g(3.20lb)
Compatible Conduit Hole12.7mm(1/2")(M20)
Compatible Gang BoxSingle, 4" Octagon, Double, Square
Certifications & Standards
EMCRCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
SafetyIEC 62471, UL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC 60529 IP66, IEC/EN 63000, NEMA 250 type 4X, IEC 60529 IP67, IEC 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide22.2m(72.74ft)
Tele159.9m(524.76ft)
Observe (63PPM/ 19PPF)Wide8.9m(29.09ft)
Tele64.0m(209.90ft)
Recognize (125PPM/ 38PPF)Wide4.4m(14.55ft)
Tele32.0m(104.95ft)
Identify (250PPM/ 76PPF)Wide2.2m(7.27ft)
Tele16.0m(52.48ft)
