Dome

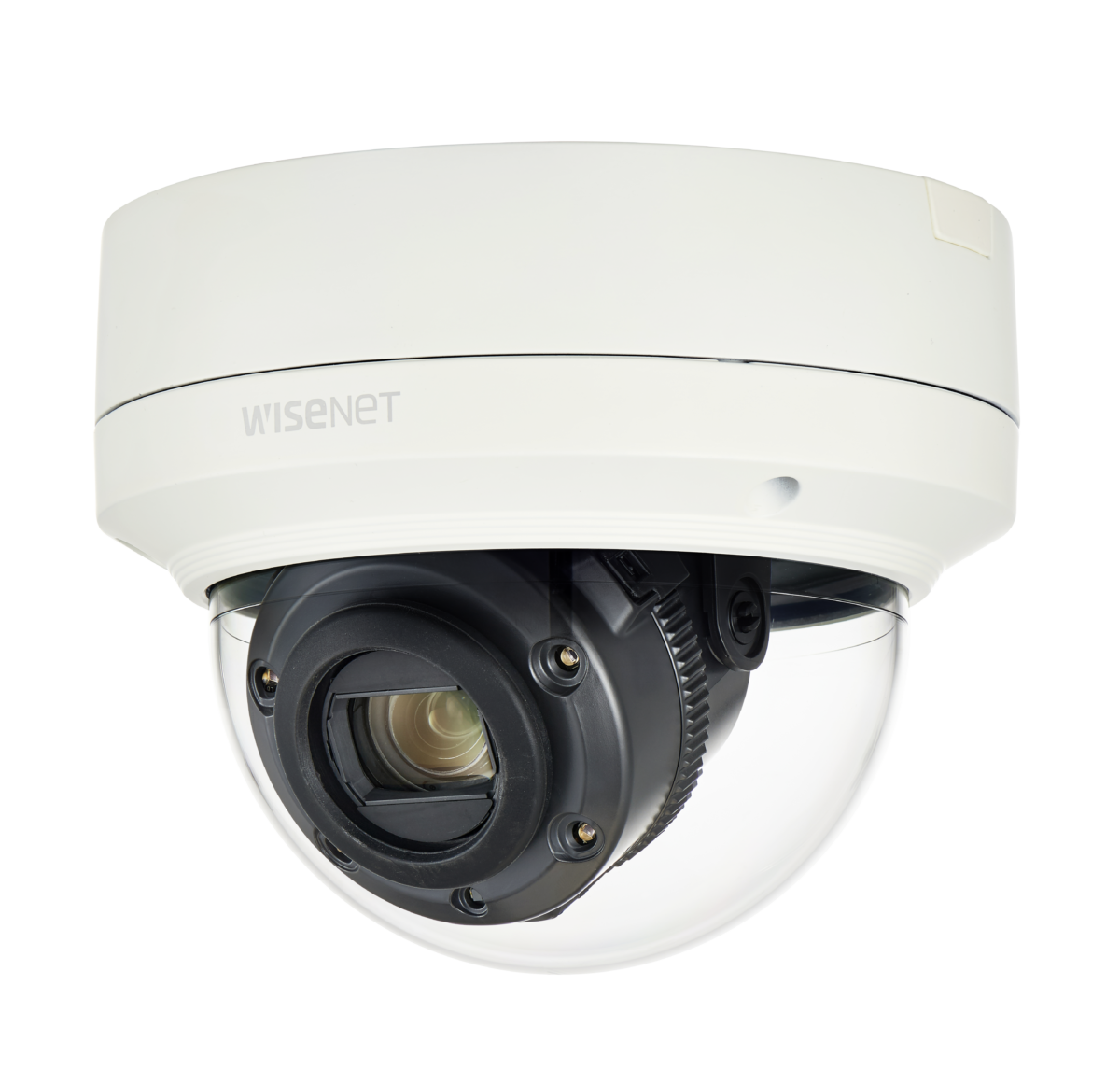

XNV-6120R

2M H.265 IR Dome Camera

Key Features

• Max. 2Megapixel (1920 x 1080) resolution
• 5.2 ~ 62.4mm (Optical 12X) Optical Lens
• Max. 60fps@all resolutions (H.265 / H.264)
• H.265, H.264, MJPEG Codec Supported
• Multiple streaming, IVA, Sound Classification
• Day & Night (ICR), WDR (150dB), Defog, Handover
• Fog Detection, Tampering, Motion Detection
• SD / SDHC / SDXC 2 Slot (Max. 512GB)
• Hallway View, WiseStreamII Support
• IR Viewable Length 70m (229.66ft)

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 800x600, 800x448, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.03
BW(1/30sec, 30IRE)0.003
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)5.2~62.4
Zoom RatioOptical12x
Max Aperture Ratio (F number)Wide1.6
Tele3.0
Angular Field of ViewHorizontal54.58°~5.30°
Vertical32.19°~3.00°
Diagonal61.4°~6.06°
Min. Object Distance2.1m(6.89ft)
Focus ControlOneshot AF
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~354°
Tilt0°~75°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, SSDR, WDR
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionMosaic, Green, Gray, White, Red, Blue, Black
Gain ControlMiddle, High, Low
White BalanceAWC, ATW, Indoor, Manual, Outdoor
LDCSupport
Electronic ShutterModeMinimum, Anti flicker, Maximum
Speed Range2~1/12,000sec
Digital PTZSupport
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersNetwork disconnect, Alarm input, Analytics
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR70m(229.66ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalFace detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Digital auto tracking, Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Motion detection, Audio detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolSRTP(TCP, UDP Unicast), RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, UDP/IP, Bonjour
Application Programming InterfaceONVIFG, T, S
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSecure boot, Signed firmware, Encrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-40°C~+55°C(-40°F~+131°F)
Humidity0~90% RH(non-condensing)
OthersStart up should be done at above -35°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 24VAC, 12VDC
Power ConsumptionPoEMax. 12.95W
12VDCMax. 11.5W
24VACMax. 14W
Mechanical
ColorIvory
MaterialAluminum
Product Dimensionsø160x128.5mm(6.30x5.06")
Product Weight995g(2.19lb)
Certifications & Standards
EnvironmentNEMA 250 type 4X, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10
