Dome

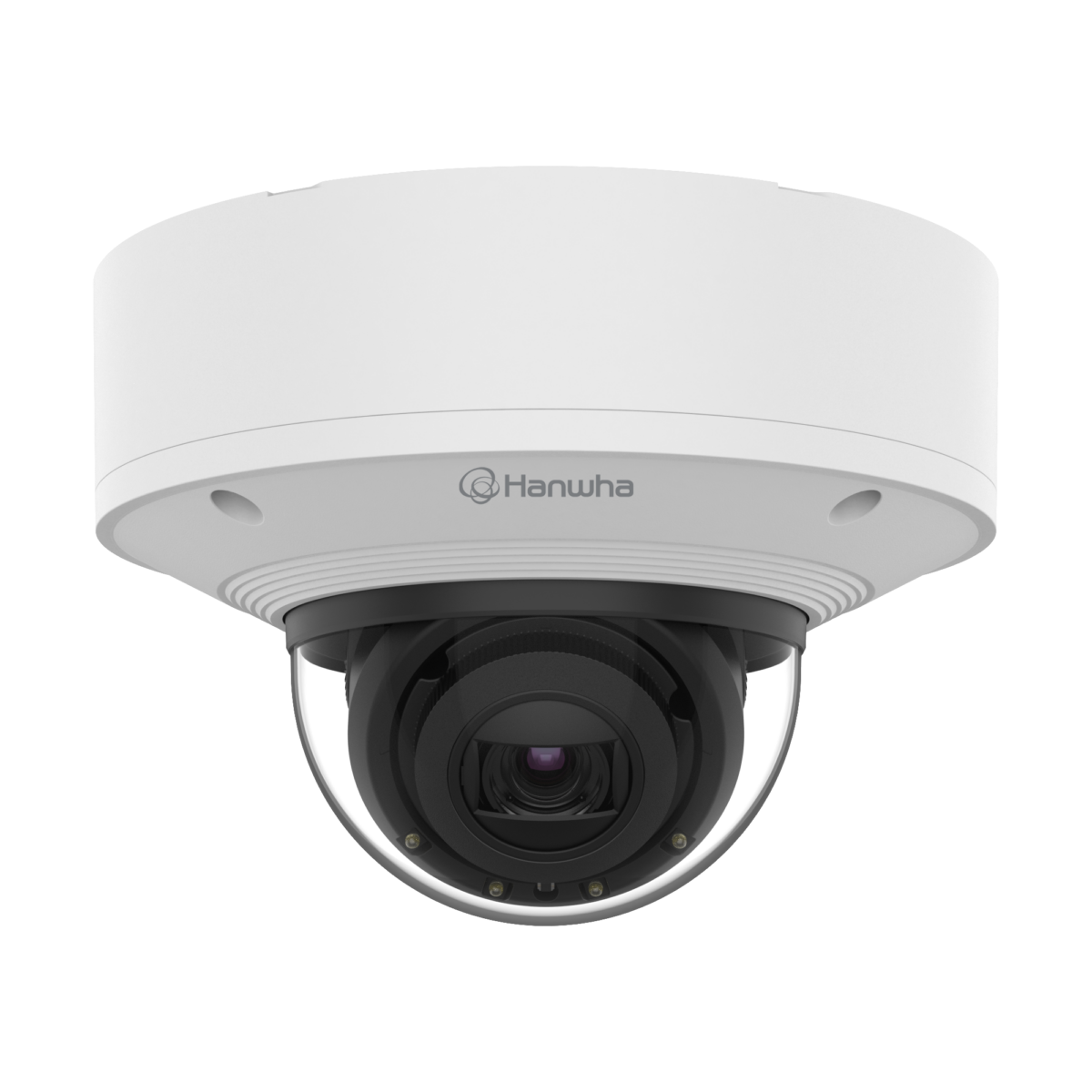

XNV-6081RE
2MP IR PoE Extender Vandal Dome Camera
Key Features
• Max. 2MP resolution
• PoE Extender (Main cam, extension cam)
• PoE out :Max. 12.95W@80m
• 2.8~12mm(4.3x) motorized varifocal
• 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
• IR viewable length 50m
• Day & Night (ICR), WDR (150dB)
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• Business Intelligence(People counting, Queue management, Heatmap)
• DIS and shock detection with built-in gyro sensor
• Modular structure, PoE+ in/ PoE out
• IP66/IP67/IP6K9K, IK10+, NEMA4X
["camera","network","dome"]
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Overview
Allows two PoE cameras on a single cable run for cost and installation savings
Wisenet PoE extender cameras are designed to save integrators time and money when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run, also saving on the number of ports and number switches required as well. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera.


Product Specification
Video | ||
---|---|---|
Imaging Device | Size | 1/2.8" |
Type | CMOS | |
Resolution | 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 800x448, 800x600, 1920x1080, 640x360, 640x480, 1024x768, 720x576 | |
Max. Framerate | H.265/H.264 | 60fps/50fps(60Hz/50Hz) |
MJPEG | 30fps | |
Min. Illumination (Lux) | Color(1/30sec, 30IRE) | 0.015 |
BW(1/30sec, 30IRE) | 0.0015 | |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B | |
Lens | ||
Focal Length (mm) | 2.8~12 | |
Zoom Ratio | Optical | 4.3x |
Max Aperture Ratio (F number) | Wide | 1.4 |
Tele | 3.6 | |
Angular Field of View | Horizontal | 119.5°~27.9° |
Vertical | 62.8°~15.7° | |
Diagonal | 142.1°~32.0° | |
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Manual, Simple focus | |
Lens Type | DC auto iris(IR corrected), P iris(IR corrected) | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | Pan | 0°~360° |
Tilt | -45°~85° | |
Rotate | 0°~355° | |
Operational | ||
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, WDR, SSDR, HLC | |
Wide Dynamic Range (dB) | 150 | |
Digital Noise Reduction | SSNRⅤ | |
Digital Image Stabilization | Support(built-in gyro sensor) | |
Defog | Support | |
Motion Detection | Quantity | 8ea |
Shape | 8point Polygonal zones | |
Privacy Masking | Quantity | 32ea |
Shape | Rectangular zones | |
Color / Option | Gray, Mosaic, Green, Red, Blue, White, Black | |
Gain Control | High, Low, Middle | |
White Balance | ATW, Manual, Outdoor, Indoor, AWC | |
LDC | Support | |
Electronic Shutter | Mode | Maximum, Anti flicker, Minimum |
Speed Range | 2~1/12,000sec | |
Digital PTZ | Support | |
Video Rotation | Hallway view(90°/270°), Flip, Mirror | |
Alarm Interface | In/Out | Input 1ea, Output 1ea |
Alarm Triggers | Network disconnect, Alarm input, Analytics | |
Alarm Events When Alarm Trigger Occurred | Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Notification: e-mail, Audio clip playback, File upload(image): e-mail/FTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output | |
Audio In | Selectable(mic in/line in) | |
Audio Out | Line out | |
Light Type | IR LED | |
Light Viewable Length | IR | 50m(164.04ft) |
IR Wavelength | 850nm | |
Analytics | ||
Analytics Events | Normal | Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Motion detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Face detection, Defocus detection, Shock detection, Audio detection, Digital auto tracking |
Business Intelligence | Normal | People counting, Queue management, Heatmap |
Network | ||
Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz | |
Smart Codec | WiseStreamⅡ, Manual | |
Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR | |
Streaming | Unicast | Up to 20 users |
Multicast | Support | |
Multiple Streaming | Up to 10 profiles | |
Protocol | FTP, RTP(UDP), PIM-SM, IPv4, HTTPS, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast) | |
Application Programming Interface | ONVIF | T, S, G |
Others | SUNAPI(HTTP API), Hanwha Vision Open Platform | |
Direct Cloud Connection | Optional (needs gateway) | |
Security | ||
OS / Firmware Protect | Encrypted firmware, Signed firmware, Secure boot | |
User authentication | Digest authentication | |
Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) | |
Secure Communication | WSS(WebSocket Secure), SRTP, HTTPS | |
Access Control | IP-based access control | |
Data Protect | Encrypt compress for live recording file export, Encryption credentials | |
Audit | Access / System / Event Log management | |
Device ID | Device certificate(Hanwha Vision Root CA) | |
Secure Storage | SDcard partition encrypt(AES-256) | |
General | ||
Memory | RAM | 1GB |
Flash | 256MB | |
Edge Storage | Micro SD/SDHC/SDXC | Max. 512GB x 2slot(Total 1TB) |
Environmental & Electrical | ||
Operating Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Others | Start up should be done at above -35°C | |
Storage Condition | Temperature | -50°C~+60°C(-58°F~+140°F) |
Humidity | 0~90% RH(non-condensing) | |
Input Voltage | PoE+(IEEE802.3at, Class4) | |
Power Consumption | PoE | Max. 25.5 W (Main CAM+Extension CAM), Typical 10.2W (Main CAM) |
Others | PoE Out: Max. 12.95W at 80m using CAT5/5E cable | |
Mechanical | ||
Color | White | |
Material | Aluminum | |
RAL Code | RAL9003 | |
Product Dimensions | ø180x125mm(7.09x4.92") | |
Product Weight | 1750g(3.86lb) | |
Compatible Conduit Hole | 19.1mm(3/4")(M25) | |
Certifications & Standards | ||
Environment | NEMA 250 type 4X, IEC 60529 IP66, ISO 20653 IP6K9K, IEC 60529 IP67, IEC 62262 IK10+ | |
DORI (EN62676-4 standard) | ||
Detect (25PPM/ 8PPF) | Wide | 22.4m(73.49ft) |
Tele | 155m(508.53ft) | |
Observe (63PPM/ 19PPF) | Wide | 9.0m(29.53ft) |
Tele | 62m(203.41ft) | |
Recognize (125PPM/ 38PPF) | Wide | 4.5m(14.76ft) |
Tele | 31m(101.71ft) | |
Identify (250PPM/ 76PPF) | Wide | 2.2m(7.22ft) |
Tele | 15m(49.21ft) |
