Dome

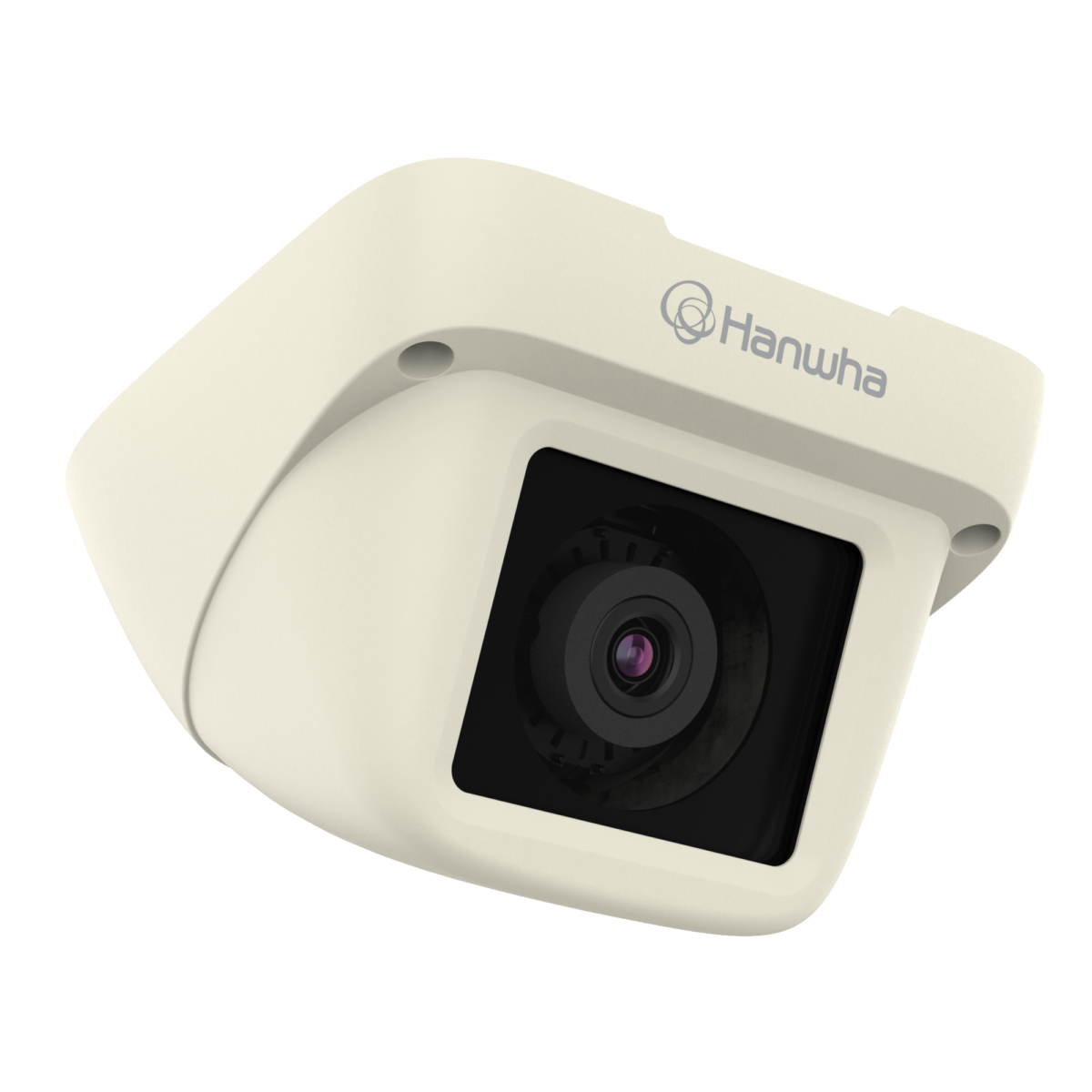

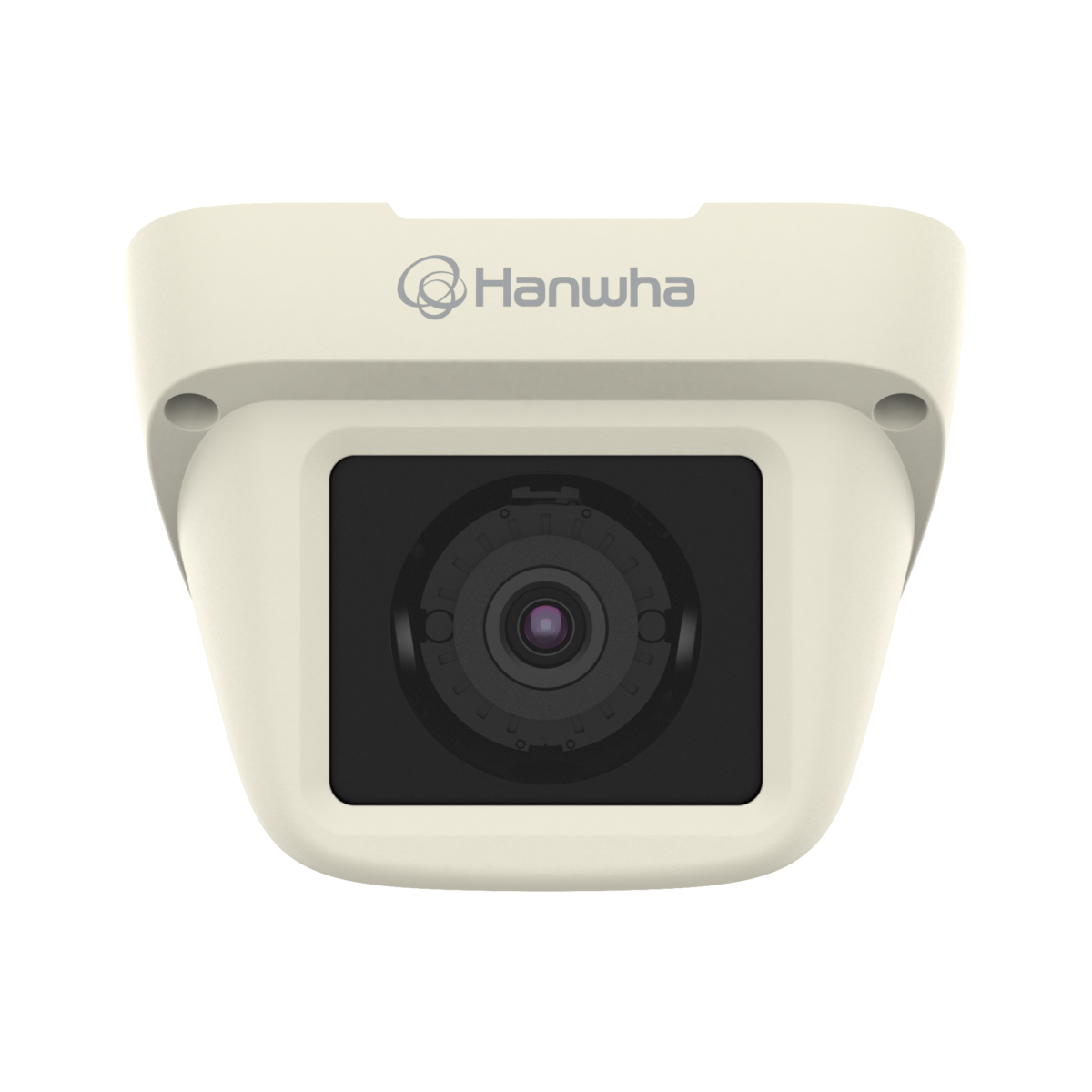

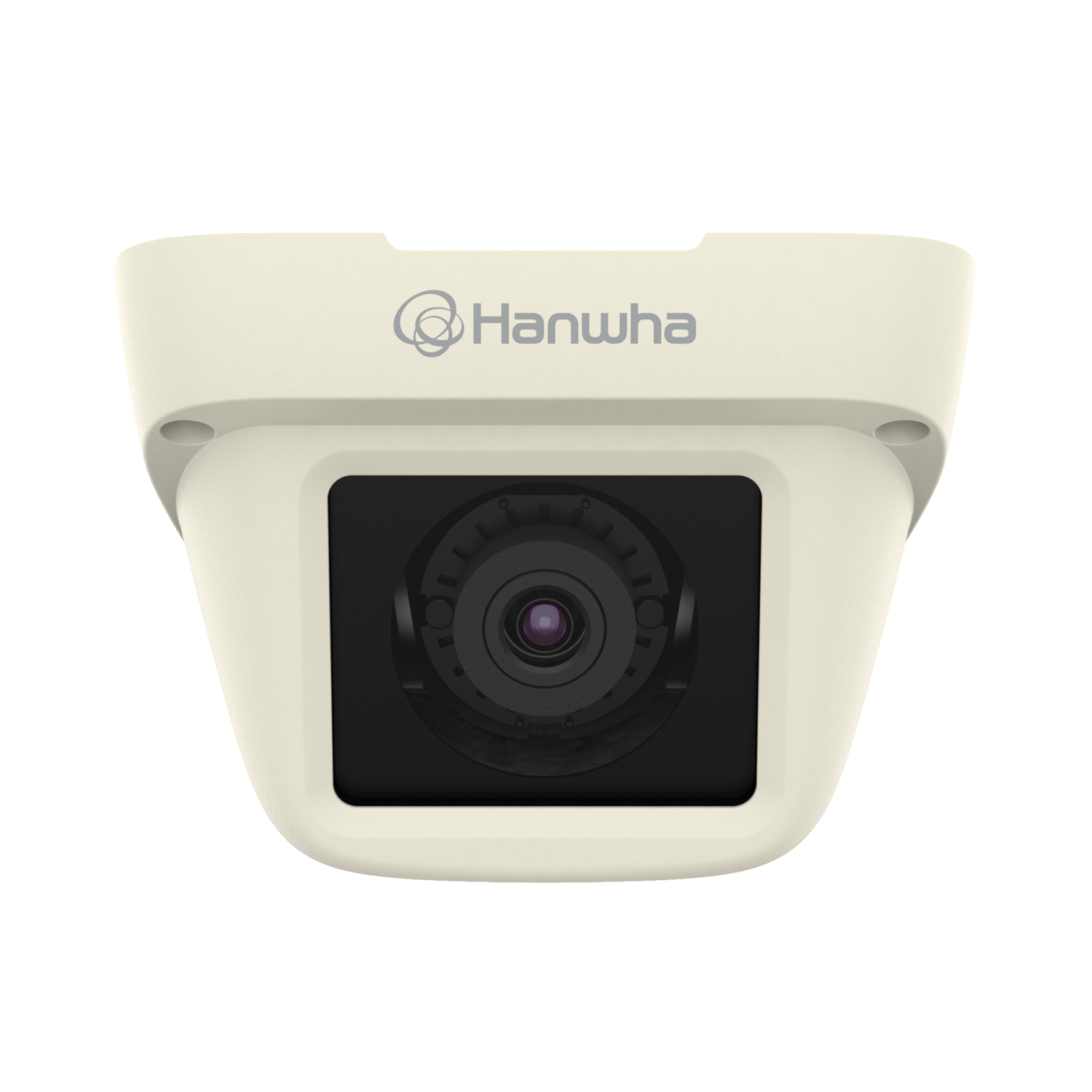

XNV-6013M

2M H.265 Mobile Flat Camera

Key Features

• Max. 2Megapixel (1920 x 1080) resolution
• Max. 60fps@all resolutions (H.265 / H.264)
• 0.04Lux@F2.0 (Color), 0.04Lux@F2.0 (B/W)
• Built-in 2.8mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night, WDR (150dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IP67, IP6K9K, IK10, NEMA4X
• Hallway view, PoE, LDC, M12 connector support

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution320x240, 1280x720, 1280x1024, 720x480, 800x448, 800x600, 720x576, 640x360, 640x480, 1280x960, 1920x1080, 1024x768
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.04
BW(1/30sec, 30IRE)0.04
Video OutUSB: Micro USB Type B
Lens
Focal Length (mm)2.8
Max Aperture Ratio (F number)Wide2.0
Angular Field of ViewHorizontal107.4°
Vertical62.2°
Diagonal122°
Focus ControlManual
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan±5°
Tilt±10°
Rotate±90°
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, WDR, HLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionMosaic, Gray, White, Green, Blue, Black, Red
Gain ControlHigh, Low, Middle
White BalanceIndoor, Outdoor, Manual, AWC, ATW
LDCSupport
Electronic ShutterModeMinimum, Maximum, Anti flicker
Speed Range2~1/12,000sec
Video RotationMirror, Hallway view(90°/270°), Flip
Alarm TriggersAnalytics, Network disconnect
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Analytics EventsNormalFog detection, Sound classification, Defocus detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Motion detection, Tampering, Digital auto tracking, Virtual line(Crossing, Direction) , Face detection, Audio detection
Network
EthernetM12
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolHTTP, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, SSL/TLS, QoS, SMTP, DDNS, IGMP, UPnP, RTSP, ICMP, DNS, SNMPv1/v2c/v3(MIB-2), PPPoE, RTP(TCP)
Application Programming InterfaceONVIFS, G
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectSecure boot, Encrypted firmware, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 7.20W
Mechanical
ColorIvory
MaterialAluminum
Product Dimensions103.7x72.3x126.8mm(4.08x2.85x4.99")
Product Weight478g(1.04lb)
Certifications & Standards
EnvironmentIEC 62262 IK10, NEMA 250 type 4X, ISO 20653 IP6K9K, IEC 60529 IP67
