Dome

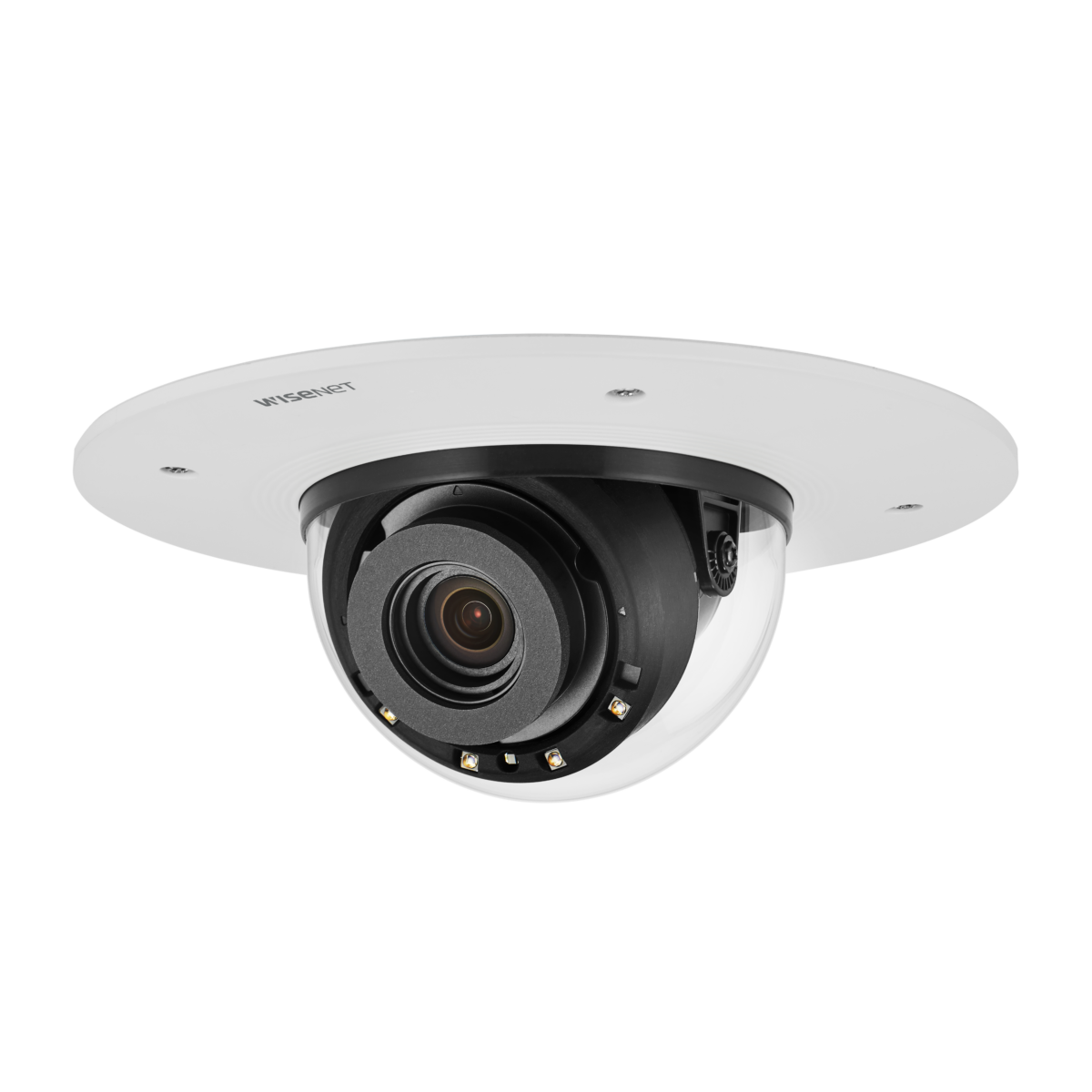

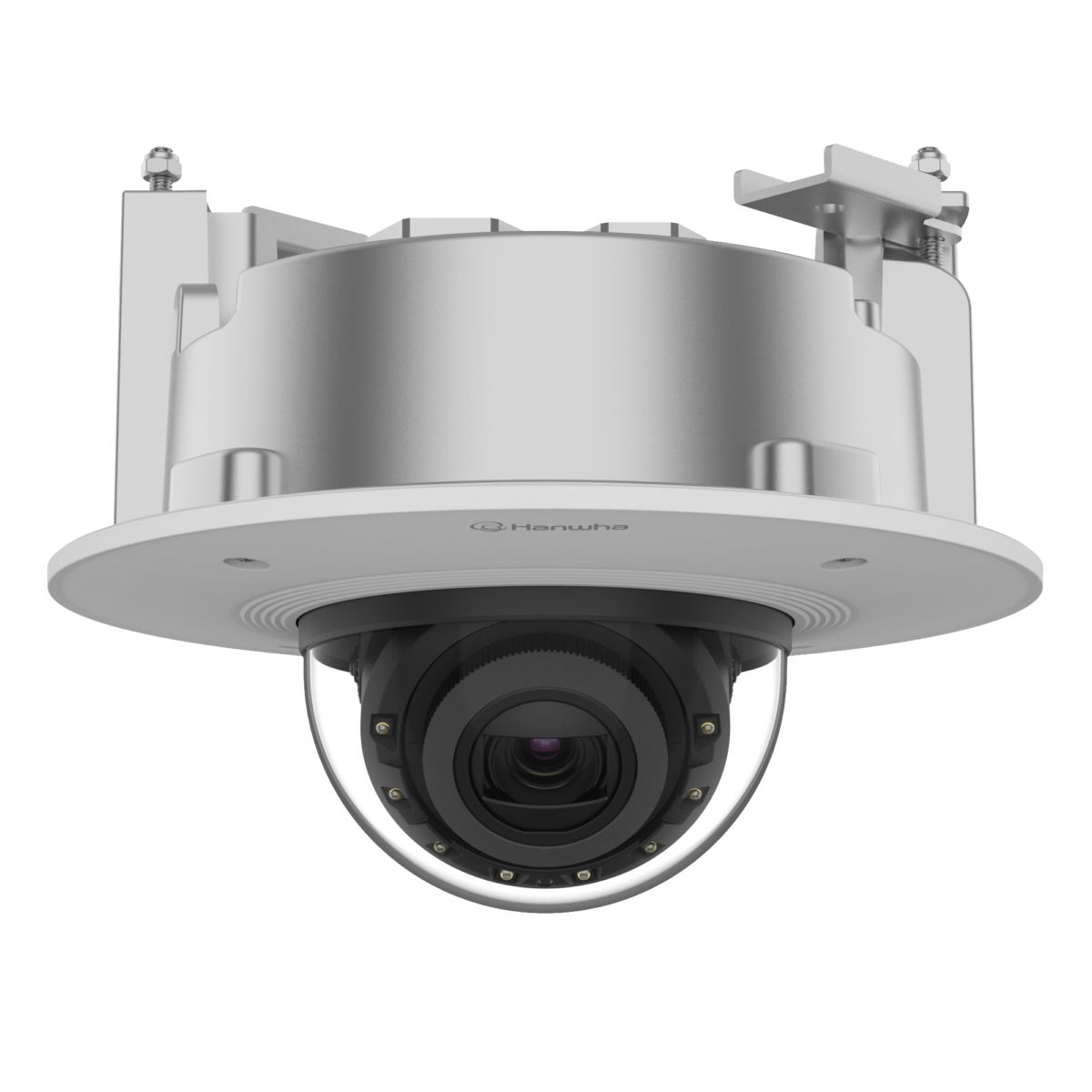

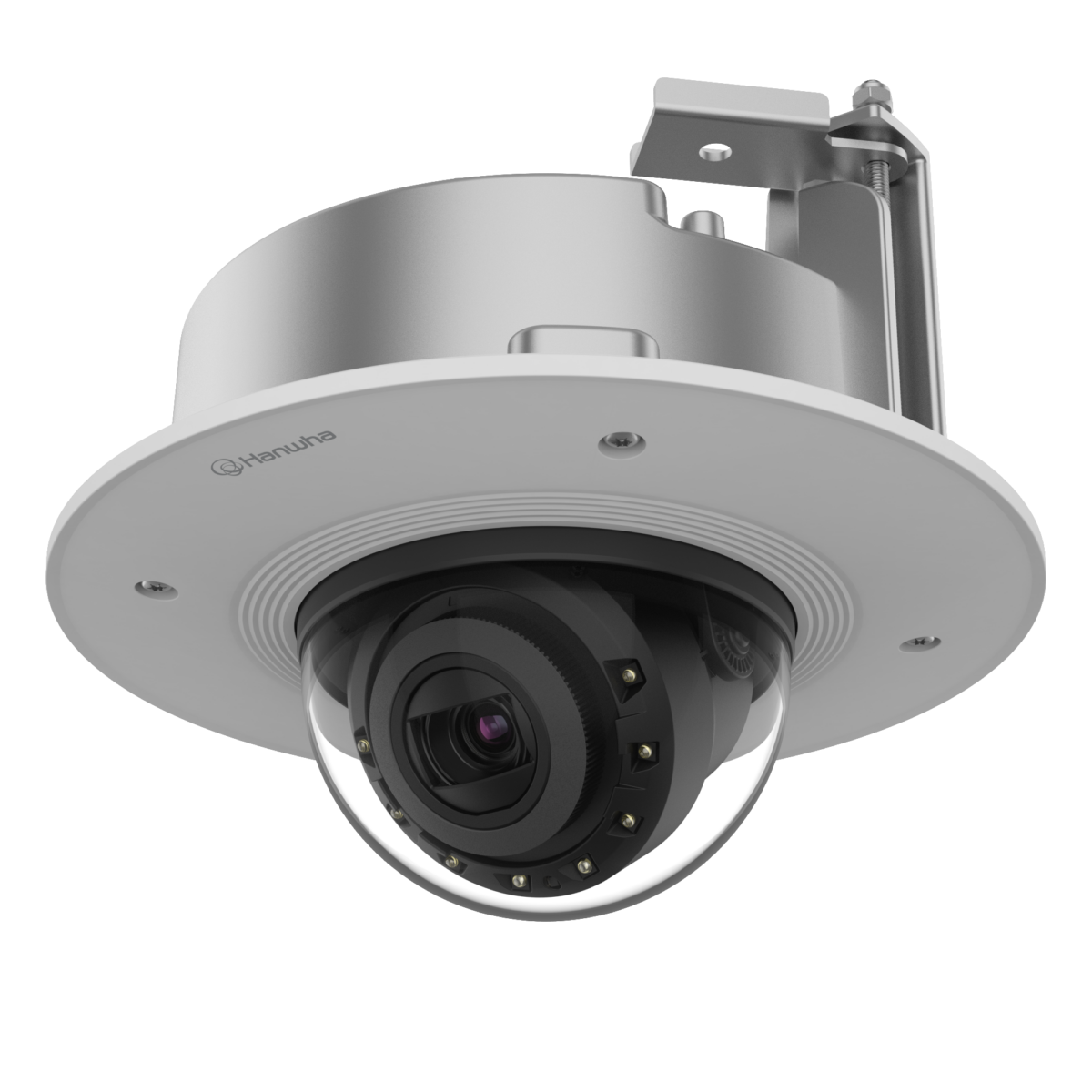

XND-9082RF

4K IR Dome Camera

Key Features

• 4K resolution
• 2.8~8.4mm(3x) motorized varifocal
• 0.05Lux@F1.2 (Color), 0Lux (B/W, IR LED on)
• Max.30fps@4K (H.265/H.264)
• IR viewable length 40m
• Day & Night (ICR), extreme WDR (120dB)
• DIS with built-in Gyro sensor
• Video Analytics
(Defocus, Directional detection, Audio detection, Shock detection, Face/Upper body detection)
• Dual SD slots (Max. 1TB)
• Modular structure, PoE support
• IP52, Plenum rate, IK10

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview















Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution2592x1944, 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 1920x1080, 720x576, 640x360, 640x480, 3072x1728, 2688x1520, 800x600, 3328x1872, 800x448, 3840x2160, 1600x1200
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@8MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
BW(1/30sec, 30IRE)0.005
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)2.8~8.4
Zoom RatioOptical3x
Max Aperture Ratio (F number)Wide1.2
Tele2.8
Angular Field of ViewHorizontal114°~40°
Vertical62°~22°
Diagonal133°~46°
Min. Object Distance0.7m(2.23ft)
Focus ControlSimple focus
Lens TypeDC auto iris(IR corrected), P iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~85°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationSSDR, BLC, WDR, HLC
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGreen, Mosaic, Black, Blue, Red, Gray, White
Gain ControlMax gain, Manual, Off
White BalanceManual, Outdoor, NarrowATW, ATW, Indoor, AWC
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMinimum, Maximum, Prefer shutter control, Anti flicker
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/Out2 configurable I/O ports
Alarm TriggersAlarm input, Network disconnect, Time schedule, MQTT subscription, App event, Analytics
Alarm Events When Alarm Trigger OccurredRecording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP/SFTP, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Notification: e-mail, Audio clip playback, Alarm output, File upload(video clip): FTP/SFTP, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIRWiseIR 40m(131.23ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalSound classification, Tampering, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Shock detection, Digital auto tracking, Virtual line(Crossing, Direction) , Fog detection, Motion detection, Face/upper body detection, Audio detection
Business IntelligenceNormalQueue management, People counting, Heatmap
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolMQTT, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, QoS, SMTP, DDNS, IGMP, HTTP, SFTP, UPnP, CDP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS
Application Programming InterfaceONVIFG, T, S
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectSecure boot, Signed firmware, Encrypted firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), HTPM(Hanwha Trusted Platform Module)
Security CertificateCyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
MemoryRAM4GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-25°C~+60°C(-13°F~+140°F)
Humidity0~95% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 12.95W, typical 10.7W
12VDCMax. 11.5W, typical 9W
Power Redundance FailoverSupport
Mechanical
ColorWhite
MaterialHard-coated dome , Aluminum
RAL CodeRAL9003
Product Dimensionsø205x163mm(8.07x6.42")
Product Weight1,950g(4.29lb)
Compatible Conduit Hole19.1mm(3/4")(M25), 12.7mm(1/2")(M20)
Certifications & Standards
EMCVCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, KS C 9832 Class A, KS C 9835, RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
SafetyUL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
EnvironmentIEC 60529 IP52, IEC/EN 63000, IEC 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide49.9m(163.63ft)
Tele211.0m(692.28ft)
Observe (63PPM/ 19PPF)Wide19.9m(65.45ft)
Tele84.4m(276.91ft)
Recognize (125PPM/ 38PPF)Wide10.0m(32.73ft)
Tele42.2m(138.46ft)
Identify (250PPM/ 76PPF)Wide5.0m(16.36ft)
Tele21.1m(69.23ft)
