Dome

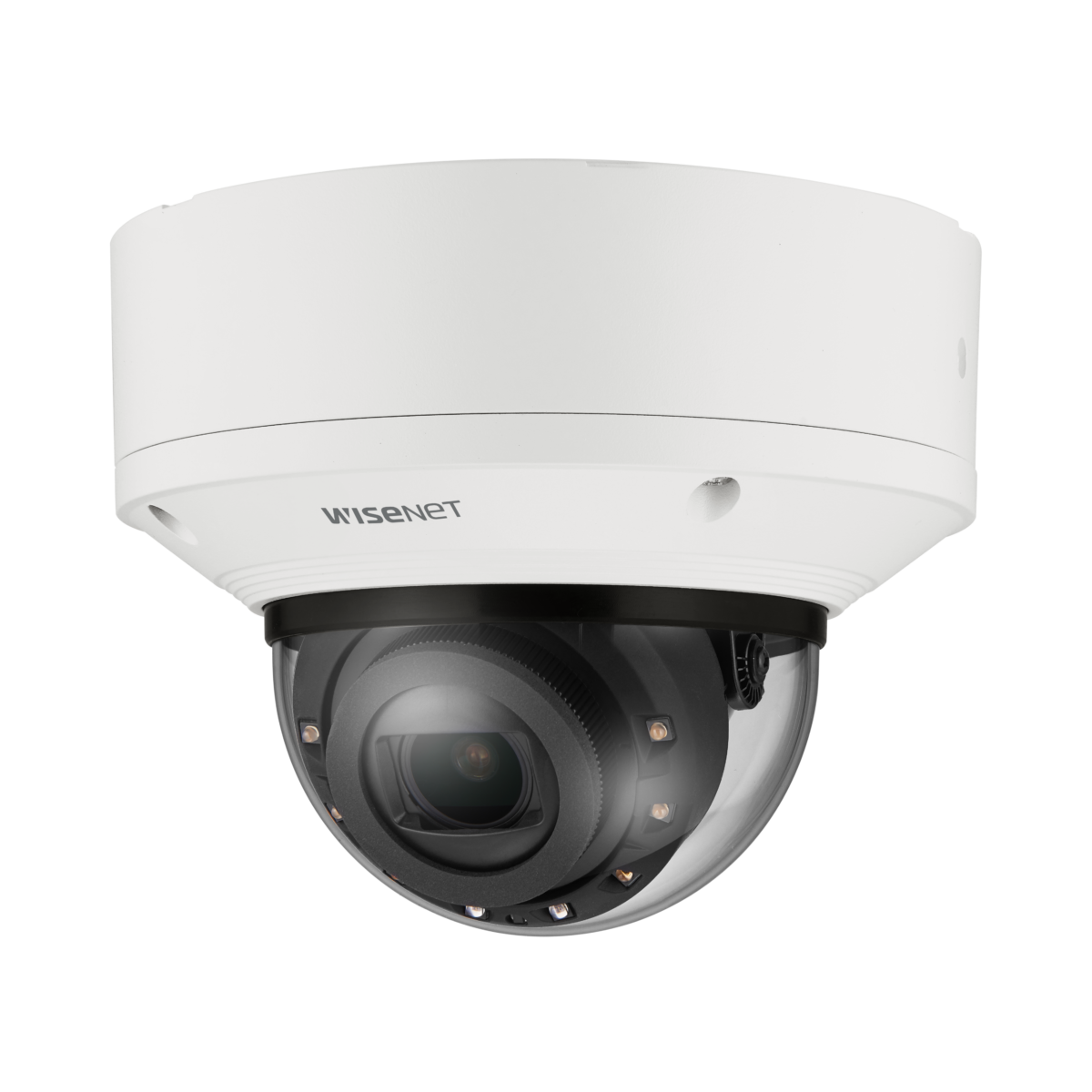

XND-8083RV

6MP AI IR Dome Camera

Key Features

• 6MP resolution
• 4.4~9.3mm (2.1x) motorized varifocal
• Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
• Maximum 30fps (H.265/H.264)
• WiseIR: IR viewable length 50m (164.04ft)
• Day & Night (ICR), extremeWDR (120dB)
• Hard-coated dome bubble
• WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine)
• Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate),
IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
Audio detection, Sound classification, Shock detection, Appear/Disappear
• IP52, IK10

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Reducing False alarm based on AI

The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. The cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.

AI-based object detection for operational efficiency

Metadata including information (person, face, vehicle, license plate) is sent to the backend server and used to extract information on specific events. Operators are able to search AI events on the backend server. This greatly enhances search efficiency and reduces time spent on searching events. Also it can be reducing false alarm when operators were monitoring scene.

AI-based WiseNRII and Prefer Shutter Control

WiseNRII is a new enhancement which utilizes AI to identify object movement and reduce blur in noisy, low light environments. AI-based Preferred Shutter technology automatically adjusts the shutter speed based on classified objects in motion and the lighting conditions in a scene to reduce motion blur and deliver the clearest images.

AI-based Image Optimization, WiseStreamⅢ

By utilizing the results of AI-based object detection, WiseStreamIII technology adjusts the video encoder to focus maximum video quality on the detected objects in a scene while scaling back encoding on the rest of the scene.

Product Specification

Video
Imaging DeviceSize1/1.8"
TypeCMOS
Resolution320x240, 720x480, 1280x960, 1280x1024, 1280x720, 640x360, 1920x1080, 1600x1200, 1024x768, 3072x1728, 2688x1520, 800x600, 3328x1872, 800x448, 720x576, 640x480, 2592x1944
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@6MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.04
BW(1/30sec, 30IRE)0.004
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)4.4~9.3
Zoom RatioOptical2.1x
Max Aperture Ratio (F number)Wide1.3
Tele2.15
Angular Field of ViewHorizontal113°~47°
Vertical58°~26°
Diagonal138°~54°
Min. Object Distance0.5m(1.64ft)
Focus ControlManual, Simple focus
Lens TypeP iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~85°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, SSDR, WDR, HLC
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionBlue, Green, Gray, Mosaic, Red, White, Black
Gain ControlOff, Manual, Max gain
White BalanceIndoor, NarrowATW, ATW, AWC, Manual, Outdoor
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMaximum, Prefer shutter control(Based on AI engine), Minimum, Anti flicker
Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm InterfaceIn/Out2 configurable I/O ports
Others12VDC output
Alarm TriggersApp event, Time schedule, Alarm input, Analytics, Network disconnect, MQTT subscription
Alarm Events When Alarm Trigger OccurredHandover: PTZ preset, send message by HTTP/HTTPS/TCP, File upload(video clip): FTP/SFTP, File upload(image): e-mail/FTP/SFTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, MQTT: publication, Notification: e-mail, Audio clip playback, Alarm output
Audio InSelectable(mic in/line in), Built-in mic
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIRWiseIR 50m(164.04ft)
IR Wavelength850nm
Analytics
Classified Object TypeVehicle, Face, License plate, Person
AttributesVehicleType(car, bus, truck, motorcycle, bicycle)
ThumbnailDetectionShot
Analytics EventsBased on AI EngineObject detection, Motion detection, Virtual area(Loitering/Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
NormalFog detection, Audio detection, Virtual area(Appear/Disappear), Defocus detection, Tampering, Sound classification, Shock detection
Business IntelligenceBased on AI EngineHeatmap, People counting, Queue management, Vehicle counting
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionAAC-LC: 48Kbps at 16KHz, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable
Smart CodecManual, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolHTTP, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, QoS, SMTP, DDNS, IGMP, SFTP, UPnP, CDP, LLDP, MQTT, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS
Application Programming InterfaceONVIFG, T, M, S
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectSecure boot, Encrypted firmware, Signed firmware
User authenticationPrevent brute-force attack, Digest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationWSS(WebSocket Secure), SRTP, HTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageHTPM(Hanwha Trusted Platform Module), TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security CertificateTPM 2.0 with FIPS 140-2 level2
General
MemoryRAM4GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-25°C~+50°C(-13°F~+122°F)
Humidity0~100% RH(condensing)
OthersHumidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power ConsumptionPoEMax. 22.5W, typical 17.9W
12VDCMax. 20W, typical 15.6W
Power Redundance FailoverSupport
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø160x125mm(6.30x4.92")
Product Weight1,600g(3.53lb)
Compatible Conduit Hole12.7mm(1/2")(M20)
Compatible Gang Box4" Octagon, Square, Single, Double
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835
SafetyIEC 62471, UL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC/EN 63000, IEC 62262 IK10, IEC 60529 IP52
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide44.1m(144.54ft)
Tele153.1m(502.22ft)
Observe (63PPM/ 19PPF)Wide17.6m(57.82ft)
Tele61.2m(200.89ft)
Recognize (125PPM/ 38PPF)Wide8.8m(28.91ft)
Tele30.6m(100.44ft)
Identify (250PPM/ 76PPF)Wide4.4m(14.45ft)
Tele15.3m(50.22ft)
