Dome

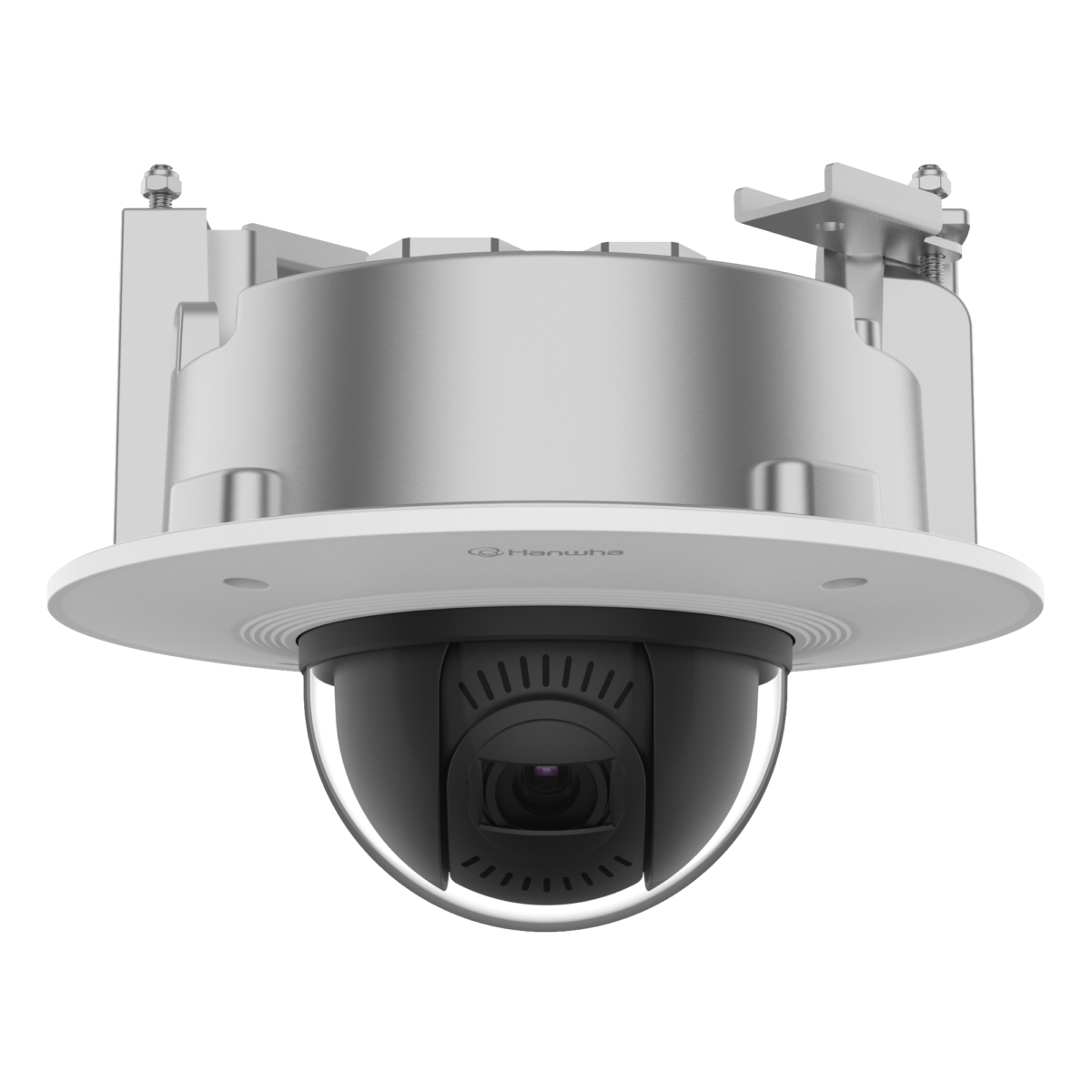

XND-6081FZ

2M H.265 Dome Camera

Key Features

• Maximum 2MP resolution
• 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W)
• Day & Night (ICR), WDR (150dB / 120dB)
• Modular structure and motorized PTRZ
• Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52/Plenum rate (UL2820), PoE, 12VDC

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

2MP / 5MP NW Modular Camera
Faster installation, reduced costs
Advanced performance, multiplied values

Wisenet-X-Plus-Hero Wisenet-X-Plus-Hero

  • Max. 2Megapixel & 5Megapixel resolution
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure and motorized PTRZ
  • Installer friendly package design
  • IP67/IP66/IP6K9K, IK10+, NEMA4X(XNV-6081Z/8081Z)
X-Plus-Product-list-Outdoor-Indoor-Flush-Mount
Wisenet-X-Plus-head X-Plus-Product-list-XNV-6081Z,XNV-8081Z,XND-6081VZ,XND-8081VZ,XND-6081FZ,XND-8081FZ

The most powerful chipset WISENET 5
Wisenet X series is supercharged by the most powerful chipset ever incorporated into a full camera range. The Wisenet 5 chip uses an all-new architecture that enables faster processing. That means you get the best video performance just as you need it.
The-most-powerful-chipset-wisenet-5

Easy installation with modular structure and motorized PTRZ
Wisenet X PLUS cameras offer easy installation with their modular structure and motorized PTRZ. The product package has been renewed to save time and money in installation and maintenance.
Easy installation with modular structure and motorized PTRZ

Extended tilt range for greater flexibility
Extended tilt angle has been added for greater flexibility in placement and use cases of Wisenet X PLUS cameras.
Extended tilt range for greater flexibility

Advanced DIS and shock detection with built-in gyro sensors
Wisenet X PLUS cameras have built-in gyro sensors to enable advanced DIS with reduced motion blur and shock detection which detects when the camera is hit.
Advanced DIS and shock detection with built-in gyro sensors Advanced DIS and shock detection with built-in gyro sensors

High reliability in challenging environments
One of the most important features of a security camera is reliability in challenging environments. Wisenet X PLUS cameras offer high reliability by providing resistance to weather and impact with IP67, IP66, IP6K9K, and IK10+ ratings.
High reliability in challenging environments High reliability in challenging environments
* Detailed specifications differ for each products.

Audio playback on event
Audio playback feature responses to user-defined events to assist operators communicate with the public.
Audio playback on event

Optional accessories for various applications
A weather cap and the skin covers available in black and ivory would blend in with the surroundings of different kinds.
Optional accessories for various applications Optional accessories for various applications
* Weather cap(XNV only) and ivory skin cover(XNV and XND) are included in product package.
The weather cap can not be applied with the skin cover on.



Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1280x720, 320x240, 720x480, 1280x960, 800x600, 800x448, 640x360, 640x480, 1024x768, 720x576, 1920x1080, 1280x1024
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.015
BW(1/30sec, 30IRE)0.0015
Video OutUSB: Micro USB Type B
Lens
Focal Length (mm)2.8~12
Zoom RatioOptical4.3x
Max Aperture Ratio (F number)Wide1.4
Tele3.6
Angular Field of ViewHorizontal119.5°~27.9°
Vertical62.8°~15.7°
Diagonal142.1°~32.0°
Min. Object Distance0.5m(1.64ft)
Focus ControlManual, Simple focus
Lens TypeP iris(IR corrected), DC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan±175°
Tilt0°~85°
Rotate±175°
OthersRemote adjustment(Max. 200cycles)
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, BLC, SSDR, HLC
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGreen, Mosaic, White, Blue, Black, Red, Gray
Gain ControlSupport
White BalanceATW, Outdoor, AWC, Manual, Indoor
LDCSupport
Electronic ShutterModeMaximum, Anti flicker, Minimum
Speed Range2~1/12,000sec
Video RotationFlip, Hallway view(90°/270°), Mirror
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersNetwork disconnect, Alarm input, Analytics
Alarm Events When Alarm Trigger OccurredAudio clip playback, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP, Notification: e-mail, Alarm output
Audio InSelectable(mic in/line in)
Audio OutLine out
Analytics
Analytics EventsNormalFace detection, Audio detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Shock detection, Defocus detection, Motion detection, Digital auto tracking
Business IntelligenceNormalPeople counting, Queue management, Heatmap
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolIPv4, RTP(UDP), PIM-SM, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSigned firmware, Secure boot, Encrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 2slot(Total 512GB)
Environmental & Electrical
Operating ConditionTemperature-25°C~+60°C(-13°F~+140°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax 10W, typical 4.80W
12VDCMax 8.5W, typical 3.71W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø205x163mm(8.1x6.4")
Product Weight1,850g(4.08lb)
Certifications & Standards
EnvironmentNEMA 250 type 4X, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10
