Dome

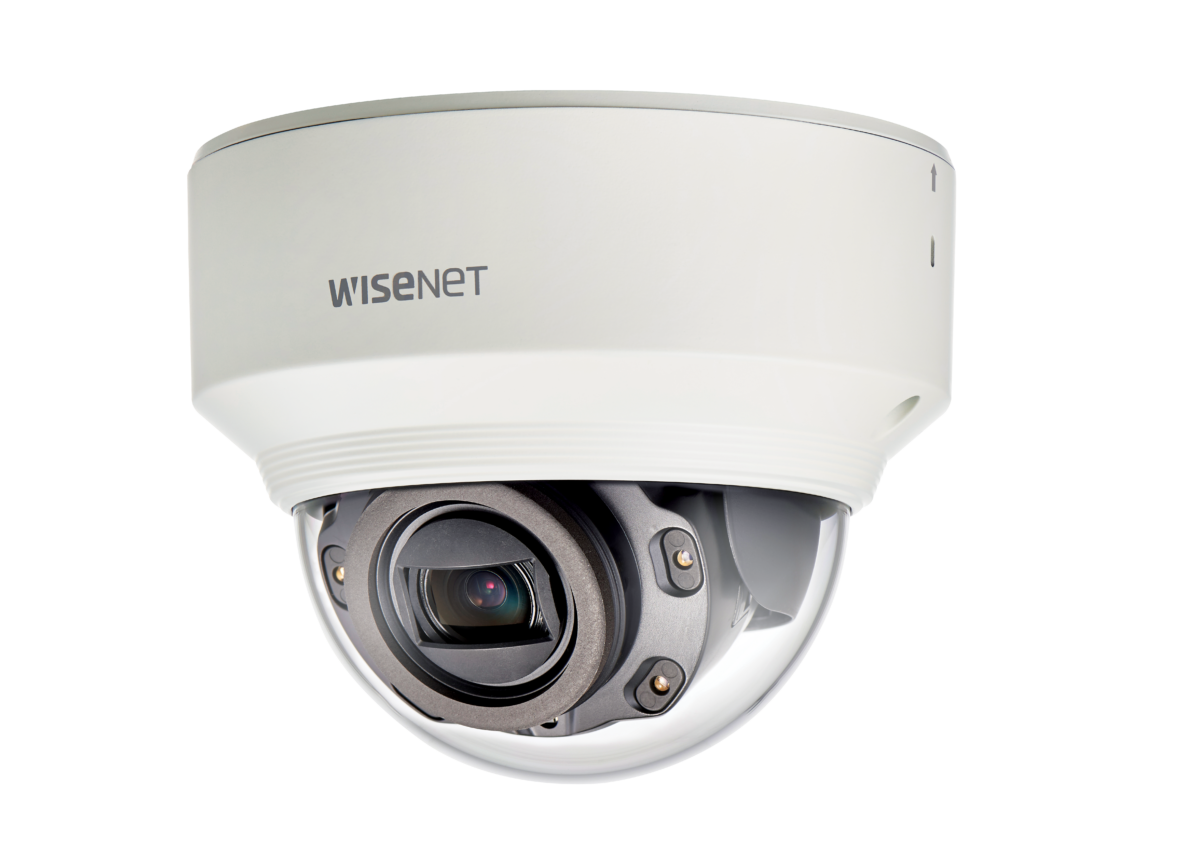

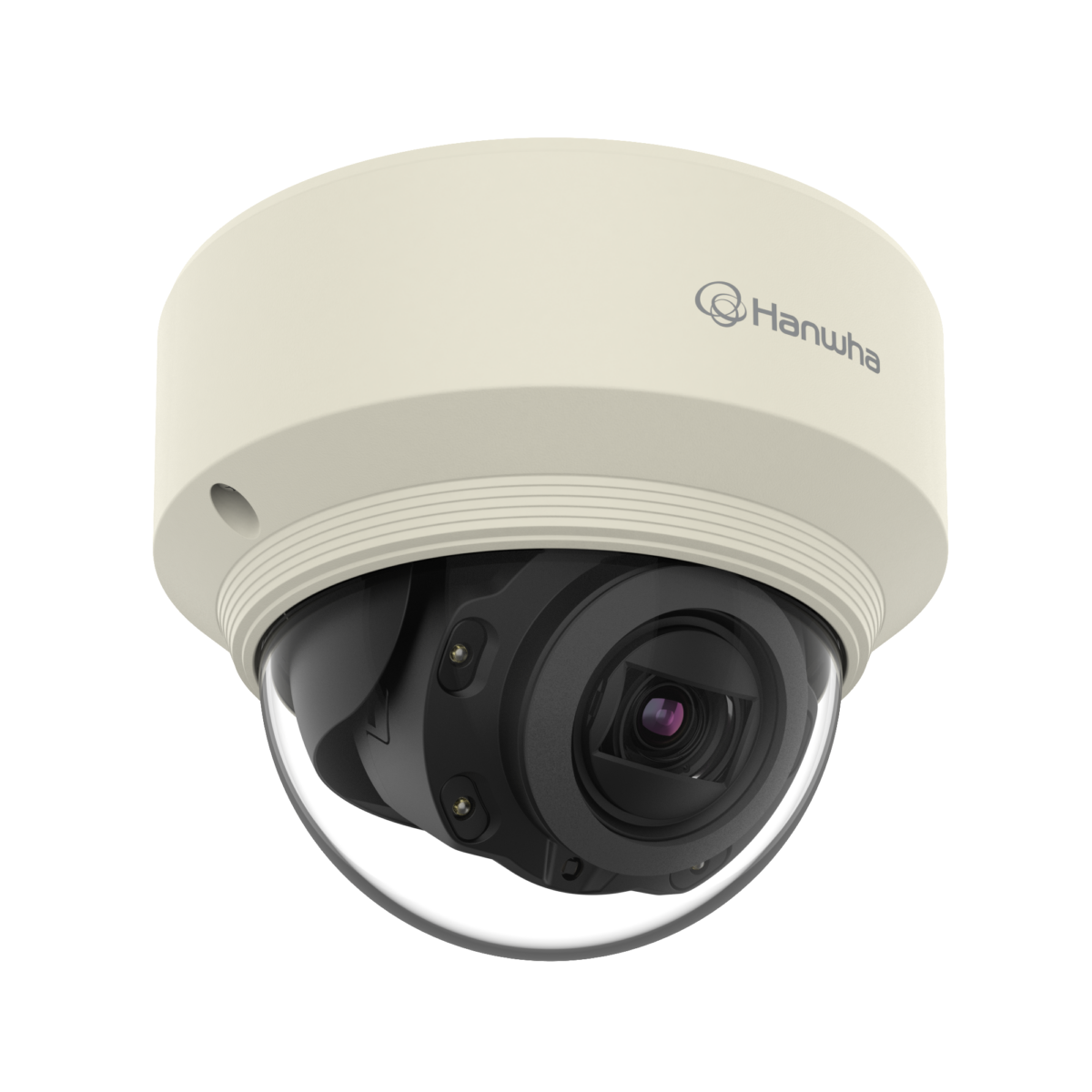

XND-6080RV

2M H.265 IR Dome Camera

Key Features

• 2.8 ~ 12mm (4.3x) motorized varifocal lens
• Max. 60fps@all resolutions (H.265/H.264)
• Day & Night (ICR), WDR(150dB)
• Loitering, Directional detection, Fog detection
• Digital auto tracking, Sound classification, Tampering
• Motion detection, Handover
• Dual SD slots (Max. 512GB)
• Hallway view, WiseStream II support
• IR viewable length 30m, IK08

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 720x576, 640x360, 640x480, 800x600, 800x448, 1920x1080, 320x240
Max. FramerateH.265/H.26460fps/50fps(60Hz/50Hz)
MJPEG30fps
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.015
BW(1/30sec, 30IRE)0.0015
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)2.8~12
Zoom RatioOptical4.3x
Max Aperture Ratio (F number)Wide1.4
Tele3.6
Angular Field of ViewHorizontal119.5°~27.9°
Vertical62.8°~15.7°
Diagonal142.1°~32.0°
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeP iris, DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~354°
Tilt0°~67°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, BLC, HLC, SSDR, DWDR
Wide Dynamic Range (dB)150
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionBlue, Gray, Green, Mosaic, Red, White, Black
Gain ControlHigh, Middle, Low
White BalanceManual, ATW, Indoor, Outdoor, AWC
LDCSupport
Electronic ShutterModeAnti flicker, Maximum, Minimum
Speed Range2~1/12,000sec
Video RotationHallway view(90°/270°), Mirror, Flip
Alarm InterfaceIn/OutInput 1ea, Output 1ea
Alarm TriggersNetwork disconnect, Alarm input, Analytics
Alarm Events When Alarm Trigger OccurredRecording: SD/SDHC/SDXC or NAS recording at event triggers, Notification: e-mail, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, File upload(image): e-mail/FTP
Audio InBuilt-in mic, Selectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIR30m(98.4ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalAudio detection, Virtual line(Crossing, Direction) , Fog detection, Sound classification, Tampering, Digital auto tracking, Defocus detection, Motion detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Face detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionAAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, G.726(ADPCM) 8KHz, G.711 8KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolQoS, RTP(UDP), PIM-SM, IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, SSL/TLS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast), UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP)
Application Programming InterfaceONVIFS, G, T
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectSecure boot, Signed firmware, Encrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 2slot(Total 512GB)
Environmental & Electrical
Operating ConditionTemperature-10°C~+60°C(+14°F~+140°F)(Max)
Humidity0~95% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax 10W
12VDCMax 9W
Mechanical
ColorIvory
MaterialAluminum
Product DimensionsØ140.8x113.0mm(5.54x4.45")
Product Weight724g(1.6lb)
Certifications & Standards
EnvironmentIEC 62262 IK08
