Dome

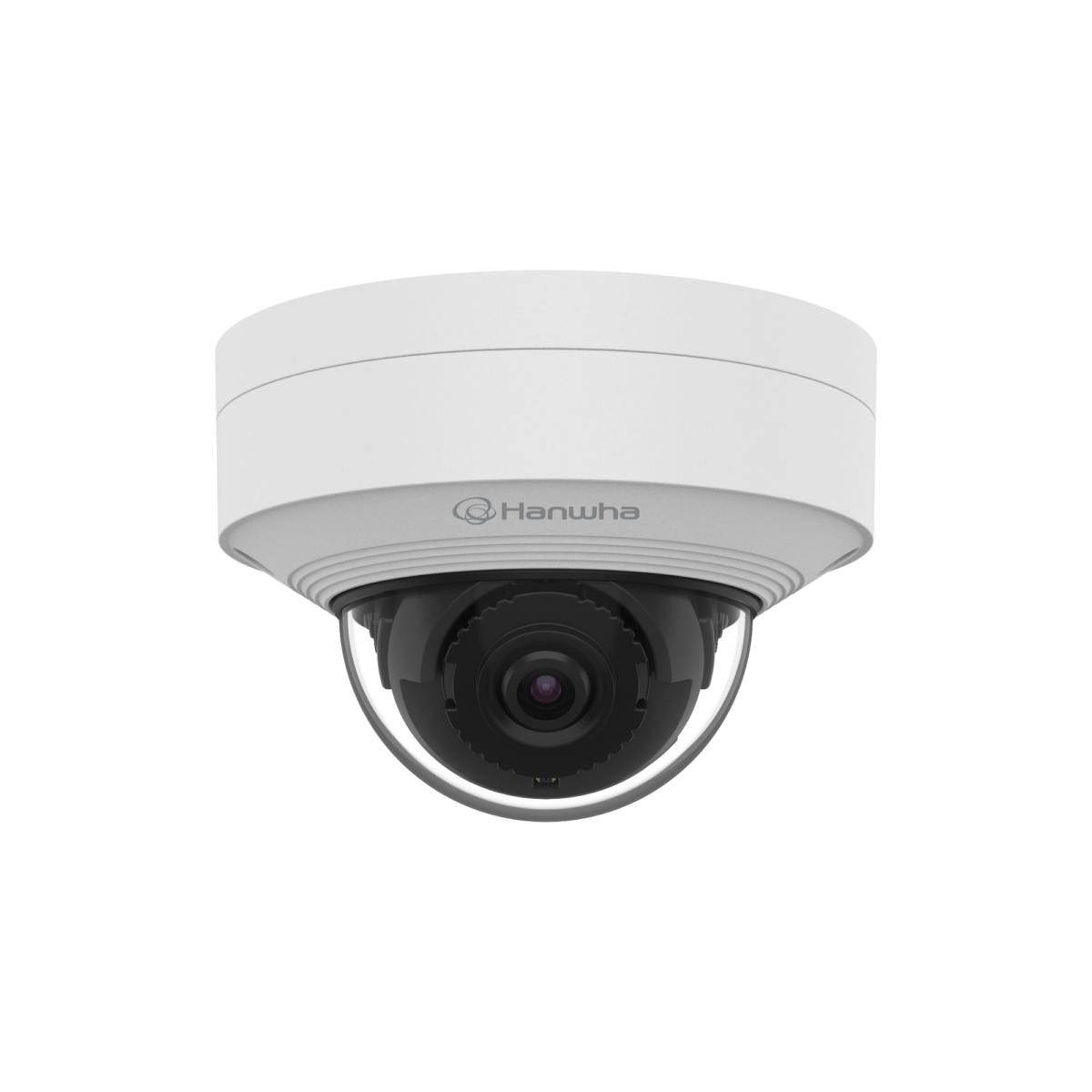

QNV-C8012

5MP AI Micro Vandal Dome Camera

Key Features
• Max. 5MP resolution
• 2.4 mm fixed lens
• Color: 0.05Lux(F2.0, 1/30sec),
BW: 0.005Lux(F2.0, 1/30sec, 30IRE)
• Maximum 30fps@5MP (H.265/H.264)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• Hard-coated dome bubble
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) : Object detection
(Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66, IK10, NEMA4X
• PoE: Max 7W
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more
False alarm reduction​
Q series AI cameras detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals. Q series AI cameras are able to help improve operator efficiency even with conventional motion detection.





Various resolution options from 2MP to 8MP
Q series AI cameras offer a variety of cameras with resolutions ranging from 2MP to 8MP, so users can choose the right one for environmental needs.





Wider Field of View of Q series micro vandal camera
QNV-C8012 provides a wider angle of view than the previous Q series models with a 2.8mm lens, allowing users to monitor a wider area.



Product Demo
Q series AI cameras demo video

Product Specification

Video
Imaging Device 1/2.8" CMOS
Resolution 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off)
MJPEG: Max. 30fps(@5MP Max. 5fps)
Min. Illumination Color: 0.05Lux(F2.0, 1/30sec, 30IRE)
BW: 0.005Lux(F2.0, 1/30sec, 30IRE)
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.4mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 123°/ V: 91°/ D: 159°
Min. Object Distance 0.5m (1.64ft)
Focus Control Fixed
Lens Type Fixed IRIS
Mount Type M12
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / -35°~70° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction WiseNRⅡ(Based on AI engine)
SSNRⅤ
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Tampering, Virtual area(Appear/Disappear)

* Some of the video analytics only works with people and vehicle detection
Business Intelligence Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
Alarm Triggers Analytics, Network disconnect, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
- MQTT: publication
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 5 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Hanwha Vision Open Platform
Oncloud edge recording, compatible with Hanwha Vision’s Micro SD cards up to 1TB
Security
OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest Authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 2GB RAM, 1GB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F)
* Start up should be done at above -30°C
0~100% RH(Condensing)
Humidity control /w Air vapor control
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~95% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 7W, typical 4.9W
Mechanical
Color / Material White / Aluminum
Bubble : Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ø110x77mm(ø4.33x3.03"), 522g(1.15 lb)
Compatible Conduit hole / Gangbox SBD-110GP1 : Single, Double, 4" Octagon (Sold seperately)
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66, IEC/EN 62262 IK10
Compatible Models
Hanging Adaptor SBP-120HMW
Back Box SBV-140BW
Ceiling Mount (Assy) SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS
Ceiling Mount (Single Unit) SBP-140CMB, SBP-140CMT, SBP-180CMB, SBP-180CMS, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H
Wall Mount SBP-125WMW1, SBP-250WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW
Wall Mount Adaptor SBP-115PFA, SBP-300BW1
Pole Mount SBD-140PMB, SBD-140PMW, SBP-300PMW2
In-ceiling Mount SHD-1100FW, SHD-1200FPW
Corner Mount SBD-140KMB, SBP-156KMW, SBP-300KMW1
Parapet Mount SBP-156LMW1, SBP-300LMW
Tilt Mount SBV-140TMW
Cabinet SBP-150NBW, SBP-300NBW
Gang Plate SBD-110GP1
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 28.1m(92.35ft)
Observe (63PPM/ 19PPF) 11.3m(36.94ft)
Recognize (125PPM/ 38PPF) 5.6m(18.47ft)
Identify (250PPM/ 76PPF) 2.8m(9.23ft)
