Dome

QNE-C9013RL

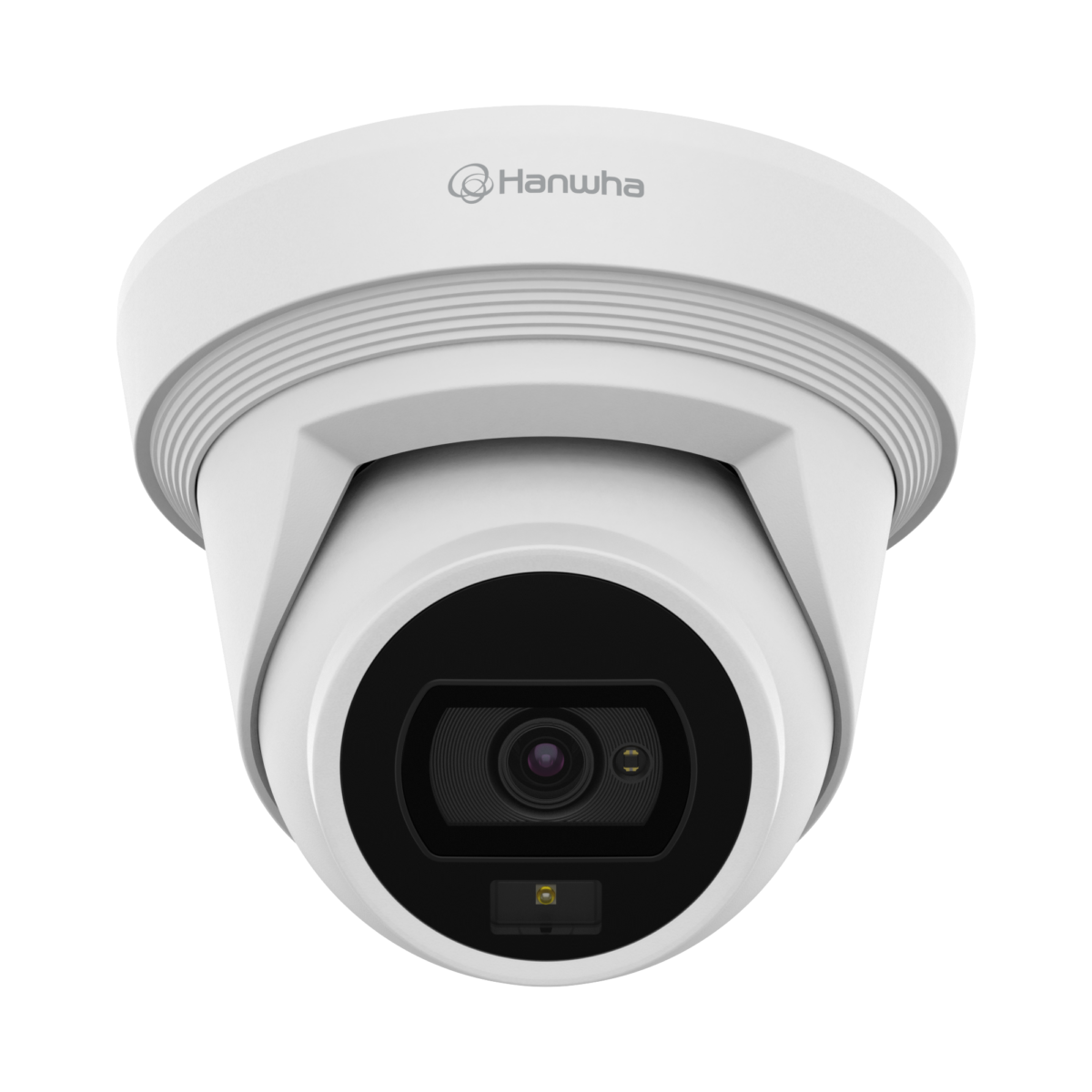

8MP AI Dual Light Flateye Camera

Key Features

• Max. 8MP resolution
• 3.0 mm fixed lens
• Color: 0.034Lux (F1.6, 1/30sec)
/ BW: 0.0034Lux (F1.6, 1/30sec, 30IRE)
• Maximum 30fps@8MP (H.265/H.264)
• Light viewable length : White LED : 30m(98.42ft), IR : 30m(98.42ft)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) : Object detection
(Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66/IP67, IK10
• PoE: Max 10W

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Shed new light on your surveillance.

Built for enhanced low-light performance, the Q series Al Dual Light Camera features a warm white LED and Infrared (IR) lights with flat-eye design for easy installation. Models available in 4k and 5MP options.

Integrated IR

Utilize the discreet IR mode to reduce light pollution and identify objects up to 30 meters away in low-light and even 0 lux environments with built-in infrared sensors.

Warm White LED Light

Trigger the on-board warm white LED light to illuminate darkened areas for more vivid full-color images and to serve as a welcome – or an attention-grabbing deterrent.

3000K warm white light

The Q Series Al Dual Light Al Camera features a 3000K warm white LED that brightens dimly-lit spaces. Unlike IR, the warm white light allows for color identification at night and doesn’t wash out reflective surfaces.

See the difference

The onboard white LED light provides detailed full color video capture in low-light scenes without the possibility of over-exposure caused by IR reflections.

Advanced Al analytics

Accurate object classification for humans and vehicles reduces the occurrence of false alarms.

Al alarms and alerts

When people or vehicles enter a specified area, Al technology instantly switches from discreet IR mode and triggers the warm white light. Use the built-in strobe as a deterrent, alarm or alert, or illuminate in steady mode for a warm welcome.

Better image quality, reduced bandwidth

Hanwha Vision Al cameras feature intelligent technology for improved image quality and streamlined video management.

WiseStream III

Reduces bandwidth by up to 80% without compromising the video quality, enabling efficient video management.

WiseNR II

Newly applied Al object detection technology reduces noise and motion blur to produce clear images.

NDAA Compliant

All new Hanwha Vision cameras and devices are fully NDAA compliant and meet the highest cybersecurity standards.

AI camera common features

WiseStreamIII

AI enhances video compression, focusing on key objects to reduce data size and bandwidth while maintaining image quality without extra hardware.

Learn more
WiseNRII

AI detects objects and adapts to reduce motion blur and noise, eliminating image blur and ghosting.

Learn more
Prefer Shutter Control

AI adjusts shutter speed for optimal noise reduction and clarity, slowing in static scenes to minimize noise and speeding up with movement to reduce blur.

Learn more

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution2592x1944, 1280x720, 1280x1024, 720x480, 1280x960, 1024x768, 800x600, 720x576, 640x360, 640x480, 1920x1080, 2688x1520, 3328x1872, 3840x2160, 800x448, 3072x1728, 1600x1200, 320x240
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@8MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.034
BW(1/30sec, 30IRE)0.0034
Lens
Focal Length (mm)3.0
Max Aperture Ratio (F number)Wide1.6
Angular Field of ViewHorizontal108°
Vertical59°
Diagonal127°
Min. Object Distance0.5m(1.64ft)
Focus ControlFixed
Lens TypeFixed iris
Mount TypeM12
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~350°
Tilt0°~75°
Rotate0°~360°
Operational
Day & NightAuto(ICR)
Backlight CompensationSSDR, BLC, WDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ, WiseNRⅡ(Based on AI engine)
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionRed, Blue, Black, Green, White, Gray
Gain ControlHigh, Low, Middle
White BalanceManual, AWC, ATW, Indoor, Outdoor
LDCSupport
Electronic ShutterModeMaximum, Minimum, Anti flicker
Speed Range1/5~1/12,000sec
Video RotationFlip, Hallway view(90°/270°), Mirror
Alarm TriggersMQTT subscription, Analytics, Network disconnect
Alarm Events When Alarm Trigger OccurredLight alarm, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Notification: e-mail, MQTT: publication, Recording: SD/SDHC/SDXC or NAS recording at event triggers, File upload(image): e-mail/FTP
Light TypeIR LED, Warm color
Light Viewable LengthWarm Light30m(98.42ft)
IR30m(98.42ft)
IR Wavelength850nm
Analytics
Classified Object TypeVehicle, Person
AttributesVehicleType(car, bus, truck, motorcycle, bicycle)
ThumbnailDetectionShot
Analytics EventsBased on AI EngineVirtual area(Loitering/Intrusion/Enter/Exit), Virtual line(Crossing/Direction), Motion detection, Object detection
NormalTampering, Virtual area(Appear/Disappear), Defocus detection
Business IntelligenceBased on AI EngineQueue management, Heatmap, Vehicle counting, People counting
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Smart CodecWiseStreamⅢ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 5 profiles
ProtocolUPnP, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, HTTP, SRTP(TCP, UDP Unicast), CDP, LLDP, MQTT, RTSP, ICMP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP
Application Programming InterfaceONVIFS, M, G, T
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectSigned firmware, Secure boot, Encrypted firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationSRTP, WSS(WebSocket Secure), HTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM2GB
Flash1GB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~100% RH(condensing)
OthersStart up should be done at above -30°C, Humidity control with AIR vent
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 10.0W, typical 4.5W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø140.0x99.6mm(ø5.51x3.92")
Product Weight790g(1.74lb)
Compatible Gang Box4" Octagon, Double, Single
Certifications & Standards
EMCRCM AS-NZS CISPR 32 Class A, VCCI CISPR 32 Class A, ICES-3(A)/NMB-3(A), FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC 62262 IK10, IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide55.8m(183.07ft)
Observe (63PPM/ 19PPF)Wide22.3m(73.23ft)
Recognize (125PPM/ 38PPF)Wide11.2m(36.61ft)
Identify (250PPM/ 76PPF)Wide5.6m(18.31ft)
