Dome

PNV-A6081R

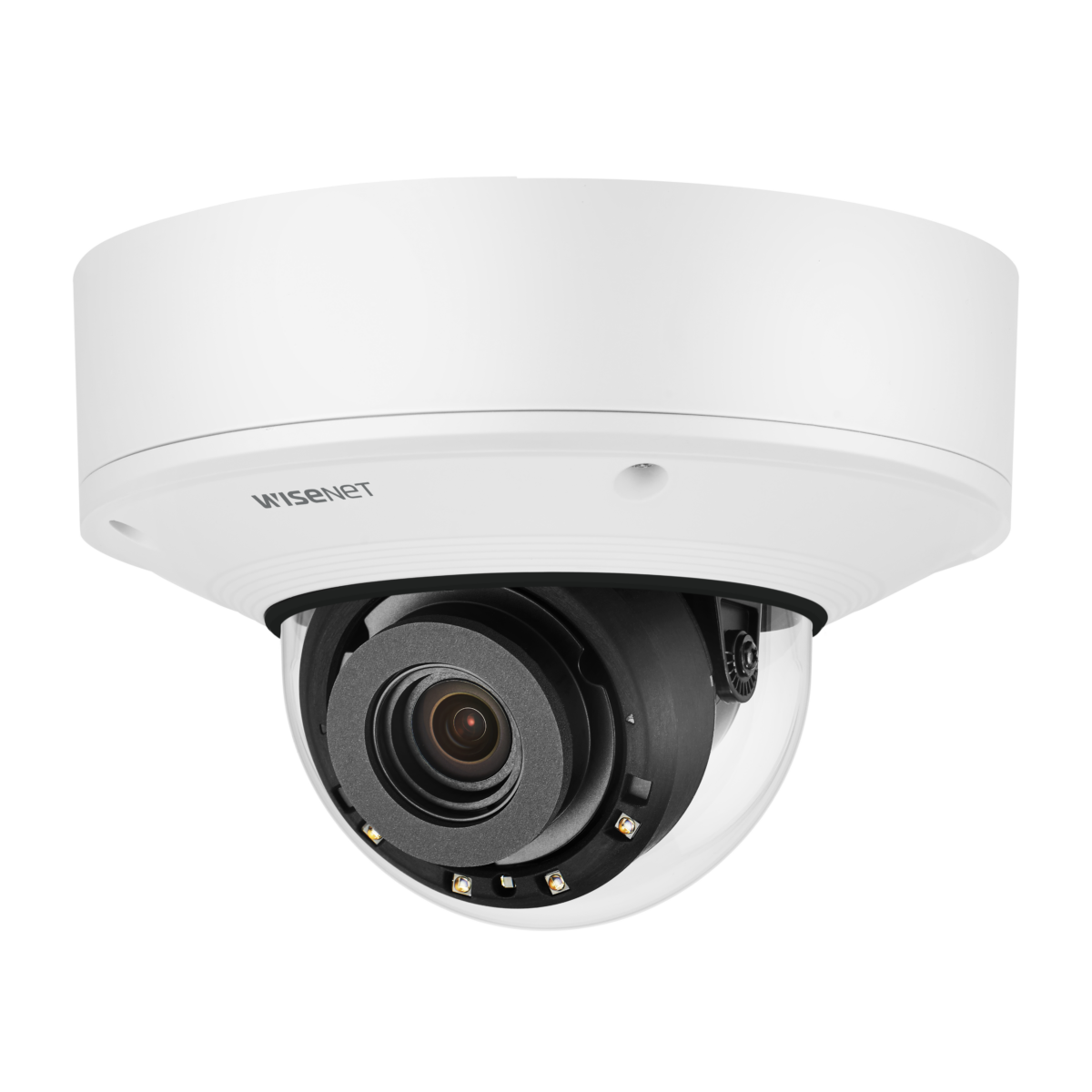

2MP AI IR Vandal Dome Camera

Key Features
• Maximum 2MP resolution, Up to 120fps
• 0.007Lux@F1.3, 1/30sec. (Color), 0Lux (B/W, IR LED on)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
• Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate)
- Face mask detection, Social distancing detection
- Attribute, BestShot
• TPM with FIPS 140-2 level2, Secure boot, Verify firmware forgery
• System requirements
- SSM v2.10.8 or later, Genetec plugin v1.0 or later, Milestone plugin v1.0.2 or later, NVR model (XRN-6410DB4/B4, XRN-3210B4)
• Hard-coated dome bubble/IP66, IP67, IP6K9K, IK10+, NEMA4X
Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.

Learn more

Reducing false alarm based on deep learning technology

P series AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based P series AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.

Attribute, BestShot for the forensic search

Metadata including attribute (people : age, gender, colors of top/bottom clothes, wearing glasses, Vehicle : types, colors) is sent to the backend server and used to extract information on specific situations, significantly reducing the time to search the entire video. And P series AI cameras are equipped with the BestShot feature for re-identification which ensures that only the most suitable images of classified objects are sent to the backend server.
P seires AI cameras can also quickly and accurately detect the objects with or without face mask and immediately sends out alert.

VMS Integration for forensic search applications

P series AI cameras offers integration of video management system from Milestone, Genetec using Hanwha Vision’s AI Plug-ins and Wisenet WAVE. These Plug-ins provide improved AI search on Milestone and Genetec’s video management system.
Download AI Plug-ins for Genetec and Milestone video management system here.

Compatible models

  • Milestone 2019 R3 or higher, Milestone Expert or Corporate level
  • Genetec Security Center 5.9.2.0 or Higher(Official announcement from Genetec DAP group)
    – Partnumber = GSC-1SDK-HANWHA-AICam
  • Wisenet SSM, Wisenet WAVE

Free AI powered COVID-19 Solutions

Wisenet P series AI cameras supports free AI based COVID-19 Solutions including the Occupancy Monitoring Application, Face Mask Detection, and Social Distancing Detection.

Product Specification

Video
Imaging Device 1/2" CMOS
Resolution 1920x1080, 1280x1024,1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 60/50fps(60Hz/50Hz, AI analytics on), Max. 120/100fps(60Hz/50Hz, AI analytics off)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.007Lux(F1.3, 1/30sec, 30IRE) B/W : 0.0007Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps
Color: 0.014Lux(F1.3, 1/60sec, 30IRE) B/W : 0.0014Lux(F1.3, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Color: 0.028Lux(F1.3, 1/120sec,30IRE) B/W : 0.0028Lux(F1.3, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 4.38~9.33mm(2.13x) motorized varifocal
Max. Aperture Ratio F1.3(Wide)~F2.15(Tele)
Angular Field of View H:103.1°(Wide)~44.5°(Tele) / V:54.2°(Wide)~24.9°(Tele) / D:124°(Wide)~51.1°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0˚~360˚ / -45˚~85˚ / 0˚~355˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction WiseNR Ⅱ(using AI engine)
SSNRⅤ
Digital Image Stabilization Stabilization Support(built-in gyro sensor)
Motion Detection 8ea, polygonal zones
Privacy Masking 6ea, rectangle zones
- Color: Gray/Black/White
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Auto prefer shutter control based on AI engine
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Classified object type: Person/Face/Vehicle/License plate
Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color)
Support BestShot per object
Analytics events based on AI engine
- Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection
Analytics events
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Support WiseDetector for Adding custom objects

*Some of the video analytics only works with people and vehicle detection
Business Intelligence People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine
Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED (850nm)
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000 BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 6 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Hanwha Vision Open Platform
WiseAI application included
Oncloud edge recording, compatible with Hanwha Vision’s Micro SD cards up to 1TB
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attack
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS (WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file
Audit Access / System / Event Log management
Device ID Device certificate (Hanwha Techwin Root CA)
Secure Storage TPM, SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slots 512GB
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -30°C
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67/IP6K9K, IK10+, NEMA4X
Input Voltage PoE+(IEEE802.3at), 12VDC
Power Consumption PoE+: Max 19.50W, typical 16.00W
12VDC: Max 17.00W, typical 13.50W
Mechanical
Color / Material White / Aluminum, Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb)
Compatible Conduit hole / Gangbox 3/4"(M25)
Single, Double, 4"Octagon, Square
Hanging Mount (Dome) SBP-187HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 30.0m(98.43ft) / Tele: 95.0m(311.82ft)
Observe (63PPM/ 19PPF) Wide: 12.0m(39.37ft) / Tele: 38.0m(124.73ft)
Recognize (125PPM/ 38PPF) Wide: 6.0m(19.69ft) / Tele: 19.0m(62.36ft)
Identify (250PPM/ 76PPF) Wide: 3.0m(9.84ft) / Tele: 9.5m(31.18ft)
