Dome

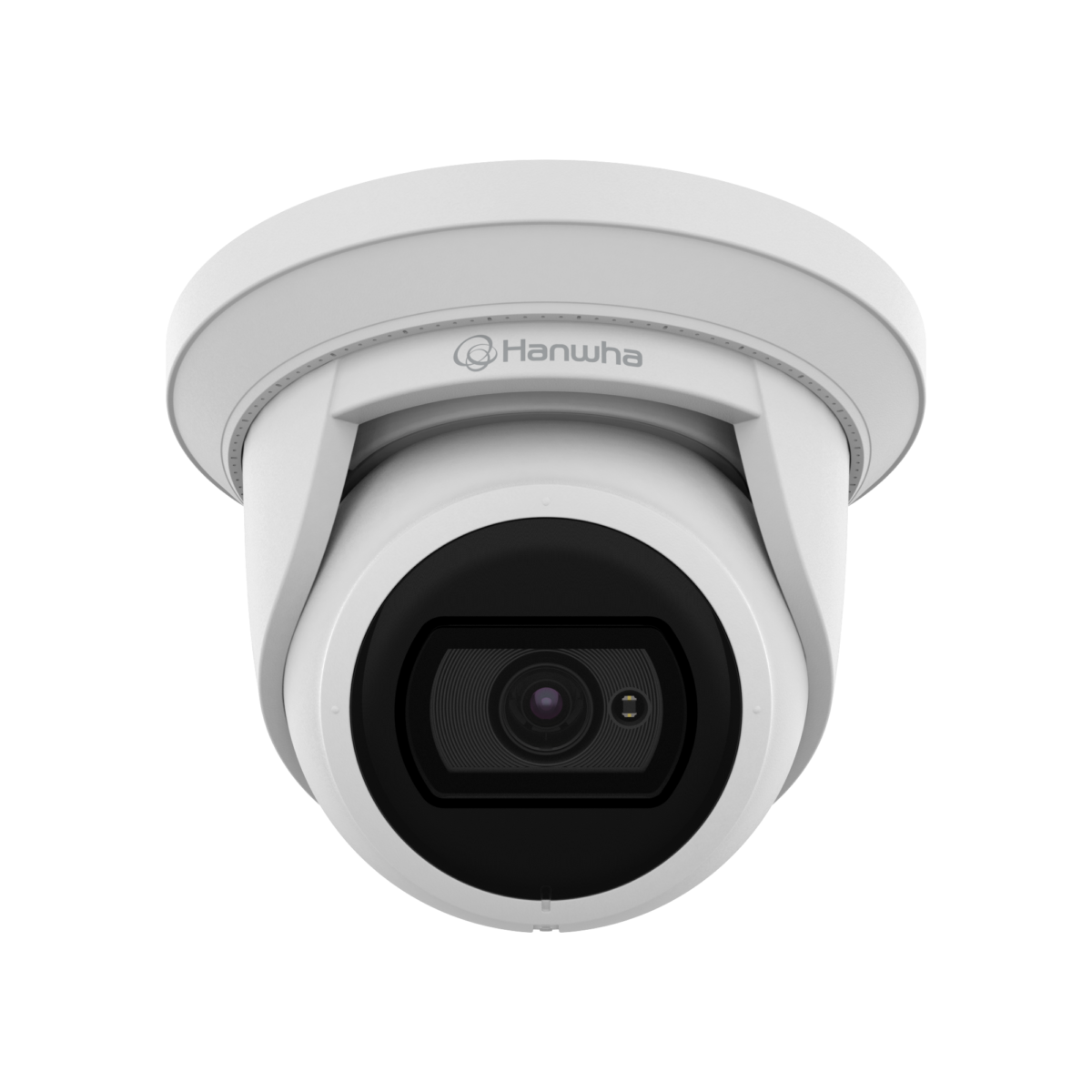

ANE-L7012R

4MP Super-Compact IR Flateye Camera

Key Features

• 4 megapixel (2560 x 1440) resolution
• Built-in 3mm fixed lens
• 30fps@ all resolutions (H.265/H.264)
• H.265/H.264, MJPEG codec supported, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
• Micro SD/SDHC memory slot (Max. 128GB), PoE
• Hallway view, WiseStream II support
• IR viewable length 20m
• IP67, IK10 support

Contact Sales Datasheet

["camera","network","dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

NDAA and FCC Compliant Camera and NVR Solutions
A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Affordability without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.





A series camera features
A series cameras offer clear and accurate imaging with a variety of options including essential form factors, 4MP and 2MP resolutions, H.265 compression, and lens types to meet your unique security challenges and circumstances.



WiseStream II + H.265 Compression

Reduce bandwidth and storage costs through efficient data transmission

120dB True WDR

Backlight compensation provides clear imaging under any lighting conditions

LDC Lens Distortion Correction

Corrects video distortion when using wide-angle lenses

30fps, H.265 Codec

Smooth 30fps video transmission with H.265 compression technology

IVA (Intelligent Video Analytics)

Increases situational awareness and alerts operators to abnormal activities in real-time

Hallway View 270° Rotation Support

Supports vertical FoV for monitoring narrow scenes with 90°, 180°, and 270° rotation



Affordable high quality NVR solutions
A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections, the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.



UHD Monitoring

4K HDMI Output

H.265

Advanced compression technology

P2P Connection

Easily connect with QR code

Wisenet Mobile App

Remote monitoring with Android or iOS devices

Wisenet Viewer Compatible

Easy system monitoring on Windows or Mac PCs

PoE

Power over ethernet

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution800x448, 720x480, 1920x1080, 1280x960, 720x576, 640x480, 640x360, 1280x720, 2560x1440, 320x240, 800x600
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG15fps(@4MP Max. 2fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.13
BW(1/30sec, 30IRE)0.013
Lens
Focal Length (mm)3
Max Aperture Ratio (F number)Wide1.6
Angular Field of ViewHorizontal99°
Vertical55°
Diagonal115°
Min. Object Distance1.1m(3.6ft)
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~350°
Tilt0°~75°
Rotate0°~360°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNR
Motion DetectionQuantity4ea
Shape8point Polygonal zones
Privacy MaskingQuantity6ea
ShapeRectangular zones
Gain ControlHigh, Low, Middle
White BalanceIndoor, Outdoor, AWC, Manual, ATW
LDCSupport
Electronic ShutterModeMaximum, Minimum, Anti flicker
Speed Range1/5~1/12,000sec
Video RotationHallway view(90°/270°), Mirror, Flip
Alarm TriggersAnalytics, Network disconnect
Alarm Events When Alarm Trigger OccurredHandover: PTZ preset, File upload(image): e-mail/FTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Notification: e-mail
Light TypeIR LED
Light Viewable LengthIR20m(65.62ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalMotion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction) , Defocus detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 6 users
MulticastSupport
Multiple StreamingUp to 3 profiles
ProtocolRTSP, TCP/IP, SSL/TLS, DHCP, SNMPv1/v2c/v3(MIB-2), ICMP, RTP(TCP), DDNS, RTCP, IGMP, SMTP, HTTP, IPv6, LLDP, IPv4, PPPoE, HTTPS, Bonjour, UPnP, RTP(UDP), FTP, UDP/IP, NTP, PIM-SM, ARP, QoS, DNS
Application Programming InterfaceONVIFG, T, S
OthersSUNAPI(HTTP API)
Direct Cloud ConnectionOptional (needs gateway)
Security
OS / Firmware ProtectEncrypted firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationWSS(WebSocket Secure), SRTP, HTTPS
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256)
General
MemoryRAM512MB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 128GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-30°C~+55°C(-22°F~+131°F)
Humidity0~95% RH(non-condensing)
OthersStart up should be done at above -20°C
Storage ConditionTemperature-30°C~+55°C(-22°F~+131°F)
Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 7.5W, typical 5.7W
Mechanical
ColorWhite
MaterialAluminum, Plastic
RAL CodeRAL9003
Product Dimensionsø125.0x87.4mm(4.92x3.44")
Product Weight630g(1.39lb)
Compatible Gang BoxDouble, 4" Octagon, Single
Certifications & Standards
EMCCE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, RCM AS-NZS CISPR 32 Class A, VCCI CISPR 32 Class A, KS C 9832 Class A, KS C 9835, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
SafetyUL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP67, IEC 62262 IK10
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide43.7m(143.47ft)
Observe (63PPM/ 19PPF)Wide17.5m(57.39ft)
Recognize (125PPM/ 38PPF)Wide8.7m(28.69ft)
Identify (250PPM/ 76PPF)Wide4.4m(14.35ft)

• The latest product information / specification can be found at hanwha-security.com
_x000D_
• Design and specifications are subject to change without notice.
_x000D_
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
