Bullet

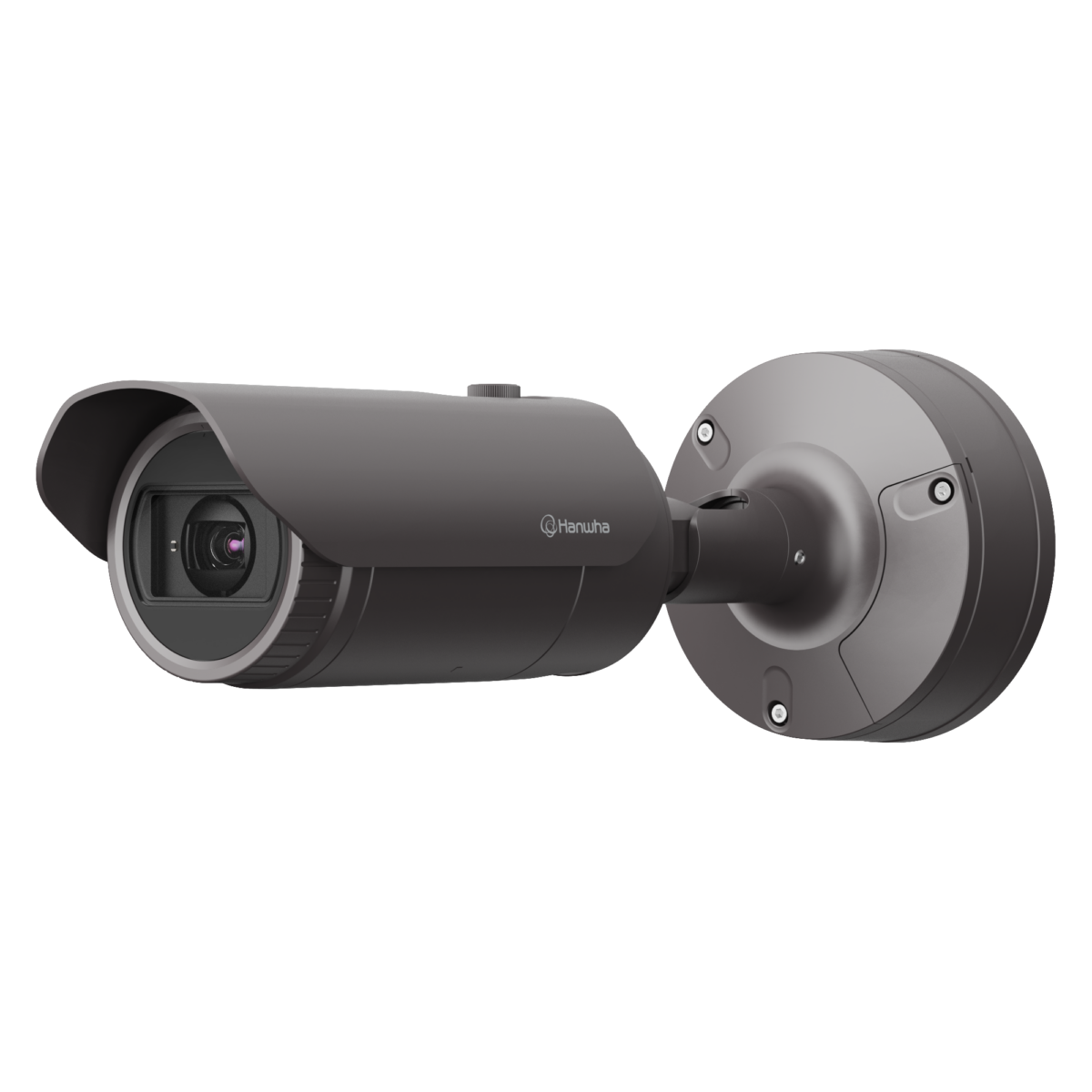

XNO-8082R

6MP IR Bullet Camera

Key Features

• 6MP resolution
• 2.8~8.4mm(3x) motorized varifocal
• 0.05Lux@F1.2 (Color), 0Lux (B/W, IR LED on)
• Max.30fps@6MP (H.265/H.264)
• IR viewable length 40m
• Day & Night (ICR), extreme WDR (120dB)
• DIS with built-in Gyro sensor
• Video Analytics(Defocus, Directional detection, Audio detection, Shock detection, Face/Upper body detection)
• Dual SD slots (Max. 1TB)
• PoE support
• IP66/IP67, IK10, NEMA4X

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview



















Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution2592x1944, 320x240, 1280x720, 1280x1024, 720x480, 1280x960, 800x448, 3328x1872, 800x600, 720x576, 640x360, 640x480, 1024x768, 3072x1728, 1600x1200, 2688x1520, 1920x1080
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps(@6MP Max. 5fps)
Min. Illumination (Lux)Color(1/30sec, 30IRE)0.05
BW(1/30sec, 30IRE)0.005
Video OutUSB: Micro USB Type B, CVBS: 1.0 Vp-p / 75Ω composite for installation
Lens
Focal Length (mm)2.8~8.4
Zoom RatioOptical3x
Max Aperture Ratio (F number)Wide1.2
Tele2.8
Angular Field of ViewHorizontal114°~40°
Vertical62°~22°
Diagonal133°~46°
Min. Object Distance0.7m(2.23ft)
Focus ControlSimple focus
Lens TypeP iris(IR corrected), DC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~360°
Tilt0°~100°
Rotate0°~360°
Operational
Day & NightAuto(ICR)
Backlight CompensationWDR, HLC, SSDR, BLC
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
Shape4point Quadrangle zones
Color / OptionGray, Mosaic, Green, Red, Blue, White, Black
Gain ControlManual, Max gain, Off
White BalanceAWC, Outdoor, Manual, NarrowATW, ATW, Indoor
LDCSupport(Fill/stretch mode)
Electronic ShutterModeMaximum, Anti flicker, Prefer shutter control, Minimum
Speed Range2~1/12,000sec
Video RotationHallway view(90°/270°), Mirror, Flip
Alarm InterfaceIn/Out2 configurable I/O ports
Alarm TriggersAnalytics, App event, Network disconnect, Alarm input, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(video clip): FTP/SFTP, Notification: e-mail, File upload(image): e-mail/FTP/SFTP, Audio clip playback, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
Audio InSelectable(mic in/line in)
Audio OutLine out
Light TypeIR LED
Light Viewable LengthIRWiseIR 40m(131.23ft)
IR Wavelength850nm
Analytics
Analytics EventsNormalTampering, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Defocus detection, Shock detection, Digital auto tracking, Virtual line(Crossing, Direction) , Fog detection, Motion detection, Face/upper body detection, Audio detection
Business IntelligenceNormalQueue management, People counting, Heatmap
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz
Smart CodecWiseStreamⅡ, Manual
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolLLDP, RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), RTP(TCP), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, SFTP, UPnP, CDP, MQTT, RTSP, ICMP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, G, T
OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationPrevent brute-force attack, Digest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationSRTP, HTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncrypt compress for live recording file export, Encryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), HTPM(Hanwha Trusted Platform Module)
Security CertificateCyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
MemoryRAM4GB
Flash512MB
Edge StorageMicro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
Environmental & Electrical
Operating ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~95% RH(non-condensing)
OthersStart up should be done at above -30°C
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, 24VAC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 12.95W, typical 10.5W
12VDCMax. 12.5W, typical 9.4W
24VACMax. 14.5W, typical 11.2W
Power Redundance FailoverSupport
Mechanical
ColorDark grey
MaterialHard-coated dome , Aluminum
Product Dimensionsø91x368.6mm(3.85x14.51")
Product Weight2,200g(4.85lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxDouble, 4" Octagon, Square, Single
Certifications & Standards
EMCICES-3(A)/NMB-3(A), VCCI CISPR 32 Class A, FCC 47 CFR 15 Subpart B Class A, RCM AS-NZS CISPR 32 Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835
SafetyIEC 62471, UL 60950-1, CAN/CSA C22.2 NO. 60950-1
EnvironmentIEC 60529 IP67, IEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10, IEC/EN 63000
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide43.2m(141.81ft)
Tele182.9m(599.97ft)
Observe (63PPM/ 19PPF)Wide17.3m(56.73ft)
Tele73.1m(239.99ft)
Recognize (125PPM/ 38PPF)Wide8.6m(28.36ft)
Tele36.6m(119.99ft)
Identify (250PPM/ 76PPF)Wide4.3m(14.18ft)
Tele18.3m(60.00ft)
