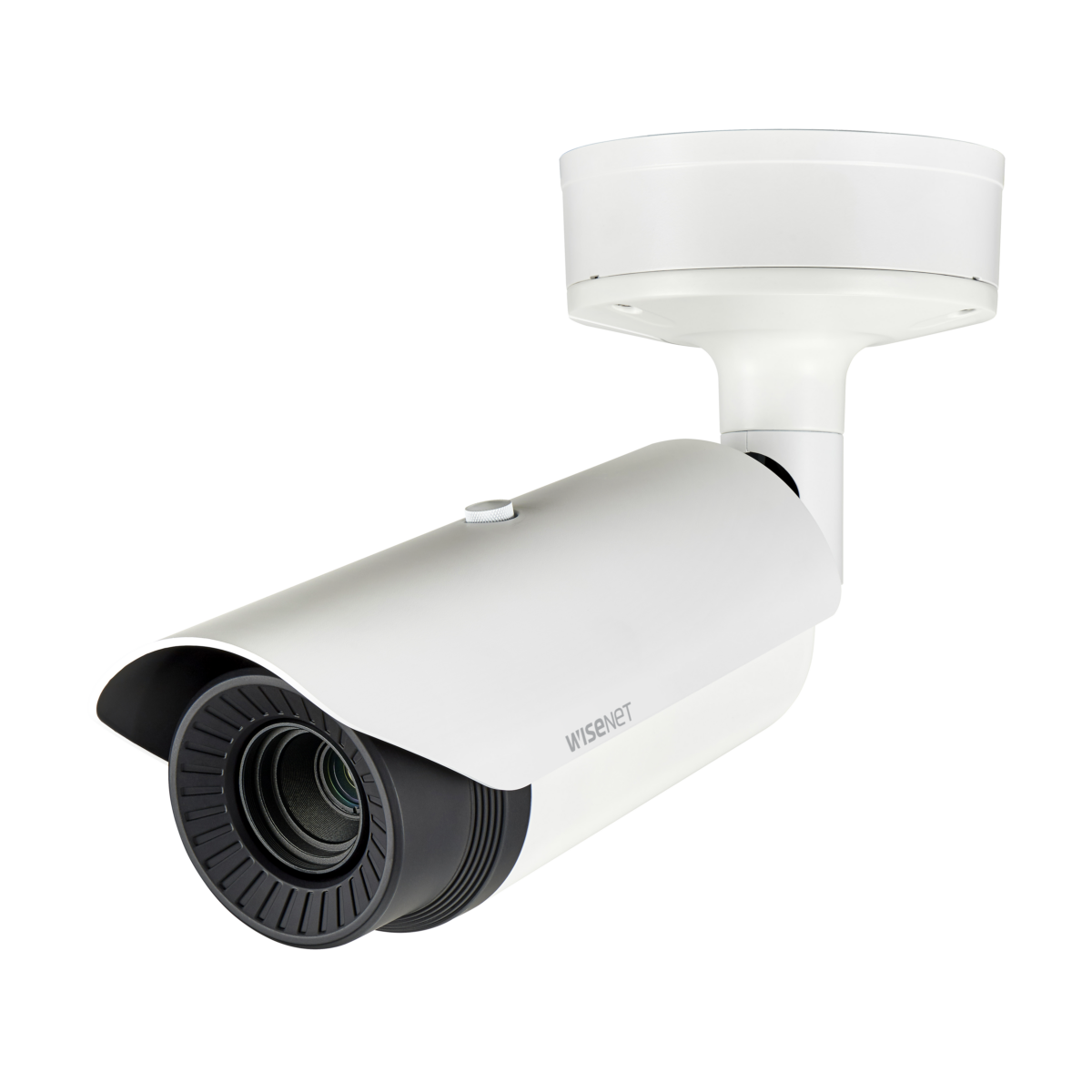

TNO-L4030TR

Copy a URL
Copy

VGA H.265 Thermal Camera

Key Features
• Max. 640 x 480 resolution support
• 13mm fixed focal
• H.265, H.264, MJPEG codec
• Max. 8fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering, Temperature detection
• Directional detection, Audio detection
• Micro SD/SDHC/SDXC 1slot 256GB
• Hallway View, WiseStreamII support
• PoE(IEEE802.3af, Class3), 24VAC, 12VDC
• IP66, IK10, NEMA4X

※ Product availability may vary by region.
       Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Mouse over image to zoom

Copy a URL
Copy

TNO-L4030TR

VGA H.265 Thermal Camera

Key Features

• Max. 640 x 480 resolution support
• 13mm fixed focal
• H.265, H.264, MJPEG codec
• Max. 8fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering, Temperature detection
• Directional detection, Audio detection
• Micro SD/SDHC/SDXC 1slot 256GB
• Hallway View, WiseStreamII support
• PoE(IEEE802.3af, Class3), 24VAC, 12VDC
• IP66, IK10, NEMA4X

※ Product availability may vary by region.
       Please contact your regional representative.

? Hanwha Vision is formerly known as Hanwha Techwin

Product Specification

  • Video
  • Lens
  • Operational
  • Radiometry
  • Network
  • General
  • Environmental & Electrical
  • Mechanical
  • Video
    Imaging Device Uncooled micro bolometer
    Resolution 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264/MJPEG: Max. 8fps
    NETD <50mK
    Pixel Size 17㎛
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 13mm fixed focal
    Max. Aperture Ratio F1.0
    Angular Field of View H: 48.6° / V: 36.4 / D: 61.6°
    Min. Object Distance 5m(16.40ft)
    Focus Control Fixed
    Operational
    Camera Title Displayed up to 85 characters
    Digital Image Stabilization Support(built-in gyro sensor)
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 24ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
    Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature detection, Sound classification, Shock detection
    Alarm I/O Input 1ea / Output 2ea
    Alarm Triggers Analytics, Network disconnect, Alarm input, MQTT subscription
    Alarm Events When alarm trigger occurred
    - File upload(image): e-mail/FTP
    - Notification: e-mail
    - Recording: SD/SDHC/SDXC or NAS recording at event triggers
    - Alarm output
    - Handover: PTZ preset
    - MQTT: publication
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Color Palettes Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
    Radiometry
    Temperature Detect Range -20°C~130°C(-4°F~266°F)
    Temperature Accuracy ±5°C(≤100°C), ±20%(>100°C)
    Temperature Detection 6 Quadrangle ROI zones, whole FoV area
    Additional Hybrid palettes, Spot temperature reading
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law / G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
    Security HTTPS(SSL) login authentication
    Digest login authentication
    IP address filtering
    User access log
    802.1X authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage PoE(IEEE802.3af, Class3), 24VAC, 12VDC
    Power Consumption PoE: Max. 10W, typical 8.6W
    12VDC: Max. 9W, typical 7.5W
    24VAC: Max. 10.5W, typical 8.9W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Φ101.97x401.8mm(4.01x15.82") / 3,124g(6.89lb)
  • • The latest product information / specification can be found at hanwha-security.com
    • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
