Bullet

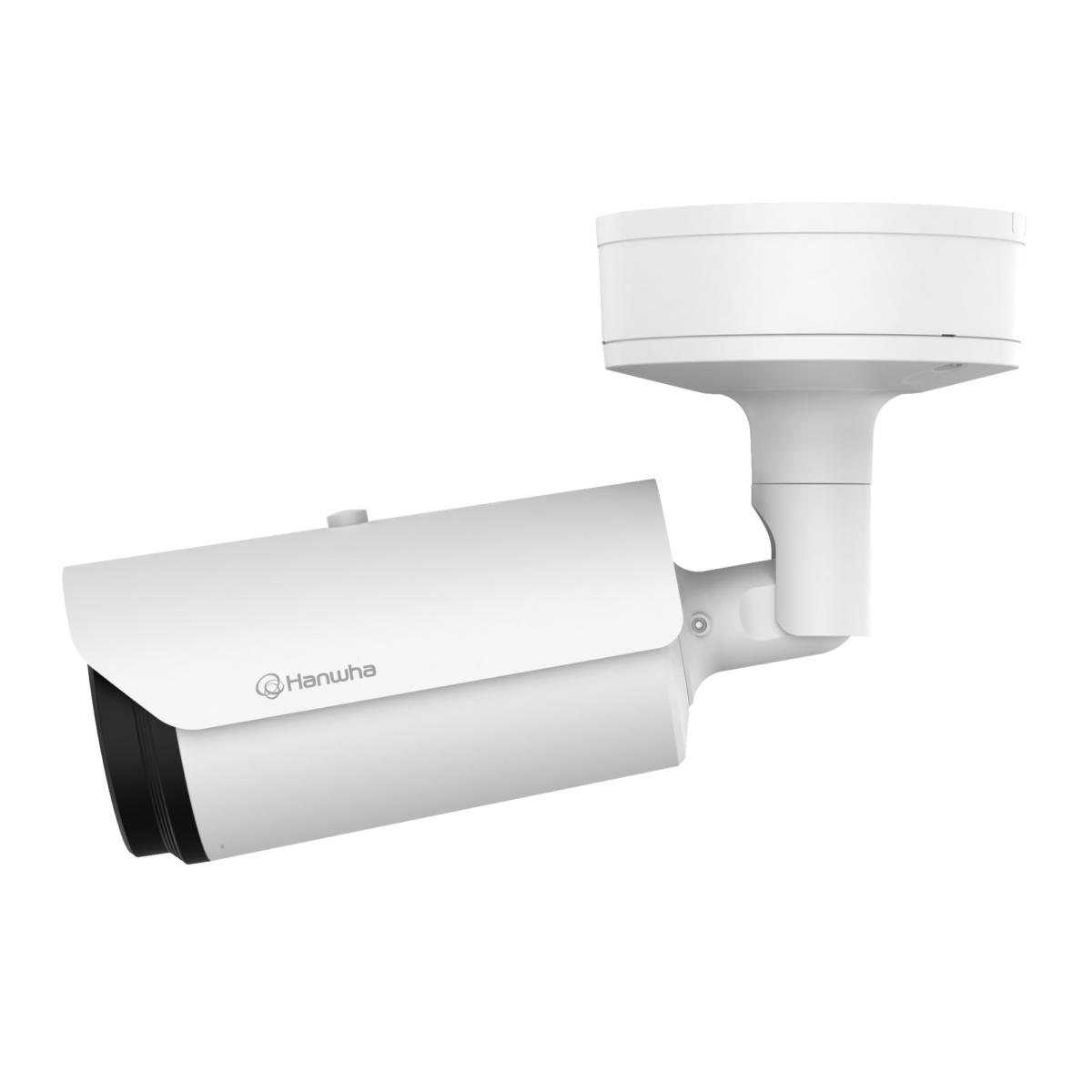

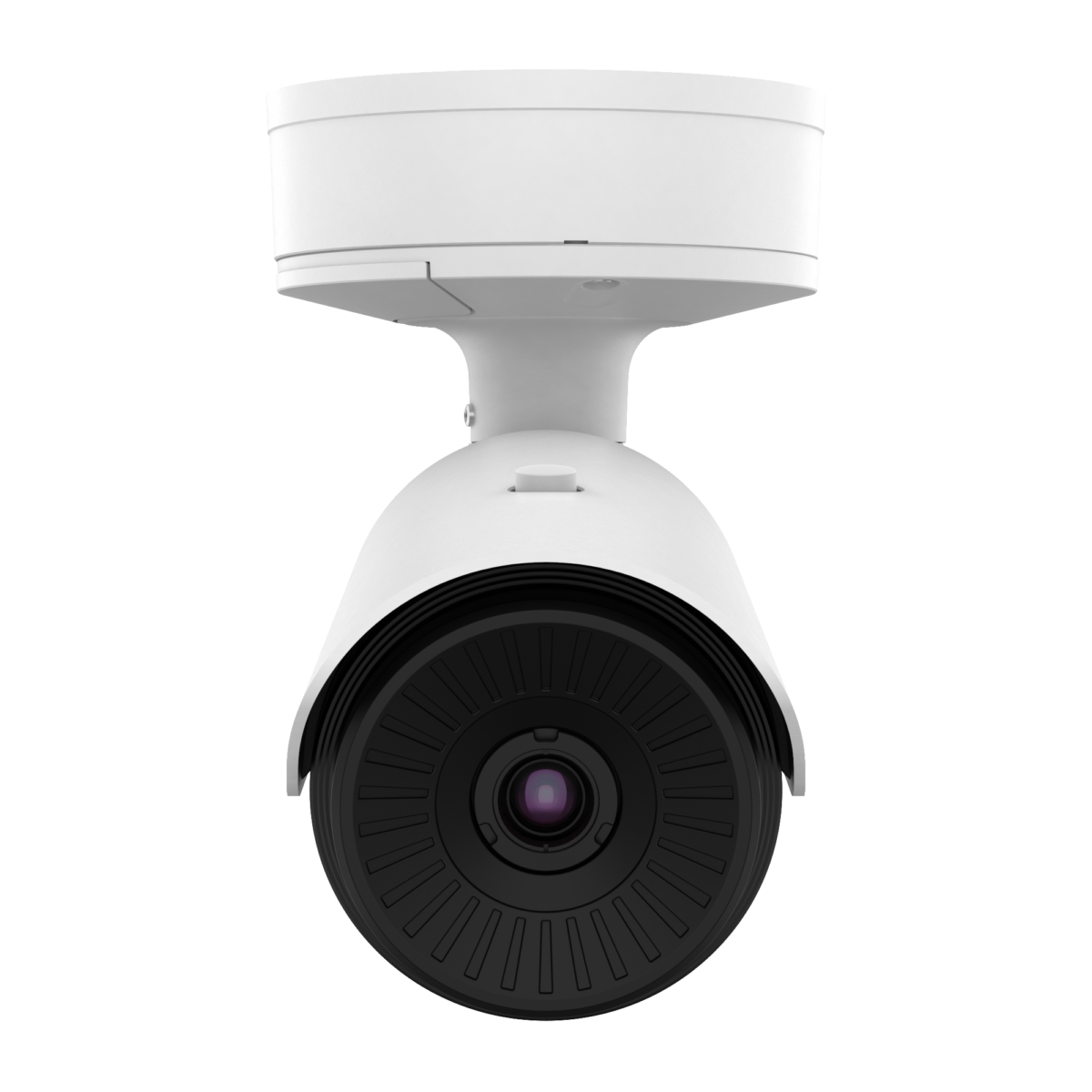

TNO-3040T

QVGA Thermal Camera

Key Features

• Max. 320 x 240 resolution support
• Horizontal 11.5°, Vertical 8.7° field of view
• Max. 30fps@all resolutions (H.265, H.264, MJPEG)
• Motion detection, Handover, Tampering, Loitering
• Directional detection, Audio detection, Shock detection
• Micro SD / SDHC / SDXC memory slot (Max. 256GB)
• Hallway View, WiseStreamII support
• PoE, 24VAC, 12VDC
• IP66, NEMA4X

Contact Sales Datasheet

["camera","network","bullet"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Overview

Detect people and objects 24/7 with thermal cameras
In challenging weather(fog, smoke, rain) or lighting conditions(complete darkness, backlight), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. For accurate monitoring purposes, a professional surveillance system is required. Wisenet thermal cameras are the excellent choice : they provide high contrast images based on temperature differences between the object and background, so that users can detect incidents more easily. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.

Multiple color palettes
Wisenet thermal cameras provide seven different types of color palette for users to select the best image in various situations. Each color palette has a specific set of colors which change according to the temperature range of the scene.

Secure a wide variety of applications
Wisenet thermal cameras can be a powerful tool when monitoring applications where there is very little light, due to their ability to create images based on heat. Thermal cameras are especially applicable in manufacturing and industrial facilities, air and seaports, and mining areas.



Product Specification

Video
Imaging DeviceTypeUncooled micro bolometer (320x240)
Resolution320x240
Max. FramerateH.265/H.26430fps/25fps(60Hz/50Hz)
MJPEG30fps
Spectral Range8~14㎛
NETD<60mK
Pixel Size12㎛
Video OutCVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B
Lens
Focal Length (mm)19
Max Aperture Ratio (F number)Wide1.0
Angular Field of ViewHorizontal12°
Vertical9°
Diagonal15°
iFoV0.63mRad
Min. Object Distance15m(49.21ft)
Focus ControlFixed
Operational
Digital Image StabilizationSupport(built-in gyro sensor)
Motion DetectionQuantity8ea
Shape8point Polygonal zones
Privacy MaskingQuantity32ea
ShapePolygonal zones
Color / OptionMosaic, Blue, Black, Green, Gray, White, Red
Video RotationHallway view(90°/270°), Flip, Mirror
Alarm InterfaceIn/OutInput 1ea, Output 2ea
Alarm TriggersAlarm input, Analytics, Network disconnect
Alarm Events When Alarm Trigger OccurredRecording: SD/SDHC/SDXC or NAS recording at event triggers, Handover: PTZ preset, Alarm output, Notification: e-mail, File upload(image): e-mail/FTP
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PallettesRed, Sepia, Custom, Rainbow, Blackhot, Iron, Rainbow2, Whitehot
Analytics
Analytics EventsNormalTemperature detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Shock detection, Virtual line(Crossing, Direction) , Sound classification, Tampering, Motion detection, Audio detection
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 selectable, AAC-LC: 48Kbps at 16KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, G.726(ADPCM) 8KHz, G.711 8KHz
Smart CodecManual, WiseStreamⅡ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
StreamingUnicastUp to 20 users
MulticastSupport
Multiple StreamingUp to 10 profiles
ProtocolRTP(TCP), RTP(UDP), IPv4, HTTPS, FTP, NTP, TCP/IP, ARP, DHCP, RTCP, IPv6, UDP/IP, Bonjour, DNS, SNMPv1/v2c/v3(MIB-2), SSL/TLS, QoS, SMTP, DDNS, IGMP, HTTP, UPnP, LLDP, RTSP, ICMP, SRTP(TCP, UDP Unicast)
Application Programming InterfaceONVIFS, T, G
OthersHanwha Vision Open Platform, SUNAPI(HTTP API)
Security
OS / Firmware ProtectEncrypted firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
General
MemoryRAM1GB
Flash256MB
Edge StorageMicro SD/SDHC/SDXCMax. 256GB x 1slot
Environmental & Electrical
Operating ConditionTemperature-40°C~+60°C(-40°F~+140°F)
Humidity0~90% RH(non-condensing)
Storage ConditionTemperature-50°C~+60°C(-58°F~+140°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC, 24VAC, PoE(IEEE802.3af, Class3)
Power ConsumptionPoEMax. 8.7W, typical 7.5W
12VDCMax. 7.8W, typical 6.7W
24VACMax. 9.2W, typical 8.0W
Mechanical
ColorWhite
MaterialAluminum
RAL CodeRAL9003
Product Dimensionsø147.51x375.3mm(5.81x14.78")
Product Weight2495g(5.50lb)
Certifications & Standards
EnvironmentIEC 60529 IP66, NEMA 250 type 4X, IEC 62262 IK10
