Bullet

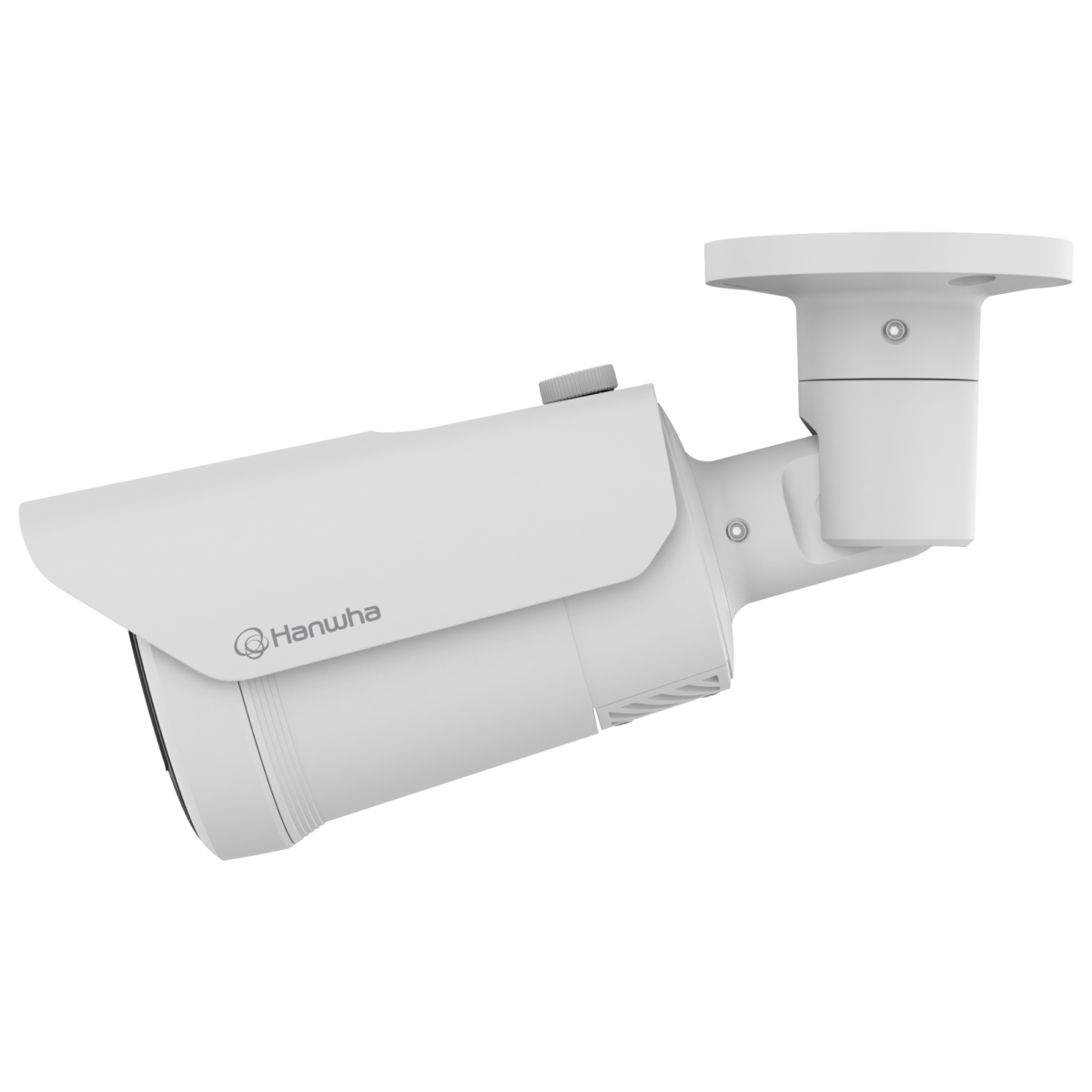

QNO-C8083R
5MP AI IR Bullet Camera
Key Features
• Max. 5MP resolution
• 3.2~10.2mm(3.2x) motorized varifocal
• Color: 0.07Lux(F1.6, 1/30sec),
BW: 0.007Lux(F1.6, 1/30sec, 30IRE)
• Maximum 30fps@5MP (H.265/H.264)
• IR viewable length 30m (98.42ft)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) : Object detection
(Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66, IK10
• PoE: Max 12W
• 3.2~10.2mm(3.2x) motorized varifocal
• Color: 0.07Lux(F1.6, 1/30sec),
BW: 0.007Lux(F1.6, 1/30sec, 30IRE)
• Maximum 30fps@5MP (H.265/H.264)
• IR viewable length 30m (98.42ft)
• Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
• H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
• Analytics events based on AI engine (NPU) : Object detection
(Person/Vehicle - car, truck, bus, bicycle, motorcycle),
Motion detection, Virtual line(Crossing/Direction),
Virtual area(Loitering/Intrusion/Enter/Exit)
• IP66, IK10
• PoE: Max 12W
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Edge Computing and Edge AI are bringing computation and data storage closer to the data sources, reducing latency and enabling real-time data processing. This allows for faster response times and more efficient security operations.
Learn more
False alarm reduction
Q series AI cameras detect and classify people, vehicles in real time, greatly enhancing the accuracy of video analytics. AI algorithms can discern person as distinct objects separate from their surroundings such as waving trees, shadows, or animals. Q series AI cameras are able to help improve operator efficiency even with conventional motion detection.
Various resolution options from 2MP to 8MP
Q series AI cameras offer a variety of cameras with resolutions ranging from 2MP to 8MP, so users can choose the right one for environmental needs.
Product Demo
Q series AI cameras demo video
Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.07Lux(F1.6, 1/30sec, 30IRE) BW: 0.007Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10.2mm(3.2x) motorized varifocal |
| Optical Zoom | 3.2x |
| Max. Aperture Ratio | F1.6(Wide)~F3.1(Tele) |
| Angular Field of View | H: 95°(Wide)~29°(Tele) V: 69°(Wide)~21°(Tele) D: 126°(Wide)~36°(Tele) |
| Min. Object Distance | 1.2m(3.93ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100°/ 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones - Color: Gray/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback - MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.42ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform Oncloud edge recording, compatible with Hanwha Vision’s Micro SD cards up to 1TB |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F~+131°F) * Start up should be done at above -30°C 0~100% RH(Condensing) Humidity control /w Air vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 12W, typical 5.3W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø93.4x245.8mm(ø3.68x9.68"), 930g(2.05 Ib) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox (SBO-090GP) : Single, Double, 4" Octagon (sold separately) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| Compatible Models | |
| Back Box | SBO-140BW, SBO-140WW |
| Ceiling Mount (Single Unit) | SBP-140CMT |
| Pole Mount | SBD-140PMW |
| Corner Mount | SBD-140KMB |
| Cabinet | SBP-150NBW |
| Gang Plate | SBO-090GP |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 42.7m(140.20ft) / Tele: 186.9m(613.28ft) |
| Observe (63PPM/ 19PPF) | Wide: 17.2m(56.08ft) / Tele: 75.4m(245.31ft) |
| Recognize (125PPM/ 38PPF) | Wide: 8.5m(28.04ft) / Tele: 37.4m(122.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.3m(14.02ft) / Tele: 18.7m(61.33ft) |
