Dome

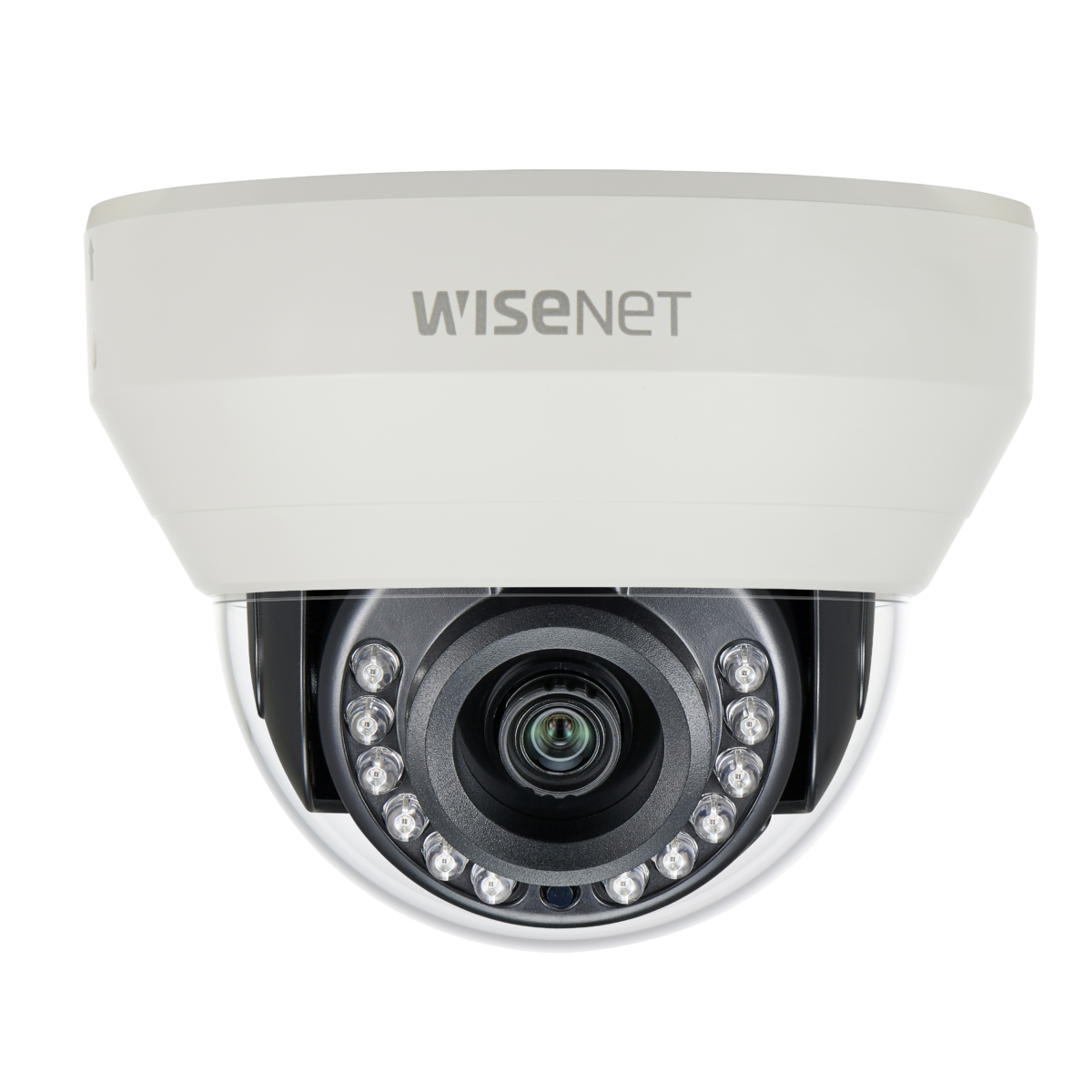

HCD-7020RA

QHD (4MP) Analog IR Dome Camera

Key Features

• 0.27 Lux@F2.0 (Color) (HCD-7020R/7030R),0 Lux (B/W : IR LED on)
• Built-in 4.0mm fixed lens (HCD-7020R)
• Day & Night (ICR), DWDR, Motion detection
• IR Viewable Length 25m(7020R)
• Transmission distance max.500m
• Easy installation (Plug & play)

Contact Sales Datasheet

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/3"
TypeCMOS
Resolution2560x1440
Max. Framerate(NTSC/PAL)30fps/25fps
Min. IlluminationColor(1/30sec, 30IRE)0.27
BW(1/30sec, 30IRE)0.027
Video OutCVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, BNC: AHD
Video Transmission Distance500m(5C2V Coaxial Cable)
Lens
Focal Length (mm)4.0
Max Aperture Ratio (F number)Wide2.0
Angular Field of ViewHorizontal78.22°
Vertical41.21°
Diagonal87.91°
Min. Object Distance0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~350°
Tilt0°~67°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, DWDR
Digital Noise Reduction2DDNR
Motion DetectionQuantity4ea
Privacy MaskingQuantity2ea
Gain ControlVery High, Low, High, Middle
White BalanceOutdoor, ATW, Manual, AWC, Indoor
Electronic ShutterSpeed Range1/30~1/12,000sec(N), 1/25~1/12,000sec(P)
Video RotationMirror, Flip
IR Viewable Length25m(82.02ft)
Coaxial ProtocolCVBS, ACP
Analytics
Analytics EventsNormalMotion detection
Environmental & Electrical
Operating ConditionTemperature-10°C~+55°C(+14°F~+131°F)
Humidity0~90% RH(non-condensing)
Input Voltage12VDC
Power Consumption12VDCMax 5W
Mechanical
ColorIvory
MaterialPC(Polycarbonate)
Product DimensionsØ110.1x86.1mm(4.33x3.39”)
Product Weight240g(0.53lb)
