Dome

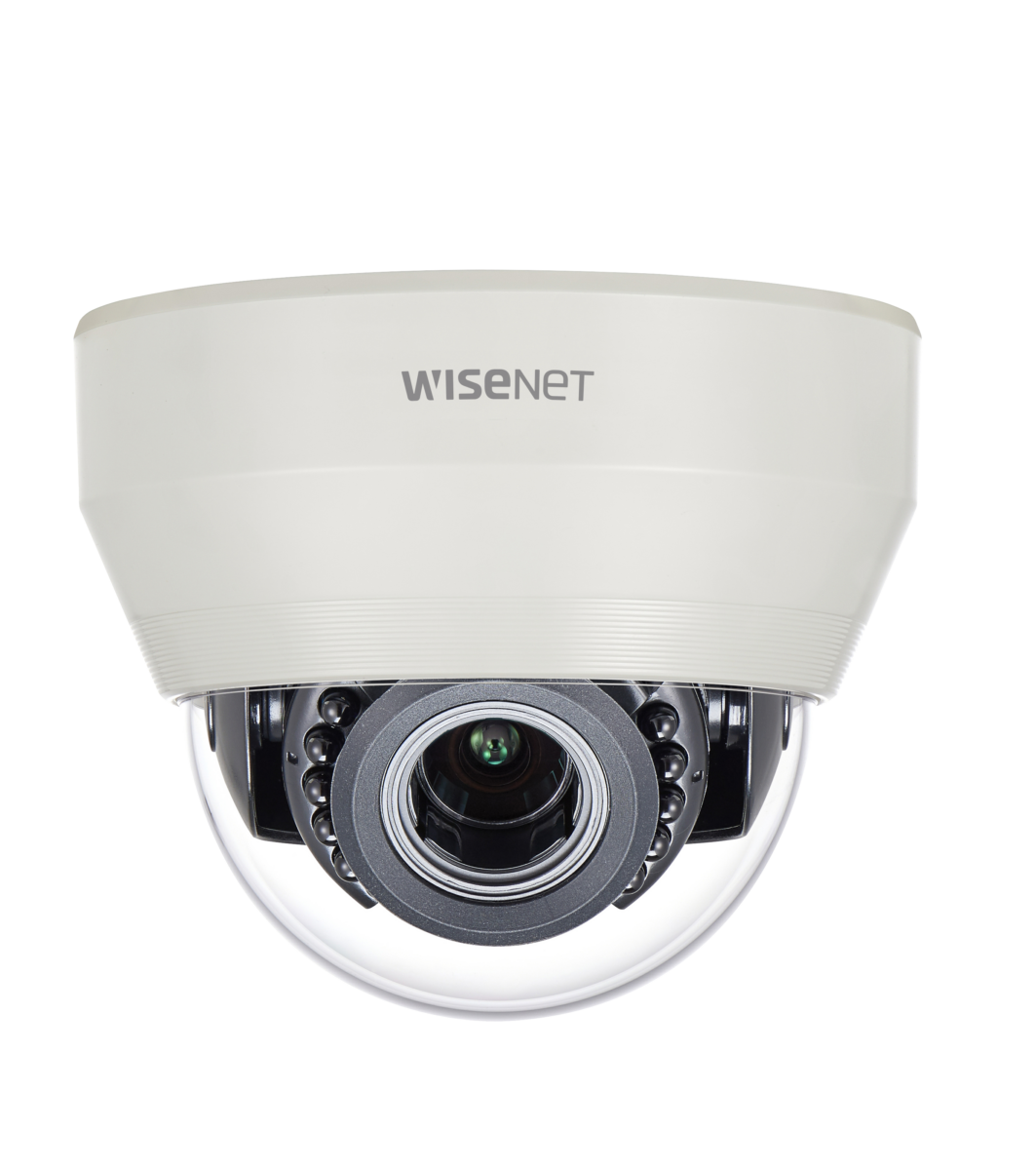

HCD-6080R

1080p Analog HD IR Dome Camera

Key Features

• Full HD resolution
• 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
• 3.2 ~ 10mm (3.1x) motorized V/F lens
• Day & Night (ICR), WDR (120dB)
• SSNRⅣ, Motion detection
• IR viewable length 20m
• Transmission distance max.500m
• Easy Installation (Plug & play), Dual power

Contact Sales Datasheet

["camera","analog","analog-dome"]

Product availability may vary by region.
Please contact your regional representative.

Hanwha Vision is formerly known as Hanwha Techwin.

Product Specification

Video
Imaging DeviceSize1/2.8"
TypeCMOS
Resolution1920x1080
Max. Framerate(NTSC/PAL)30fps/25fps
Min. IlluminationColor(1/30sec, 30IRE)0.11
BW(1/30sec, 30IRE)0.011
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance500m(5C2V Coaxial Cable)
Lens
Focal Length (mm)3.2~10
Optical Zoom Ratio3.1x
Max Aperture Ratio (F number)Wide1.6
Angular Field of ViewHorizontal110.2°~32°
Vertical55.4°~18°
Diagonal128.4°~36.6°
Min. Object Distance0.5m(1.64ft)
Focus ControlManual
Lens TypeDC auto iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate RangePan0°~350°
Tilt0°~67°
Rotate0°~355°
Operational
Day & NightAuto(ICR)
Backlight CompensationHLC, WDR, BLC
Wide Dynamic Range (dB)120
Digital Noise ReductionSSNRⅣ
DefogSupport
Motion DetectionQuantity4ea
Privacy MaskingQuantity8ea
ShapeRectangular zones
Gain ControlVery High, Middle, High, Low
White BalanceATW, Manual, AWC, Outdoor, Indoor
Electronic ShutterSpeed Range1~1/12,000sec
Video RotationMirror, Flip
Alarm InterfaceIn/OutOutput 1ea
Alarm TriggersAnalytics
Alarm Events When Alarm Trigger OccurredAlarm output
IR Viewable Length20m(65.62ft)
Coaxial ProtocolACP, CVBS, TCP, CCP
Analytics
Analytics EventsNormalMotion detection
Environmental & Electrical
Operating ConditionTemperature-10°C~+55°C(+14°F~+131°F)
Humidity0~90% RH(non-condensing)
Input Voltage24VAC, 12VDC
Power Consumption12VDC6W
24VAC6W
Mechanical
ColorIvory
MaterialPC(Polycarbonate)
Product Dimensionsø119.8x98.5mm(4.72x3.88")
Product Weight330g(0.73lb)
