Speaker

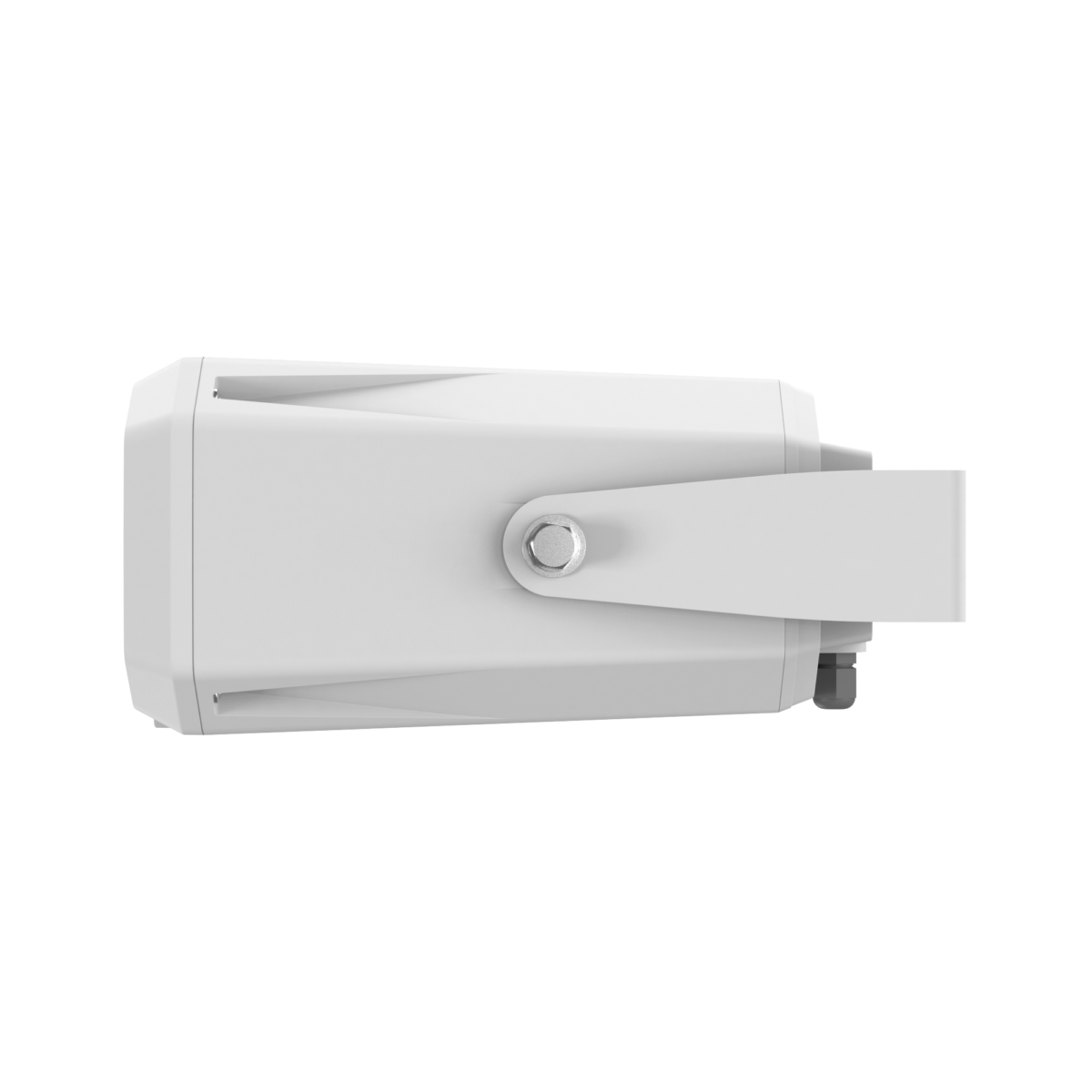

SPA-H100W
IP Horn Speaker
Key Features
• Amplifier: Built in 10W Class D
• Power: PoE(IEEE 802.3 af type 1 Class 3) , PoE+(IEEE 802.3 at type 2 Class 4)
• Internal memory: 1 GBytes
• Frequency Range (-10dB): 650Hz~5.3kHz
• Max. Sound Pressure Level : 124dB
• Sensitivity (1Watt): 111dB
• IP Code: IP66
• Supported Protocols: IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3)
• TTS: English(US, UK), German, French, Spanish, Russian
• Power: PoE(IEEE 802.3 af type 1 Class 3) , PoE+(IEEE 802.3 at type 2 Class 4)
• Internal memory: 1 GBytes
• Frequency Range (-10dB): 650Hz~5.3kHz
• Max. Sound Pressure Level : 124dB
• Sensitivity (1Watt): 111dB
• IP Code: IP66
• Supported Protocols: IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3)
• TTS: English(US, UK), German, French, Spanish, Russian
Product availability may vary by region.
Please contact your regional representative.
Hanwha Vision is formerly known as Hanwha Techwin.
Product Specification
| Product | |
|---|---|
| Type | IP Horn Speaker |
| Amplifier | |
| Description | Built in 10W Class D |
| Network | |
| Ethernet | 10/100 Base-T |
| Memory | |
| Internal Memory | 1 GBytes |
| Contact | |
| Contact Input. Dry contact | One channel |
| Contact Output. Dry contact (NO) | One channel |
| General | |
| Operating Temperature | -40℃ ~ +55℃ (-40°F ~ +131°F) (Cold start : -35℃/ -31°F) |
| Operating Humidity | 10~85% RH (Non-Condensing) |
| IP code | IP66 |
| Weight | 3.7Kg |
| Size | 241(W) x 155(H) x 307(D)mm |
| Color | White |
| Certificate | EMC : KS C 9832/9835, EN 55032/55035, FCC Part 15 Subpart B, ICES-003 Safety : KC 62368-1, UL 62368-1, CAN/CSA 62368-1 |
| Power | |
| PoE | PoE (IEEE 802.3 af type 1 Class 3) |
| PoE+ | PoE+(IEEE 802.3 at type 2 Class 4) |
| Embedded MIC | |
| Input Sensitivity | Sound Level Meter |
| Frequency Response | Sound Level Meter |
| Audio | |
| Audio streaming | Two way with half duplex mono |
| Supported Audio Format | WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Sampling rate from 16 kHz up to 48 kHz |
| Speaker | |
| Speaker Component | 1" HF Driver. Dome type |
| Max. Sound Pressure Level (PoE) | 121dB |
| Max. Sound Pressure Level (PoE+) | 124dB |
| Frequency Range (-10dB) | 650Hz~5.3kHz |
| Sensitivity (1Watt) | 111dB |
| Coverage Pattern | (HxV) : 130° X 160°(1kHz) / 30° X 50°(4kHz) |
| Network Protocol | |
| Security | Password protection : admin,setup,user,guest (sha-2, Digest authentication, User access log) Digest authentication, User access log, IP filtering, IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Supported Protocols | IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP, SNMP(v3) |
| System Integration | |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) |
| Multi-source Dynamic PA control | Multi-source up to 48 (Multicast) (Audio 24CH + Mic 24CH) (Up to 15 audio channels can be broadcast simultaneously) Up to 256 Zone Control (Multicast) Up to 20 Zone Control (Unicast) Up to 255 Groups |
| VoIP | Tested with SIP clients such as Grandstream, Yealink, Cisco, MicroSIP softphone and PBX supplier such as Asterisk Tested with SIP client such as Grandstream and PBX supplier such as Grandstream Supported SIP features: DTMF (RFC2833) Supported codecs: PCMU, PCMA, speex/8000, speex/16000 |
| TTS | English(US, UK), German, French, Spanish, Russian |
| Audio Monitoring | Speaker test by graphic level meter (Built in test tool) |
| Event & Preset | Virtual Contact, Dry contact |
| Functional Monitoring | Connection verification, Built-in system logging |
